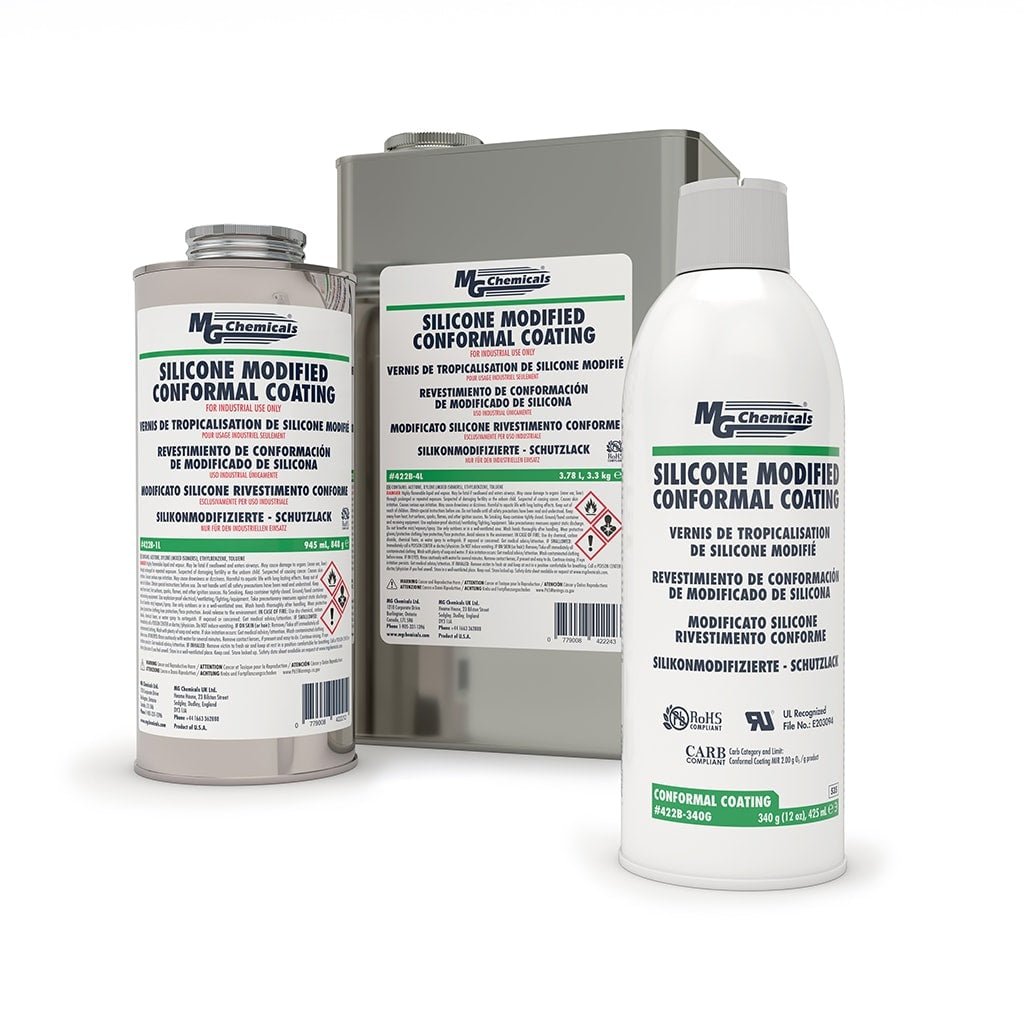

MG Chemicals 422B-4L, Silicone Modified Conformal Coating, 1 Gallon Can, Case of 1
MG Chemicals 422B-4L Silicone Modified Conformal Coating, 1 Gallon
MG Chemicals 422B is a 1-part acrylic-silicone blend conformal coating that cures to a durable, flexible, and smooth finish. Designed for applications requiring both high service temperature and flexibility, it puts minimum stress on components during thermal cycling — making it ideal for wide temperature range environments. Fluoresces under UV-A light for easy inspection.
Key Specifications
| Specification | Value |
|---|---|
| Part Number | 422B-4L |
| Type | Acrylic-silicone blend (1-part) |
| Volume | 3.78 L (1 gallon) |
| Tack-Free Time | ~8 minutes |
| Dry Time | 20 min at 65°C (149°F) |
| Max Service Temperature | 200°C |
| UV Fluorescence | Yes — fluoresces under UV-A light |
| Flame Rating | UL94 V-0 (File# E203094) |
| Compliance | IPC-CC-830, UL94 V-0 |
| Application Methods | Brush, spray, dip, selective robotic coating |
| Removable | Yes — with appropriate strippers or solder-through rework |
Key Features
- UL94 V-0 Certified — File# E203094
- High service temperature — rated to 200°C continuous
- Fast cure — tack-free in ~8 minutes; dry in 20 min at 65°C
- UV fluorescent — fluoresces under UV-A light for inspection verification
- Validated for selective robotic coating equipment
- Excellent corrosion resistance — protects against moisture, fungus, dirt, dust, thermal shock, short circuits, and static discharge
- Reworkable — can be removed with strippers or soldered through for repair
Frequently Asked Questions
What is the difference between 422B and standard acrylic conformal coatings?
422B is a silicone-modified acrylic, giving it a higher service temperature (200°C) and greater flexibility than standard acrylic coatings. It is better suited for applications with wide thermal cycling ranges or elevated operating temperatures.
Does 422B fluoresce under UV light?
Yes — 422B fluoresces under UV-A light, making it easy to verify coverage and inspect for missed areas or holidays during production.
Can 422B be used with selective robotic coating equipment?
Yes — 422B has been validated for selective robotic coating equipment, making it suitable for automated production lines.
Is 422B reworkable?
Yes — it can be removed with appropriate MG Chemicals strippers, or soldered through for component-level repair and rework.
What surfaces does 422B protect against?
422B protects PCBs and electronic assemblies against moisture, corrosion, fungus, dirt, dust, thermal shock, high-voltage arcing, and static discharge.
