Desco 19270, Combo Tester X3, With Dual Foot Plate
Desco 19270, Combo Tester X3, With Dual Foot Plate

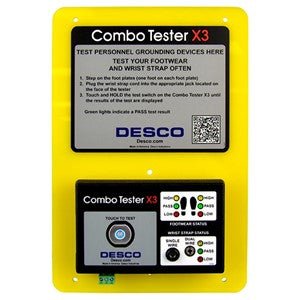

The Desco 19270 Combo Tester X3 with Dual Foot Plate is an advanced combination wrist strap and footwear ESD tester on the X3 platform — featuring integrated data logging, operator ID tracking, and a dual foot plate configuration for facilities where a freestanding stand is not the preferred installation format. It tests wrist straps and both foot grounders simultaneously, logs results with operator ID and timestamp, and exports data via USB for ANSI/ESD S20.20 audit trail documentation.
Specifications
| Spec | Value |
|---|---|
| SKU | 19270 |
| Brand | Desco |
| Platform | Combo Tester X3 |
| Test Functions | Wrist strap + footwear (combo) |
| Display | Pass/Fail LED indication |
| Data Logging | Yes — operator ID + timestamp |

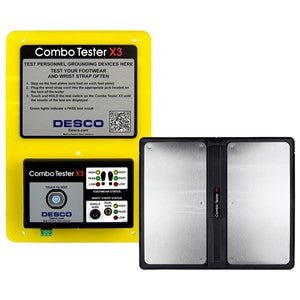

| Configuration | Dual foot plate (no stand) |
| Wrist Strap Test Range | 750 kΩ to 35 MΩ (with 1 MΩ resistor) |
| Footwear Test Range | 750 kΩ to 35 MΩ (per foot) |
| Compliance | ANSI/ESD S20.20, ANSI/ESD STM97.1 |
| Connectivity | USB data export |
| Power | AC adapter (included) |
| Stock Location | Canton, MA |
Key Features
- Dual Foot Plate Configuration: Floor-level foot plates for natural operator stance during testing — preferred in facilities where a stand-mounted tester is not practical.
- Data Logging with Operator ID: Records each test result with operator ID and timestamp for ANSI/ESD S20.20 audit trail documentation.
- X3 Platform: Advanced combo tester platform with enhanced logging and USB connectivity.
- Simultaneous Wrist Strap + Footwear Testing: Tests wrist strap and both foot grounders in a single test cycle.
- USB Data Export: Export test logs for record-keeping, audit preparation, and compliance documentation.
- Pass/Fail LED Indication: Clear, unambiguous pass/fail display for operators.
- ANSI/ESD S20.20 Compliant: Test ranges meet S20.20 personnel grounding verification requirements per ANSI/ESD STM97.1.
Frequently Asked Questions
What is the difference between the Desco 19270 and the Desco 19271?
Both are X3 platform combo testers with identical data logging, operator ID tracking, and USB export capabilities. The 19271 includes a stand for freestanding EPA entry point use. The 19270 uses a dual foot plate configuration — the foot plates sit on the floor and the tester head is mounted separately — preferred in facilities where a stand-mounted unit is not practical or where the layout requires a different installation format.
Is the Desco 19270 compliant with ANSI/ESD S20.20?
Yes. The 19270 test ranges meet ANSI/ESD S20.20 personnel grounding verification requirements, tested per ANSI/ESD STM97.1. The data logging capability supports the audit trail documentation requirements of a formal ANSI/ESD S20.20 ESD control program.
Does the Desco 19270 require a separate mounting surface?
The dual foot plate configuration places the foot plates on the floor. The tester head unit will require a mounting surface or bracket depending on your facility layout. Contact us if you need guidance on installation options for the 19270 in your specific EPA entry point configuration.
