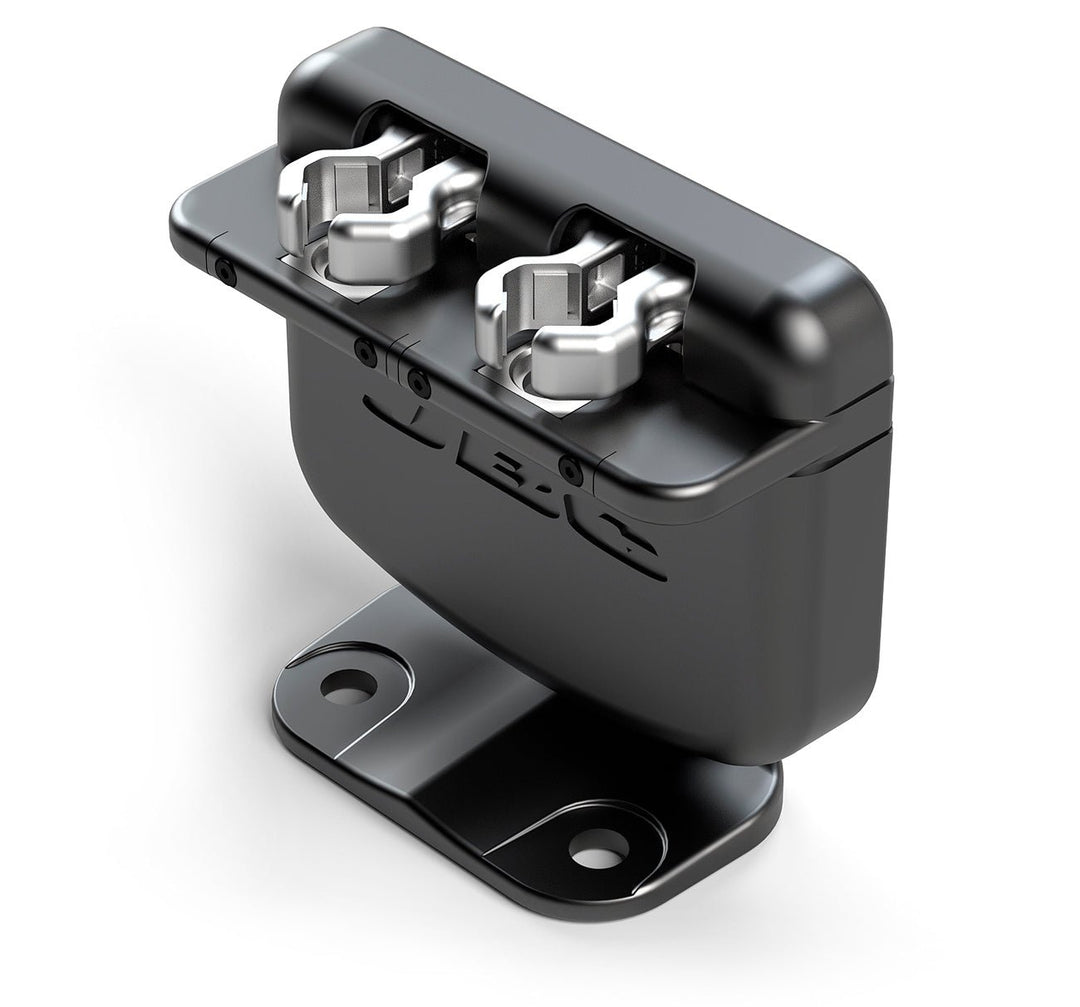

JBC Tools CS2R470-B, Cartridge Stand for R470

JBC Tools SKU: CS2R470-B
JBC Tools CS2R470-B, Cartridge Stand for R470

JBC Tools CS2R470-B, Cartridge Stand for R470

JBC Tools SKU: CS2R470-B
Regular price $2,821.88
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

JBC Tools CS2R470-B, Cartridge Stand for R470

For Automated Processes and Heavy Duty Purposes.

This Cartridge Exchanger is designed to be used in combination with TRA470 Cartridge Range.

The mechanism works with compressed air to fix and release the cartridges automatically.

In order to facilitate the automatic cartridges fixation and release, the position of the exchanger can be adjusted by pivoting up to 35° in both directions and can therefore be optimally adapted to the working position.

It can be combined with UCR470 Control Unit and R470 Cartridge Range.

For more Information about products for Automated Soldering Processes click here.

SPECIAL FEATURES
Cartridge compatibility: R470
Tool compatibility: TRA470
Control Box compatibility: UCR470
Gripper actuators: The two gripper actuators work as a cartridge magazine providing the robot with the ability of using different tip geometries or automatically changing the cartridge when the one being used wears out.
Poka-yoke holder: It allows placing the cartridges in a unique position on the holder to ensure tip position repeatability during soldering process.
Tilt adjustment: The cleaning unit allows 70° tilt adjustment to facilitate tip cleaning with Cartesian and SCARA robots.
DIMENSIONS AND WEIGHT
Package
21 x 136 x 126 mm / 1.05 kg.

0.83 x 5.35 x 4.96 in / 2.30 lb.
