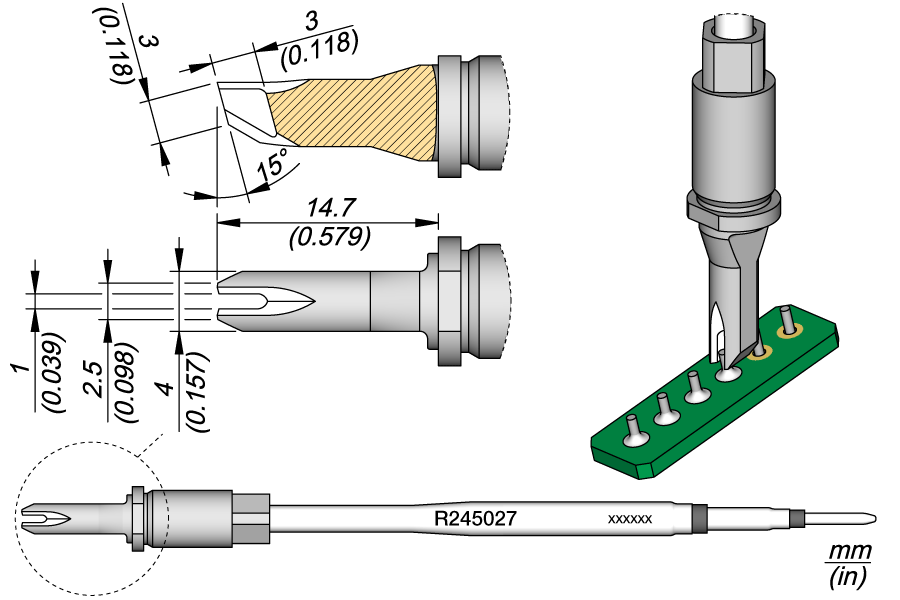

JBC Tools R245027, Cartridge Drag 1

This cartridge is designed for the use in Automated Soldering Processes.

It is appropriate for Through-Hole drag soldering connectors or components, even with pins connected to ground planes.

The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

R245027 fits TR245 General Soldering Tool and TRA245 Automatic General Soldering Tool.

SPECIFICATIONS
