JBC Tools C245654, Cartridge Drag 0.75 L
JBC Tools C245654 – Cartridge Drag 0.75 L
The JBC C245654 is a long life drag soldering cartridge with a 0.75L tip geometry, designed for through-hole drag soldering and high-power applications such as ground plane soldering. Part of JBC's C245 cartridge range — the widest in the JBC lineup — it is 20mm longer than the C245754 and works with T245 handpieces. Features JBC's instant heat-up technology and excellent heat transfer for consistent, reliable drag solder joints.
Sold individually.
Specifications
| Part Number | C245654 |

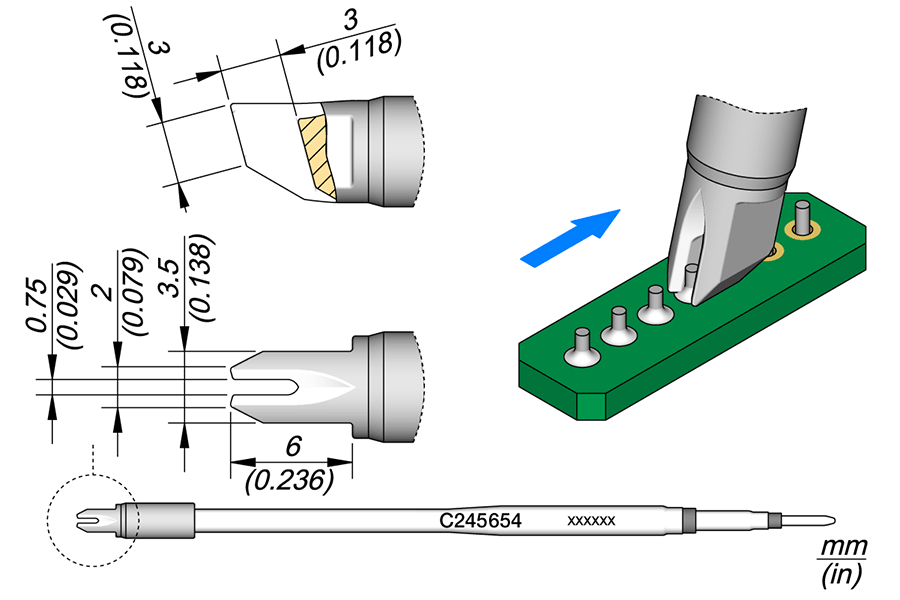

| Tip Geometry | Drag, 0.75 L |
| Cartridge Series | C245 |
| Compatible Handpieces | T245 series |
| Tip Type | Long Life |
| Length vs C245754 | 20mm longer |
| Net Weight | 0.009 kg (0.02 lb) |
| Package Dimensions | 110 × 12 × 12 mm (4.33 × 0.47 × 0.47 in) |
| Package Weight | 0.01 kg (0.03 lb) |
| Manufacturer | JBC Tools |
Frequently Asked Questions
What is drag soldering and when is the C245654 the right cartridge?
Drag soldering is a technique where a loaded soldering tip is dragged across a row of through-hole or surface-mount pins in a single pass, using flux and tip geometry to bridge and wick solder cleanly. The C245654’s 0.75L drag tip is optimized for through-hole component leads and high-power pads such as ground planes, where sustained heat delivery and good solder flow are critical.
What is the difference between the C245654 and the C245754?
The C245654 is 20mm longer than the C245754. The additional length provides more clearance for tall components or connectors adjacent to the drag soldering area, and can improve ergonomics when working on densely populated boards. Both use the same 0.75L drag tip geometry and are compatible with T245 handpieces.
Which JBC handpieces and stations are compatible with C245 cartridges?
C245 cartridges are compatible with JBC T245 handpieces, which work with a wide range of JBC soldering stations including the DDE, DDU, DDSE, and other dual-port stations. Refer to the T210/T245/T470 Handles Manual for full compatibility details.
