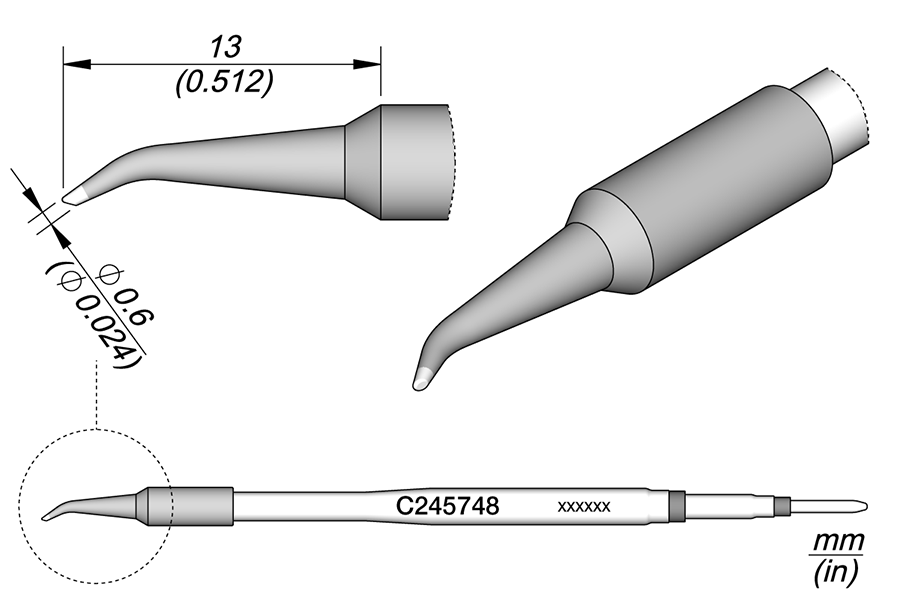

The JBC C245748 is a bevel bent 0.6mm (S1) soldering cartridge from the JBC C245 series. The bent bevel geometry combines the flat face of a bevel tip — which provides good surface contact and heat transfer — with a bent angle that allows access to joints behind tall components or in confined PCB areas. The C245748 is the bent version of the C245-747 straight bevel cartridge. The 0.6mm tip is suited for fine SMD components, small-pitch connectors, and precision rework. Works with JBC T245 handpieces. Features JBC’s instant heat-up and Long Life tip construction for 5× longer tip life than competing brands when used with JBC’s Sleep & Hibernation system.

Key Specifications

Key Features

• Bevel bent geometry (S1) — bent version of the C245-747; the bevel face provides excellent surface-to-pad contact and heat transfer while the bent angle accesses joints that a straight bevel cannot reach
• 0.6mm tip diameter — fine tip suitable for 0402/0603 SMD components, fine-pitch connector leads, and precision rework requiring controlled heat delivery to small pads
• Bent access angle — ideal for joints behind tall components, in board corners, adjacent to connectors, or wherever a straight tip forces awkward wrist positioning
• JBC Long Life tip construction — 5× longer tip life than competing brands when used with JBC’s Sleep & Hibernation system; instant heat-up and excellent heat transfer for consistent results
• T245 handle compatible — works with all JBC T245 handpieces and T245-compatible soldering stations

Frequently Asked Questions

What is the difference between the C245748 and the C245-747?
The C245748 is the bent version of the C245-747 straight bevel cartridge. Both share the same 0.6mm bevel tip geometry, but the C245748 has an angled shaft that allows the tip to approach joints from the side — useful when a straight tip cannot reach the joint due to surrounding components or board layout constraints. If access angle is not a concern, the straight C245-747 may be slightly easier to control for straightforward work.

What JBC stations and handles is the C245748 compatible with?
The C245748 is compatible with all JBC T245 handpieces, including the T245-A General Purpose Handle, and works with T245-compatible JBC stations including the CD-2BE, DDSE, DSSE, DDE, and DI control units. Verify your station supports T245 handpieces before ordering.

What is the S1 designation on the C245748?
The S1 designation refers to the specific bend angle and geometry variant within JBC’s bevel bent cartridge family. JBC uses S1, S2 and other suffixes to distinguish tip variants with different bend angles or minor geometry differences. The C245748 S1 and C245749 S2 are companion variants — S1 and S2 refer to different bend orientations, allowing the operator to choose the angle that best suits their dominant hand or specific joint orientation.

Is the 0.6mm bevel tip suitable for fine-pitch SMD work?
Yes — the 0.6mm bevel tip works well for 0402 and 0603 SMD pads, QFP and SOP leads at standard pitches, and small connector pins. The bevel face provides more pad contact area than a conical tip of the same diameter, which improves heat transfer to the pad for more reliable reflow. For 0201 or finer work, a narrower conical may be preferred.

How does JBC’s Sleep & Hibernation system extend tip life on the C245748?
JBC stations automatically reduce tip temperature when the iron is idle (Sleep) and drop further into Hibernation after extended idle periods. This reduces oxidation and flux carbonization — the primary causes of tip wear. Combined with the Long Life tip construction, this results in tip life up to 5× longer than competing systems, significantly reducing tip replacement frequency and cost.
