Aven Tools 26700-221-557 ClearVue 2.0 Digital Microscope with FlexArm Stand and Table Clamp
Aven Tools 26700-221-557 ClearVue 2.0 Digital Microscope with FlexArm Stand and Table Clamp

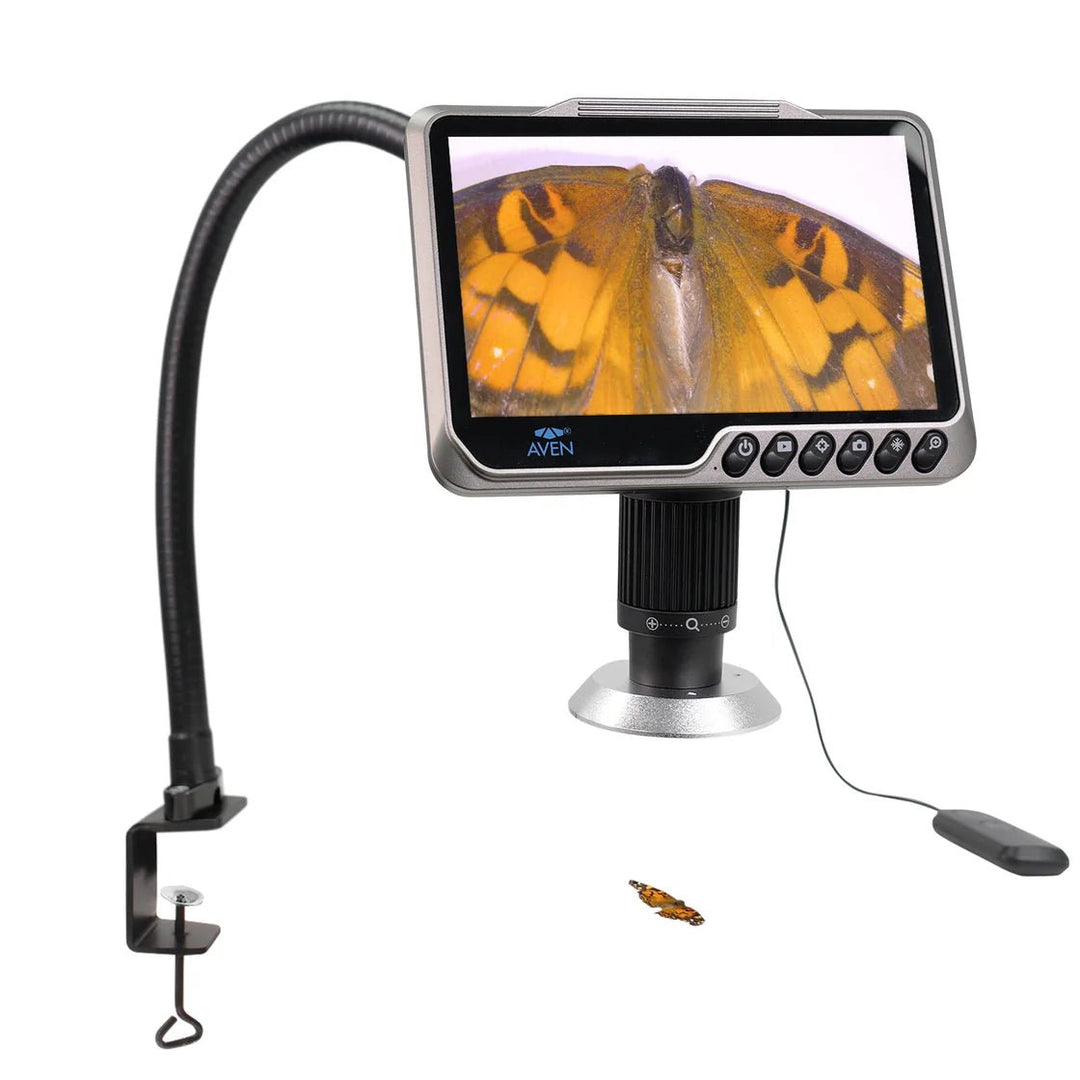

The Aven 26700-221-557 ClearVue 2.0 combines a Full HD digital microscope with an 8-inch IPS display and two mounting options: an approximately 18-inch FlexArm with 360-degree ball joint and table clamp, plus an adjustable metal ring-rack post stand with base. Choose flexible positioning at a workbench or a separate base-mounted inspection setup without purchasing a second microscope.
The 2 MP Sony CMOS sensor provides 1920 × 1080 imaging at 30 FPS. A diffuser helps soften reflections on shiny parts, and the shutter-release cable lets you capture images without reaching for the microscope controls. A rechargeable battery, 32 GB MicroSD card, USB-C cable and HDMI cable are included.
Best Uses / Applications
- Electronics inspection of circuit boards, solder joints, wiring and connectors.
- Positioning a microscope over work using the table-clamped FlexArm.
- Base-mounted inspection of small mechanical parts and reflective surfaces.
- Capturing observations for quality-control records and component comparisons.
- Classroom demonstrations, collectibles, jewelry and detailed craft work.
Key Features
- Two included stands: FlexArm with ball joint/table clamp and metal ring-rack post stand.
- Built-in 8-inch IPS TFT LCD for eyepiece-free viewing.
- 2 MP sensor, Full HD 1920 × 1080 imaging and 30 FPS.
- Manufacturer-listed 2.5X–15X and 60X magnification.
- Included diffuser for softer reflected illumination.
- Rechargeable 2550 mAh 18650 lithium-ion battery.
- 32 GB MicroSD storage and shutter-release cable included.
- USB-C and HDMI connectivity for flexible viewing arrangements.
Technical Specifications
| Manufacturer / model | Aven Tools / 26700-221-557 |
|---|---|
| Microscope | ClearVue 2.0 |
| Sensor | 2 MP, 1/2.8-inch Sony CMOS |
| Effective pixels | 1920 × 1080 |
| Display | 8-inch IPS TFT LCD |
| Frame rate | 30 FPS |
| Listed magnification | 2.5X–15X and 60X; see manufacturer optical data for setup conditions |
| Smallest observable object size | Manufacturer-listed 0.01 mm; not a measurement-accuracy specification |
| Battery | 2550 mAh 18650 lithium-ion, included |
| Power adapter input | 100–240 V, 50/60 Hz, 0.4 A |
| Power adapter output | 5 V, 2.0 A, 10 W maximum |
| Microscope dimensions | 199 × 213 × 104 mm / 7.83 × 8.39 × 4.09 inches |
| Post stand base | 250 × 210 mm / 9.84 × 8.27 inches |
| Post height | 257 mm / 10.12 inches |
| FlexArm length | Approximately 18 inches |
| FlexArm joint | 360-degree ball joint |
| Maximum table clamp opening | Specification table: approximately 2 inches; confirm fit before ordering |
| Manufacturer-listed weight | Approximately 480 g / 1.06 lb; not identified as complete-kit shipping weight |
| Connections | USB-C and HDMI |
| Storage included | 32 GB MicroSD card |
| Manufacturer-listed origin | Taiwan |
Clamp-fit clarification: The manufacturer's package narrative mentions a 2.5-inch table clamp, while the dedicated specification table gives an approximately 2-inch maximum opening. Confirm the actual clamp clearance with Aven before ordering for a thick work surface. Working distance and field of view are referenced to optical data not supplied here; no numeric values are inferred.
Included Kit Contents
- ClearVue 2.0 digital microscope with built-in 8-inch display.
- Approximately 18-inch FlexArm stand with 360-degree ball joint and table clamp.
- Adjustable metal ring-rack post stand with metal base.
- Type-C USB cable and HDMI cable.
- Power adapter.
- 2550 mAh 18650 lithium-ion rechargeable battery.
- 32 GB MicroSD card.
- Snapshot/shutter-release cable.
- Diffuser.
- User guide and manual.
Choosing a Mounting or Viewing Setup
| Option | Best use | Consideration |
|---|---|---|
| Included FlexArm | Flexible positioning over a workbench | Confirm table-clamp clearance and suitability |
| Included post stand | Separate base-mounted inspection station | Adjust height for subject and magnification |
| Built-in display | Direct viewing at the microscope | No external monitor required |
| HDMI external display | Shared viewing or demonstrations | Compatible external display purchased separately |
Frequently Asked Questions
Does this kit include both stands?
Yes. Aven lists the FlexArm with table clamp and the separate metal ring-rack post stand with base.
How long is the FlexArm?
The specification table lists approximately 18 inches, with a 360-degree ball joint described in the product information.
What table thickness can the clamp accommodate?
The specification table gives approximately 2 inches maximum opening, but the narrative mentions 2.5 inches. Confirm actual clearance before ordering.
Is an external monitor required?
No. The microscope has a built-in 8-inch IPS display. HDMI supports a compatible larger display when needed.
What magnification is listed?
Aven lists 2.5X–15X and 60X. Check its optical data for working distance, field of view and setup conditions.
Does 0.01 mm specify measurement accuracy?
No. It is listed as the smallest observable object size, not a calibrated measurement-accuracy rating.
Can I save images?
Yes. The kit includes a 32 GB MicroSD card and shutter-release cable for capture.
Is it rechargeable?
Yes. A 2550 mAh 18650 lithium-ion battery and power adapter are included. Runtime is not specified in the supplied information.
Does USB-C imply included computer measurement software?
No. The supplied contents do not identify measurement software or supported computer operating systems.
