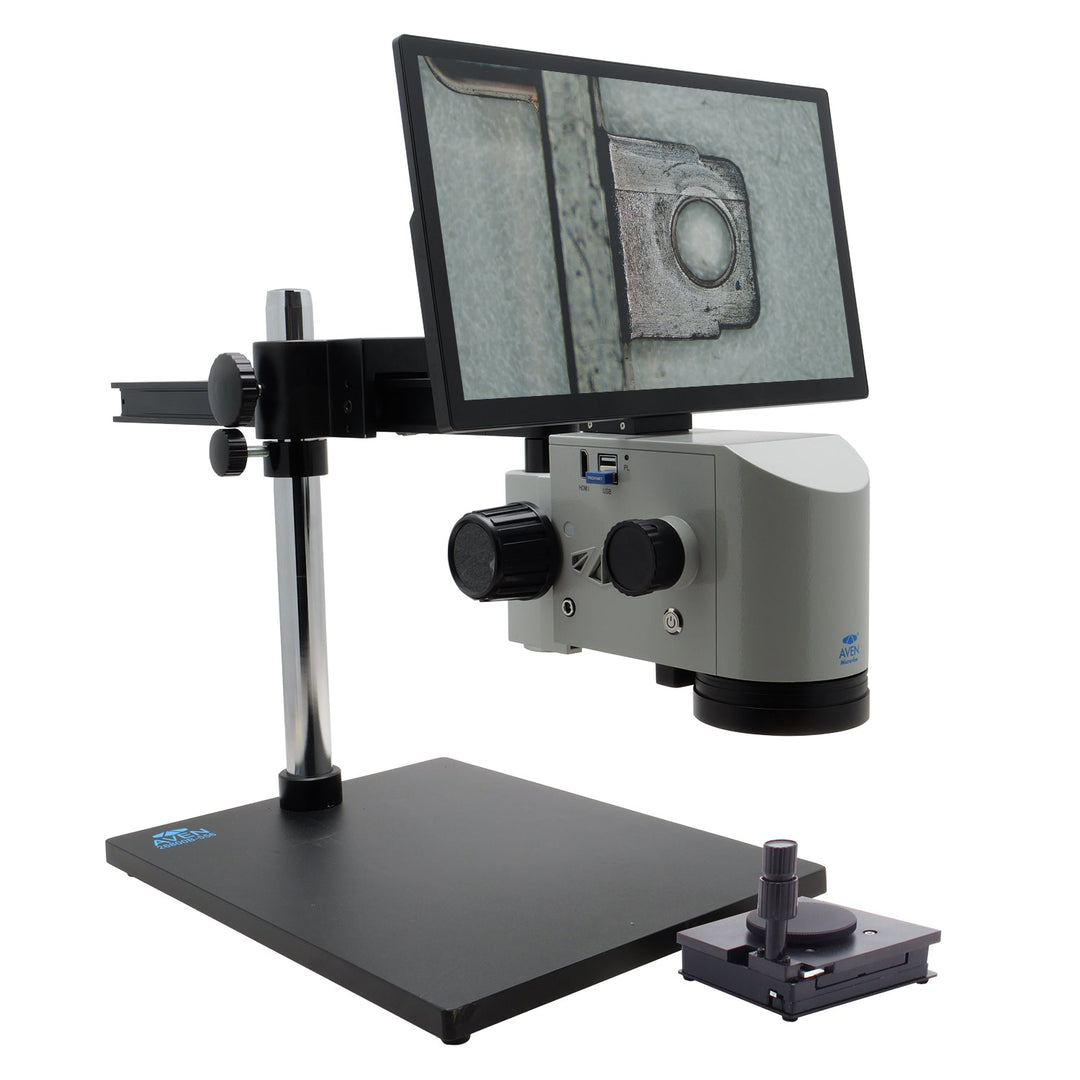

The Aven Tools 26700-141-556XYR MicroVue 2.0 combines an all-in-one digital microscope with an Ultra Glide boom stand and compact X/Y/R gliding stage. Move the microscope across the inspection area with the boom, then position and rotate the workpiece using the stage. An integrated 13.3-inch HD monitor, Full HD camera, magnetic LED ring light and measurement tools support inspection and documentation without a computer.
Best Uses / Applications
- PCB and electronics inspection: Examine accessible solder joints, component placement, connector contacts and surface details.
- Larger sample navigation: Use the Ultra Glide boom to reposition the microscope across an assembly, subject to available clearance.
- Small-part positioning: Scan and rotate samples with the included X/Y/R stage rather than repeatedly lifting the workpiece.
- Production quality control: Document visible defects and compare inspection findings using saved images and video.
- Laboratory analysis: Measure calibrated image features and add annotations directly on screen.
- Training and collaborative review: View on the built-in screen or share live images through HDMI.
Key Features
- Built-in 13.3-inch HD monitor with 31% more screen area than the original MicroVue.
- 20.7x–133.4x displayed magnification on the integrated monitor without optional lenses.
- 1/2.8-inch Sony CMOS sensor with 1920 x 1080 live imaging at 60 fps.
- Quick-swap magnetic LED ring light with selectable LED quadrants.
- Ultra Glide boom stand with heavy metal base and safety collar.
- Compact X/Y/R stage with 70 mm X travel, 30 mm Y travel and 360° rotation.
- Coarse and fine focus controls; built-in measurement and annotation tools.
- USB and MicroSD storage support, plus HDMI external-display output.
Microscope Specifications
| Specification | Details |
|---|---|
| Manufacturer / System SKU | Aven Tools / 26700-141-556XYR |
| Platform | MicroVue 2.0 / 26700-141 |
| Configuration | Ultra Glide boom stand and compact X/Y/R gliding stage |
| Display | Built-in 13.3-inch HD monitor |
| Displayed magnification | 20.7x–133.4x on the built-in monitor without optional lenses |
| Sensor / Pixel size | 1/2.8-inch Sony CMOS / 3.75 x 3.75 micrometers |
| Live image | 1920 x 1080 at 60 fps |
| Image / Video capture | 2-million-pixel still images / 1080p video |
| Illumination | Magnetic LED ring light with quadrant control |
| Focus | Coarse and fine adjustment |
| Connections | HDMI, USB mouse, USB storage and MicroSD card port |
| Measurement tools | Straight, broken-line and curve length; parallel-line and point-to-line distance; circle functions; polygon and rectangle area |
| Annotations | Coordinates, reticle and text |
| Image controls | Horizontal/vertical mirror, monochrome, freeze and contrast |
| Power | DC 12 V with supplied adapter |
Ultra Glide Stand and X/Y/R Stage Specifications
| Component | Specification | Details |
|---|---|---|
| Ultra Glide stand | Base size | 15 x 10.5 inches |
| Ultra Glide stand | Base weight | 35 lb, base only |
| Ultra Glide stand | Vertical post length | 13.5 inches |
| Ultra Glide stand | Vertical post diameter | 37.2 mm |
| Ultra Glide stand | Extension post length | 225 mm |
| Ultra Glide stand | Horizontal arm length | 23 inches |
| X/Y/R stage | Base dimensions | 135 x 120 x 93 mm |
| X/Y/R stage | Rotating stage diameter | 73 mm |
| X/Y/R stage | X / Y / Rotation | 70 mm / 30 mm / 360° |
| X/Y/R stage | Rotating component / Base material | Aluminum alloy / Plastic |
| X/Y/R stage | Weight | 1.76 lb, stage only |
Stand dimensions describe the mechanical hardware, not optical working distance or guaranteed usable reach. Stage load capacity and numerical measurement accuracy are not specified in the supplied material.
Included Equipment
- MicroVue 2.0 digital microscope with integrated camera and 13.3-inch monitor.
- Magnetic LED ring light.
- Ultra Glide boom stand with heavy metal base.
- Compact X/Y/R gliding stage.
- DC 12 V power adapter.
- Wireless USB mouse; two AAA batteries required, not included.
- USB flash drive, assembly tools and guide, dust cover, calibration scale and user manual.
This bundle is specified with the Ultra Glide boom stand. The manufacturer's generic contents panel also lists track-stand parts; an additional track stand is not promised here.
Configuration and Optional Accessory Comparison
| Equipment | Purpose | Included? |
|---|---|---|
| Ultra Glide boom stand | Reposition the microscope across the inspection area | Yes |
| X/Y/R gliding stage | Move and rotate the sample under the microscope | Yes |
| Magnetic LED ring light | Visible-light illumination with quadrant selection | Yes |
| 365 nm UV ring light | Inspect suitable fluorescent coatings, markings and materials | No |
| 0.5x lens | Increase working distance and field of view | No |
| 2.0x lens | Extend magnification | No |
| 360 Viewer | 35° angled viewing; engaged mode applies a 0.5x reduction | No |
Frequently Asked Questions
What distinguishes SKU 26700-141-556XYR?
This configuration includes both the Ultra Glide boom stand and compact X/Y/R stage, combining microscope positioning with controlled sample navigation.
How does the boom differ from the stage?
The boom moves the microscope over the inspection area. The stage moves the workpiece in X and Y and rotates it beneath the microscope.
What movement does the stage provide?
The supplied specifications list 70 mm X travel, 30 mm Y travel and 360° rotation, with a 73 mm rotating stage diameter.
Is a computer required?
No. The integrated monitor and built-in tools support standalone inspection, measurement and capture.
Is this Full HD or 4K?
The camera provides Full HD live imaging at 1920 x 1080 and 60 fps, not 4K.
What magnification is available?
The standard displayed range is 20.7x–133.4x on the built-in monitor without optional lenses. Accessory lenses and the angled viewer change the viewing configuration.
Can I save images and video?
Yes. Capture 2-million-pixel still images and 1080p video using USB storage or MicroSD. A USB flash drive is included.
Can I measure components on screen?
Yes. Built-in tools cover length, distance, circle and area measurements plus annotations. Follow the manufacturer's calibration procedure using the supplied scale.
Is the 360 Viewer included?
No. The stage's 360° rotation turns the sample; it does not provide the angled viewing of the separately sold 360 Viewer.
Is the UV ring light included?
No. The standard LED ring light is included. The optional 365 nm UV ring light is described for fluorescent-material inspection, not UV curing.
