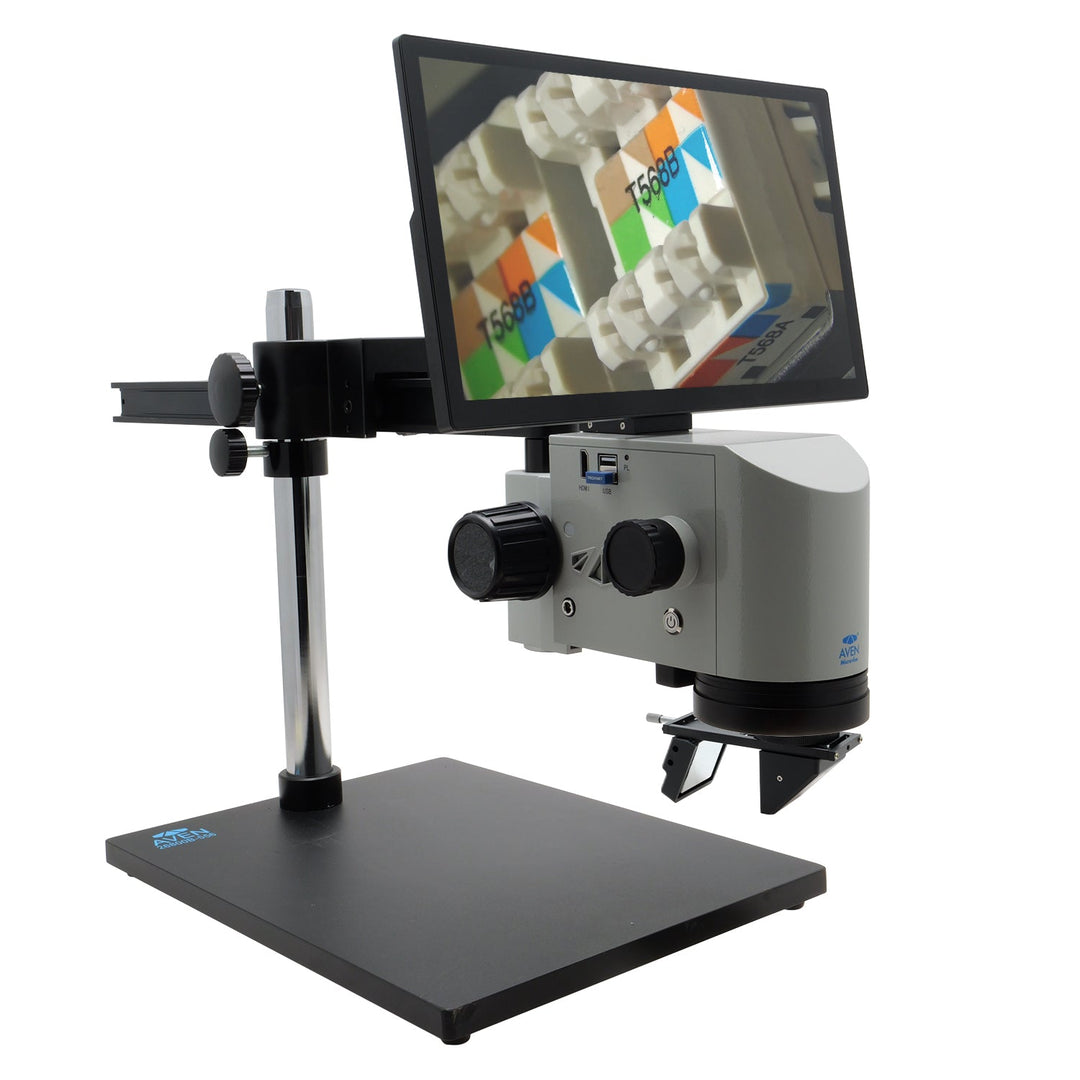

Aven Tools 26700-141-5563D MicroVue 2.0 Digital Microscope with Ultra Glide Boom Stand and 360 Viewer
Aven Tools 26700-141-5563D MicroVue 2.0 Digital Microscope with Ultra Glide Boom Stand and 360 Viewer
The Aven Tools 26700-141-5563D MicroVue 2.0 combines standalone digital inspection with flexible microscope positioning and angled viewing. This bundle includes an Ultra Glide boom stand and MicroVue 2.0 360 Viewer, along with a built-in 13.3-inch HD monitor, Full HD CMOS camera and magnetic LED ring light. Inspect, measure and capture images at the bench without requiring a computer.
Glide the microscope into position over the workpiece, adjust the focus, then rotate the viewer to examine visible side features from different directions. The integrated screen keeps the live image in view, while selectable lighting quadrants help change contrast across the inspection area.
Best Uses / Applications
- PCB and electronics inspection: Examine visible solder joints, component placement, connector contacts and board surface details.
- Angled inspection of assemblies: Use the rotating viewer to examine accessible side profiles on connectors, layered parts and small assemblies.
- Production quality control: Position the microscope over successive inspection areas and document visible defects.
- Repair documentation: Save before-and-after images or video directly to removable storage.
- Laboratory feature analysis: Use calibrated on-screen measurements and annotations to document sample geometry.
- Training and shared review: View on the integrated monitor or share the live image through HDMI to an external display.
Key Features
- Built-in 13.3-inch HD monitor with 31% more screen area than the original MicroVue.
- 20.7x–133.4x displayed magnification on the built-in monitor without optional lenses.
- 1/2.8-inch Sony CMOS sensor with 1920 x 1080 live imaging at 60 fps.
- Included Ultra Glide arm stand for horizontal and vertical positioning.
- Included 360 Viewer with a 35-degree angled mirror and 360-degree rotation.
- Quick-swap magnetic LED ring light with selectable LED quadrants.
- Coarse and fine focus controls.
- Built-in measurement, reticle, coordinates and text annotations.
- Still-image and 1080p video capture to USB storage or MicroSD card.
- HDMI output for an external display.
Microscope Specifications
| Manufacturer / Bundle SKU | Aven Tools / 26700-141-5563D |
|---|---|
| Platform | MicroVue 2.0 / 26700-141 |
| Bundle configuration | Ultra Glide boom stand and MicroVue 2.0 360 Viewer |
| Display | Built-in 13.3-inch HD monitor |
| Standard displayed magnification | 20.7x–133.4x on the built-in monitor without optional lenses |
| Camera sensor | 1/2.8-inch Sony CMOS |
| Live image / Frame rate | 1920 x 1080 / 60 fps |
| Pixel size | 3.75 x 3.75 micrometers |
| Still-image capture | 2 million pixels |
| Video recording | 1080p |
| Included illumination | Magnetic LED ring light with quadrant selection |
| Focus | Coarse and fine adjustment |
| Connections | HDMI, USB mouse, USB storage and MicroSD card port |
| Length and distance measurement | Straight, broken-line and curve length; parallel-line and point-to-line distance |
| Geometry tools | Circle functions; polygon and rectangle area |
| Marking tools | Point coordinates, reticle and text annotation |
| Image controls | Horizontal/vertical mirror, monochrome, image freeze and contrast |
| Power | DC 12 V with power adapter |
Stand and 360 Viewer
The Ultra Glide arm stand provides gliding horizontal movement and vertical adjustment with a heavy base and all-metal construction. Stand movement positions the microscope over the workpiece; it is separate from optical working distance.
| Viewer compatibility | MicroVue 2.0 digital microscope 26700-141 |
|---|---|
| Viewer engaged | 35-degree viewing angle, reduced magnification and increased field of view |
| Viewer disengaged | No viewer-induced change to angle, magnification or field of view |
| Viewer rotation | 360 degrees |
| Viewer dimensions | 5.5 x 2 x 1.5 inches |
| Viewer weight | 0.55 lb |
The 20.7x–133.4x range describes standard displayed magnification. Engaging the angled viewer reduces magnification and increases field of view. Calibrate measurement tools for the optical configuration in use; numerical measurement accuracy is not specified in the supplied material.
Included Configuration and Optional Accessories
This bundle includes the MicroVue 2.0 digital microscope with integrated camera and display, magnetic LED ring light, Ultra Glide arm stand and MicroVue 2.0 360 Viewer. The supplied platform accessory list also identifies a DC 12 V adapter, wireless USB mouse, USB flash drive, assembly tools and guide, dust cover, calibration scale and user manual. The mouse requires two AAA batteries, not included.
The 365 nm UV ring light, 0.5x lens, 2.0x lens and compact X/Y/R gliding stage are optional, not included in this configuration. The 0.5x lens extends working distance and expands field of view; the 2.0x lens increases magnification. Confirm accessory compatibility for the intended configuration before ordering.
Configuration Comparison
| Configuration / Option | What It Adds |
|---|---|
| This 26700-141-5563D bundle | Ultra Glide microscope positioning plus rotating angled viewing with the included 360 Viewer. |
| Standard MicroVue 2.0 platform | Integrated display, camera, LED lighting, measurement and capture functions; check the selected bundle for stand and accessories. |
| Optional X/Y/R stage | Moves the sample in X, Y and rotation rather than moving only the microscope. |
| Optional 365 nm UV ring light | Supports inspection of suitable fluorescent materials, coatings and markings; not standard included illumination. |
| Optional 0.5x or 2.0x lens | Changes working distance, field of view or magnification depending on the selected lens. |
Frequently Asked Questions
Does the 26700-141-5563D require a computer?
No computer is required for the standalone viewing, built-in measurement and direct image/video capture functions. The system has its own display and camera.
What camera and lighting are included?
The system uses a 1/2.8-inch Sony CMOS camera with Full HD live imaging at 60 fps. A magnetic LED ring light with selectable lighting quadrants is included.
Is this a 4K microscope?
The supplied specifications identify 1920 x 1080 live imaging and 1080p video, not 4K.
What does the 360 Viewer do?
Its 35-degree angled mirror rotates through 360 degrees to change the inspection direction around visible features. Engaging it reduces magnification and increases field of view. It is an angled-view attachment, not a claim of 3D reconstruction.
What is the magnification range?
Standard displayed magnification is 20.7x–133.4x on the built-in monitor without optional lenses. The viewer and optional lenses change the optical configuration.
Can I save images and video?
Yes. Capture still images and 1080p video to USB storage or a MicroSD card. HDMI supports live viewing on an external display.
Is the UV ring light included?
No. The standard magnetic LED ring light is included; the 365 nm UV ring light is optional.
Does this bundle include an X/Y/R gliding stage?
No. This configuration includes the Ultra Glide stand and 360 Viewer. An X/Y/R stage is a separate option for controlled sample movement.
Can the microscope make measurements?
Built-in tools support length, distance, circle and area measurements, coordinates, reticles and text. Calibrate for the configuration in use and validate suitability for your measurement requirements.
