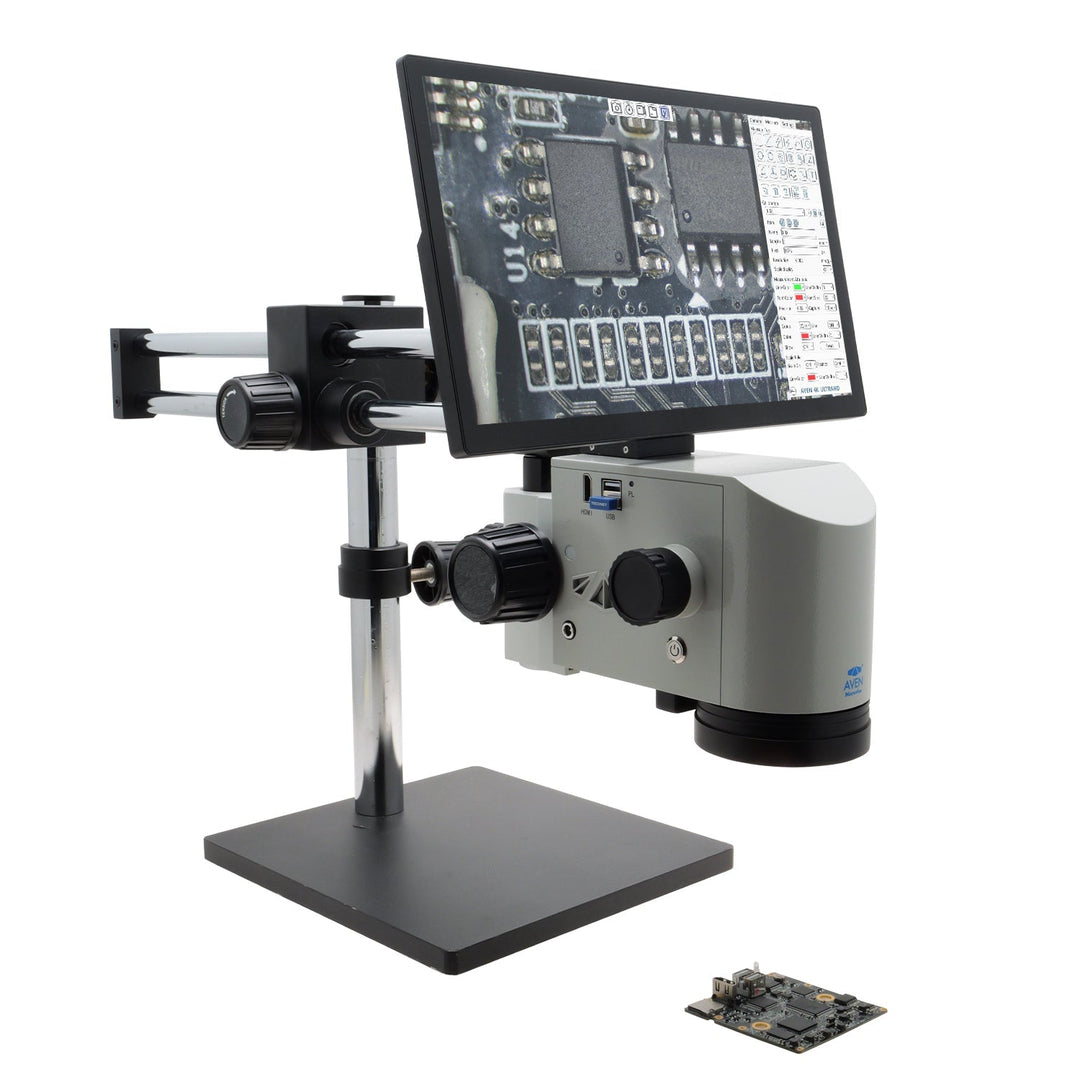

Aven Tools 26700-141-534 MicroVue Digital Microscope (21x–133x) with Double Arm Boom Stand
Aven Tools 26700-141-534 MicroVue Digital Microscope (21x–133x) with Double Arm Boom Stand
The Aven 26700-141-534 MicroVue 2.0 is an all-in-one digital inspection system with a built-in 13.3-inch monitor and double arm boom stand. Its 20.7x–133.4x magnification range is based on the built-in display without optional lenses. Integrated measurement tools and image/video capture let operators inspect, document and share findings without a computer. The double arm stand uses a ball-bearing slide to move the microscope over and across a stationary workpiece.
Best Uses / Applications
- Electronics and PCB inspection: Examine components, solder joints and board details on the integrated monitor.
- Production quality control: Capture images and video to document visible defects and inspection findings.
- Laboratory and research work: View small features and use built-in measurement and annotation tools.
- Stationary-workpiece inspection: Move the microscope across the object using the double arm boom stand rather than repeatedly moving the object.
- Collaborative review: Connect an external monitor through HDMI for shared viewing.
- Fluorescent-material inspection: Add the optional 365 nm UV ring light for suitable fluorescent coatings, materials and markings; sold separately.
Key Features
- Built-in 13.3-inch monitor with 31% more screen area than the original MicroVue.
- 20.7x–133.4x magnification on the built-in monitor without optional lenses.
- 1/2.8-inch Sony CMOS sensor and Full HD imaging.
- 1920 x 1080 output at 60 frames per second.
- Quick-swap magnetic LED ring light with selectable LED quadrants for targeted illumination.
- Built-in measurement, reticle and text-annotation functions.
- HDMI external-monitor output, USB connectivity and MicroSD card slot.
- Save still images and video to USB storage or MicroSD without a computer.
- Double arm boom stand with ball-bearing slide and heavy metal base.
Digital Microscope Specifications
| Specification | Details |
|---|---|
| Manufacturer / System SKU | Aven Tools / 26700-141-534 |
| Microscope model | MicroVue 2.0 / 26700-141 |
| Configuration | Double arm boom stand |
| Built-in display | 13.3 inches |
| Displayed magnification | 20.7x–133.4x on built-in monitor, without optional lenses |
| Sensor | 1/2.8-inch Sony CMOS |
| Image format / Frame rate | Full HD, 1920 x 1080 at 60 fps |
| Pixel size | 3.75 x 3.75 micrometers |
| Still-image capture | 2 million pixels |
| Video recording | 1080p |
| Connections | HDMI, USB mouse, USB storage, MicroSD card port |
| Illumination | Magnetic LED ring light with quadrant selection |
| Marking / Annotation | Point coordinates, reticle, coordinates and text annotation |
| Length tools | Straight, broken-line and curve length; parallel-line distance; point-to-line distance |
| Geometry tools | Circle and concentric-circle functions; polygon and rectangle area |
| Other image functions | Horizontal/vertical mirror, monochrome, image freeze and contrast |
| Power | DC 12 V; power adapter supplied |
Double Arm Boom Stand Specifications
| Specification | Details |
|---|---|
| Movement | Ball-bearing slide for positioning over and across the workpiece |
| Base dimensions | 285 x 260 x 18 mm |
| Vertical post length | 380 mm / 15 inches |
| Vertical post diameter | 37.2 mm |
| Horizontal arm diameter | 20 mm |
| Focus mount hole diameter | 15.875 mm / 5/8 inch |
Included Equipment and Optional Accessories
This configuration includes the MicroVue 2.0 digital microscope and double arm boom stand. The supplied product information also identifies a magnetic LED ring light, DC 12 V power adapter, wireless USB mouse, USB flash drive, assembly tools and guide, dust cover, calibration scale and user manual. The wireless mouse requires two AAA batteries, not included. Track-stand components shown in the general MicroVue contents table are not presented here as included equipment for this boom-stand configuration.
| Optional accessory | Purpose |
|---|---|
| 365 nm UV ring light | Inspection of suitable fluorescent materials, coatings and markings |
| 0.5x lens | Increases working distance and expands field of view |
| 2.0x lens | Extends magnification for detailed inspection |
| XYR stage | X/Y scanning and 360-degree rotation |
| 360 Viewer attachment | 35-degree mirror for angled inspection; on position gives 0.5x reduction, off position gives standard overhead viewing without reduction |
These optional accessories are sold separately. No numerical working distance or measurement-accuracy rating is specified in the supplied material.
Configuration Comparison
| Consideration | This double arm boom configuration | Track-stand configuration |
|---|---|---|
| Positioning | Ball-bearing slide moves microscope over and across the workpiece | Dedicated track-post and base arrangement |
| Selection priority | Reach and positioning around a stationary object | A defined bench inspection position |
| Package identification | 26700-141-534 | Verify the specific track-stand package before ordering |
Frequently Asked Questions
Does the MicroVue 2.0 require a computer?
No. The integrated display, measurement functions and USB image/video storage support standalone inspection.
What magnification does this system provide?
The listed range is 20.7x–133.4x on the built-in 13.3-inch monitor without optional lenses. Display magnification depends on the viewing configuration.
What is included in the 26700-141-534 configuration?
This listing is for the MicroVue 2.0 microscope with double arm boom stand. The standard LED ring light is included; the UV ring light, optional lenses, XYR stage and 360 Viewer are separate accessories.
Can I select individual lighting quadrants?
Yes. Sector control lets you activate specific LED quadrants to adjust illumination for the feature being inspected.
Can it save inspection images and video?
Yes. It supports still-image and 1080p video capture to USB storage or MicroSD card. A USB flash drive is listed among the supplied accessories.
Can I connect a larger monitor?
Yes. HDMI output supports live viewing on an external monitor for a larger viewing area or collaborative review.
Can it measure parts?
Yes. Built-in tools include length, distance, circle and area functions, along with annotations. Use the supplied calibration scale and follow the manual's calibration procedure; no numerical accuracy rating is stated in the supplied material.
Is the UV light included?
No. The 365 nm UV ring light is optional and sold separately. It is described for fluorescent-material inspection, not UV curing.
What do the optional lenses change?
The 0.5x lens increases working distance and field of view. The 2.0x lens extends magnification. Both are optional accessories.
Does the stand-post height equal working distance?
No. Stand dimensions describe mechanical positioning. They do not establish the optical distance between the lens and workpiece.
