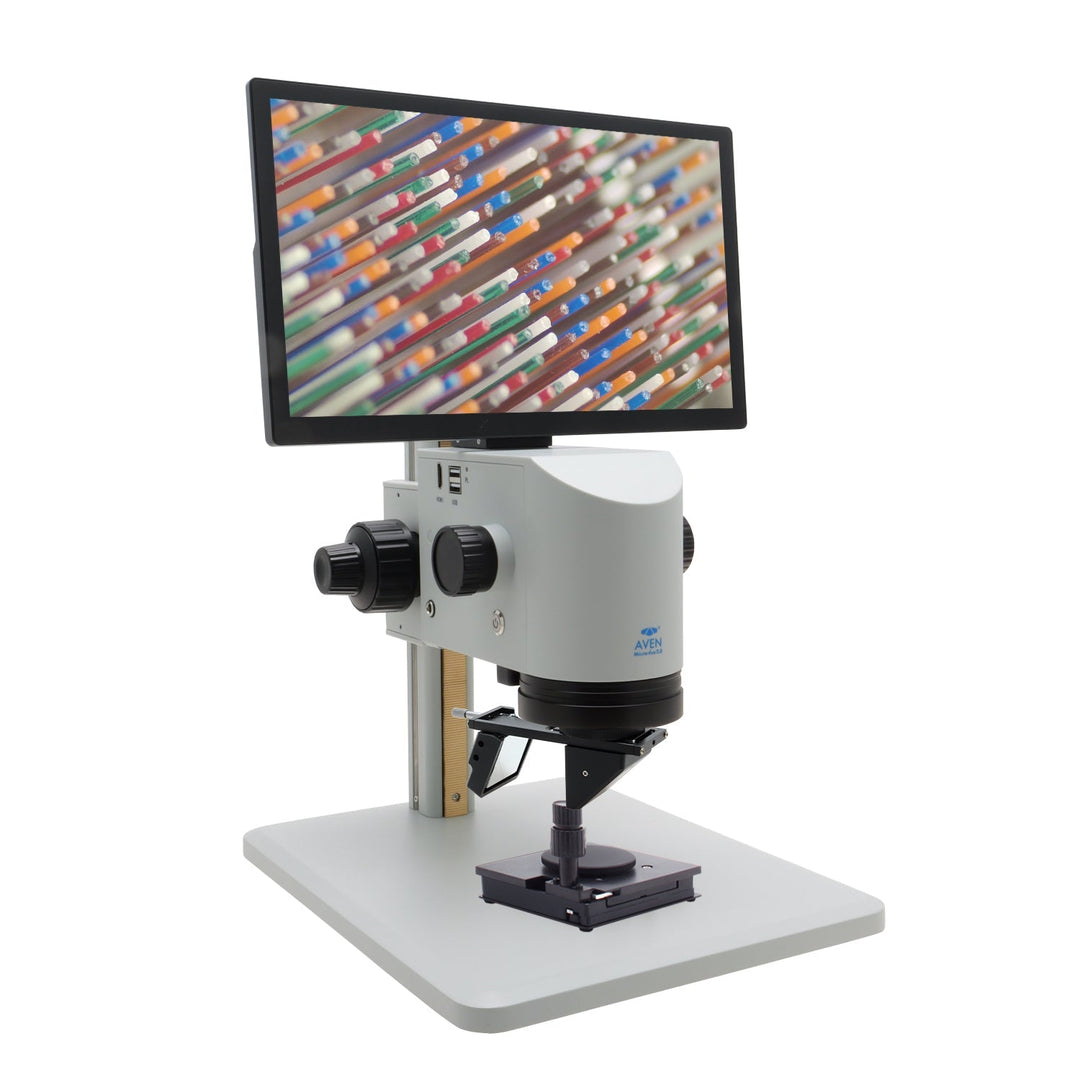

The Aven Tools 26700-141-4793D MicroVue 2.0 combines screen-based inspection with angled viewing and controlled workpiece positioning. This bundle includes the MicroVue 2.0 digital microscope, track stand, 360 Viewer and compact X/Y/R gliding stage. Inspect on a built-in 13.3-inch HD monitor, change the viewing direction with the rotating angled mirror, and move the sample in X, Y and rotation using the stage. Built-in measurement and image/video capture support standalone inspection without a computer.
Best Uses / Applications
- Electronics and PCB inspection: Examine component placement, accessible solder joints and side profiles using overhead or angled viewing.
- Small or delicate component inspection: Use the gliding stage to navigate the sample without repeatedly picking it up.
- Connector and multi-layer assembly checks: Combine stage positioning with the viewer's changing inspection direction to examine visible features.
- Production quality control: Capture images and video to document visible defects and inspection findings.
- Laboratory and research workflows: Use calibrated on-screen measurement and annotation tools for feature analysis.
- Training and collaborative review: Share a live image through HDMI on an external display.
Key Features
- Built-in 13.3-inch HD monitor with 31% more screen area than the original MicroVue.
- 20.7x–133.4x standard displayed magnification without optional lenses.
- 1/2.8-inch Sony CMOS sensor; Full HD live imaging at 1920 x 1080 and 60 fps.
- Included 360 Viewer provides angled inspection with a 35° mirror and full 360° rotation.
- Included compact gliding stage supports X/Y scanning and 360° rotation.
- Quick-swap magnetic LED ring light with selectable lighting quadrants.
- Coarse and fine focus controls.
- Built-in measurement, reticle and text-annotation functions.
- HDMI output, USB connections and MicroSD card slot.
- Save still images and 1080p video to USB storage or MicroSD.
Specifications
| Specification | Details |
|---|---|
| Manufacturer / System SKU | Aven Tools / 26700-141-4793D |
| Platform | MicroVue 2.0 / 26700-141 |
| Configuration | Track stand, 360 Viewer and compact X/Y/R gliding stage |
| Display | Built-in 13.3-inch HD monitor |
| Standard displayed magnification | 20.7x–133.4x on the built-in monitor without optional lenses |
| Sensor | 1/2.8-inch Sony CMOS |
| Live image / Frame rate | 1920 x 1080 at 60 fps |
| Pixel size | 3.75 x 3.75 micrometers |
| Still-image capture | 2 million pixels |
| Video recording | 1080p |
| Illumination | Magnetic LED ring light with quadrant selection |
| Focus | Coarse and fine adjustment |
| Connections | HDMI, USB mouse, USB storage and MicroSD card port |
| Measurement tools | Straight, broken-line and curve length; parallel-line and point-to-line distance; circle functions; polygon and rectangle area |
| Marking tools | Point coordinates, reticle and text annotation |
| Image controls | Horizontal/vertical mirror, monochrome, image freeze and contrast |
| Power | DC 12 V; power adapter supplied |
| Stand base | 10.25 x 12.73 inches |
| Viewer mirror / Rotation | 35° angled mirror / 360° |
| Stage movement | X/Y scanning and 360° rotation |
The supplied material does not specify stage travel, load capacity, numerical measurement accuracy or optical working distance. Stand height is omitted because the source contains conflicting dimensions.
360 Viewer vs. X/Y/R Stage
| Component | What it changes | Inspection benefit |
|---|---|---|
| 360 Viewer | Viewing direction through a rotating 35° mirror | Examine accessible component sides and details from different angles |
| X/Y/R gliding stage | Workpiece position in X, Y and rotation | Navigate across and around the sample with controlled positioning |
| Combined configuration | Both viewing direction and workpiece position | Coordinate angled inspection with sample navigation |
Angled-view mode reduces magnification and increases field of view compared with the standard overhead configuration. The standard displayed magnification range should not be assumed unchanged with the viewer engaged. Visibility still depends on clearance, geometry and lighting; fully hidden features remain inaccessible.
Included Components
- MicroVue 2.0 digital microscope and magnetic LED ring light.
- Track-post stand and base.
- MicroVue 2.0 360 Viewer.
- Compact X/Y/R gliding stage.
- DC 12 V power adapter.
- Wireless USB mouse; two AAA batteries required, not included.
- USB flash drive.
- Assembly tools and guide.
- Dust cover, calibration scale and user manual.
Optional Accessories
- 365 nm UV ring light: For inspection of suitable fluorescent coatings, markings and materials; not included.
- 0.5x lens: Increases working distance and field of view; not included.
- 2.0x lens: Extends magnification; not included.
- MicroVue Arbor: Optional accessory for compatible boom or articulating-arm stand configurations.
The X/Y/R stage and 360 Viewer are included in this specific bundle, not optional extras that must be purchased separately.
Frequently Asked Questions
What distinguishes the 26700-141-4793D bundle?
It combines the MicroVue 2.0 microscope and track stand with both a 360 Viewer and compact X/Y/R gliding stage.
What does the X/Y/R stage do?
It provides X/Y sample movement and 360° rotation for controlled navigation during inspection. No stage-travel or load-capacity figure is supplied.
What does the 360 Viewer do?
Its rotating 35° mirror provides angled views of accessible component sides and assembly details. It changes the viewing direction rather than replacing the stage's positioning function.
What magnification is available?
The standard range is 20.7x–133.4x on the integrated monitor without optional lenses. Engaging the angled viewer reduces magnification and increases field of view.
Is the camera Full HD or 4K?
The supplied specifications identify Full HD imaging at 1920 x 1080 and 60 fps, not 4K.
Is a computer required?
No. The integrated monitor, measurement tools and image/video storage support standalone inspection.
Can I save images and video?
Yes. Save still images and 1080p video to USB storage or MicroSD. A USB flash drive is included.
Can I connect an external display?
Yes. HDMI output supports live viewing on an external monitor.
Can I measure features on screen?
Yes. Built-in tools include length, distance, circle and area functions plus annotations. Follow the manufacturer's calibration procedure using the supplied scale; no numerical accuracy rating is specified here.
Is the UV ring light included?
No. The standard magnetic LED ring light is included. The 365 nm UV ring light is optional and described for fluorescent-material inspection, not UV curing.
