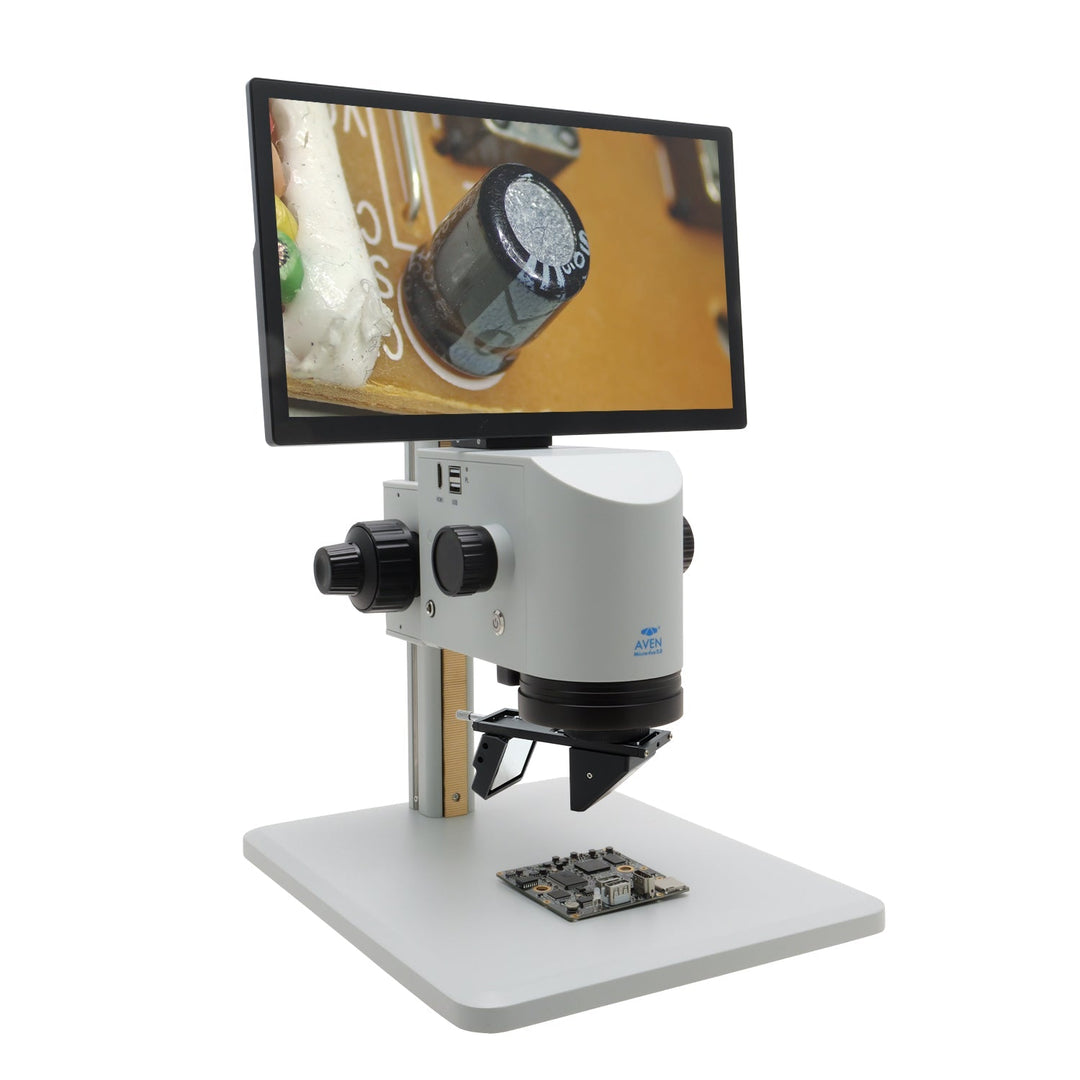

Aven Tools 26700-141-3D MicroVue Digital Microscope (21x–133x) with 360 Viewer
Aven Tools 26700-141-3D MicroVue Digital Microscope (21x–133x) with 360 Viewer
The Aven Tools 26700-141-3D MicroVue 2.0 combines a digital microscope, built-in 13.3-inch HD monitor and rotating 360 Viewer for overhead and angled inspection. The standard magnification range is 20.7x–133.4x on the integrated monitor without optional lenses. The included viewer uses a 35° angled mirror to examine accessible component sides and assembly details from different directions without repeatedly repositioning the workpiece.
Best Uses / Applications
- PCB inspection and rework: Examine component placement, accessible solder joints and side profiles using overhead or angled viewing.
- Connector and multi-layer assembly checks: Rotate the viewer to inspect visible features from different directions.
- Production quality control: Save inspection images and video to document visible defects and findings.
- Medical-tool and industrial-part inspection: Review accessible surfaces and assembly details on the integrated monitor.
- Laboratory and research work: Use built-in measurement and annotation tools for calibrated on-screen analysis.
- Training and collaborative review: Share a live view through HDMI on an external display.
Key Features
- Built-in 13.3-inch monitor with 31% more screen area than the original MicroVue.
- 20.7x–133.4x displayed magnification without optional lenses.
- 1/2.8-inch Sony CMOS sensor and Full HD imaging at 1920 x 1080, 60 fps.
- Included 360 Viewer with 35° angled mirror and full 360° rotation.
- Quick-swap magnetic LED ring light with selectable LED quadrants.
- Coarse and fine focus controls on a track-post stand.
- Built-in measurement, reticle and annotation tools; no computer required for standalone inspection.
- HDMI output, USB mouse and storage connections, and MicroSD card slot.
- Still-image and 1080p video capture to USB storage or MicroSD.
Microscope Specifications
| Specification | Details |
|---|---|
| Manufacturer / System SKU | Aven Tools / 26700-141-3D |
| Platform | MicroVue 2.0 / 26700-141 |
| Configuration | Track stand with 360 Viewer |
| Display | Built-in 13.3-inch HD monitor |
| Displayed magnification | 20.7x–133.4x on built-in monitor without optional lenses |
| Sensor | 1/2.8-inch Sony CMOS |
| Live image / Frame rate | 1920 x 1080 at 60 fps |
| Pixel size | 3.75 x 3.75 micrometers |
| Still-image capture | 2 million pixels |
| Video recording | 1080p |
| Illumination | Magnetic LED ring light with quadrant selection |
| Focus | Coarse and fine adjustment |
| Connections | HDMI, USB mouse, USB storage and MicroSD card port |
| Measurement functions | Straight, broken-line and curve length; parallel-line and point-to-line distance; circle functions; polygon and rectangle area |
| Marking functions | Point coordinates, reticle and text annotation |
| Image controls | Horizontal/vertical mirror, monochrome, image freeze and contrast |
| Power | DC 12 V; power adapter supplied |
| Stand base | 10.25 x 12.73 inches |
360 Viewer Specifications
| Specification | Details |
|---|---|
| Mirror angle | 35° |
| Rotation | 360° |
| On position | Angled view, reduced magnification and increased field of view |
| Off position | No angle, magnification or field-of-view change from the standard configuration |
| Viewer dimensions | 5.5 x 2 x 1.5 inches |
| Viewer weight | 0.55 lb |
| Viewer box dimensions | 6.5 x 5.5 x 2.75 inches |
Included Components
- MicroVue 2.0 digital microscope and magnetic LED ring light.
- Track-post stand and base.
- 360 Viewer attachment.
- DC 12 V power adapter.
- Wireless USB mouse; two AAA batteries required, not included.
- USB flash drive.
- Assembly tools and assembly guide.
- Dust cover, calibration scale and user manual.
Included vs. Optional Equipment
| Item | Status / Purpose |
|---|---|
| 360 Viewer | Included; rotating angled inspection |
| Magnetic LED ring light | Included; sector-controlled top illumination |
| 365 nm UV ring light | Optional; inspection of suitable fluorescent materials, coatings and markings |
| 0.5x lens | Optional; increases working distance and field of view |
| 2.0x lens | Optional; extends magnification |
| XYR stage | Optional; X/Y scanning and 360° rotation |
| MicroVue Arbor | Optional accessory for compatible boom or articulating-arm stand configurations |
Frequently Asked Questions
Does this configuration include the 360 Viewer?
Yes. The 26700-141-3D includes the MicroVue 2.0 microscope, track stand and 360 Viewer.
What is the magnification range?
The standard listed range is 20.7x–133.4x on the built-in monitor without optional lenses. Engaging the 360 Viewer reduces magnification and increases field of view, so the standard range should not be assumed unchanged in angled-view mode.
What does the 360 Viewer reveal?
Its 35° mirror and 360° rotation provide different views of accessible component sides and assembly details. Visibility depends on geometry, clearance and lighting; fully hidden features remain inaccessible.
Is the camera 4K?
No. The supplied specifications identify Full HD imaging at 1920 x 1080 and 60 fps, with a 1/2.8-inch CMOS sensor.
Does it need a computer?
No. The built-in monitor, measurement tools and image/video storage support standalone operation.
Can it save images and video?
Yes. It supports still-image and 1080p video capture to USB storage or MicroSD. A USB flash drive is included.
Can I use an external monitor?
Yes. HDMI output supports live viewing on an external display.
Can it measure features?
Yes. Built-in tools cover length, distance, circle and area functions plus annotations. Follow the manufacturer's calibration procedure using the supplied scale. No numerical measurement-accuracy rating is stated in the supplied material.
Is the UV ring light included?
No. The 365 nm UV ring light is an optional accessory for fluorescent-material inspection, not a stated UV-curing feature.
Does post height specify optical working distance?
No. Stand dimensions describe mechanical positioning, not the lens-to-workpiece optical distance. No numerical optical working distance is specified here.
