Aven Tools 26501-LEDV2 ProVue 5 Diopter (2.25x Magnification) Magnifying Lamp
Aven Tools 26501-LEDV2 ProVue 5 Diopter (2.25x Magnification) Magnifying Lamp
The Aven Tools 26501-LEDV2 ProVue magnifying lamp combines a replaceable 5-inch crown glass lens with 2.25x magnification and adjustable LED lighting for detailed bench work. Its 5-diopter lens provides a listed working distance of 7.87 inches, while the spring-balanced arm reaches 31.5 inches (80 cm) to position the illuminated view over your work. Touch controls adjust brightness and color temperature, and the memory function retains the last-used lighting settings.
Best Uses / Applications

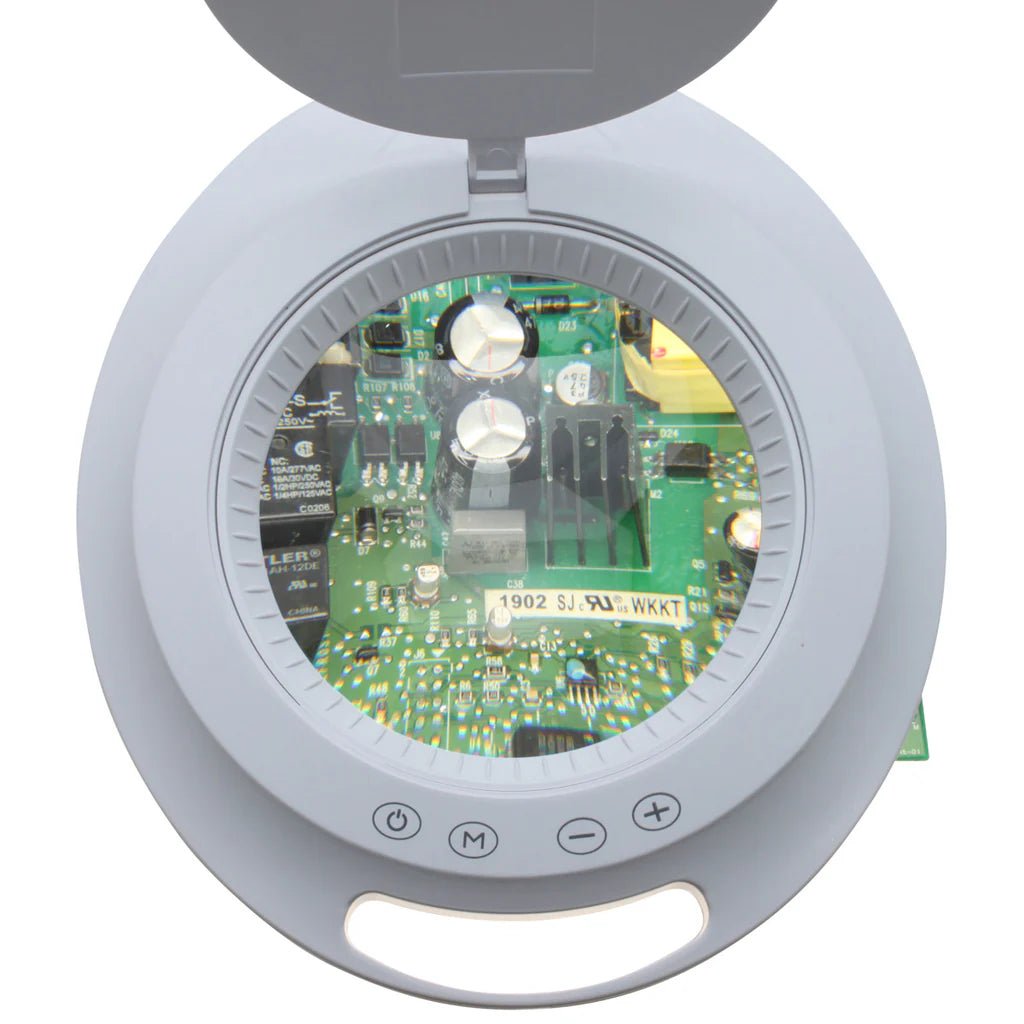

- Electronics inspection: View component markings, connections and visible assembly details under illuminated magnification.
- Precision assembly and repair: Position the lens above small parts while keeping both hands available for the task.
- Visual quality checks: Examine surface finish, alignment and visible workmanship on small manufactured parts.
- Laboratory and technical bench work: Enlarge small objects and labels during detailed visual examination.
- Workstations shared between tasks: Adjust the arm, lamp-head angle and lighting, then return to your preferred settings using the memory function.
Key Features
- Replaceable 5-inch crown glass lens with 5-diopter, 2.25x magnification.
- Lens cover helps protect the glass when not in use.
- 60 dimmable LEDs with warm white 3500K, daylight 5000K and cool white 6500K settings.
- Maximum light output of 800 lumens; listed expected LED life of 25,000 hours.
- Touch-sensitive power, brightness and color-temperature controls.
- Memory function retains the last-used lighting settings.

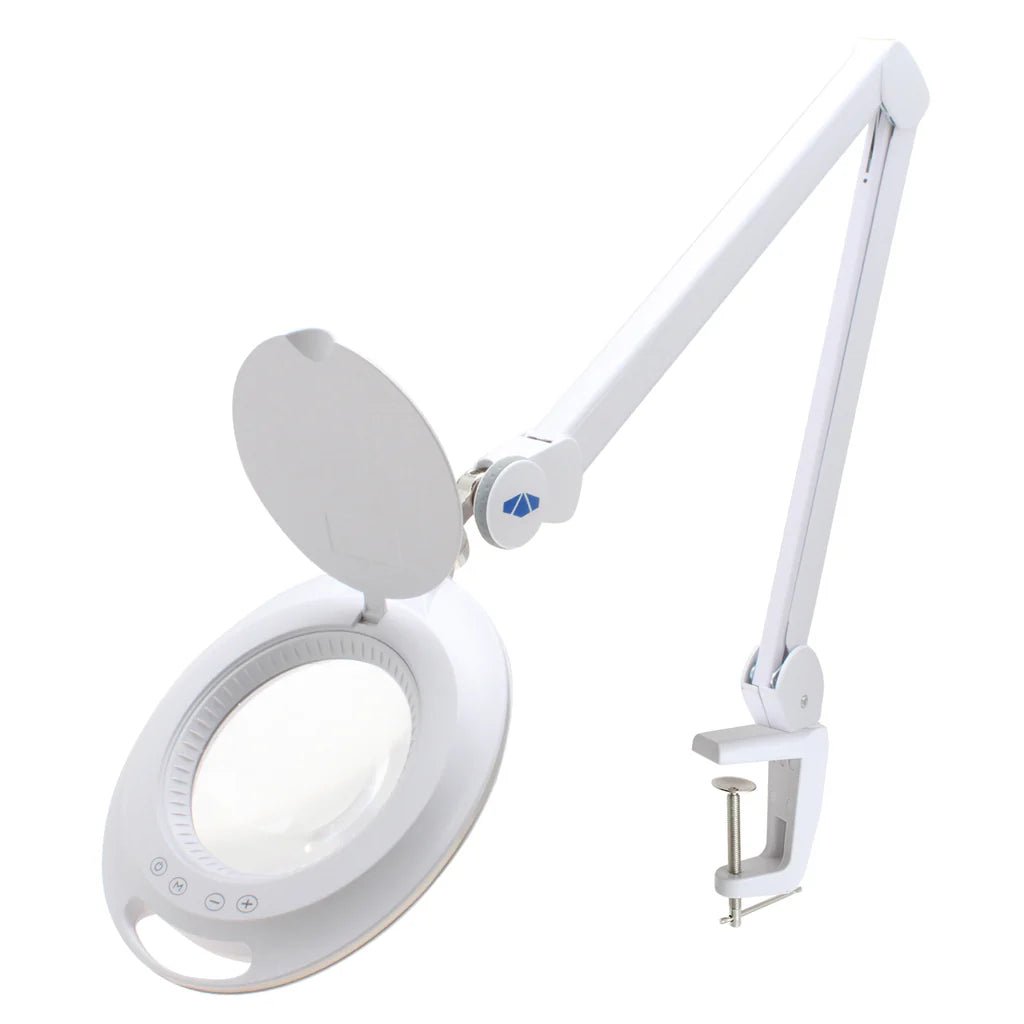

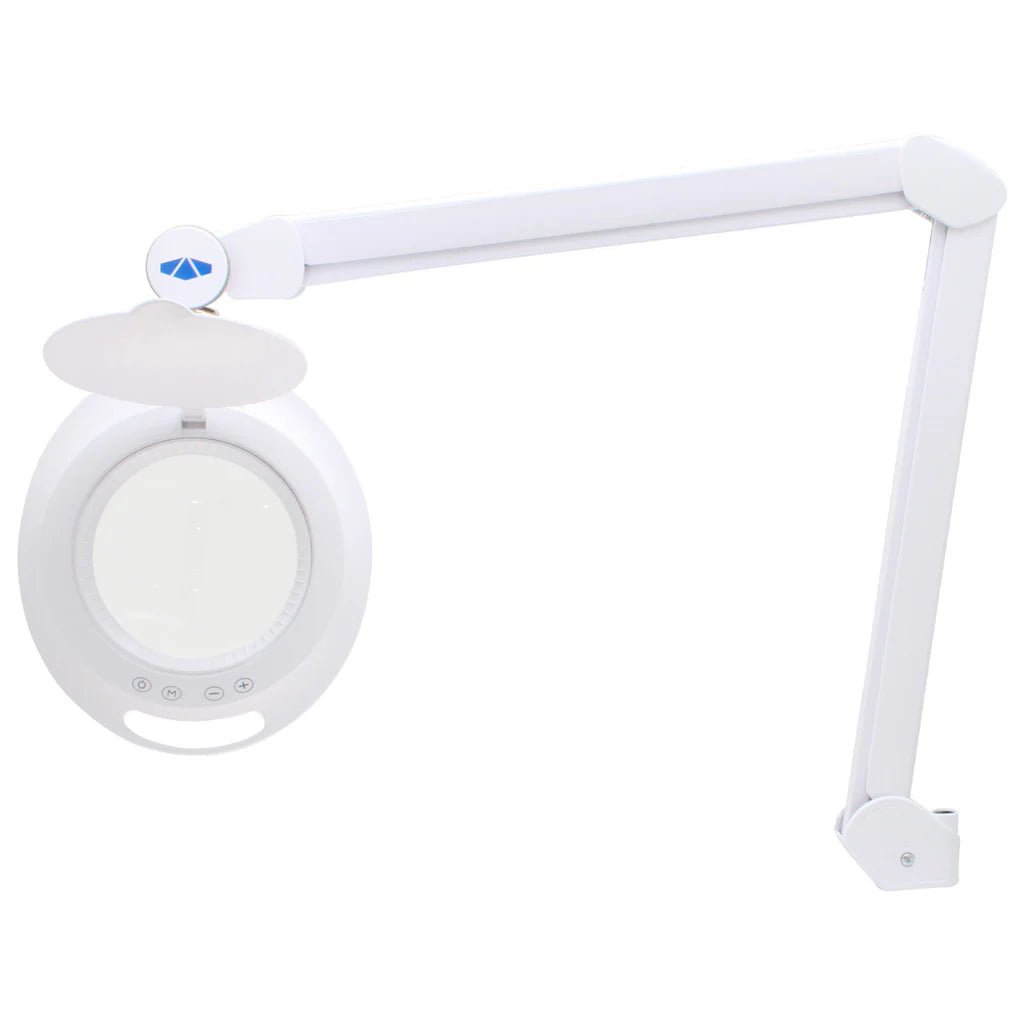

- Spring-balanced arm and 360-degree swiveling lamp head support flexible positioning.
- Swivel joint conceals exposed wiring; rubber-grip adjustment knob provides a convenient grip.
- Table clamp fits thicknesses from 0.59 to 2.36 inches.
Specifications
| Specification | Details |
|---|---|
| Manufacturer / Part number | Aven Tools / 26501-LEDV2 |
| Product line | ProVue |
| Lens diameter | 5 inches |
| Lens material | Replaceable crown glass |
| Optical power / Magnification | 5 diopters / 2.25x |
| Working distance | 7.87 inches |
| Arm reach | 80 cm, approximately 31.5 inches |

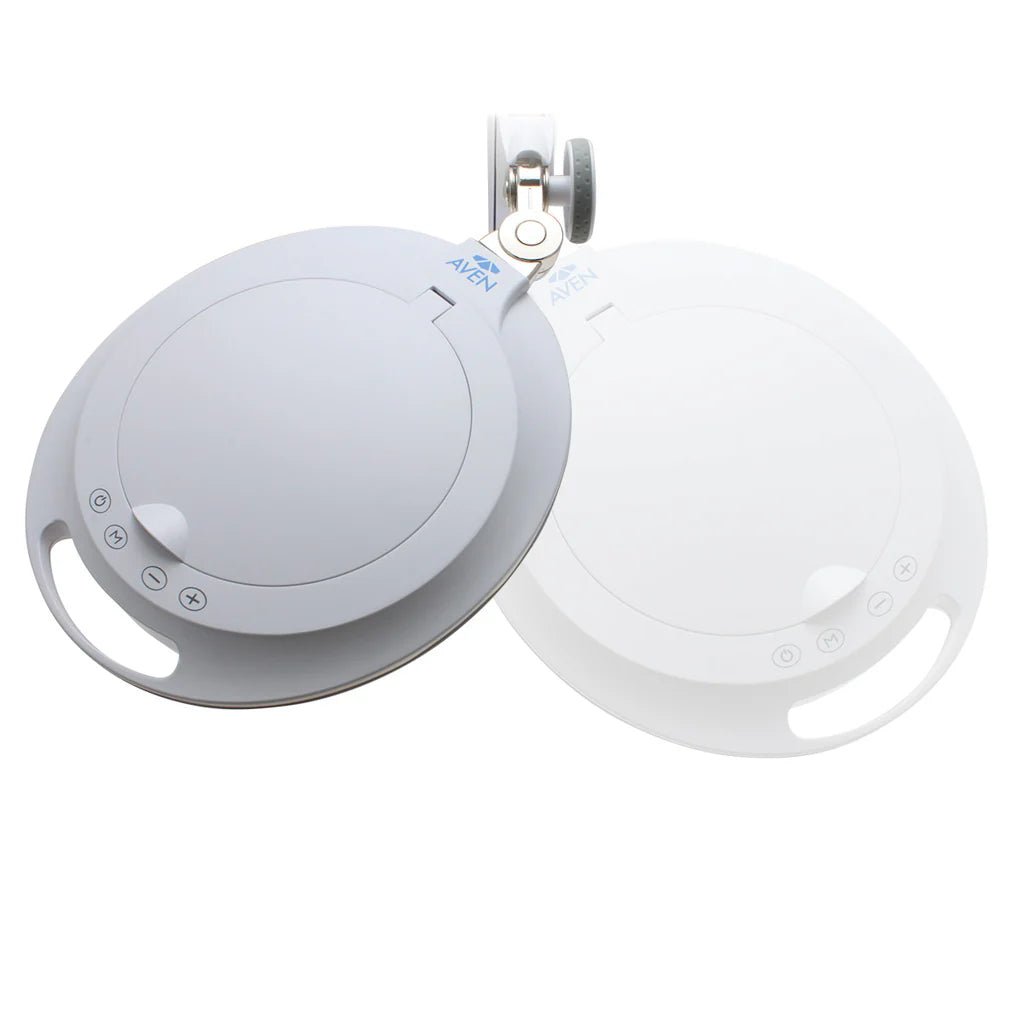

| Lamp-head movement | 360-degree swivel |
| Light source | 60 LEDs |
| Color temperatures | 3500K warm white; 5000K daylight; 6500K cool white |
| Listed output at 3500K / 6500K | 450 lumens / 450 lumens |
| Maximum output | 800 lumens |
| Dimmable / Setting memory | Yes / Yes |
| Expected LED life | 25,000 hours |
| Controls | Touch-sensitive power, intensity and color-temperature buttons |
| Body color | White |
| Clamp opening | 1.5–6 cm (0.59–2.36 inches) |
| Power | 120V; US plug |
| Power cord | 1.5 m, approximately 59 inches |
| Product weight | 2.17 kg (4.78 lb) |
| Packaged weight | 2.69 kg (5.93 lb) |
| Box dimensions | 74 × 26 × 8 cm |
| Case pack / Master carton quantity | 1 / 4 |
Lighting Options Compared
| Setting | Color temperature | Visual appearance |
|---|---|---|
| Warm white | 3500K | Warmer illumination |
| Daylight | 5000K | Intermediate daylight-style illumination |
| Cool white | 6500K | Cooler illumination |
Choose the lighting appearance and brightness that make the details of your particular task easiest to see. These settings do not imply a specified color-rendering or color-matching certification.
Frequently Asked Questions
What magnification does the Aven 26501-LEDV2 provide?
The 5-diopter lens provides 2.25x magnification. Five diopters does not mean 5x magnification.
Is the lens replaceable?
Yes. The lamp uses a replaceable 5-inch crown glass lens and includes a protective lens cover.
Can I adjust both brightness and light color?
Yes. Touch controls adjust LED brightness and select 3500K, 5000K or 6500K illumination.
Does the lamp remember my settings?
Yes. The LED memory function retains the last-used settings.
Will the clamp fit my workbench?
The listed clamp opening is 1.5–6 cm (0.59–2.36 inches). Check the thickness and accessible edge of your bench before ordering.
How far does the arm reach?
The spring-balanced arm has an 80 cm reach, approximately 31.5 inches. The lamp head swivels through 360 degrees.
What electrical supply does it use?
This listing specifies 120V power with a US plug and a 1.5 m power cord.
