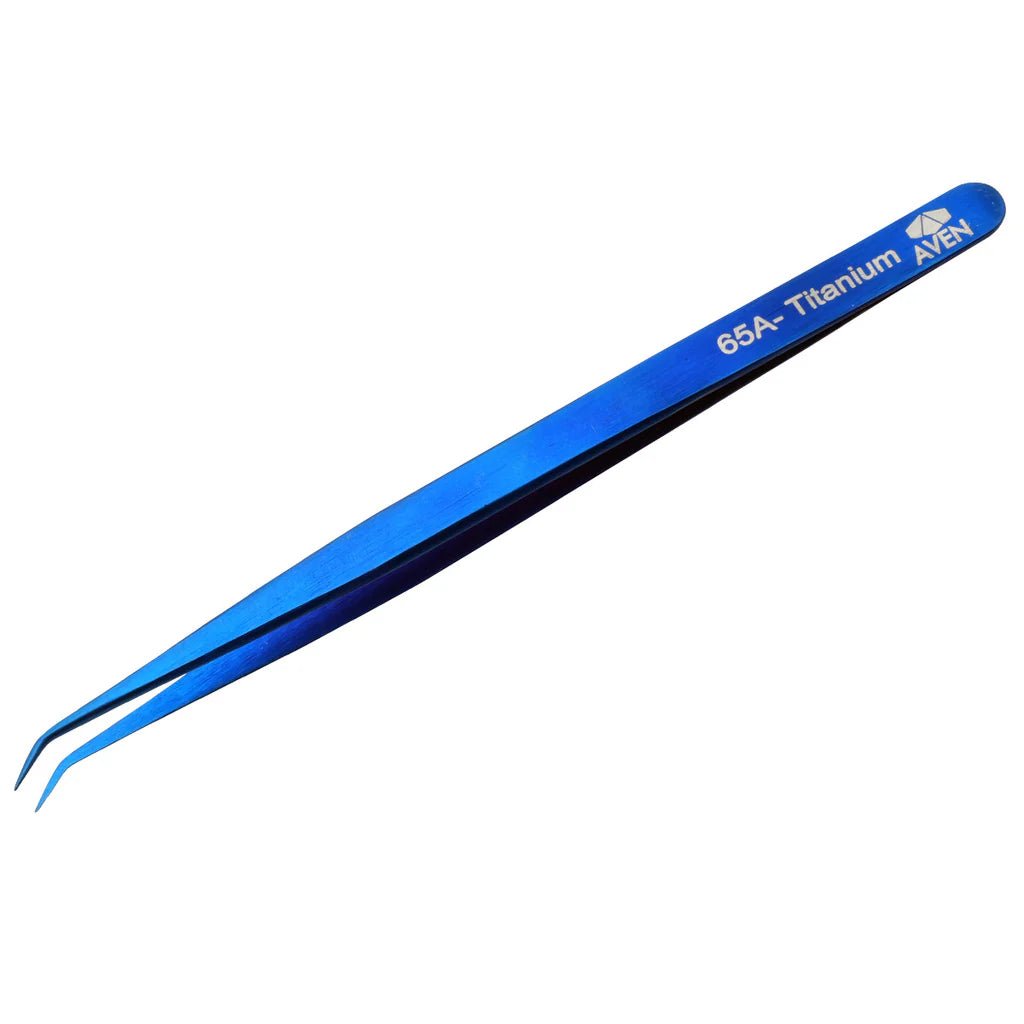

Aven Tools 18076TTB Titanium Blue Tweezers, Pattern #65A
Aven Tools 18076TTB Titanium Blue Tweezers, Pattern #65A
The Aven Tools 18076TTB Titanium Blue Tweezers combine an extended 138 mm overall length with angled fine-point tips for precision assembly, inspection and component positioning. Lightweight, non-magnetic titanium construction supports handling where tool magnetism is undesirable. The blue titanium oxide PVD finish adds corrosion resistance and durability, and each pair is handcrafted and individually inspected under a microscope. The approximately 5 mm tip length distinguishes this model from the longer-tipped Titanium Blue patterns.
Best Uses / Applications
- Precision assembly: Position small parts using an angled fine-point approach.
- Extended-length bench handling: Choose the 138 mm body when your task benefits from a longer tool than the 117 mm Titanium Blue patterns.
- Inspection and microscope-assisted work: Manipulate small items during detailed visual examination.
- Soldering preparation and positioning: Hold or align small parts during suitable soldering tasks; the listing does not specify a temperature limit.
- Magnetically sensitive handling: Use non-magnetic titanium where tool magnetism could interfere with the workpiece or process.
- Silicon-chip industry tasks: Consider the tool for precise handling, subject to your own process and contamination-control requirements.
Key Features
- Extended 138 mm overall length for precision handling.

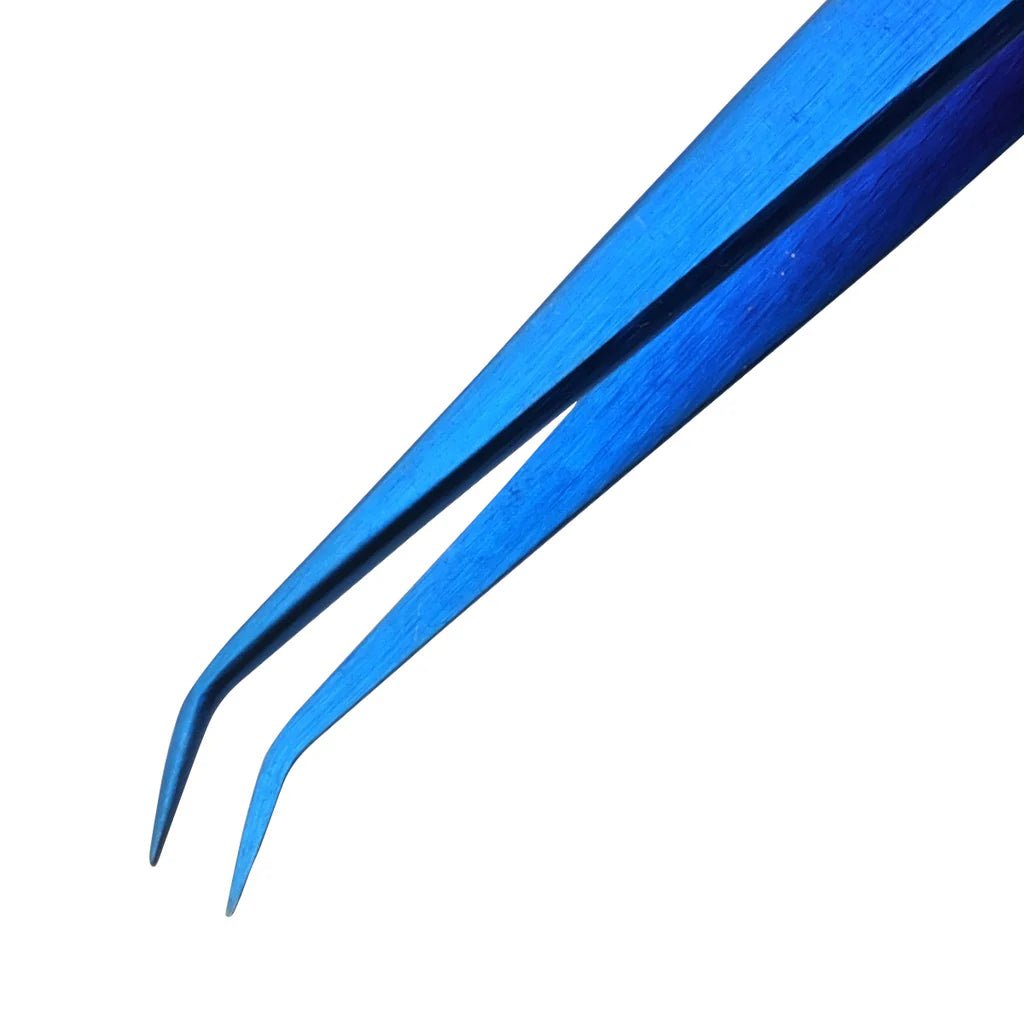

- Angled fine-point tips, approximately 5 mm long.
- Titanium construction combines low weight with strength.
- Non-magnetic material supports work involving magnetic materials or magnetic fields.

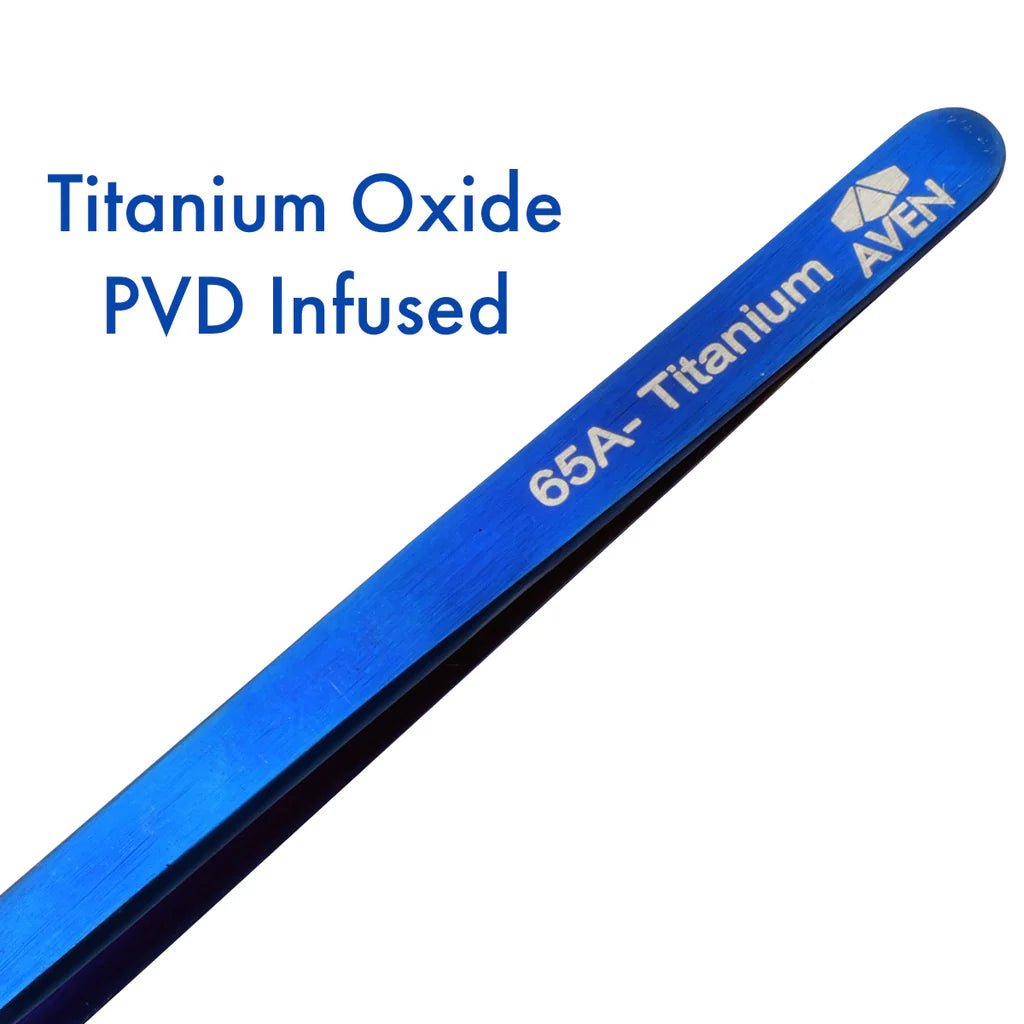

- Blue titanium oxide PVD, Physical Vapor Deposition, finish provides additional corrosion resistance.
- Handcrafted and individually inspected under a microscope.
Specifications
| Specification | Details |
|---|---|
| Manufacturer / Part number | Aven Tools / 18076TTB |
| Product line | Titanium Blue Tweezers |
| Pattern designation | 65 in product title; 65A in supplied specification table |
| Tip profile | Angled, fine point |
| Overall length | 5.4 inches / 138 mm, as listed |
| Tip length | Approximately 5 mm |
| Material | Titanium |
| Magnetic properties | Non-magnetic |
| Finish / Color | Titanium oxide PVD / Blue |
| Quality inspection | Individually inspected under a microscope |
| Country of origin | Pakistan |
| Listed weight | 0.05 lb |
Titanium Blue Pattern Comparison
| Model | Tip profile | Overall length | Approximate tip length |
|---|---|---|---|
| 18076TTB | Angled, fine point | 138 mm | 5 mm |
| 18069TTB, Pattern 6 | Sharply angled, fine strong point | 117 mm | 10 mm |
| 18072TTB, Pattern 7 | Curved, very fine point | 117 mm | 15 mm |
Select the body length and tip geometry that suit your workpiece and approach path. A longer overall tool does not mean a longer tip or a higher gripping-force rating.
Frequently Asked Questions
What is the Aven 18076TTB?
It is an extended-length titanium precision tweezer with angled fine-point tips and a blue titanium oxide PVD finish.
Is the pattern called 65 or 65A?
The supplied listing uses 65 in the product title and 65A in its specification table. Use part number 18076TTB to identify this product; confirm the pattern designation with Aven if it is critical to your purchasing specification.
What are the tool and tip lengths?
The listing specifies an overall length of 138 mm (listed as 5.4 inches) and an approximate tip length of 5 mm.
Are these tweezers magnetic?
No. The titanium construction is identified as non-magnetic.
What does the blue PVD finish provide?
The titanium oxide Physical Vapor Deposition process produces the blue finish and adds corrosion resistance and durability.
Are they ESD rated?
The supplied product information does not specify an ESD rating or electrical resistance range. Non-magnetic titanium and the blue finish do not establish ESD protection.
Are they certified for a cleanroom class?
No specific cleanroom class or particle-release test is provided. Qualify the tool against your process requirements rather than assuming certified or guaranteed particle-free performance.
Can I use them for soldering tasks?
Aven lists soldering tasks among the applications. Use them for suitable positioning and handling, but do not assume a high-temperature rating because no temperature limit is supplied.
Where are they made?
The listed country of origin is Pakistan. Each pair is handcrafted and individually inspected under a microscope.
Handling Guidance
Use the fine tips for controlled small-part handling. Avoid prying, twisting or excessive squeezing that could damage tip alignment or the workpiece.
