Aven Tools 18069TTB Titanium Blue Tweezers, Pattern #6
Aven Tools 18069TTB Titanium Blue Tweezers, Pattern #6

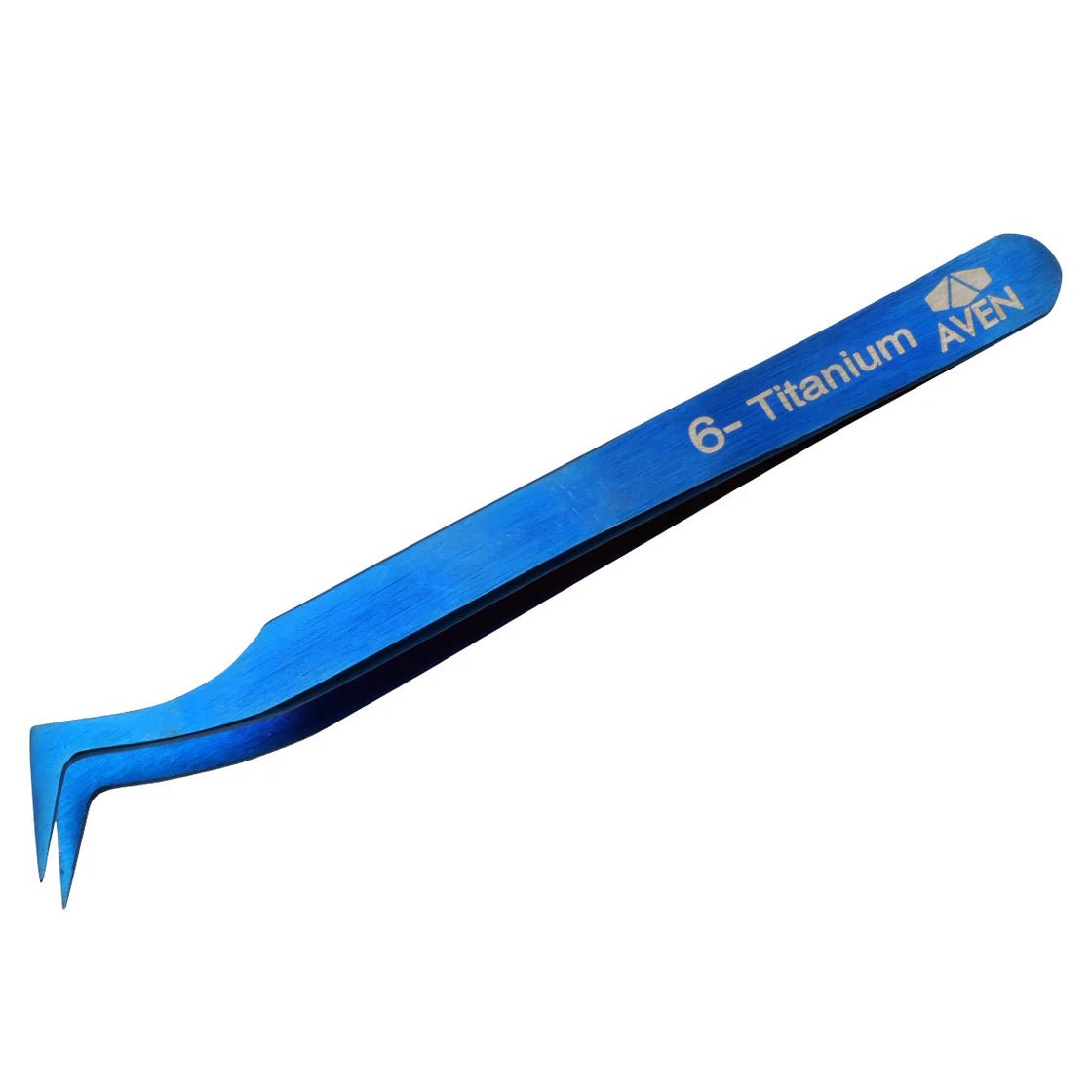

The Aven Tools 18069TTB Titanium Blue Tweezers feature Pattern 6 tips that angle sharply to a fine point for precision handling in crowded or narrow work areas. Made from lightweight, non-magnetic titanium, they combine an angled access profile with a blue titanium oxide PVD finish that adds corrosion resistance and durability. Each pair is handcrafted and individually inspected under a microscope. The 117 mm overall length and approximately 10 mm tips suit detailed assembly, inspection and component positioning at the bench.
Best Uses / Applications
- Precision electronics assembly: Position small components where an angled approach is more practical than straight-line access.
- Crowded or confined work areas: Reach into tight spaces using the sharply angled Pattern 6 tips.
- Soldering preparation and positioning: Hold or align small parts during suitable soldering tasks; no temperature rating is supplied.
- Microscope-assisted inspection: Manipulate or retrieve small items during detailed visual examination.
- Magnetically sensitive work: Use non-magnetic titanium where tool magnetism could interfere with the workpiece or process.
- Silicon-chip industry handling: Consider the tool for precise small-part work, subject to your process and contamination-control requirements.
Key Features

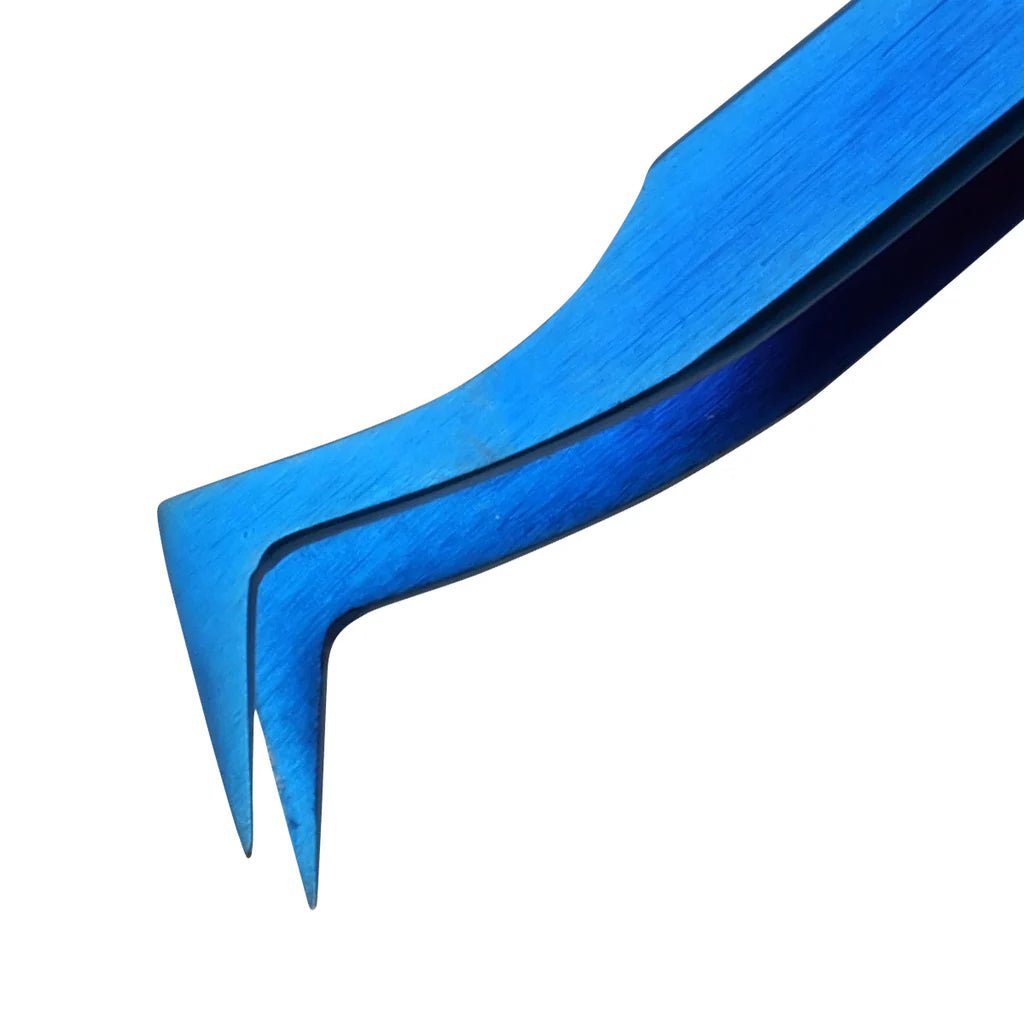

- Pattern 6 sharply angled tips with a fine point for narrow-space access.
- Titanium construction combines lightweight handling with strength.
- Non-magnetic material supports work with magnetic materials and within magnetic fields.

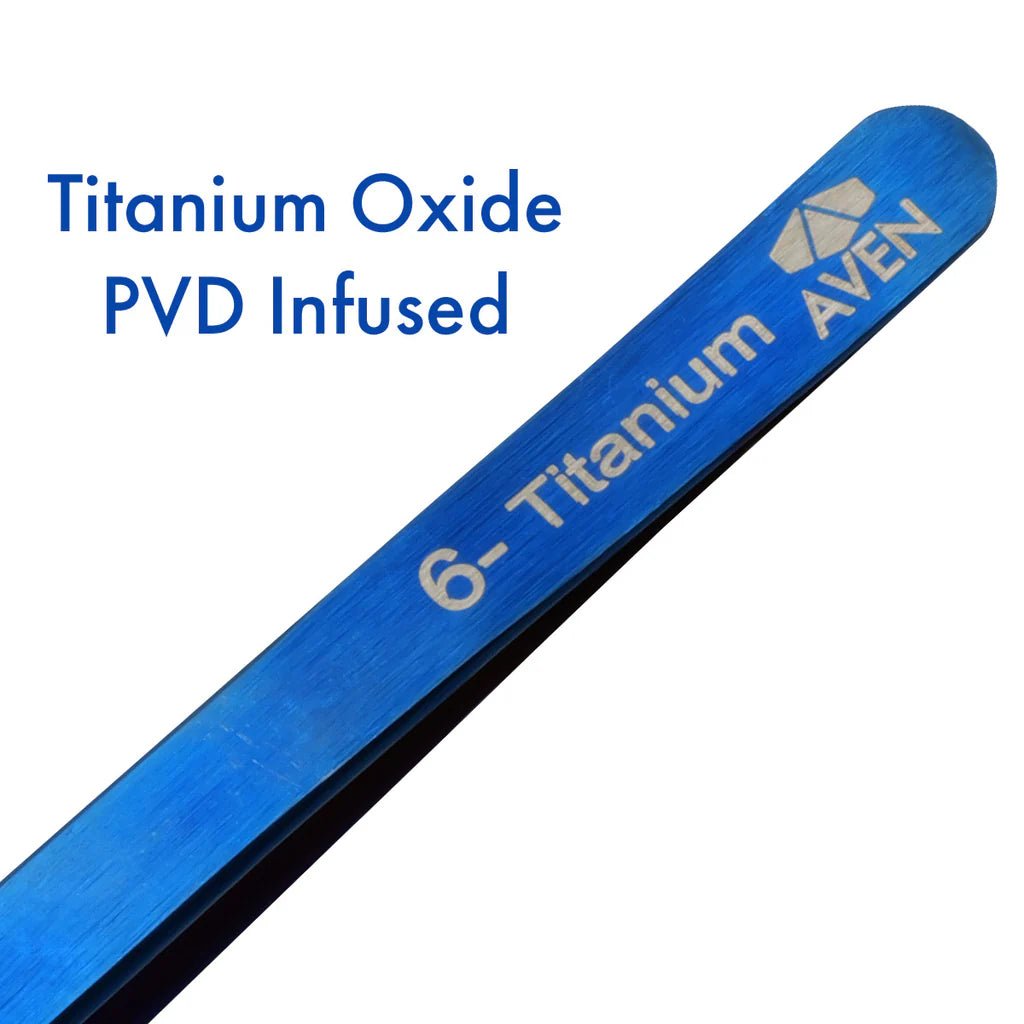

- Blue titanium oxide PVD, Physical Vapor Deposition, finish adds corrosion resistance.
- Handcrafted and individually inspected under a microscope.
- 117 mm overall length with approximately 10 mm tip length.
Specifications
| Specification | Details |
|---|---|
| Manufacturer / Part number | Aven Tools / 18069TTB |
| Product line | Titanium Blue Tweezers |
| Pattern | 6 |
| Tip profile | Sharply angled, fine point; described as a strong-point pattern |
| Overall length | 4.6 inches / 117 mm |
| Tip length | Approximately 10 mm |
| Material | Titanium |
| Magnetic properties | Non-magnetic |
| Finish / Color | Titanium oxide PVD / Blue |
| Quality inspection | Individually inspected under a microscope |
| Country of origin | Pakistan |
| Listed weight | 0.05 lb |
Pattern 6 vs. Pattern 5B Selection Guide
| Feature | 18069TTB Pattern 6 | 18066TTB Pattern 5B |
|---|---|---|
| Tip description | Sharply angled to a fine, strong point | Extended tip angles to a very fine point |
| Overall length | 117 mm / 4.6 inches | 121 mm / 4.76 inches |
| Approximate tip length | 10 mm | 10 mm |
| Material / Finish | Non-magnetic titanium / Blue PVD | Non-magnetic titanium / Blue PVD |
| Selection focus | Angled access for assembly, inspection and crowded work areas | Extended very-fine-point access for tight and narrow areas |
Choose the tip profile that suits the approach angle and gripping needs of your workpiece. Neither pattern is intended to replace a heavy-duty gripping or prying tool.
Frequently Asked Questions
What is the Aven 18069TTB?
It is a Pattern 6 titanium precision tweezer with sharply angled fine-point tips and a blue titanium oxide PVD finish.
Why choose the Pattern 6 tip?
The sharply angled profile provides access for precision assembly, inspection and positioning tasks in crowded or narrow spaces.
Are these tweezers magnetic?
No. The supplied product information identifies the titanium material as non-magnetic.
What does the blue finish provide?
Aven identifies the titanium oxide PVD process as adding corrosion resistance and durability alongside the blue appearance.
Are these tweezers ESD rated?
The supplied listing does not specify an ESD rating or electrical resistance range. Non-magnetic construction and the PVD finish do not establish ESD protection.
Are they certified for a specific cleanroom class?
No cleanroom class or particle-release test is supplied. Qualify the tool for your process rather than assuming a certification or guaranteed particle-free performance.
Can they be used during soldering?
Aven lists soldering tasks among the applications. Use them for suitable component handling and positioning, but do not assume a specified high-temperature limit because none is provided.
What size are they, and where are they made?
Overall length is 117 mm (4.6 inches), tip length is approximately 10 mm, and the listed country of origin is Pakistan.
