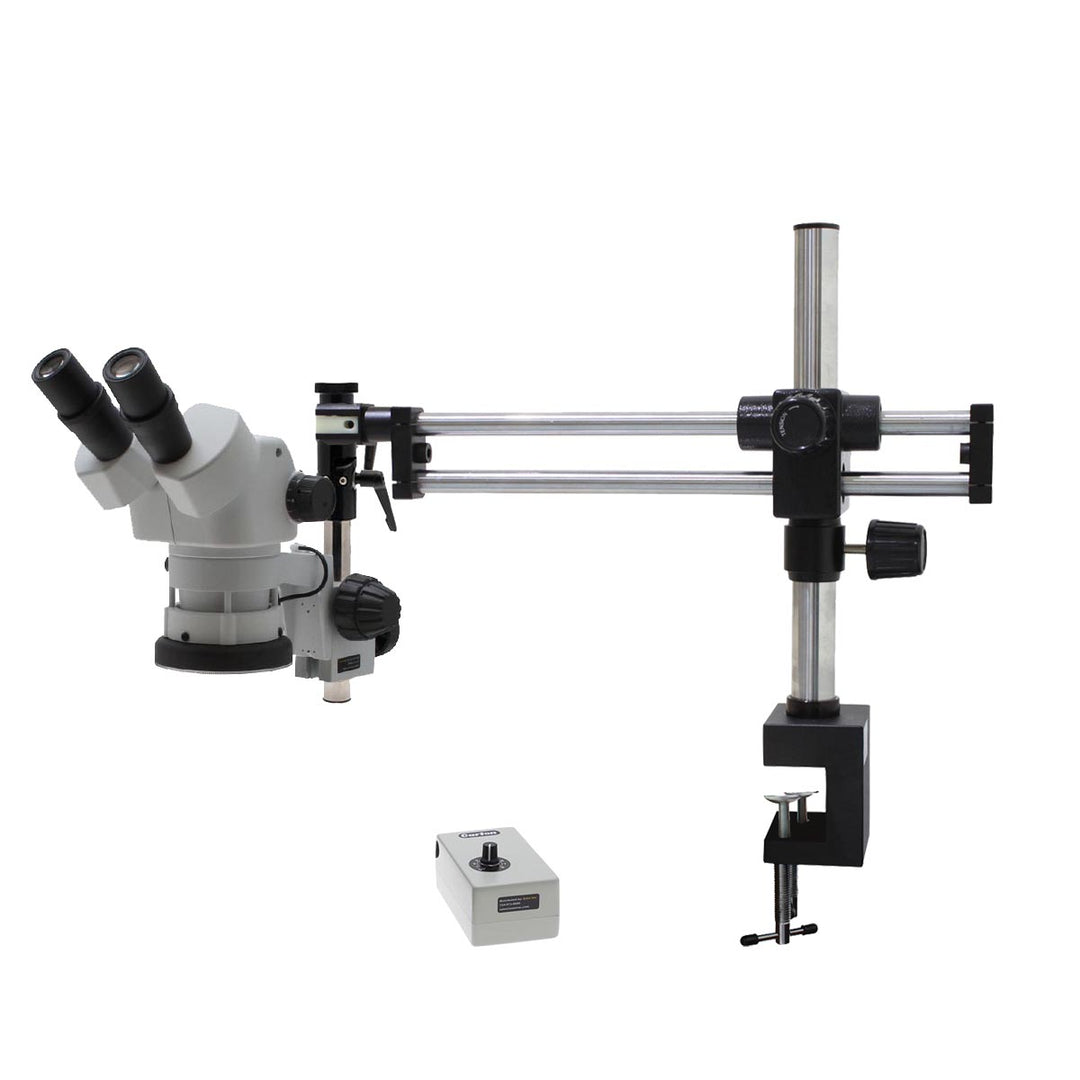

Aven Tools 26800B-703 SPZ-50 Binocular Stereo Zoom Microscope, 6.7x–50x, Double Arm Boom Stand with Table Clamp
Aven Tools 26800B-703 SPZ-50 Binocular Stereo Zoom Microscope, 6.7x–50x, Double Arm Boom Stand with Table Clamp
The Aven Tools 26800B-703 combines an SPZ-50 binocular stereo zoom microscope with a double arm boom stand, heavy-duty table clamp and integrated LED ring-light focus mount. Supplied 10x eyepieces deliver 6.7x–50x magnification, while a 108 mm working distance leaves room beneath the optics for inspection and precision assembly. Move from a broad overview to fine detail, then reposition the double-bar arm across your work area without a large stand base occupying the bench.
Best Uses / Applications
- Precision assembly and electrical inspection
- Quality control and production inspection
- Medical device and aerospace component inspection
- Education, research and development
- Inspection of larger workpieces requiring flexible microscope positioning
Key Features
- 6.7x–50x optical magnification with a 7.46:1 zoom ratio and click-stop zoom adjustment.
- Greenough stereo optical system with a 360° rotatable binocular body and 45° inclined eyepiece tubes.
- Two wide-field 10x eyepieces, field number 23, with 17 mm high eyepoint and adjustment on both eyepiece tubes.
- Double arm boom stand with ball-bearing horizontal travel, height adjustment and 360° horizontal rotation.
- Built-in table clamp with dual locks for stability and space-saving bench mounting.
- Integrated ring light with 60 adjustable LEDs and rack-and-pinion focusing with tension control.
- Optional eyepieces and auxiliary lenses extend the optical configuration; these are not part of the standard supplied optics.
Microscope Specifications
| Specification | Detail |
|---|---|
| Manufacturer / SKU | Aven Tools / 26800B-703 |
| Microscope | SPZ-50 binocular stereo zoom; Greenough optical system |
| Standard magnification | 6.7x–50x with supplied 10x eyepieces |
| Zoom ratio | 7.46:1 |
| Body | 360° rotatable; 45° inclined eyepiece tubes |
| Eyepieces | Two 10x, FN23; 17 mm high eyepoint |
| Field of view | 34.3–3.6 mm |
| Working distance | 108 mm without auxiliary lens |
| Diopter adjustment | Both eyepiece tubes; +5.6D to −7.2D |
| Interpupillary distance | 52–75 mm |
| Optional eyepieces | 15x (FN15) and 20x (FN11.4) |
| Optional auxiliary lenses / working distances | 0.5x / 240 mm; 0.75x / 132 mm; 1.6x / 50 mm; 2x / 41 mm |
| Microscope body weight | 5 lb, component weight |
LED Ring Light and Focus Mount Specifications
| Specification | Detail |
|---|---|
| LEDs / control | 60 / variable |
| Light intensity | 35,000 lux |
| Color temperature | 5600 K white |
| Power supply | 5 W; 100–120 V AC, 50/60 Hz |
| Focus mount ring diameter | 74 mm |
| Mounting diameter | 26.9 mm |
| Focus mechanism | Rack and pinion with tension control |
| Vertical focusing travel | 50 mm |
| Accepted microscope bodies | SSZ, SPZ, DSZ and NSW series |
| Component weight | 2.80 lb |
| Included lighting components | Integrated LED ring light with focus mount and power supply |
Double Arm Boom Stand Specifications
| Specification | Detail |
|---|---|
| Stand / base | Dual arm stand with table clamp; rectangular clamp base |
| Vertical post height / diameter | 384 mm / 37.2 mm |
| Cross adapter | Triple (3) hole adapter |
| Horizontal arm | Double bar; 570 mm length; 20 mm diameter |
| Top arm mounting hole | 16 mm |
| Horizontal rotation | 360° |
| Z-axis travel | 282 mm; manual adjustment |
| Horizontal stretch range | 320 mm (12.59 in) |
| Horizontal maximum load | 9.07 kg (20 lb) |
| Horizontal travel | Ball bearing |
| Clamp dimensions | 140 × 70 × 65 mm |
| Material / finish | Metal; black electroplated finish |
| Stand net weight | 21.38 lb |
| Stand dimensions | 22.441 × 11.22 × 15.95 in; not packed shipping dimensions |
Included Components
SPZ binocular stereo zoom microscope body, two 10x eyepieces, two rubber eyeguards, dust cover and instruction manual, plus the double arm table-clamp stand and integrated LED ring-light focus mount with power supply.
Choosing a Workstation Configuration
| Configuration | Selection consideration |
|---|---|
| This double arm table-clamp system | Flexible positioning across a larger work area with ring illumination and no large bench-top base. |
| Track stand with top and bottom lighting | Consider when a dedicated stand base and transmitted-light viewing are priorities. |
| Trinocular or digital imaging system | Consider when a camera connection or monitor-based viewing is required. This SKU is a binocular optical system, not the generic SPZV-50 trinocular configuration. |
Frequently Asked Questions
What magnification does the 26800B-703 provide?
The supplied 10x eyepieces provide a 6.7x–50x optical magnification range. Optional eyepieces and auxiliary lenses can change that range.
What lighting is included?
The system includes an integrated LED ring light and focus mount with 60 LEDs, variable lighting control, 5600 K white light and a power supply.
How does the stand attach to the bench?
A heavy-duty table clamp attaches to the side of the workbench. Dual locks help stabilize the mounting, while the double arm allows horizontal positioning and vertical adjustment.
How much working distance is available?
Standard working distance is 108 mm without an auxiliary lens. Optional auxiliary lenses change the working distance, as listed in the specification table.
Is this a binocular or trinocular microscope?
This SKU is the SPZ-50 binocular system. It should not be confused with Aven's SPZV-50 trinocular model or a camera-and-monitor configuration.
Can the eyepieces be adjusted for different users?
Yes. Interpupillary distance adjusts from 52 to 75 mm, and both eyepiece tubes have diopter adjustment. The supplied eyepieces have a 17 mm high eyepoint.
Are the optional auxiliary lenses included?
The standard microscope package includes two 10x eyepieces. The 0.5x, 0.75x, 1.6x and 2x auxiliary lenses and alternative eyepieces are optional.
