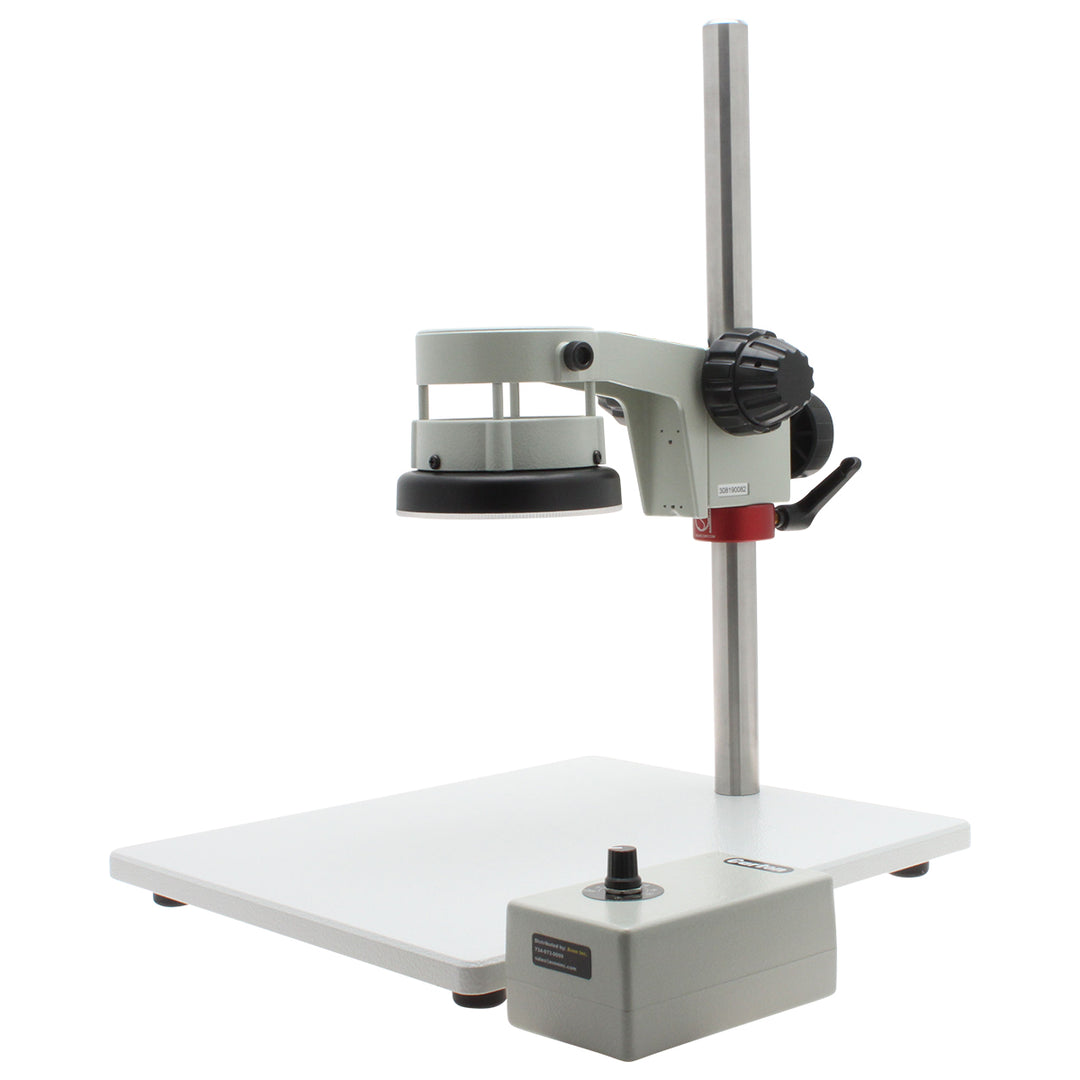

Aven Tools 26800B-570-207 Heavy Duty Post Stand, 25mm, Safety Clamp and Integrated LED Ring Light Focus Mount
Aven Tools 26800B-570-207 Heavy Duty Post Stand, 25mm, Safety Clamp and Integrated LED Ring Light Focus Mount
The Aven Tools 26800B-570-207 combines a heavy-duty post stand and safety clamp with a 60-LED ring light and integrated focus mount. Designed for applications where horizontal extension is limited, the stand has a 406 mm vertical post and a broad aluminum powder-coated base. Position your compatible microscope above the workpiece, adjust coarse and fine focus, and use the variable dimming control to set the illumination for the inspection task.
Best Uses / Applications
- Bench-top electronics and component inspection with compatible microscope bodies.
- Precision assembly requiring adjustable ring illumination.
- Quality-control work on parts supported by a broad stand base.
- Dedicated microscope stations where extended horizontal reach is not required.
Key Features
- All-metal stand construction with an aluminum powder-coated base.
- 279 × 330 × 12.7 mm base accommodates a variety of parts.
- 16-inch post with safety clamp and UNC mounting bolt.
- Integrated focus mount and LED ring light keeps the light secured to the mount.
- 60 daylight LEDs, 35,000 lux light intensity and 5600 K white color temperature.
- Power supply box with variable dimming control.
- Rack-and-pinion focus mechanism with tension control, coarse and fine adjustments, and 50 mm vertical travel.
- LEDs rated by Aven for over 20,000 hours of service.
Stand Specifications
| Specification | Detail |
|---|---|
| Brand / SKU | Aven Tools / 26800B-570-207 |
| Stand type | Heavy-duty post stand with safety clamp |
| Base size | 279 × 330 × 12.7 mm |
| Base weight | 3.6 kg (8 lb); base only |
| Vertical post length | 406 mm (approximately 16 in) |
| Vertical post diameter | Described as 25 mm in Aven's title and description; specification table lists 25.5 mm |
| Mounts accepted | SCW-PA |
| Accepted microscope bodies | SSZ, SPZ, DSZ and NSW series |
| Stand package contents | Base, post, safety clamp, post-to-base mounting bolt and hex key |
Integrated LED Ring Light and Focus Mount Specifications
| Specification | Detail |
|---|---|
| LED count | 60 |
| Lighting control | Variable dimming |
| Light intensity | 35,000 lux |
| Color temperature | 5600 K white |
| LED rated service life | Over 20,000 hours, per Aven |
| Power supply | 5 W; 100–120 V AC, 50/60 Hz |
| Focus mount ring diameter | 74 mm |
| Mounting diameter | 26.9 mm |
| Focus mechanism | Rack and pinion with tension control; coarse and fine focus |
| Vertical focusing travel | 50 mm |
| Accepted microscope bodies | SSZ, SPZ, DSZ and NSW series |
| Component weight | 2.80 lb; ring light/focus mount component, not complete assembly shipping weight |
| Lighting package contents | Integrated LED ring light with focus mount and power supply |
Choosing an Inspection Stand
| Option | Selection consideration |
|---|---|
| This illuminated post stand | Dedicated base, vertical focusing and integrated adjustable ring illumination for compatible microscope bodies. |
| Non-illuminated stand | Consider when you already have suitable illumination; verify mounting compatibility separately. |
| Boom stand | Consider when the inspection task requires greater horizontal reach. |
Frequently Asked Questions
Is a microscope included?
No microscope body is listed in the package contents. This listing supplies the stand, safety clamp, integrated LED ring-light focus mount and power supply.
Which microscope bodies fit?
Aven lists SSZ, SPZ, DSZ and NSW series bodies as accepted. The focus mount ring diameter is 74 mm; verify the fit of your exact microscope configuration.
Can I adjust the brightness?
Yes. The power supply box includes variable dimming control for the 60-LED ring light.
What are the light output and color temperature?
Aven lists 35,000 lux and 5600 K white illumination, with LEDs rated for over 20,000 hours of service.
What power does it require?
The listed power supply specification is 5 W, 100–120 V AC, 50/60 Hz.
How does the focus mount adjust?
The mount uses a rack-and-pinion mechanism with tension control, coarse and fine adjustments, and 50 mm vertical focusing travel.
Is the post 25 mm or 25.5 mm?
Aven describes the post as 25 mm, but its specification table lists 25.5 mm. Confirm the required fit with Aven if combining this stand with other mounting components.
Does the 8 lb figure represent the full assembly weight?
No. The 8 lb figure is the base weight. Aven separately lists 2.80 lb for the ring-light focus-mount component; neither figure is the packed weight of the complete assembly.
