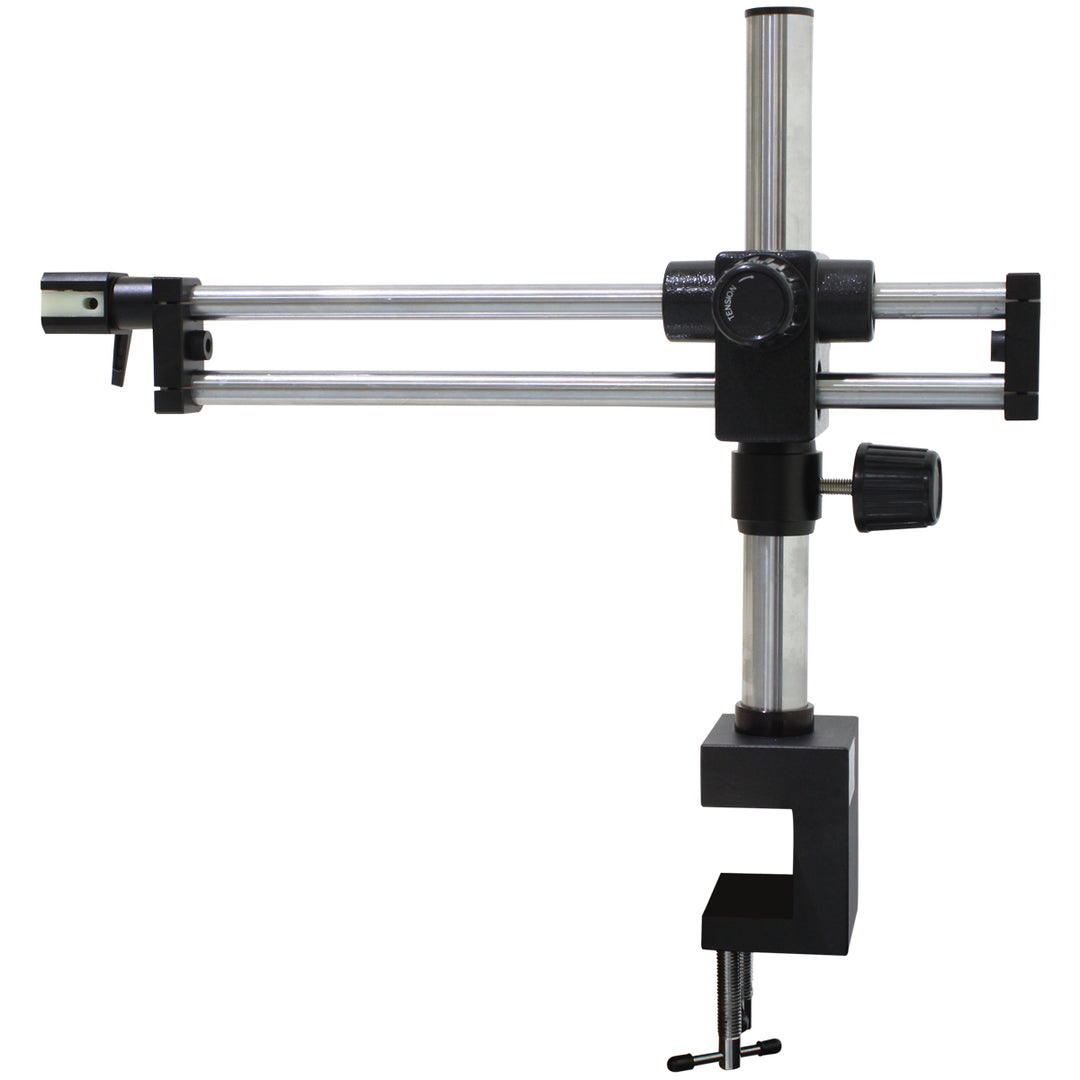

Aven Tools 26800B-536 Double Arm Boom Stand with Table Clamp
Aven Tools 26800B-536 Double Arm Boom Stand with Table Clamp
The Aven Tools 26800B-536 is a double arm microscope boom stand with a table-clamp base and smooth ball-bearing horizontal travel. Designed for inspection across a larger work area, it combines a 570 mm double-bar arm, vertical adjustment and 360° horizontal rotation. Position your compatible microscope over the workpiece, then move across the specimen without a large freestanding base taking up bench space.
Best Uses / Applications
- Electronics assembly and component inspection requiring flexible microscope positioning.
- Inspection of larger specimens across a broad work area.
- Quality-control stations requiring horizontal and vertical adjustment.
- Bench setups where table-clamp mounting helps preserve the work surface.
Key Features
- Ball-bearing slide for smooth horizontal microscope movement.
- Double-bar horizontal arm with 570 mm length.
- 384 mm vertical post with highly polished posts for smooth operation.
- 360° horizontal rotation and manual Z-axis movement.
- Heavy-duty all-metal construction with a black electroplated finish.
- Table clamp secures to the work surface and saves bench space.
- Manufacturer-listed horizontal arm maximum load of 9.07 kg (20 lb).
Technical Specifications
| Specification | Detail |
|---|---|
| Brand / SKU | Aven Tools / 26800B-536 |
| Stand type | Dual arm stand with table clamp |
| Vertical post height / diameter | 384 mm / 37.2 mm |
| Cross adapter | Triple (3) hole adapter |
| Horizontal arm type | Double bar |
| Horizontal arm length / diameter | 570 mm / 20 mm |
| Mounting hole on top of horizontal arm | 16 mm |
| Horizontal rotation | 360° |
| Horizontal arm Z-axis travel | 282 mm |
| Horizontal arm stretch range | 320 mm (12.59 in) |
| Horizontal arm maximum load | 9.07 kg (20 lb) |
| Horizontal travel mechanism | Ball bearing |
| Z-axis travel mechanism | Manual |
| Base type / shape | Clamp / rectangle |
| Clamp dimensions | 140 × 70 × 65 mm |
| Clamp opening | 0–40 mm, per product description |
| Material / finish / color | Metal / black electroplating / black |
| Net weight | 21.38 lb |
| Manufacturer-listed dimensions | 22.441 × 11.22 × 15.95 in; not established as packed shipping dimensions |
| UPC | 766955375302 |
Choosing a Stand Configuration
| Option | Selection consideration |
|---|---|
| This double arm clamp stand | Smooth horizontal movement and vertical adjustment with table-edge mounting. |
| Heavy-base boom stand | Consider when a suitable table edge is unavailable and the bench can accommodate a stand base. |
| Fixed post stand | Consider for a dedicated viewing area where extended horizontal positioning is unnecessary. |
Frequently Asked Questions
How does the stand move across a specimen?
A ball-bearing slide provides smooth horizontal movement. The stand also supports vertical adjustment and 360° horizontal rotation.
How long is the horizontal arm?
The double-bar arm is 570 mm long. Aven separately lists a 320 mm horizontal stretch range and 282 mm Z-axis travel.
What table thickness can the clamp accommodate?
The product description lists a 0–40 mm clamp opening. Confirm that your table edge is suitable for secure mounting.
What is the maximum horizontal arm load?
Aven lists 9.07 kg (20 lb). Check the complete microscope and mounting assembly against the intended stand configuration.
What size mounting hole is provided?
The top of the horizontal arm has a 16 mm mounting hole. Confirm the correct focus mount or adapter for your microscope; this measurement alone does not establish universal compatibility.
Is a microscope or light included?
This listing is for the double arm boom stand with table clamp. The supplied product information does not list a microscope body, focus mount or lighting package as included.
Is the net weight the packed shipping weight?
No. Aven lists a net weight of 21.38 lb. The manufacturer dimensions and net weight should not be treated as verified packed shipping measurements.
