Aven Tools 26800B-521-207 Focus Mount with Integrated LED Ring Light and Tiltable Arbor
Aven Tools 26800B-521-207 Focus Mount with Integrated LED Ring Light and Tiltable Arbor

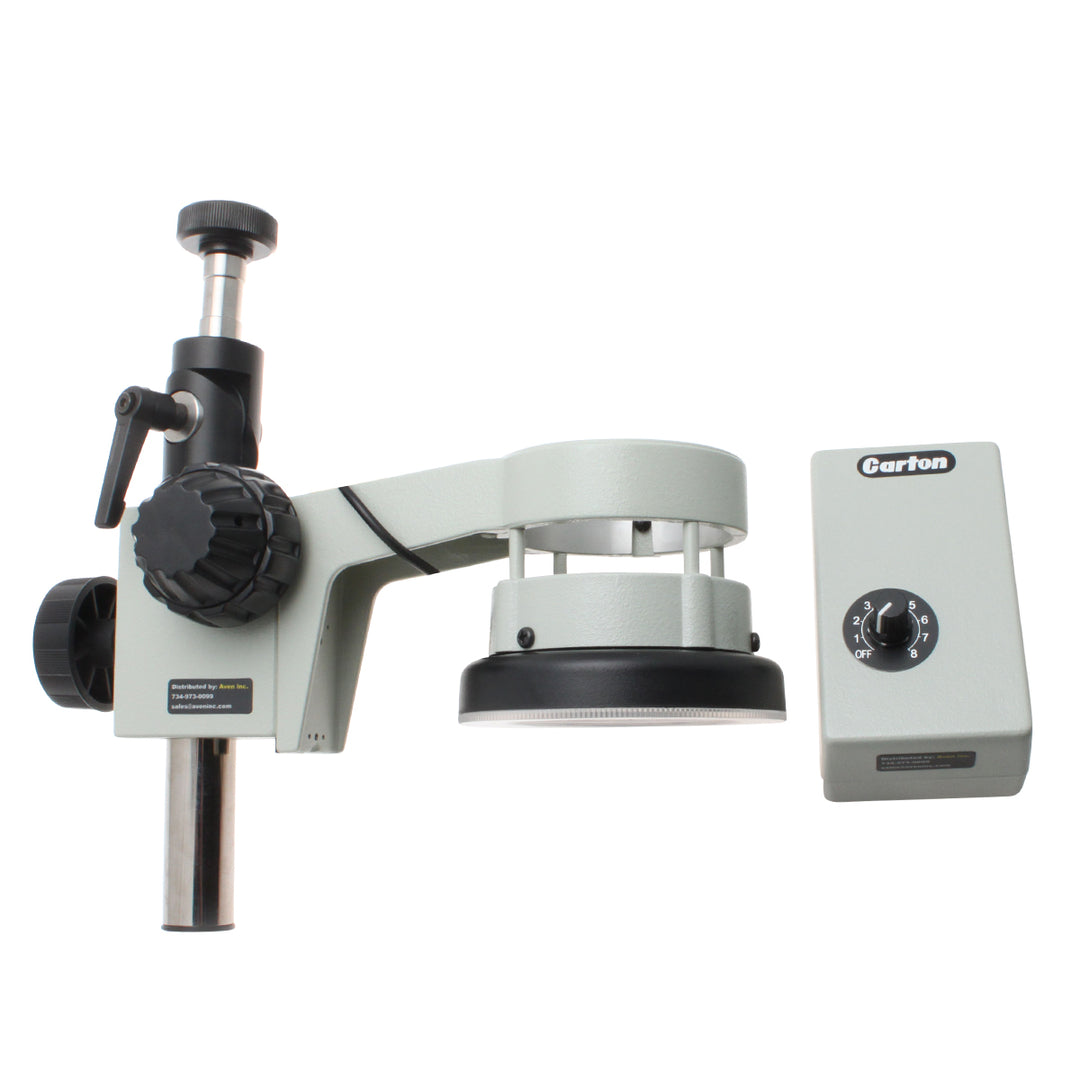

The Aven Tools 26800B-521-207 combines a microscope focus mount, integrated 60-LED ring light and tiltable arbor for compatible boom-style microscope stands. The 74 mm ring accepts SSZ, SPZ, DSZ and NSW series bodies, while coarse and fine focusing and variable illumination help you bring inspection details into view. Tilt the microscope body toward a comfortable viewing position and adjust the dimmer without adding a separate ring-light mounting arrangement.
Best Uses / Applications
- Illuminated inspection setups on compatible boom or articulating arm stands.
- Electronics assembly and component inspection requiring adjustable ring illumination.
- Workstations requiring microscope-body tilt for operator comfort.
- Replacement or upgraded focus-mount assemblies for supported microscope bodies.
Key Features
- Integrated ring light with 60 daylight LEDs.
- 35,000 lux light intensity and 5600 K white color temperature.
- Power supply box with variable dimming control.
- LEDs rated by Aven for over 20,000 hours of service.
- Ring light secured to the focus mount to prevent it becoming loose from the microscope.
- Rack-and-pinion focusing with tension control and coarse/fine adjustment.
- 50 mm vertical focusing travel.
- Tiltable arbor extends the positioning range of compatible stands and allows microscope-body tilt.
LED Ring Light and Focus Mount Specifications
| Specification | Detail |
|---|---|
| Brand / assembly SKU | Aven Tools / 26800B-521-207 |
| LED count | 60 |
| Lighting control | Variable dimming |
| Light intensity | 35,000 lux |
| LED color temperature | 5600 K white |
| Rated LED service life | Over 20,000 hours, per Aven |
| Power supply | 5 W; 100–120 V AC, 50/60 Hz |
| Focus mount ring diameter | 74 mm |
| Mounting diameter | 26.9 mm |
| Focus mechanism | Rack and pinion with tension control |
| Focus adjustment | Coarse and fine |
| Vertical focusing travel | 50 mm |
| Accepted microscope bodies | SSZ, SPZ, DSZ and NSW series |
| Ring-light focus-mount component weight | 2.80 lb; not established as complete assembly or packed shipping weight |
| Lighting package contents | Integrated LED ring light with focus mount and power supply |
Tiltable Arbor Specifications
| Specification | Detail |
|---|---|
| Arbor diameter | 25 mm |
| Arbor length | 245 mm |
| Adapter | 15.875 mm (5/8 inch) |
| Stand applications | Compatible boom stands and articulating arm stands |
| Adjustment | Microscope-body tilt |
Choosing a Focus-Mount Configuration
| Option | Selection consideration |
|---|---|
| This illuminated mount with tiltable arbor | Combines focus adjustment, ring illumination and microscope-body tilt. |
| Focus mount with tiltable arbor but no integrated lighting | Consider when suitable inspection lighting is already available. |
| Standalone focus mount | Consider when an existing post or arbor supplies the required connection and tilt is unnecessary. |
Frequently Asked Questions
Which microscope bodies does it accept?
Aven lists SSZ, SPZ, DSZ and NSW series bodies. Verify your exact microscope fit against the 74 mm ring and your stand's mounting requirements.
What illumination is included?
The integrated ring light has 60 LEDs, variable dimming, 35,000 lux light intensity and 5600 K white illumination.
Does it include a power supply?
Yes. Aven lists the power supply in the lighting package contents, with a specification of 5 W, 100–120 V AC, 50/60 Hz.
Does it offer coarse and fine focus?
Yes. Aven describes coarse and fine focusing, a rack-and-pinion mechanism with tension control and 50 mm vertical focusing travel.
What does the tiltable arbor add?
It extends the positioning range of compatible boom and articulating arm stands and lets the microscope body tilt for operator comfort.
What are the arbor dimensions?
The arbor is 25 mm in diameter and 245 mm long, with a 15.875 mm (5/8-inch) adapter.
Is a complete stand or microscope included?
This listing is the focus mount, integrated LED ring light, power supply and tiltable-arbor configuration. A complete stand and microscope body are not listed as included.
Is 2.80 lb the weight of the whole assembly?
The table labels that weight for the ring light with integrated focus mount. It is not established as the weight of the complete assembly with arbor or its packed shipping weight.
