Aven Tools 26800B-518 E-Arm Microscope Focus Mount, 74mm Ring and 5/8-Inch Adapter
Aven Tools 26800B-518 E-Arm Microscope Focus Mount, 74mm Ring and 5/8-Inch Adapter

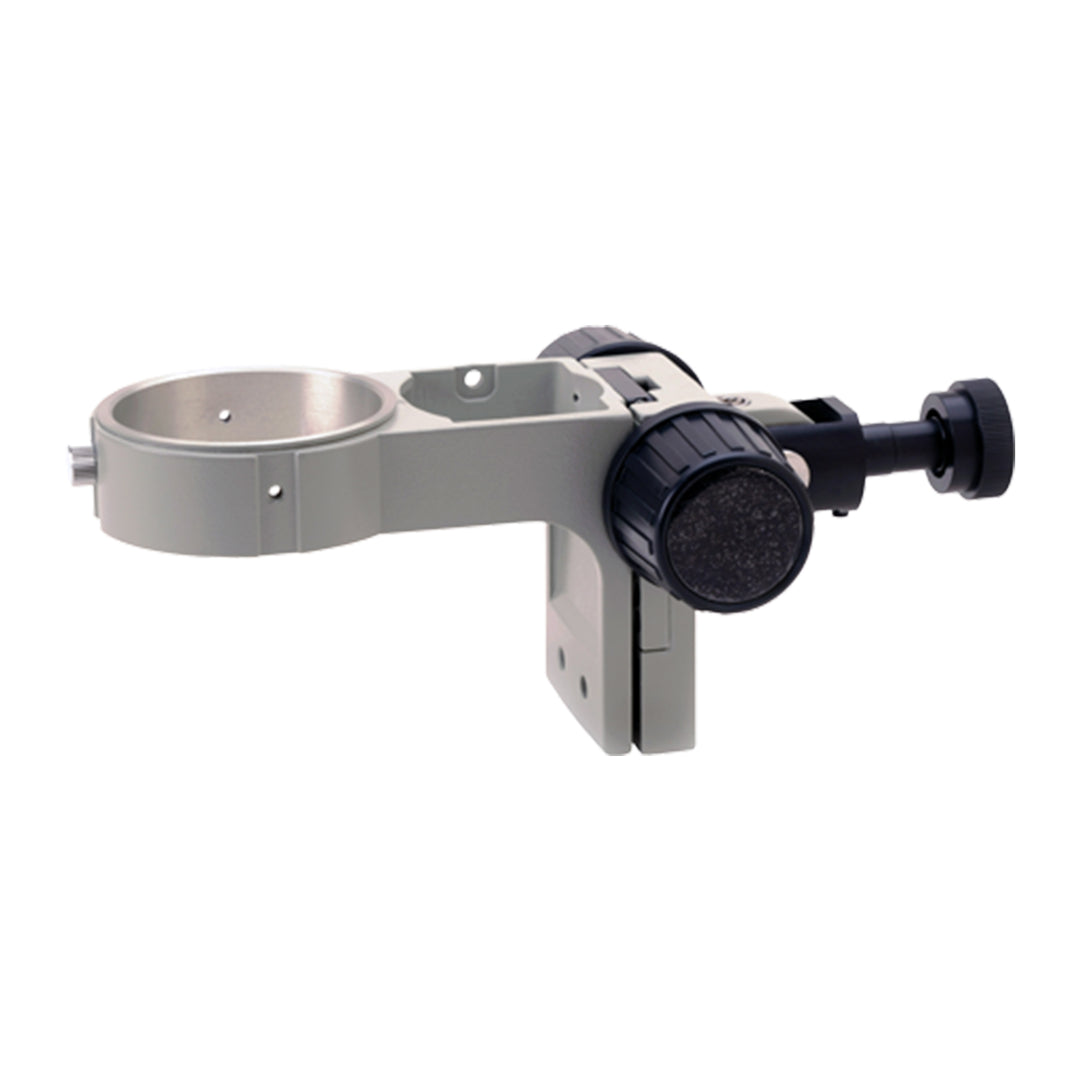

The Aven Tools 26800B-518 E-Arm focus mount connects compatible microscope bodies to Aven boom stands or articulating arm stands. Its 74 mm ring accepts SSZ, SPZ, DSZ and NSW series microscopes, while the 15.875 mm (5/8-inch) adapter provides the stand connection. A rack-and-pinion mechanism provides 50 mm of vertical focusing travel for bringing inspection details into view.
Best Uses / Applications
- Mounting supported microscope bodies on compatible Aven boom stands.
- Adding focusing adjustment to an articulating-arm inspection setup.
- Replacement mounting assemblies for SSZ, SPZ, DSZ and NSW microscope configurations.
- Electronics assembly and component inspection requiring vertical focus adjustment.
Key Features
- 74 mm focus-mount ring for the listed microscope series.
- 15.875 mm (5/8-inch) stand adapter.
- Rack-and-pinion focus mechanism with tension control, per the specification table.
- 50 mm vertical focusing travel.
- Aven describes mounting on its boom stands and articulating arm stands.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand / SKU | Aven Tools / 26800B-518 |
| Product type | E-Arm microscope focus mount |
| Focus mount hole / adapter diameter | 15.875 mm (5/8 inch) |
| Focus mount ring diameter | 74 mm |
| Focus mechanism | Rack and pinion with tension control, per Aven's specification table |
| Focus system | Details and features describe coarse adjustment; specification table lists coarse and fine. Confirm fine-focus availability with Aven if required. |
| Vertical focusing travel | 50 mm |
| Accepted microscope bodies | SSZ, SPZ, DSZ and NSW series, per product summary and specification table |
| Stand compatibility | Aven boom stands and articulating arm stands; verify the connection for the intended setup |
| Package contents | One E-Arm |
| Manufacturer-listed weight | 3 lb; differs from the existing store weight and is not verified as packed shipping weight |
| UPC | 766955372233 |
Choosing a Mounting Configuration
| Option | Selection consideration |
|---|---|
| This E-Arm focus mount | 74 mm microscope ring and 5/8-inch stand adapter with vertical focusing travel. |
| Standalone focus mount | Consider when a compatible post or separate arbor already supplies the required connection. |
| Focus mount with tiltable arbor | Consider when microscope-body tilt is an explicit requirement. |
Frequently Asked Questions
Which microscope bodies does it accept?
The product summary and specification table list SSZ, SPZ, DSZ and NSW series bodies. Confirm your exact microscope's fit against the 74 mm ring.
Which stands can it mount on?
Aven describes mounting the E-Arm on its boom stands or articulating arm stands. Verify the 15.875 mm (5/8-inch) connection for your intended configuration.
How much focusing travel does it provide?
Aven lists 50 mm of vertical focusing travel. This is mount travel, not the optical working distance of the microscope.
Does it have fine focus?
Aven's details and features describe coarse focus, while its specification table lists coarse and fine. Confirm fine-focus availability with Aven if that feature is essential to your purchase.
What is included?
The specification lists one E-Arm. A stand, microscope body and lighting package are not listed as included.
Is this a tiltable arbor assembly?
The supplied information identifies an E-Arm focus mount and does not specify tilt adjustment. Select a configuration explicitly described with a tiltable arbor if microscope-body tilt is required.
