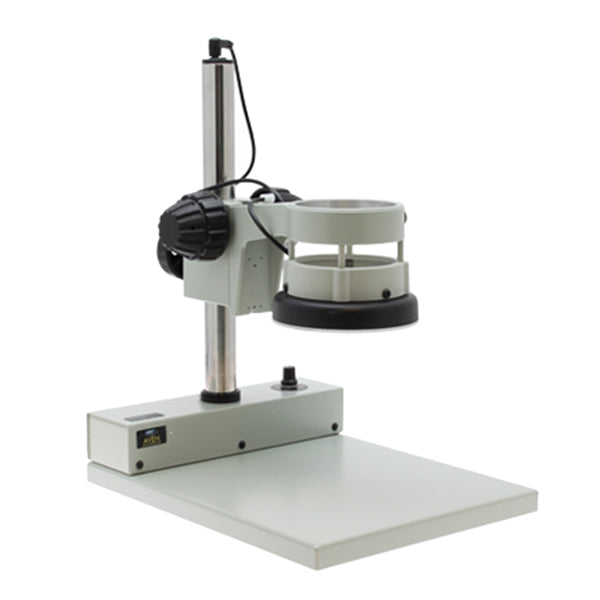

Aven Tools 26800B-514-ESD ESD-Safe Pole Stand with Focus Mount and LED Illumination
Aven Tools 26800B-514-ESD ESD-Safe Pole Stand with Focus Mount and LED Illumination
The Aven Tools 26800B-514-ESD is a compact, ESD-safe pole stand with a focus mount and built-in 60-LED ring light for compatible SPZ-series ESD-safe microscopes. Designed for examining small parts where bench space is limited, it combines a sturdy base with rack-and-pinion coarse and fine focusing. Position the microscope over your component, bring the detail into focus and adjust the dimmer to suit the inspection task.
Compatibility restriction: Aven states that this stand is not suitable for SPZ-series microscopes fitted with a 0.5x lens because the vertical post is not long enough to accommodate the required working distance.
Best Uses / Applications
- Small-part inspection with compatible SPZ ESD-safe microscope bodies.
- Electronics assembly and quality-control work in an ESD-controlled workstation.
- Compact bench-top microscope setups where work-surface space is limited.
- Inspection tasks requiring adjustable ring illumination and coarse/fine focusing.
Key Features
- Manufacturer-designated ESD-safe stand.
- Compact base and 250 mm vertical post, described approximately as a 10-inch post.
- Built-in ring light with 60 LEDs for even, shadow-free illumination as described by Aven.
- Variable dimmer control for adjusting illumination.
- Rack-and-pinion focus mount with coarse and fine adjustment knobs.
- 74 mm focus-mount diameter for the specified microscope configuration.
- Low-power LED illumination with long service life, as described by Aven.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand / SKU | Aven Tools / 26800B-514-ESD |
| Stand type | Pole stand with focus mount and LED illumination |
| ESD designation | ESD Safe, per Aven |
| Base size | 220 × 284 × 15 mm |
| Vertical post length | 250 mm |
| Focus mount | Rack and pinion with coarse and fine focus; 74 mm diameter |
| Accepted bodies | SPZ-series ESD-safe microscopes |
| Excluded configuration | SPZ-series microscope with 0.5x lens; insufficient post length for its working distance |
| Illumination | Built-in 60-LED ring light with dimmer control |
| Package contents | One stand with post and focus mount; integrated LED illumination identified in the description |
| Manufacturer-listed weight | 10 lb; not verified as packed shipping weight |
| UPC | 766955374725 |
Choosing an Inspection Stand
| Option | Selection consideration |
|---|---|
| This compact illuminated pole stand | Small-part inspection with compatible SPZ ESD-safe bodies where bench space is limited. |
| Taller compatible stand | Consider when the optical configuration needs more working-distance clearance, including SPZ configurations with a 0.5x lens. |
| Boom stand | Consider when greater horizontal reach is needed; verify body, mounting and ESD requirements separately. |
Frequently Asked Questions
Which microscopes are accepted?
Aven's specification table lists SPZ-series ESD-safe microscopes. Confirm your exact body and optical configuration before purchase.
Can I use an SPZ microscope with a 0.5x lens?
No. Aven explicitly states that the post is too short to accommodate the working distance of that configuration.
What lighting is included?
The stand includes a built-in 60-LED ring light with dimmer control for adjustable inspection illumination.
Does it provide fine focus?
Yes. The rack-and-pinion focus mount has both coarse and fine focus adjustment knobs.
How large is the base and how tall is the post?
The base measures 220 × 284 × 15 mm. The specification table lists a 250 mm vertical post, described approximately as 10 inches in the product details.
Is this a complete microscope?
No. This listing is the stand, post, focus mount and integrated lighting configuration. A microscope body is not listed in the package contents.
What ESD performance is specified?
Aven identifies the product as ESD Safe. The supplied information does not specify resistance values or a particular ESD compliance standard; verify those requirements with Aven for your workstation.
