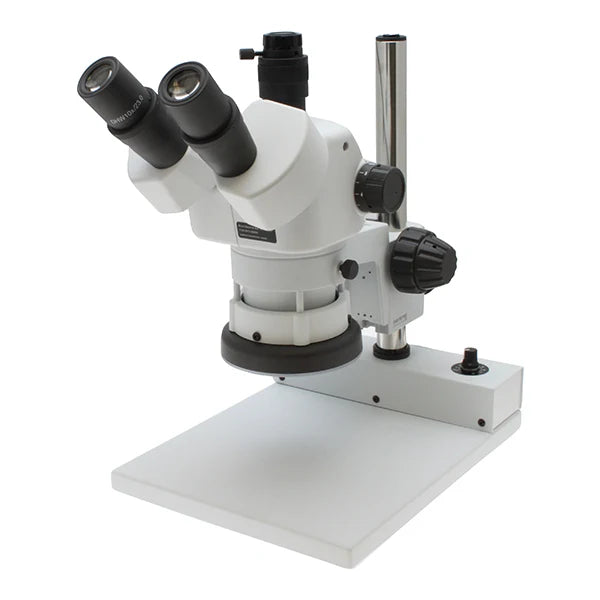

Aven Tools 26800B-376-ESD SPZV-50E ESD-Safe Trinocular Stereo Zoom Microscope, 6.7x–50x, with LED PLED Stand
Aven Tools 26800B-376-ESD SPZV-50E ESD-Safe Trinocular Stereo Zoom Microscope, 6.7x–50x, with LED PLED Stand
The Aven 26800B-376-ESD combines an ESD-safe SPZV-50E stereo zoom trinocular microscope with an ESD-safe PLED stand and integrated dimmable 60-LED ring light. The included 10x widefield eyepieces provide 6.7x–50x optical magnification, while coarse and fine focusing help examine small features. Aven describes the ESD-safe coating as protecting sensitive components from electrostatic discharge.
The compact post-stand configuration supports detailed optical inspection at a bench where space matters. Adjust the zoom and light level for the feature being examined, then use the trinocular camera port to add a compatible camera when digital documentation is needed. A camera and monitor are not listed in the supplied package contents.
Best Uses / Applications
- Visual inspection of electrostatic-sensitive components within an appropriately controlled ESD workstation.
- Small-part inspection where adjustable ring illumination and coarse/fine focus are useful.
- Inspection and laboratory work requiring stereo optical viewing at 6.7x–50x.
- Compact bench setups that benefit from a 220 × 284 mm base footprint.
- Camera-ready inspection workflows using a separately selected compatible camera.
Key Features
- ESD-safe microscope coating and ESD-safe PLED stand identified by Aven.
- SPZV-50E trinocular stereo zoom body with camera port.
- 6.7x–50x included optical magnification and 7.46:1 zoom ratio.
- 10x FN23 widefield eyepieces with 17 mm high eye point and 45° inclined tubes.
- Diopter adjustment on both eyepiece tubes and adjustable interpupillary distance.
- 108 mm working distance and multi-coated optics.
- Integrated 60-white-LED ring light with dimmer control.
- Rack-and-pinion focus mount with coarse and fine adjustment.
Technical Specifications
| Manufacturer / MPN | Aven Tools / 26800B-376-ESD |
|---|---|
| Microscope | SPZV-50E ESD-safe trinocular stereo zoom, per product title and descriptive copy |
| Included Optical Magnification | 6.7x–50x |
| Objective Zoom Range | 0.67x–5.0x |
| Eyepieces | 10x widefield, FN23; 45° inclined; 17 mm high eye point |
| Zoom Ratio | 7.46:1 |
| Working Distance | 108 mm / 4.25 inches |
| Published Field of View | 34.3–3.6 mm |
| Interpupillary Distance | 52–75 mm in specification table; descriptive copy separately gives 50–74 mm |
| Diopter Adjustment | Both eyepiece tubes; table lists ±7.2D |
| Optical System | Greenough |
| Camera Port | C-mount; overview also references C/CS camera mounting |
| Stand | ESD-safe PLED 26800B-514-ESD, per product overview |
| Illumination | 60 white LEDs with dimmer control |
| Focus Mount | 74 mm diameter rack-and-pinion mount with coarse/fine adjustment |
| Base Footprint | 220 × 284 mm |
| Pole Height | 250 mm / 9.84 inches in table; details separately state 255 mm |
| Stage Plate | None listed |
| Manufacturer-Listed Weight | 15 lb |
| Listed Accessories | Dust cover, rubber eye guards and tension control pin |
Source clarifications: The supplied Aven specification table labels the body “Binocular,” but the exact product title, description and camera-port information identify a trinocular system. The package row abbreviates the stand number to 26800B-514, while the overview explicitly identifies the ESD-safe 26800B-514-ESD. Conflicting interpupillary-distance and pole-height figures are retained above rather than resolved by assumption.
Included Configuration vs. Optional Expansion
| Item | Included Configuration | Optional Expansion |
|---|---|---|
| Magnification | 6.7x–50x with 10x eyepieces | Aven lists up to 200x with optional optics; not the included range |
| Viewing | Optical stereo eyepiece inspection | Digital viewing with a separately selected compatible camera and display |
| Illumination | Integrated dimmable 60-LED ring light | Confirm any accessory changes for the exact configuration |
Optional auxiliary lenses, alternate eyepieces, scale eyepieces, protective lens cover and ring-light adapter are listed separately by Aven. Verify camera coupling and mechanical fit before ordering an imaging accessory.
ESD Workstation Considerations
Aven identifies an ESD-safe coating and stand for this system, but the supplied screenshots do not provide surface-resistance values, grounding instructions or certification to a named ESD standard. Use the microscope within your facility's approved ESD-control program and obtain any required technical documentation before qualification. The microscope does not replace personnel grounding, work-surface controls or other workstation safeguards.
Package Contents
- SPZV-50E microscope body.
- ESD-safe PLED stand with integrated LED ring illumination.
- Listed accessories: dust cover, rubber eye guards and tension control pin.
No camera, monitor or PC is listed as included.
Frequently Asked Questions
What magnification is included?
The included 10x eyepieces provide 6.7x–50x. The advertised maximum of 200x requires optional optics.
Is this model ESD-safe?
Aven identifies the microscope coating and PLED stand as ESD-safe. Specific resistance values and standard certifications are not established by the supplied screenshots.
Does it include a camera?
No camera is listed in the package contents. The trinocular camera port supports adding a compatible camera separately.
Is the microscope binocular or trinocular?
The exact product title and description identify a trinocular microscope with camera port. The table's binocular entry conflicts with that information.
What illumination is included?
A built-in 60-white-LED ring light with dimmer control in the focus-mount/stand assembly.
Does the stand offer fine focusing?
Yes. Aven describes coarse and fine adjustment on the rack-and-pinion focus mount.
What is the working distance?
The supplied specification table lists 108 mm without applying optional-lens changes.
Will it fit a compact bench?
The listed base footprint is 220 × 284 mm. Allow additional space for the operator, specimen and any separately added camera equipment.
Does the ESD-safe coating replace workstation grounding?
No. Integrate the microscope with your approved workstation ESD controls and obtain manufacturer grounding guidance for qualification.
