Aven Tools 26800B-376-1 SPZV-50E ESD-Safe Trinocular Microscope, 6.7x–50x, with Mighty Cam USB 6M Camera & PLED Stand
Aven Tools 26800B-376-1 SPZV-50E ESD-Safe Trinocular Microscope, 6.7x–50x, with Mighty Cam USB 6M Camera & PLED Stand

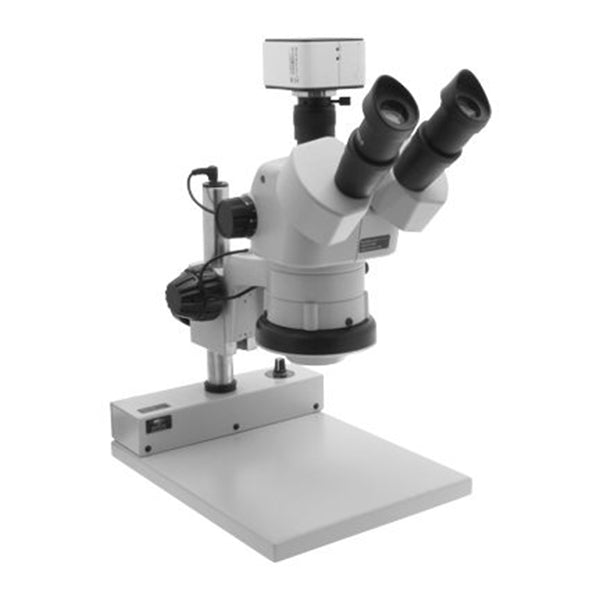

The Aven 26800B-376-1 combines an ESD-safe SPZV-50E trinocular stereo zoom microscope with an ESD-safe PLED stand, integrated dimmable 60-LED ring light and Mighty Cam USB 3.0 6M CMOS camera. Inspect through the included 10x eyepieces at 6.7x–50x optical magnification while using the camera and included Mosaic software to capture, annotate and measure images on a connected PC.
Aven describes the specialized ESD-safe coating as dissipating electrostatic discharge to protect sensitive components. At the bench, examine a feature in the optical stereo view, capture its camera image for an inspection record and share annotated findings without repeatedly switching between separate inspection systems.
Best Uses / Applications
- Visual inspection of electrostatic-sensitive components in an appropriately controlled ESD workstation.
- Small-part inspection combining stereo optical viewing and on-screen camera images.
- PC-based image documentation, annotation and reporting.
- Software-assisted dimensional measurement after calibration for the current optics and zoom setting.
- Panoramic image documentation using the software's real-time stitching function; Aven recommends a gliding stage for optimal performance.
- Compact inspection benches needing dimmable ring illumination and coarse/fine focus.
Key Features
- SPZV-50E ESD-safe true trinocular stereo zoom microscope.
- 6.7x–50x optical magnification with two 10x FN23 widefield eyepieces.
- Simultaneous optical and camera/display viewing.
- 360° rotatable microscope body, 45° inclined tubes and C-mount camera port.
- 7.46:1 zoom ratio, dual diopter adjustment and adjustable interpupillary distance.
- Mighty Cam 26100-244 USB 3.0 6M CMOS camera with Mosaic software.
- ESD-safe PLED stand 26800B-514-ESD with integrated 60-white-LED ring light and dimmer.
- Rack-and-pinion focus mount with coarse and fine adjustment.
- Software tools for image capture, measurement, annotation, reporting, image comparison, panorama stitching and depth-of-field adjustment.
Technical Specifications
| Manufacturer / MPN | Aven Tools / 26800B-376-1 |
|---|---|
| Microscope Body | SPZV-50E ESD-safe true trinocular stereo zoom |
| Included Optical Magnification | 6.7x–50x |
| Eyepieces | Two 10x widefield FN23; 45° inclined tubes |
| Body Rotation / Camera Port | 360° / C-mount |
| Optical System / Zoom Ratio | Greenough / 7.46:1 |
| Working Distance | 108 mm without auxiliary lens |
| Interpupillary Distance | 52–75 mm adjustable |
| Diopter Adjustment | +5.6D to −7.2D on both eyepiece tubes |
| Camera | 26100-244 Mighty Cam USB 3.0 6M CMOS |
| Software | Mosaic imaging and measurement software included |
| Stand | ESD-safe PLED 26800B-514-ESD |
| Illumination | 60 white LEDs with dimmer control |
| Focusing | Rack-and-pinion mount, coarse/fine adjustment |
| Focus Mount Diameter | 74 mm, as stated in the details |
| Base Footprint | 220 × 284 mm |
| Pole Height | 250 mm / 9.84 inches in table; details separately state 255 mm |
| Stage Plate | None listed |
| Manufacturer-Listed System Weight | 18 lb |
| Listed Accessories | Dust cover, rubber eye guards and tension control pin |
The 250/255 mm pole-height discrepancy is retained rather than resolved by assumption. The supplied screenshots do not establish camera frame rate, exact pixel dimensions, current operating-system compatibility or measurement accuracy; verify those requirements before purchase. Optional lenses and alternate eyepieces are not part of the included 6.7x–50x configuration.
Optical Viewing vs. USB Imaging
| Task | Eyepieces | USB Camera & Mosaic Software |
|---|---|---|
| View | Direct stereo optical view | Camera-generated image on a connected PC/display |
| Documentation | Visual examination | Save images, add annotations and generate reports |
| Measurement | Visual assessment | Software-assisted measurements after calibration |
| Extended Imaging | Examine individual features | Image stitching and depth-of-field adjustment functions |
ESD & Measurement Considerations
Aven identifies an ESD-safe coating and stand, but the supplied screenshots do not provide surface-resistance values, grounding instructions or certification to a named ESD standard. Integrate this microscope into your facility's approved ESD-control program and obtain required manufacturer documentation before qualification. The microscope does not replace personnel grounding or other workstation safeguards.
Calibrate the measurement workflow for the current optics and zoom setting, and verify calibration when changing optical settings. A gliding stage is recommended for optimal panorama-stitching performance and is not listed in the included package.
Package Contents
- SPZV-50E trinocular microscope body.
- ESD-safe PLED stand 26800B-514-ESD with LED ring light.
- Mighty Cam USB 3.0 6M CMOS camera 26100-244 with software.
- Two 10x eyepieces, rubber eyeguards, dust cover and instruction manual in the microscope component list.
- Tension control pin listed among system accessories.
A PC, external monitor and optional gliding stage are not listed as included. This is a USB-camera system, not a Mighty Cam Pro HDMI/autofocus bundle or an Eidos integrated-monitor configuration.
Frequently Asked Questions
What magnification is included?
The SPZV-50E provides 6.7x–50x optical magnification with the supplied 10x eyepieces.
Is this system ESD-safe?
Aven identifies the specialized microscope coating and PLED stand as ESD-safe. Specific resistance values and named-standard certification are not established by these screenshots.
Which camera is included?
The 26100-244 Mighty Cam USB 3.0 6M CMOS camera with Mosaic imaging and measurement software.
Can I use the eyepieces and camera view simultaneously?
Yes. Aven describes dual-view trinocular operation with optical eyepiece and external-display viewing at the same time.
Is a computer or monitor included?
Neither is listed in the supplied package contents. Plan for a compatible computer/display for digital imaging.
What lighting is included?
The stand integrates a 60-white-LED ring light with dimmer control.
Does it have coarse and fine focus?
Yes. Aven describes coarse and fine adjustment on the rack-and-pinion focus mount.
Can it create panoramic images?
The included software supports real-time stitching. Aven recommends a gliding stage for optimal performance; that stage is not listed as included.
Does software measurement require calibration?
Yes. Establish calibration for the current optics and zoom before relying on dimensional results.
