Aven Tools 26800B-373-9 SPZV-50 Trinocular Microscope, 6.7x–50x, with Ultra-Glide Stand, Fiber Optic Light & USB 6M Camera
Aven Tools 26800B-373-9 SPZV-50 Trinocular Microscope, 6.7x–50x, with Ultra-Glide Stand, Fiber Optic Light & USB 6M Camera

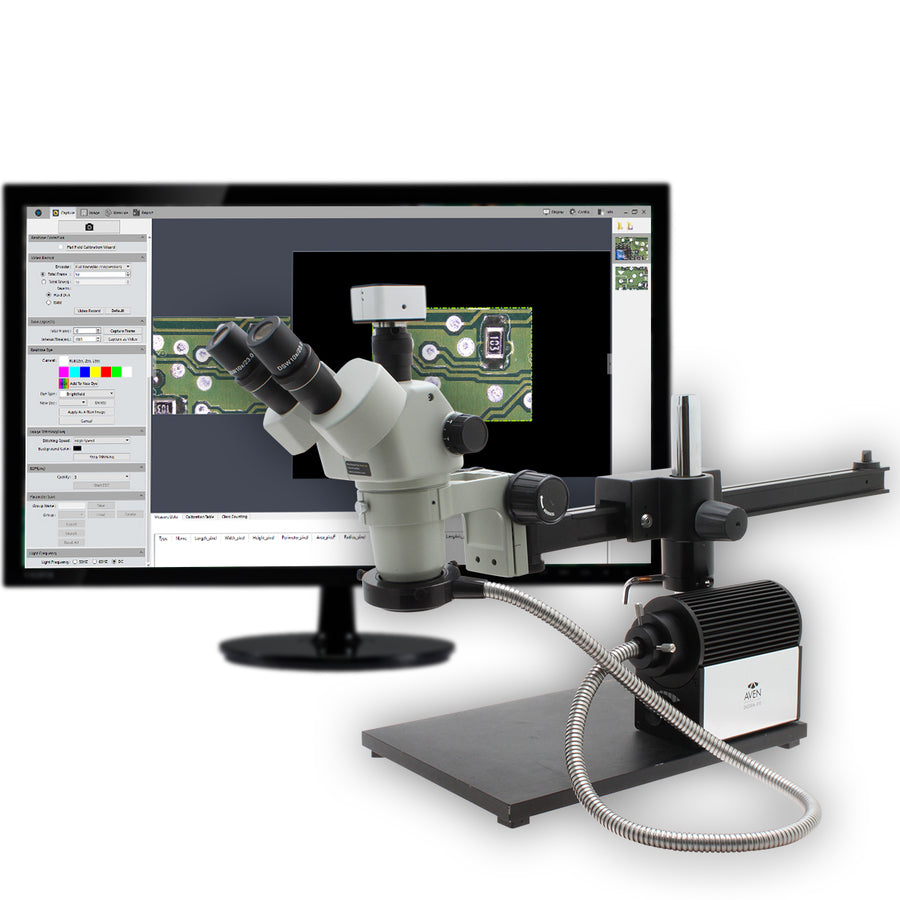

The Aven 26800B-373-9 combines an SPZV-50 trinocular stereo zoom microscope with an Ultra-Glide boom stand, E-Arm focus mount, 20 W LED fiber-optic illuminator and Mighty Cam USB 3.0 6-megapixel camera. The microscope provides 6.7x–50x optical magnification through the included 10x eyepieces. Its 23-inch gliding arm lets you scan across larger specimens, while the camera and included software support PC-based image capture, annotation, reports and calibrated measurement.
At the bench, glide the microscope across a part instead of repeatedly repositioning the specimen. Inspect through the stereo eyepieces while viewing the camera image on a connected display, then save and annotate findings for colleagues or quality records.
Best Uses / Applications
- Inspecting parts with larger surface areas using the 23-inch gliding boom.
- Bench inspection requiring both stereo eyepiece viewing and digital image documentation.
- Capturing high-resolution images to a connected computer for reports and sharing.
- Software-assisted measurement after calibration for the selected optics and zoom setting.
- Creating panoramic inspection images with the included software's real-time stitching function.
- Visual inspection using a separate LED fiber-optic source and ring light.
Key Features
- True trinocular SPZV-50 Greenough stereo microscope with 6.7x–50x optical magnification.
- 7.46:1 zoom ratio, click-stop zoom and adjustable C-mount camera adapter.
- Two 10x FN23 eyepieces with 17 mm high eye point, 45° inclined tubes and dual diopter adjustment.
- Simultaneous eyepiece and camera/display viewing.
- Ultra-Glide 23-inch horizontal arm, heavy metal base, positioning locks and safety collar.
- Mighty Cam 26100-244 USB 3.0 camera with Sony 6MP color CMOS sensor and imaging software.
- Separate 20 W LED fiber-optic illuminator, ring light and adapter.
- Software functions for image saving, annotation, reporting, calibrated measurements, panorama stitching and real-time depth-of-field adjustment.
Microscope Specifications
| Manufacturer / MPN | Aven Tools / 26800B-373-9 |
|---|---|
| Microscope Body | SPZV-50 true trinocular; 360° rotatable |
| Optical Magnification | 6.7x–50x |
| Optical System / Zoom Ratio | Greenough / 7.46:1 |
| Eyepieces | Two 10x FN23, 17 mm high eye point; 45° inclined tubes |
| Working Distance | 108 mm without auxiliary lens |
| Published Field of View | 34.3–3.6 mm, as stated in this product's feature list |
| Interpupillary Distance | 52–75 mm adjustable |
| Diopter Adjustment | Both tubes, +5.6D to −7.2D |
| Camera Port | C-mount |
Source clarification: Some Aven section headings call this a binocular system, but the product title and detailed body specification identify a true trinocular SPZV-50. The page title uses 6.75x–50x, while its detailed copy specifies 6.7x–50x; this listing follows the detailed specification. Optional auxiliary lenses and alternate eyepieces are not included in the stated configuration.
USB Camera Specifications
| Model | 26100-244 Mighty Cam USB 3.0 |
|---|---|
| Sensor | Sony 6MP color CMOS, 1/1.8-inch IMX178, as listed by Aven |
| Pixel Size | 2.4 × 2.4 µm |
| Resolution | 3072 × 2048 pixels |
| Frame Rate | 40 FPS at 6MP, as listed by Aven |
| Shutter Mode | Aven lists “Global”; confirm with the manufacturer if shutter architecture is critical |
| Automatic Settings | Exposure, color scale and white balance |
| Color Temperature Setting | 2000–15,000 K |
| ADC Depth | 12 bit |
| Software / Image Formats | Included / JPG, PNG, TIFF |
| Listed Operating Systems | Windows, Linux and Mac; verify compatibility with your current OS version |
| Listed PC Configuration | Intel Core i5 or better, four or more cores; 8 GB RAM or more; Windows 7/8/10 64-bit in the configuration row |
| Multiple Cameras | Support for four simultaneously, as listed by Aven |
| Data / Optical Interface | USB 3.0 / standard C-mount; details also describe C/CS lens mounting |
| Camera Dimensions / Weight | 68 × 68 × 44 mm / 330 g |
Ultra-Glide Stand Specifications
| Stand / Focus Mount | 26800B-556 / E-Arm 26800B-518 |
|---|---|
| Horizontal Arm | 23 inches / 584.2 mm |
| Base Dimensions | 15 × 10.5 inches |
| Listed Base Weight | 35 lb |
| Vertical Post | 13.5 inches / 342.9 mm long; 1.46 inches / 37.2 mm diameter |
| Extension Post | 8.85 inches / 225 mm |
| Focus Mount Hole | 5/8 inch / 15.875 mm |
| Positioning | Horizontal/vertical locking knobs and support-post safety collar |
Fiber-Optic Illuminator Specifications
| Illuminator | 26200A-310; 20 W version as specified on this page |
|---|---|
| Input | 96–265 VAC, 50–60 Hz |
| Color Temperature | 5600 K |
| Published Illumination Intensity | 1600 lx; test conditions not stated |
| Published Noise | Less than 30 dB |
| Ambient / Working Temperature | 5–45°C / less than 53°C |
| Expected Lamp Life | 10,000 hours |
| Included Ring Light / Adapter | 26200A-402 / 26800B-460 |
Optical Viewing vs. USB Imaging
| Task | Eyepieces | USB Camera & Software |
|---|---|---|
| Viewing | Direct stereo optical inspection | Digital camera image on a connected computer/display |
| Documentation | Visual examination | Save images, annotate findings and create reports |
| Measurements | Visual assessment | Calibrated software-assisted measurements |
| Large-Area Records | Glide microscope across specimen | Use image stitching to generate panoramic images |
Calibrate the measurement workflow for the current optical configuration and verify calibration when changing zoom or optics. No measurement-accuracy tolerance is established in the supplied source. This is a USB-camera bundle, not a standalone HDMI autofocus or integrated-monitor system.
Package Contents
- SPZV-50 stereo zoom microscope.
- 26100-244 USB 3.0 camera with imaging software.
- 26800B-556 Ultra-Glide boom stand.
- 26800B-518 E-Arm focus mount.
- 26200A-310 20 W fiber-optic illuminator.
- 26200A-402 fiber-optic ring light.
- 26800B-460 ring-light adapter.
The microscope component list also identifies two 10x eyepieces, rubber eyeguards, dust cover and instruction manual. A computer and external monitor are not listed as included.
Frequently Asked Questions
What is the optical magnification?
The detailed Aven copy specifies 6.7x–50x with the supplied 10x eyepieces.
Is this binocular or trinocular?
The detailed body specification identifies true trinocular construction with a camera port. The binocular section headings conflict with that specification.
What camera is included?
The 26100-244 Mighty Cam USB 3.0 6MP color camera, with 3072 × 2048 resolution and included imaging software.
Does it include autofocus HDMI operation?
That is not established for this USB camera configuration. Do not apply Mighty Cam Pro autofocus/HDMI specifications to it.
Is a monitor or computer included?
Neither is listed in the supplied package contents.
How far does the Ultra-Glide arm extend?
Aven lists a 23-inch / 584.2 mm horizontal arm for smooth scanning across larger specimens.
What lighting is supplied?
A separate 20 W LED fiber-optic illuminator, fiber-optic ring light and ring-light adapter.
Does measurement require calibration?
Yes. Calibrate for your current microscope optics and zoom setting before using dimensional results.
Can the software create panoramic images?
Yes. Aven lists real-time image stitching along with image saving, annotations, reports and depth-of-field adjustment.
