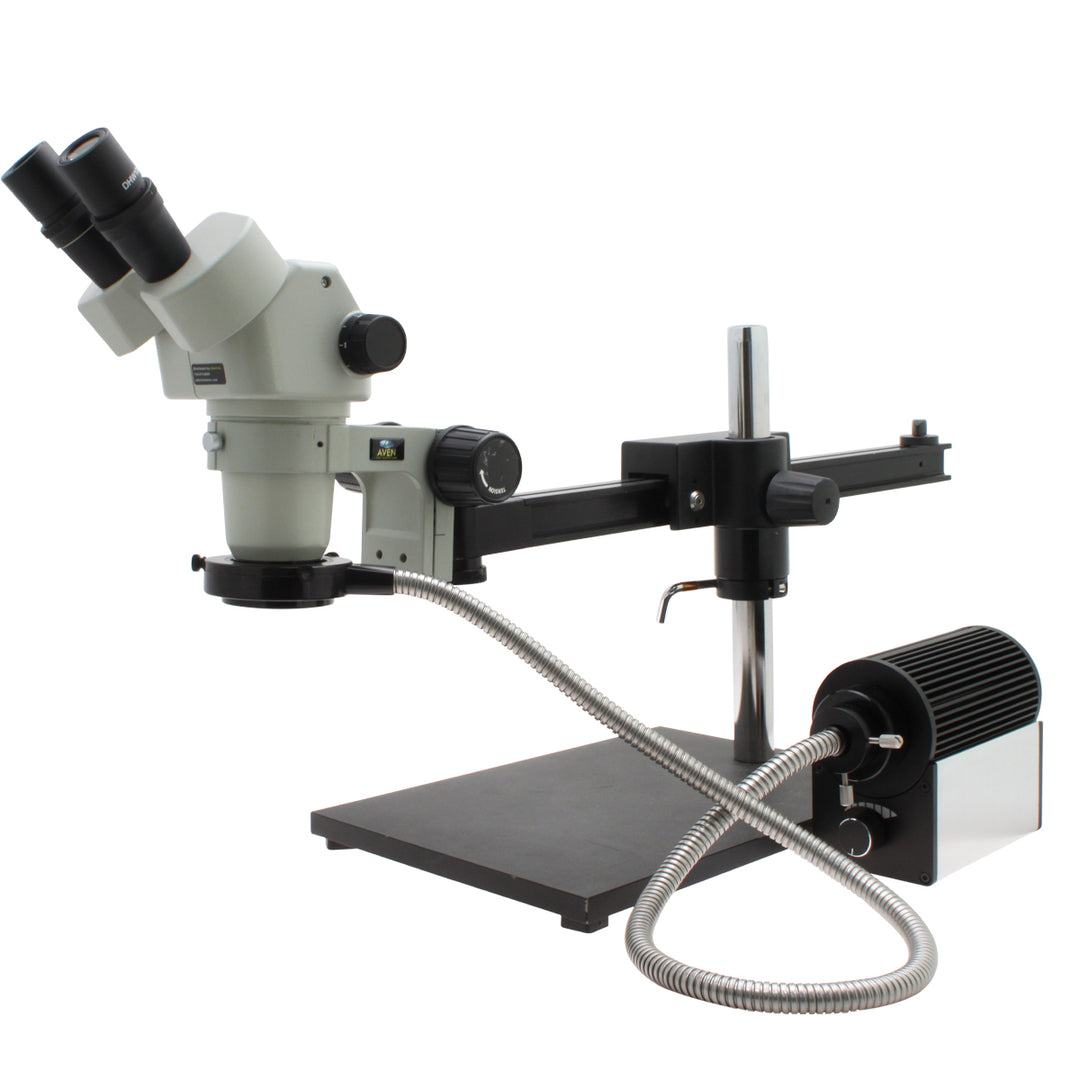

Aven Tools 26800B-373-8 SPZ-50 Binocular Stereo Zoom Microscope, 6.7x–50x, with Ultra-Glide Stand & LED Fiber Optic Light
Aven Tools 26800B-373-8 SPZ-50 Binocular Stereo Zoom Microscope, 6.7x–50x, with Ultra-Glide Stand & LED Fiber Optic Light
The Aven 26800B-373-8 combines an SPZ-50 binocular stereo zoom microscope with an Ultra-Glide boom stand, E-Arm focus mount and separate 20 W LED fiber-optic illuminator supplying a ring light. The included 10x eyepieces provide 6.7x–50x optical magnification. A 23-inch gliding arm lets you move the microscope across larger specimens, while the fanless illuminator provides adjustable lighting without distracting fan noise.
At the inspection bench, glide the optical head across a part instead of repeatedly repositioning it. Adjust the focus and illumination to examine individual features through the stereo eyepieces. This is an optical binocular system; no camera, imaging software or monitor is listed in the package.
Best Uses / Applications
- Inspection of parts with larger surface areas using the 23-inch gliding boom.
- High-throughput visual inspection stations, as described by Aven.
- Engineering and science laboratory inspection.
- Small-feature examination with stereo optical viewing and 108 mm working distance.
- Bench work where quiet, adjustable fiber-optic ring illumination is useful.
Key Features
- SPZ-50 binocular stereo microscope with 6.7x–50x included optical magnification.
- Greenough optical system and 7.46:1 zoom ratio.
- Two 10x FN23 widefield eyepieces with 17 mm high eye point and 45° inclined tubes.
- 360° rotatable microscope body, dual diopter adjustment and adjustable interpupillary distance.
- Ultra-Glide 23-inch arm, heavy metal base, positioning locks and post safety collar.
- E-Arm focus mount 26800B-518.
- 20 W LED fiber-optic illuminator with adjustable brightness, ring light and adapter.
- Fanless illumination and anti-static metal illuminator construction, as described by Aven.
Microscope Specifications
| Manufacturer / MPN | Aven Tools / 26800B-373-8 |
|---|---|
| Microscope | SPZ-50 binocular stereo zoom |
| Included Optical Magnification | 6.7x–50x |
| Eyepieces | Two 10x FN23; 17 mm high eye point |
| Body / Eyepiece Tubes | 360° rotatable / 45° inclined |
| Working Distance | 108 mm without auxiliary lens |
| Published Field of View | 34.3–3.6 mm |
| Zoom Ratio | 7.46:1 |
| Interpupillary Distance | 52–75 mm adjustable |
| Diopter Adjustment | Both tubes, +5.6D to −7.2D |
| Optical System | Greenough |
| Listed Microscope Body Weight | 5 lb |
Aven's page title uses 6.75x–50x, while the detailed copy specifies 6.7x–50x; this listing follows the detailed specification. Magnification up to 200x requires optional auxiliary lenses and eyepieces, not the included configuration.
Ultra-Glide Stand Specifications
| Stand / Focus Mount | 26800B-556 Ultra-Glide / 26800B-518 E-Arm |
|---|---|
| Horizontal Arm Length | 23 inches / 584.2 mm |
| Base Dimensions | 15 × 10.5 inches |
| Listed Base Weight | 35 lb |
| Vertical Post | 13.5 inches / 342.9 mm long; 1.46 inches / 37.2 mm diameter |
| Extension Post Length | 8.85 inches / 225 mm |
| Focus Mount Hole | 5/8 inch / 15.875 mm |
| Positioning | Horizontal/vertical locking knobs and support-post safety collar |
| Construction | All-metal stand with heavy metal base |
Fiber-Optic Lighting Specifications
| Illuminator | 26200A-310 LED fiber-optic illuminator |
|---|---|
| Power | 20 W, as specified on this product page |
| Input | 96–265 VAC, 50–60 Hz |
| Color Temperature | 5600 K |
| Published Illumination Intensity | Up to 1600 lx; test conditions not stated |
| Published Noise | Less than 30 dB; fanless design |
| Ambient / Working Temperature | 5–45°C / less than 53°C |
| Expected Lamp Life | 10,000 hours |
| Fiber-Optic Ring Light | 26200A-402 |
| Ring-Light Adapter | 26800B-460 |
The package list identifies a separate illuminator and fiber-optic ring light, not an integrated LED focus-mount ring. The illuminator's anti-static metal construction does not establish an ESD-safe rating or named-standard certification for the entire microscope system.
Included Optical System vs. Camera-Equipped System
| Selection Factor | This 26800B-373-8 Bundle | Camera-Equipped Configuration |
|---|---|---|
| Viewing | Binocular stereo eyepieces | Digital viewing depends on the selected camera system |
| Included Imaging Equipment | No camera, software or monitor listed | Verify exact camera, software and display contents |
| Primary Workflow | Direct optical visual inspection | Digital documentation and imaging |
Package Contents
- SPZ-50 stereo zoom microscope.
- 26800B-556 Ultra-Glide boom stand.
- 26800B-518 E-Arm focus mount.
- 26200A-310 20 W fiber-optic illuminator.
- 26200A-402 fiber-optic ring light.
- 26800B-460 ring-light adapter.
The microscope component list also includes two 10x eyepieces, rubber eyeguards, dust cover and instruction manual. Optional auxiliary lenses and alternate eyepieces are sold separately.
Frequently Asked Questions
What magnification is included?
The detailed manufacturer copy lists 6.7x–50x with the supplied 10x eyepieces.
Is this microscope binocular or trinocular?
This configuration uses the SPZ-50 binocular body, not the SPZV-50 trinocular body.
Does it include a camera or monitor?
No camera, software or monitor is listed in the supplied package contents.
How long is the Ultra-Glide arm?
Aven lists a 23-inch / 584.2 mm horizontal arm for smooth scanning across larger specimens.
What lighting is supplied?
A separate 20 W LED fiber-optic illuminator, fiber-optic ring light and ring-light adapter.
Does the illuminator have a cooling fan?
Aven describes it as fanless, with no distracting fan noise; the table lists noise below 30 dB.
Can it reach 200x as supplied?
No. The included range is 6.7x–50x. The higher family range requires optional optics.
What is the working distance?
The optical table lists 108 mm without an auxiliary lens. Adding optional optics changes working distance.
Is the complete system ESD-safe?
The source describes anti-static illuminator construction, but does not establish an ESD-safe rating for the complete microscope bundle.
