Aven Tools 26800B-373-1 SPZ-50 Binocular Microscope, 6.7x–50x, Ultra-Glide Stand & Integrated LED Ring Light
Aven Tools 26800B-373-1 SPZ-50 Binocular Microscope, 6.7x–50x, Ultra-Glide Stand & Integrated LED Ring Light

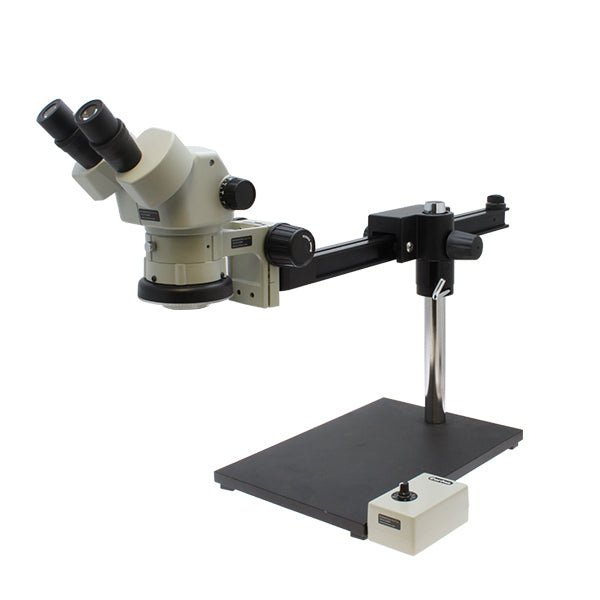

The Aven Tools 26800B-373-1 combines an SPZ-50 binocular stereo zoom microscope, 26800B-556 Ultra-Glide boom stand and 26200B-209 E-Arm focus mount with integrated LED ring light. Included 10x FN23 eyepieces provide 6.7x–50x optical magnification, with 108 mm working distance without an auxiliary lens. The 23-inch gliding arm supports inspection across larger workpieces, while 60 integrated LEDs provide dimmable illumination.
Set the assembly beneath the microscope, adjust the eyepieces to your eyesight and smoothly glide the arm between inspection points. Locking adjustments, a heavy metal base and a post safety collar support a stable inspection setup. Because the ring light is built into the focus mount, there is no separately clamped ring light to loosen above the specimen.
Best Uses / Applications
- PCB assembly and solder-joint visual inspection.
- Precision assembly and small-part examination with optical stereo viewing.
- Quality-control stations inspecting larger parts or multiple locations.
- Engineering and research benches needing adjustable magnification and lighting.
- Scanning workpieces across a broader inspection area without repeatedly moving the stand.
Key Features
- 6.7x–50x stereo zoom magnification with included 10x eyepieces.
- 7.46:1 zoom ratio and Greenough optical system.
- 108 mm working distance without an auxiliary lens.
- 360° rotatable binocular body with 45° inclined eyepiece tubes.
- High-eye-point FN23 eyepieces with diopter adjustment on both tubes.
- Ultra-Glide 23-inch arm, heavy metal base and safety collar.
- E-Arm focus mount with integrated 60-LED ring light and dimmer control box.
- Manufacturer-rated 20,000-hour high-output LED life.
Microscope Specifications
| Manufacturer / MPN | Aven Tools / 26800B-373-1 |
|---|---|
| Microscope | SPZ-50 binocular stereo zoom |
| Included Magnification | 6.7x–50x optical |
| Eyepieces | Two 10x FN23; high-eye-point widefield |
| Body / Eyepiece Inclination | 360° rotatable / 45° |
| Eye Point | 17 mm |
| Zoom Ratio | 7.46:1 |
| Published Field of View | 34.3–3.6 mm, per manufacturer features |
| Working Distance | 108 mm without auxiliary lens |
| Interpupillary Distance | 52–75 mm |
| Diopter Adjustment | +5.6D to −7.2D on both eyepiece tubes |
| Optical System | Greenough |
| Published Microscope Weight | 5 lb, component specification |
Magnification source note: The manufacturer's headline uses 6.75x–50x, while its description and detailed sections use 6.7x–50x. This listing uses the consistently stated detailed range. Aven describes magnification up to 200x using optional auxiliary optics and eyepieces; those upgrades are not included in the listed package.
Optional Optics, Sold Separately
| Option | Published Detail |
|---|---|
| 15x FN15 or 20x FN11.4 eyepieces | Available to extend magnification. |
| 0.5x auxiliary lens | 240 mm working distance. |
| 0.75x auxiliary lens | 132 mm working distance. |
| 1.6x auxiliary lens | 50 mm working distance. |
| 2x auxiliary lens | 41 mm working distance. |
Stand & Lighting Specifications
| Stand | 26800B-556 Ultra-Glide boom stand |
|---|---|
| Base Dimensions / Published Weight | 15 × 10.5 inches / 35 lb, component specification |
| Vertical Post Length | 13.5 inches / 342.9 mm |
| Vertical Post Diameter | 37.2 mm / approximately 1.46 inches |
| Extension Post Length | 225 mm / approximately 8.85 inches |
| Horizontal Arm Length | 23 inches / 584.2 mm |
| Focus-Mount Hole Diameter | 5/8 inch / 15.875 mm |
| Stand Construction | All metal; heavy base; safety collar; horizontal and vertical locking adjustments |
| Included Focus Mount | 26200B-209 E-Arm with integrated LED ring light |
| Illumination | 60 integrated LEDs with dimmer control |
| LED Life Rating | 20,000 hours of high-output life, manufacturer rating |
| Published Focus-Mount Diameter | 74 mm / 2.91 inches |
| Focus-Mount Package | E-Arm focus mount and dimmer control box |
This bundle uses the integrated LED E-Arm, not the separate fiber-optic illuminator and ring-light configuration. The supplied specifications do not establish a polarized-light or complete-system ESD-safe rating.
Configuration Comparison
| Configuration | Practical Distinction |
|---|---|
| This Ultra-Glide / integrated LED bundle | Optical binocular viewing, smooth gliding reach and lighting built into the focus mount. |
| Separate fiber-optic lighting bundle | A different lighting arrangement using an external illuminator and fiber-optic ring. |
| Trinocular camera-equipped system | A separate configuration for camera-port imaging; no camera or monitor is listed in this binocular bundle. |
| Optional optical upgrades | Change magnification and/or working distance; select the combination for the inspection task rather than treating 200x as included. |
Package Contents
- SPZ-50 binocular microscope body with two 10x eyepieces.
- Rubber eyeguards, dust cover and microscope instruction manual, per detailed microscope package.
- 26800B-556 Ultra-Glide boom stand with metal base and user manual.
- 26200B-209 E-Arm focus mount with integrated LED ring light.
- Dimmer control box.
Frequently Asked Questions
What magnification is included?
The detailed specifications list 6.7x–50x with the included 10x eyepieces. The headline's 6.75x value differs slightly; this listing follows the detailed range.
Is the LED light integrated?
Yes. The 60-LED ring is built into the 26200B-209 E-Arm focus mount and includes dimmer control.
What is the working distance?
108 mm without an auxiliary lens. Optional auxiliary lenses change the working distance.
Does it include a camera or monitor?
Neither is listed in the supplied package contents. This binocular system is configured for direct optical viewing.
How does the Ultra-Glide stand help?
The 23-inch gliding arm supports smooth scanning across a larger work area. Locking adjustments and a heavy base support positioning.
Can it reach 200x?
Aven describes up to 200x with optional auxiliary optics and eyepieces. The supplied configuration is 6.7x–50x; the upgrades are sold separately.
Can operators adjust the eyepieces?
Yes. Interpupillary distance adjusts from 52 to 75 mm, and both eyepiece tubes provide diopter adjustment.
Is the lighting polarized or the system ESD-safe?
The supplied documentation does not establish either rating. This listing does not claim polarization or complete-system ESD safety.
