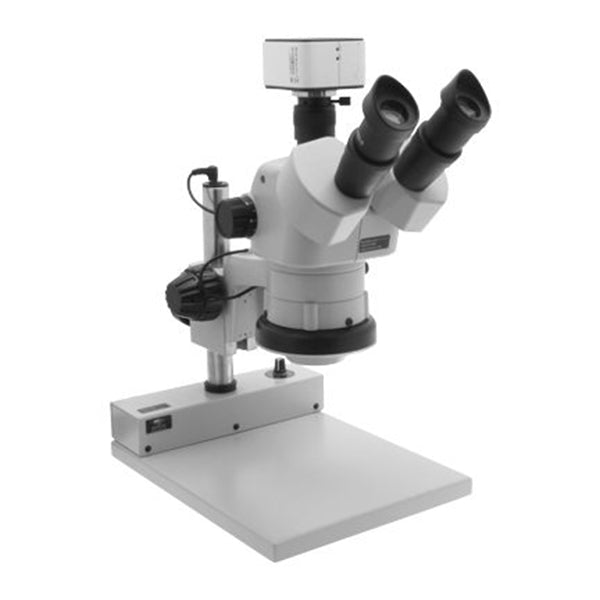

The Aven Tools 26800B-323 combines a DSZV-44 trinocular stereo zoom microscope with a PLED post stand, integrated 60-white-LED ring light and Mighty Cam USB camera with imaging software. Included 10x FN23 eyepieces provide 10x–44x optical magnification at a 90 mm working distance. The dual-view trinocular arrangement supports simultaneous optical eyepiece viewing and camera viewing on a PC-connected display.
Inspect the assembly through the eyepieces, fine-tune focus and lighting, then save an image to your PC for documentation or review. Included software supports annotations, calibrated measurements, reporting, real-time panoramic stitching and depth-of-field adjustment. Aven recommends a gliding stage for optimal stitching performance; a gliding stage is not listed in this package.
Camera configuration note: Aven's headline and the original listing identify a USB 5MP camera, while its detailed description, features and package table identify a Mighty Cam USB 3.0 6MP CMOS camera, part 26100-244. The title avoids an unqualified megapixel claim. Confirm the supplied camera version before ordering if resolution is critical. No Mighty Cam Pro autofocus or direct HDMI capability is claimed for this configuration.
Best Uses / Applications
- Industrial visual inspection and laboratory examination.
- PCB assemblies, solder joints and small-component inspection.
- Quality-control image documentation and review.
- Precision work using coarse and fine focus.
- Training and shared PC-display viewing while an operator uses the eyepieces.
- Calibrated measurement, annotated images and inspection reports.
Key Features
- DSZV-44 trinocular stereo microscope with simultaneous eyepiece and camera viewing.
- 10x–44x optical magnification with included 10x widefield eyepieces.
- 90 mm working distance and Greenough optical system.
- 45° inclined eyepieces, dual diopter adjustment and adjustable interpupillary distance.
- USB camera and software for capture, annotation, reporting and measurements.
- Compact PLED pole stand with rack-and-pinion coarse/fine focusing.
- 60 LEDs integrated into the focus mount with dimmer control.
- 220 × 284 mm base.
Microscope Specifications
| Manufacturer / MPN | Aven Tools / 26800B-323 |
|---|---|
| Microscope / Body | DSZV-44 / trinocular, dual-view |
| Included Optical Magnification | 10x–44x |
| Eyepieces | 10x widefield, FN23, 45° inclined |
| Objective Range | 1.0x–4.4x |
| Working Distance | 90 mm / approximately 3.54 inches |
| Published Field of View | 23–5.2 mm |
| Interpupillary Distance | 52–75 mm |
| Diopter Adjustment | +5.6D to −7.2D on both eyepiece tubes |
| Optical System | Greenough |
| Optional Maximum Magnification | 140.8x with optional optics, per manufacturer |
| Published System Weight | 18 lb, manufacturer table |
The manufacturer table lists a 3.5:1 zoom ratio, which does not match the stated 1.0x–4.4x objective range. That conflicting ratio is omitted as a definitive specification rather than substituted with an inferred value.
Camera, Stand & Lighting Specifications
| Camera in Detailed Package Table | 26100-244 Mighty Cam USB 3.0 6MP CMOS camera with software; conflicts with 5MP headline |
|---|---|
| Imaging Workflow | USB connection to a PC for capture, documentation and measurement |
| Software Features | Image capture, annotations, calibrated measurements, reports, real-time stitching and depth-of-field adjustment |
| Stand | PLED 26800B-512, per package table |
| Stand Type / Focus | Pole stand / rack-and-pinion coarse and fine focus |
| Focus-Mount Diameter | 74 mm, per descriptive details |
| Illumination | 60 white LEDs built into the focus mount |
| Brightness | Dimmer control |
| Base Dimensions | 220 × 284 mm |
| Base Thickness | 15 mm, per descriptive details |
| Pole/Track Height | 250 mm, per specification table; description says 255 mm |
| LED Stand Power Rating | 100–240 VAC, 50/60 Hz |
Confirm post height if the difference between the published 250 mm and 255 mm dimensions affects your setup. Camera frame rate, sensor model, autofocus, recording format and PC operating-system compatibility are not established by these screenshots and are not borrowed from other bundles. Calibrate measurements for the current optical configuration and zoom before acceptance decisions; the supplied source does not provide a measurement-accuracy tolerance.
Optional Accessories, Sold Separately
Aven lists 0.5x, 0.75x and 1.6x auxiliary lenses; 10x, 15x, 20x and 10x-with-scale eyepieces; a protective lens cover; and a ring-light adapter. The published maximum 140.8x requires optional optics and is not the included magnification range.
Configuration Comparison
| Configuration | Practical Distinction |
|---|---|
| This DSZV-44 USB system | 10x–44x optical inspection with simultaneous eyepiece/camera viewing and PC-based documentation. |
| Optical-only binocular system | Direct eyepiece inspection without this bundle's included USB camera workflow. |
| Mighty Cam Pro HDMI system | A separate camera configuration for direct HDMI and autofocus workflows; not claimed here. |
| Optional optics and gliding stage | Extend optical capability or support smoother stitching; not listed as included. |
Package Contents
- DSZV-44 trinocular microscope body with the listed 10x eyepieces.
- PLED stand 26800B-512 with integrated LED illumination and dimmer.
- Mighty Cam USB camera with software, listed as 26100-244 in the detailed package table.
- Dust cover.
- Rubber eyeguards.
- Tension control pin.
A PC, external monitor and gliding stage are not listed in the supplied package contents.
Frequently Asked Questions
What magnification is included?
10x–44x optical magnification with the listed 10x eyepieces. The published 140.8x maximum requires optional optics.
Is the camera 5MP or 6MP?
The source conflicts. Its headline says 5MP, while the detailed description, features and package table say USB 3.0 6MP and identify part 26100-244. Confirm the supplied version if resolution is critical.
Can I view through the eyepieces while using the camera?
Yes. Aven describes a dual-view trinocular arrangement supporting simultaneous eyepiece and PC-connected camera viewing.
Does it include a monitor?
No monitor is listed in the supplied package contents. The camera workflow uses a PC-connected display.
Does it support measurements and reporting?
Aven lists included software for calibrated measurements, annotations, image capture and reports. Calibrate before dimensional acceptance decisions.
Can the software create panoramic images?
Yes. Aven lists real-time stitching and recommends a gliding stage for optimal performance. That stage is not listed as included.
What illumination is included?
A 60-white-LED ring light integrated into the focus mount, with brightness control.
Does the stand provide fine focusing?
Yes. The PLED stand provides coarse and fine focusing.
What is the working distance?
The standard configuration is listed at 90 mm, approximately 3.54 inches.
Is this ESD-safe or polarized?
The supplied screenshots do not establish either rating for this configuration.
