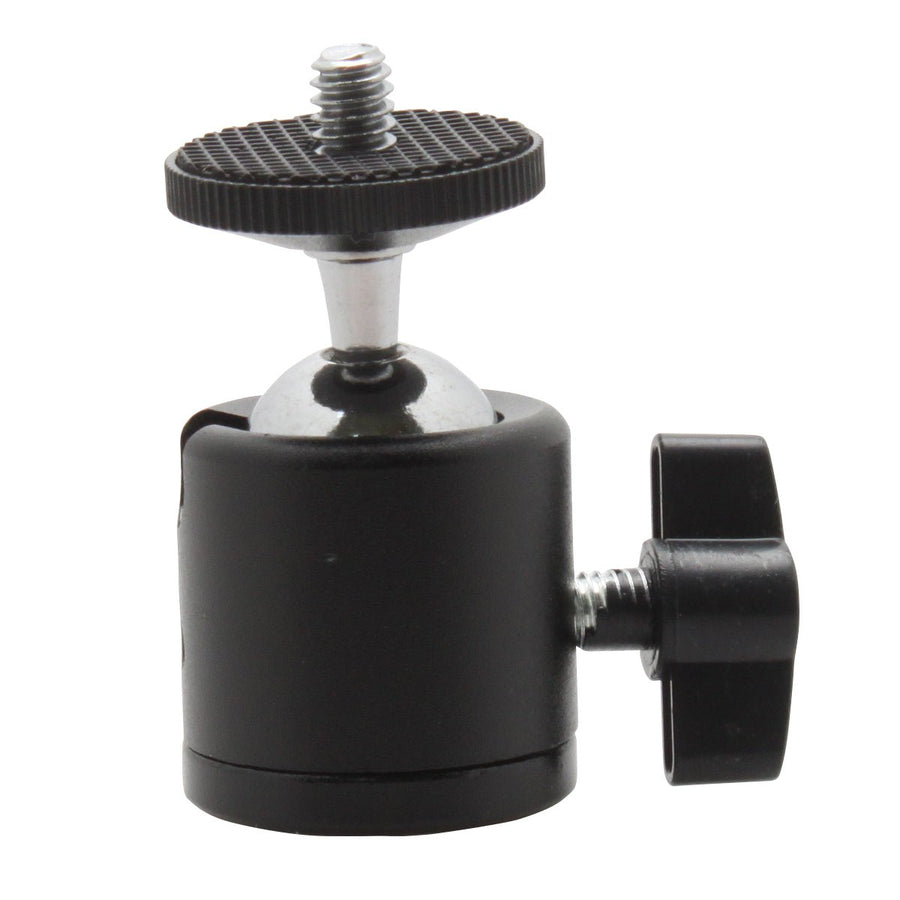

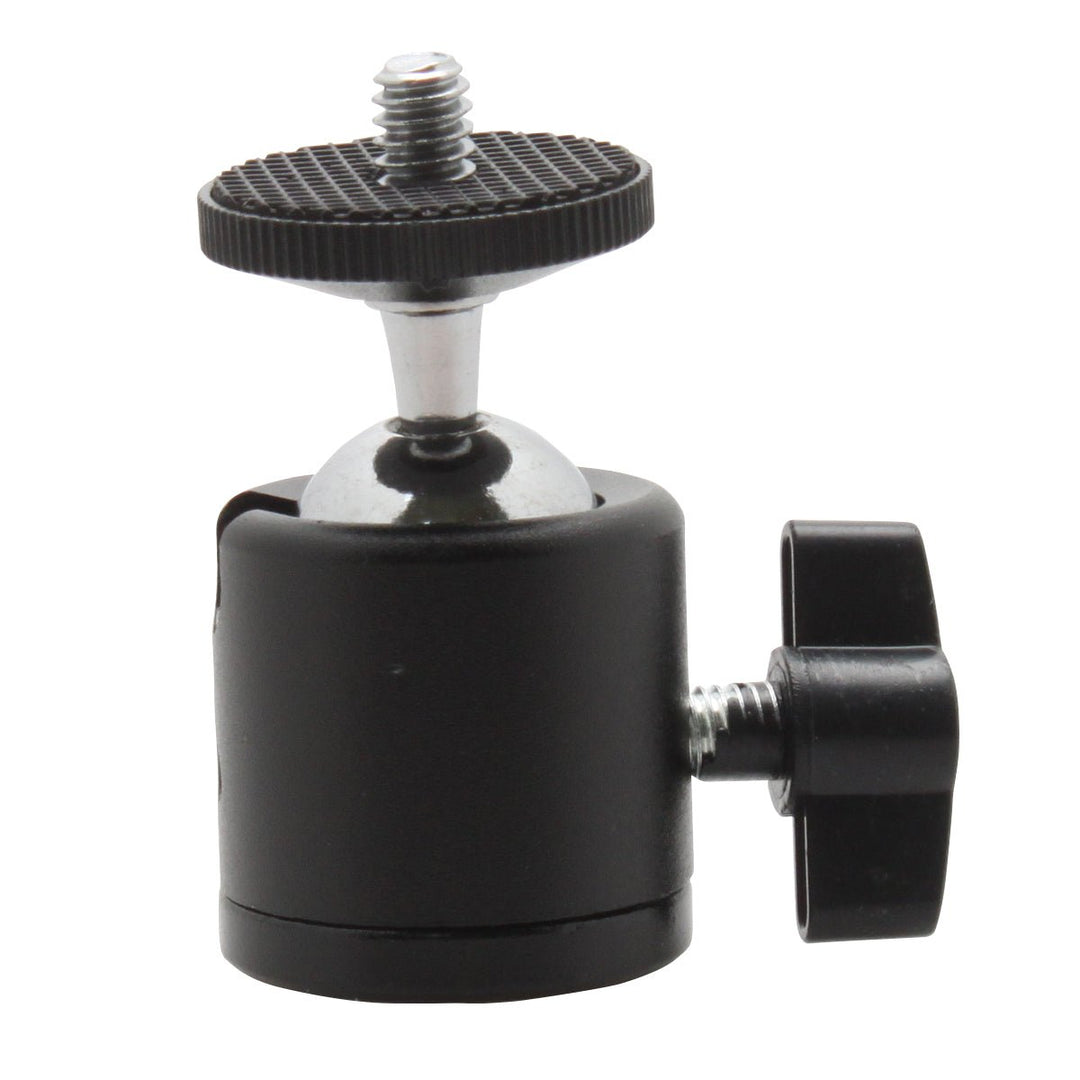

Aven Tools 26700-412 Swivel Ball Joint, 1/4"-20 Male/Female Thread
Aven Tools 26700-412 Swivel Ball Joint, 1/4"-20 Male/Female Thread
The Aven Tools 26700-412 is a compact aluminum-alloy swivel ball joint for positioning compatible cameras and other threaded equipment. A 1/4"-20 male screw at the top and matching female thread at the bottom connect compatible mounting interfaces. The ball head provides 360° horizontal panning and −90° to +90° tilt, with a single control for locking the selected angle.
Attach it to a compatible support, mount your camera and adjust the view or horizon before locking the joint. A rubber-padded mounting surface helps protect the camera's contact surface from scratches. Check thread fit, clearance and equipment weight before use: the supplied manufacturer specifications do not state a load capacity or identify compatibility with particular microscope systems.
Best Uses / Applications
- Positioning compatible cameras with a 1/4"-20 mounting socket.
- Adjusting viewing angles and leveling a camera on a compatible tripod or support.
- Compact imaging setups needing pan and tilt adjustment.
- Connecting compatible threaded equipment to a tripod or light stand with a matching mounting screw.
Key Features
- 1/4"-20 male top screw and female bottom thread.
- 360° horizontal panning.
- −90° to +90° tilt adjustment.
- Single-control angle locking.
- Rubber-padded mounting surface.
- Aluminum-alloy construction.
- Compact manufacturer-listed 2 × 1 × 2 inch dimensions.
Specifications
| Manufacturer / MPN | Aven Tools / 26700-412 |
|---|---|
| Accessory Type | Swivel ball joint / mini tripod ball head |
| Top Connection | 1/4"-20 male screw |
| Bottom Connection | 1/4"-20 female thread |
| Pan Range | 360° |
| Tilt Range | −90° to +90° |
| Angle Lock | Single control |
| Material | Aluminum alloy |
| Mounting Surface | Rubber padded |
| Published Dimensions | 2 × 1 × 2 inches; axis order not specified |
| Published Weight | 0.2 lb |
| Load Capacity | Not specified in supplied documentation |
Ball Joint vs. Fixed Mount
| Mounting Approach | Practical Distinction |
|---|---|
| This swivel ball joint | Allows pan, tilt and horizon adjustment before locking the angle. |
| Fixed threaded mount | Provides a fixed attachment without the ball joint's angle adjustment. |
| Dedicated microscope focus mount | A different component for supporting and focusing a microscope body; this ball joint is not a replacement unless specific compatibility is established. |
Compatibility & Setup
Match both mounting connections to 1/4"-20 threads. Thread compatibility alone does not establish that a camera or instrument is safely supported: verify its weight, balance, mounting clearance and the support's suitability. Aven does not provide a numerical load rating in the supplied screenshots. This listing does not include a camera, tripod or complete microscope system.
Frequently Asked Questions
Which threads does the joint use?
It has a 1/4"-20 male screw at the top and a 1/4"-20 female thread at the bottom.
How far can it rotate and tilt?
Aven lists 360° horizontal panning and −90° to +90° tilt.
Can I lock the selected angle?
Yes. The manufacturer describes a single control for locking the ball head.
Does the mount protect the camera surface?
The mounting surface is rubber padded to help protect the contact area from scratches.
What is it made of?
Aven identifies aluminum-alloy construction.
How much weight can it hold?
The supplied manufacturer documentation does not state a load capacity. Confirm suitability before mounting your equipment.
Will it fit every Aven microscope or camera?
No universal model compatibility is established. Check the exact mounting interface and support requirements for your device.
Is a tripod or camera included?
This listing is for the swivel ball-joint accessory, not a complete camera or tripod system.
