Aven Tools 26700-412 Swivel Ball Joint, 1/4"-20 Male/Female Thread
Aven Tools 26700-412 Swivel Ball Joint, 1/4"-20 Male/Female Thread

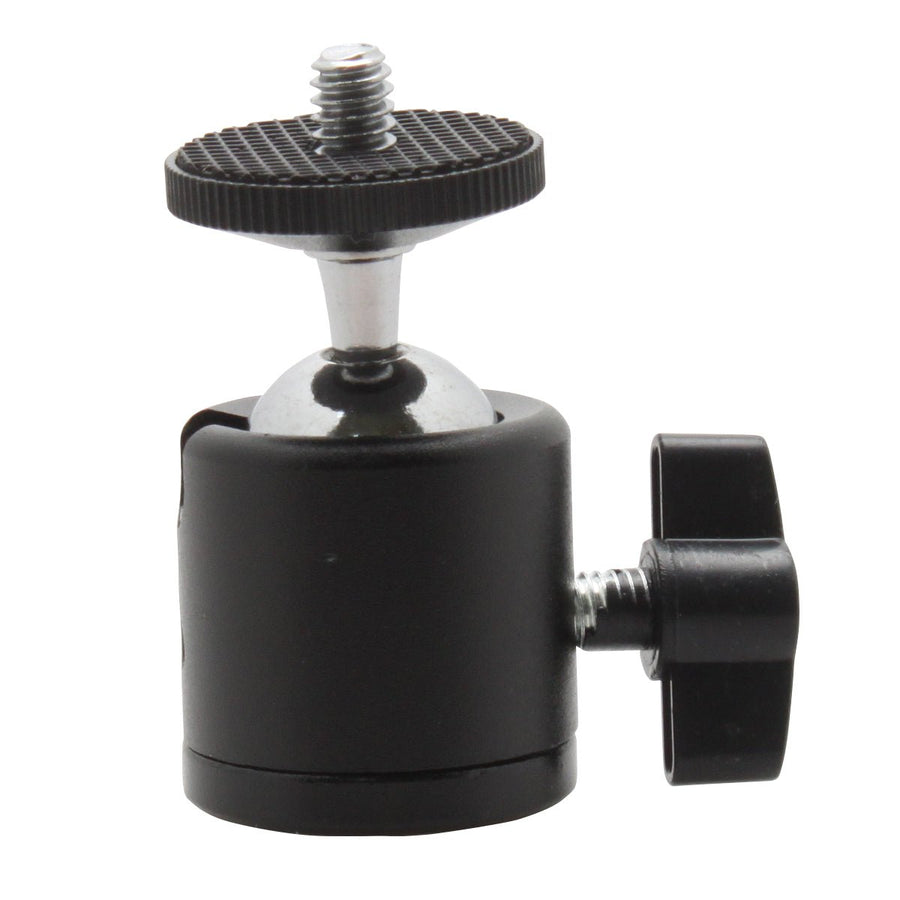

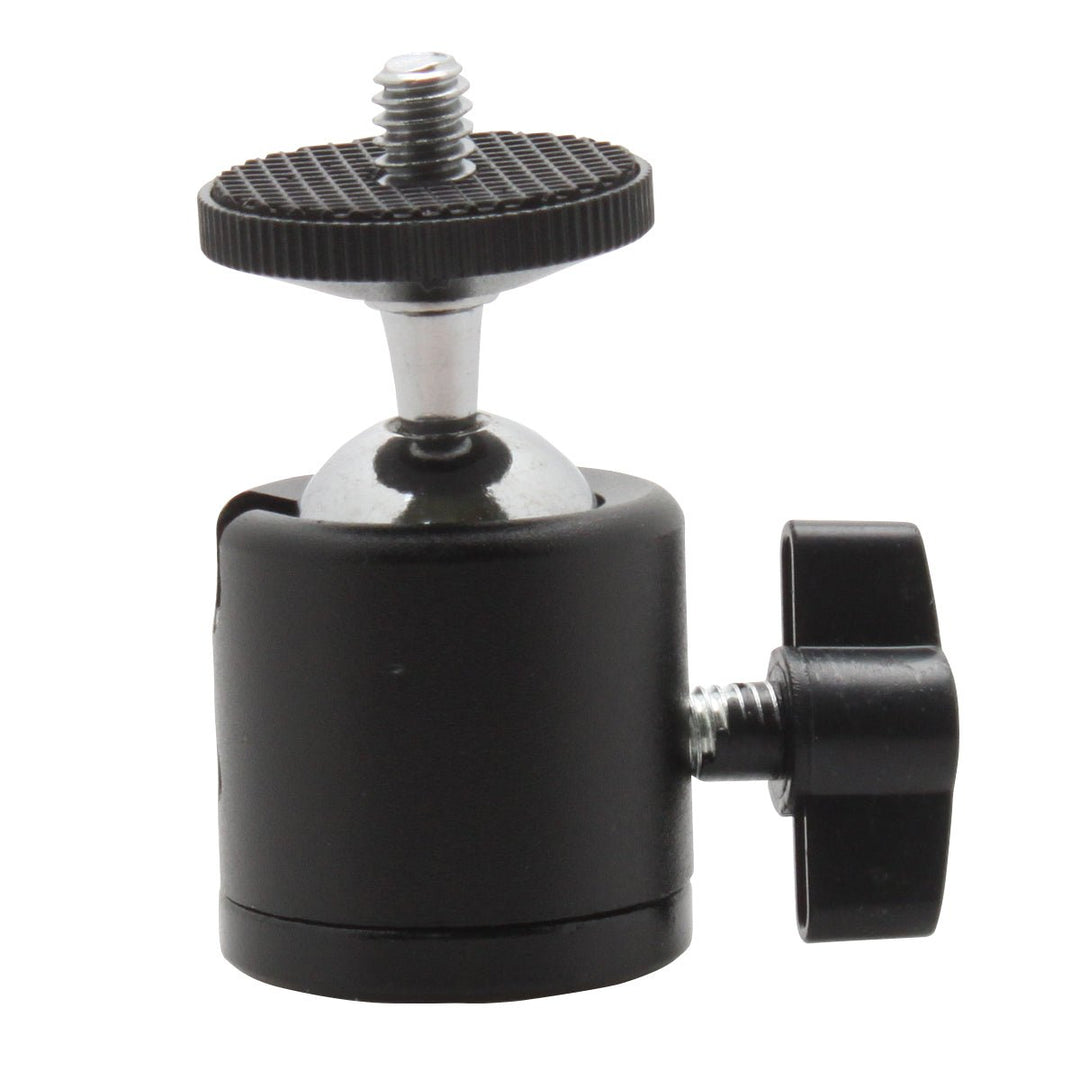

The Aven Tools 26700-412 is a compact aluminum-alloy swivel ball joint for positioning compatible cameras and threaded equipment. It features a 1/4"-20 male screw at the top and female thread at the bottom, 360° horizontal panning and −90° to +90° tilt. A single control locks the selected angle, while a rubber-padded mounting surface helps protect the camera's contact area from scratches.
Attach the joint to a compatible support, position your camera and level the view before locking the head. Verify thread fit, clearance and equipment weight before use: the supplied specifications do not state a load capacity or confirm compatibility with specific microscope models.
Best Uses / Applications
- Positioning cameras with a compatible 1/4"-20 mounting socket.
- Adjusting camera angle and horizon on a compatible tripod or support.
- Compact imaging setups requiring pan and tilt adjustment.
- Connecting compatible equipment to a matching threaded tripod or light-stand mount.
Key Features
- Male top screw and female bottom thread, both 1/4"-20.
- 360° pan and −90° to +90° tilt.
- Single-control locking.
- Rubber-padded mounting surface.
- Aluminum-alloy construction.
Specifications
| Manufacturer / MPN | Aven Tools / 26700-412 |
|---|---|
| Type | Swivel ball joint / mini tripod ball head |
| Top Connection | 1/4"-20 male screw |
| Bottom Connection | 1/4"-20 female thread |
| Pan | 360° |
| Tilt | −90° to +90° |
| Lock | Single control |
| Material | Aluminum alloy |
| Mounting Surface | Rubber padded |
| Published Dimensions | 2 × 1 × 2 inches; axis order not specified |
| Published Weight | 0.2 lb |
| Load Capacity | Not stated in supplied documentation |
Mounting Comparison
| Approach | Distinction |
|---|---|
| This ball joint | Pan, tilt and horizon adjustment before locking. |
| Fixed threaded mount | Fixed attachment without ball-joint angle adjustment. |
| Microscope focus mount | A different component for supporting and focusing a microscope body; this joint is not a replacement without verified compatibility. |
Compatibility
Match both connections to 1/4"-20 threads and verify the equipment's weight, balance and clearance. Matching threads alone do not establish suitable support. No camera, tripod or complete microscope system is included in this accessory listing.
Frequently Asked Questions
What threads does it use?
A 1/4"-20 male top screw and 1/4"-20 female bottom thread.
How far does it rotate?
Aven lists 360° horizontal panning and −90° to +90° tilt.
Can the angle be locked?
Yes, with a single control.
Is the mounting surface padded?
Yes. Rubber padding helps protect the contact area from scratches.
What is the material?
Aluminum alloy, per the manufacturer.
What is the load capacity?
No numerical load capacity is supplied. Confirm suitability before mounting equipment.
Will it fit every Aven camera or microscope?
Universal model compatibility is not established. Check the exact mounting interface and support requirements.
Is a camera or tripod included?
This is a ball-joint accessory listing, not a complete camera or tripod system.
