Aven Tools 26700-400-L10X Cyclops Objective Lens 10X
Aven Tools 26700-400-L10X Cyclops Objective Lens 10X

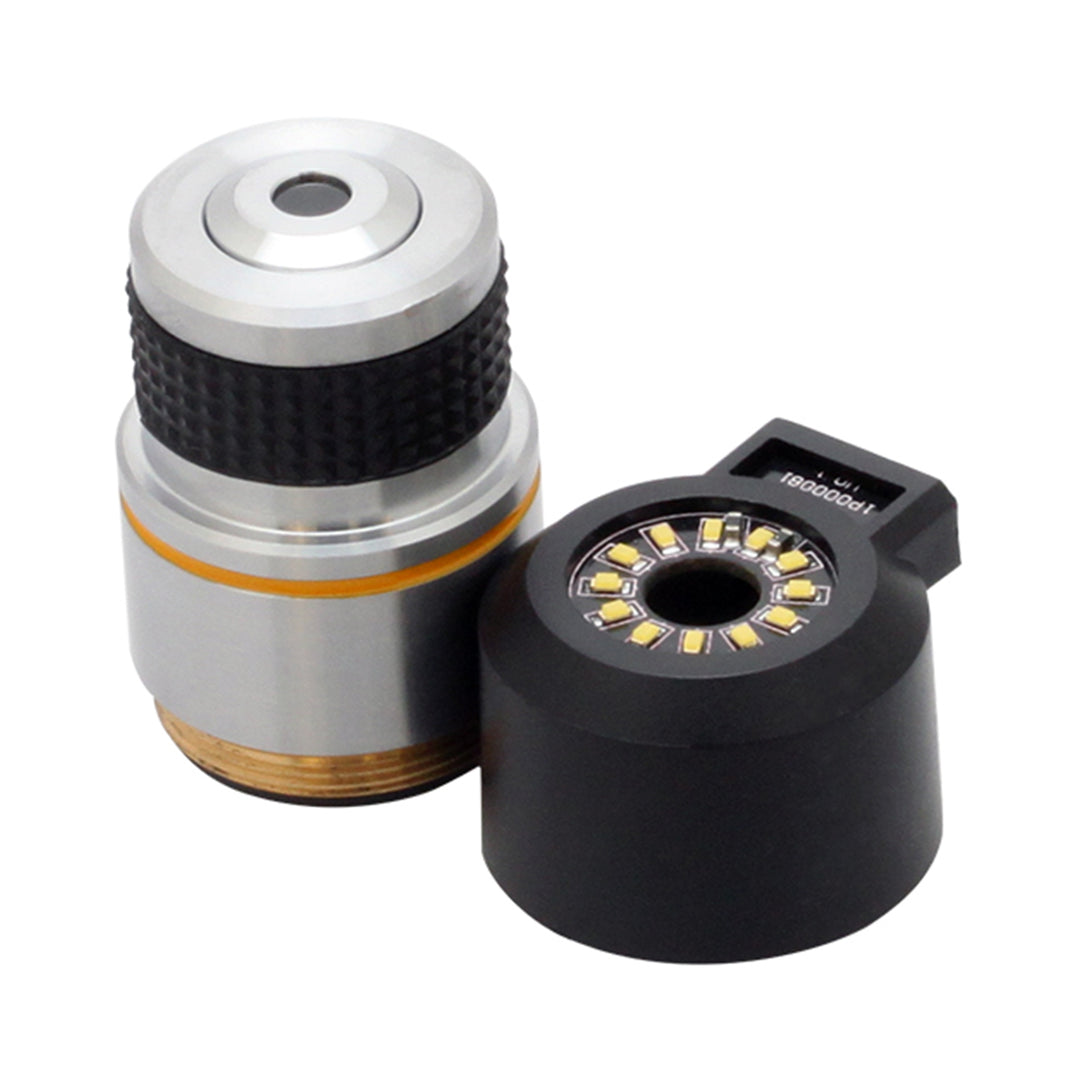

The Aven 26700-400-L10X is an optional 10X objective lens for Cyclops digital microscope models 26700-401 and 26700-423. Aven lists this lens as a way to increase magnification for closer examination of small objects on a compatible inspection system.
Compatibility warning: Not compatible with 26700-420 Cyclops MACRO or 26700-421 Cyclops MICRO. Match your exact microscope model before ordering; compatibility with other Cyclops models is not established by the supplied manufacturer information.
Best Uses / Applications
- Increasing magnification on Cyclops 26700-401 and 26700-423 microscopes.
- Closer visual examination of small electronic components during inspection and repair.
- Adding the specified optional objective to an existing compatible quality-control station.
Key Features
- 10X objective lens for higher-magnification inspection.
- Optional accessory for manufacturer-listed Cyclops models 26700-401 and 26700-423.
- Helps examine small objects more closely, as described by Aven.
Technical Specifications
| Manufacturer | Aven Tools |
|---|---|
| Part number / MPN | 26700-400-L10X |
| UPC | 766955371595 |
| Product type | Optional microscope objective lens |
| Objective magnification | 10X |
| Manufacturer-listed compatible models | Cyclops 26700-401 and 26700-423 |
| Explicit exclusions | 26700-420 Cyclops MACRO; 26700-421 Cyclops MICRO |
| Manufacturer-listed weight | 0.1 lb |
The 10X designation describes the objective, not a guaranteed total on-screen magnification. Working distance, field of view and lens dimensions are not specified in the supplied manufacturer information.
Compare Cyclops Objective Options
| Part number | Objective | Manufacturer-listed use |
|---|---|---|
| 26700-400-L10X, this product | 10X optional objective | Cyclops 26700-401 and 26700-423; increases magnification |
| 26700-400-L4X | 4X replacement objective | Cyclops 26700-400 |
| 26700-400-PL01 | 4X objective with polarizer and polarized LED cover | Manufacturer-listed Cyclops and Cyclops HDMI use; glare reduction |
These accessories have different stated compatibility and features. Do not select a lens solely by magnification or assume the models are interchangeable.
Frequently Asked Questions
What is Aven 26700-400-L10X?
It is an optional 10X objective lens for compatible Aven Cyclops digital microscopes.
Which Cyclops models does Aven list?
The supplied manufacturer description identifies models 26700-401 and 26700-423.
Will it fit Cyclops MACRO or Cyclops MICRO?
No. Aven explicitly excludes 26700-420 Cyclops MACRO and 26700-421 Cyclops MICRO.
What does the 10X lens do?
Aven states that it increases magnification, allowing closer examination of small objects on the compatible microscope.
Is this the same as the 4X replacement lens?
No. This is part 26700-400-L10X. The separate 26700-400-L4X is a 4X replacement objective listed for Cyclops model 26700-400.
Does the lens include a microscope or polarizer kit?
This listing is for the optional 10X objective, not a microscope system. Aven's supplied information does not list a polarizer kit with this part.
What is the lens weight?
Aven's specifications list 0.1 lb. This manufacturer product-weight figure is not a packed shipping weight.
Manufacturer Safety Notice
Aven supplies the following California warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
