Aven Tools 26700-218-PLR Mighty Scope V2 USB Digital Microscope with Polarizer
Aven Tools 26700-218-PLR Mighty Scope V2 USB Digital Microscope with Polarizer

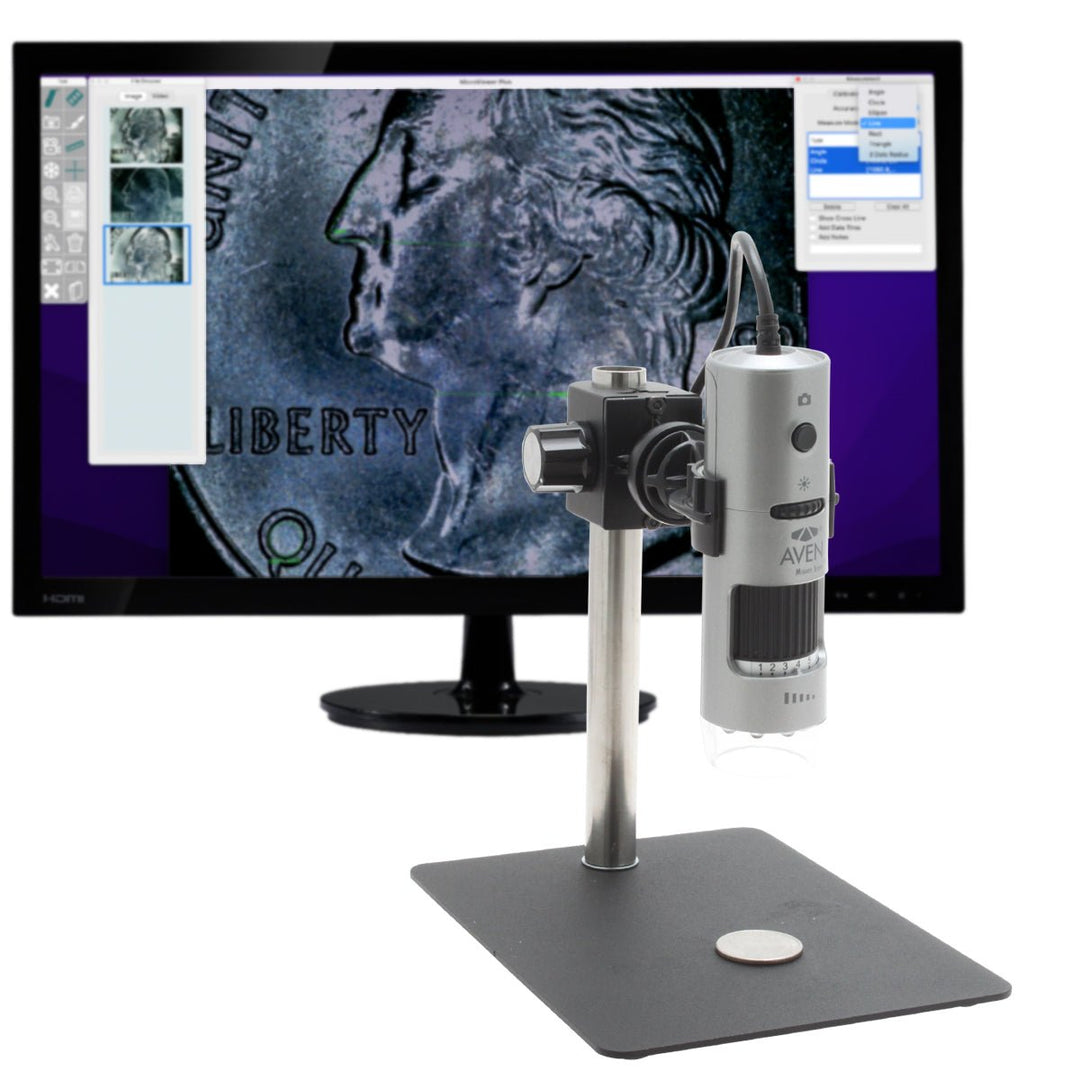

The Aven 26700-218-PLR Mighty Scope V2 combines a 5MP USB digital microscope with a polarizer attachment, adjustable white LED illumination and a fine-focus metal stand. The polarizer helps reduce glare and hot spots from shiny, reflective parts, making this configuration useful for inspecting solder joints, metal surfaces and other details that can be obscured by reflections.
View the subject on your computer, adjust illumination on the microscope body and make small height adjustments with the fine-focus mount. Aven lists approximately 10X–200X screen magnification based on a 24-inch monitor; displayed magnification depends on the viewing setup.
Best Uses / Applications
- Electronics inspection where reflections obscure component or solder-joint details.
- Close examination of reflective metal parts and surface finishes.
- Image and video documentation for quality-control or repair records.
- Training and shared inspection using a computer display rather than microscope eyepieces.
- Comparative viewing and software-assisted measurement.
Key Features
- Included polarizer attachment reduces glare from reflective objects.
- 5MP color CMOS imaging with USB 2.0 output.
- Eight adjustable white LEDs with body-mounted brightness control.
- Built-in snapshot button and focus wheel with adjustment markers.
- Fine-focus metal stand for small positioning adjustments.
- MicroViewer PLUS software download for image/video capture, measurement, grid overlays and comparison modes.
- Mac and Windows versions available.
Technical Specifications
| Manufacturer / MPN | Aven Tools / 26700-218-PLR |
|---|---|
| Configuration | Mighty Scope V2 USB digital microscope with polarizer attachment and fine-focus stand |
| Image sensor | 1/4-inch color CMOS |
| Effective pixels | 2592 × 1933 pixels, manufacturer-listed 5MP |
| Displayed magnification | Approximately 10X–200X, based on a 24-inch monitor |
| Signal output | USB 2.0 standard-compliant serial data |
| Gain / white balance | Automatic / automatic |
| Snapshot control | Hardware and software controllable |
| Power source | 5 V DC through USB port |
| Average current consumption | 260 mA |
| Illumination | Eight white LEDs with adjustable brightness |
| Operating systems listed by Aven | Windows 10/11; Mac OS X 10.11 or above |
| Working-distance reference | 10X: 190 mm; 20X: 82 mm; 30X: 43 mm; 40X: 26 mm |
Manufacturer source note: The specification table on the supplied 26700-218-PLR page is headed “26700-218 Mighty Scope V2 Digital Microscope with Diffuser.” The page title, features and package list identify the polarizer-equipped configuration. The table values above are reproduced from that page, not independently confirmed as a separate PLR-specific optical table.
Software and Inspection Workflow
The included MicroViewer PLUS download supports image/video capture, measurement, line/angle/circle drawing and measurement, grid overlays and comparison modes. Confirm your computer and software compatibility before purchase. For dimensional inspection, establish calibration and suitability for your application rather than assuming a stated measurement accuracy.
Package Contents
- Mighty Scope V2 microscope.
- Fine-focus stand and microscope mount.
- Polarizer attachment.
- User manual.
- Software download.
Choosing Your Mighty Scope V2 Configuration
| Option | Best fit | Important distinction |
|---|---|---|
| 26700-218-PLR, this product | Inspecting reflective subjects where glare is a concern | Includes the polarizer attachment |
| 26700-218 base configuration | General USB digital inspection | Separate system listing; verify its included accessories |
| 26700-218-STN replacement stand | Replacing stand components for an existing microscope | Stand accessory, not a complete microscope system |
Frequently Asked Questions
What does the polarizer do?
It helps reduce glare and hot spots from shiny or reflective objects. Results depend on the subject and lighting conditions.
Is this a complete microscope or just an attachment?
This is the microscope configuration with a fine-focus stand, mount and polarizer attachment, not a polarizer-only accessory.
What magnification does it provide?
Aven lists approximately 10X–200X on a 24-inch monitor. Screen size and viewing setup affect displayed magnification.
Can the illumination be adjusted?
Yes. The body-mounted brightness control adjusts the eight white LEDs and allows the illumination to be turned on or off.
How is the microscope powered?
The supplied specification table lists 5 V DC power through the USB port.
Does it work with Mac and Windows?
Aven lists Windows 10/11 and Mac OS X 10.11 or above, with Mac and Windows software versions. Verify compatibility with your specific computer before ordering.
Can I save images and take measurements?
The MicroViewer PLUS download supports image/video capture and measurement tools, including line, angle and circle functions. Calibrate and validate measurements for your application.
What is the working distance?
The page's reference table lists 190 mm at 10X, 82 mm at 20X, 43 mm at 30X and 26 mm at 40X. See the source note above regarding the table heading.
