Aven Tools 26700-218 Mighty Scope V2 USB Digital Microscope, 10X–200X, 5 MP
Aven Tools 26700-218 Mighty Scope V2 USB Digital Microscope, 10X–200X, 5 MP

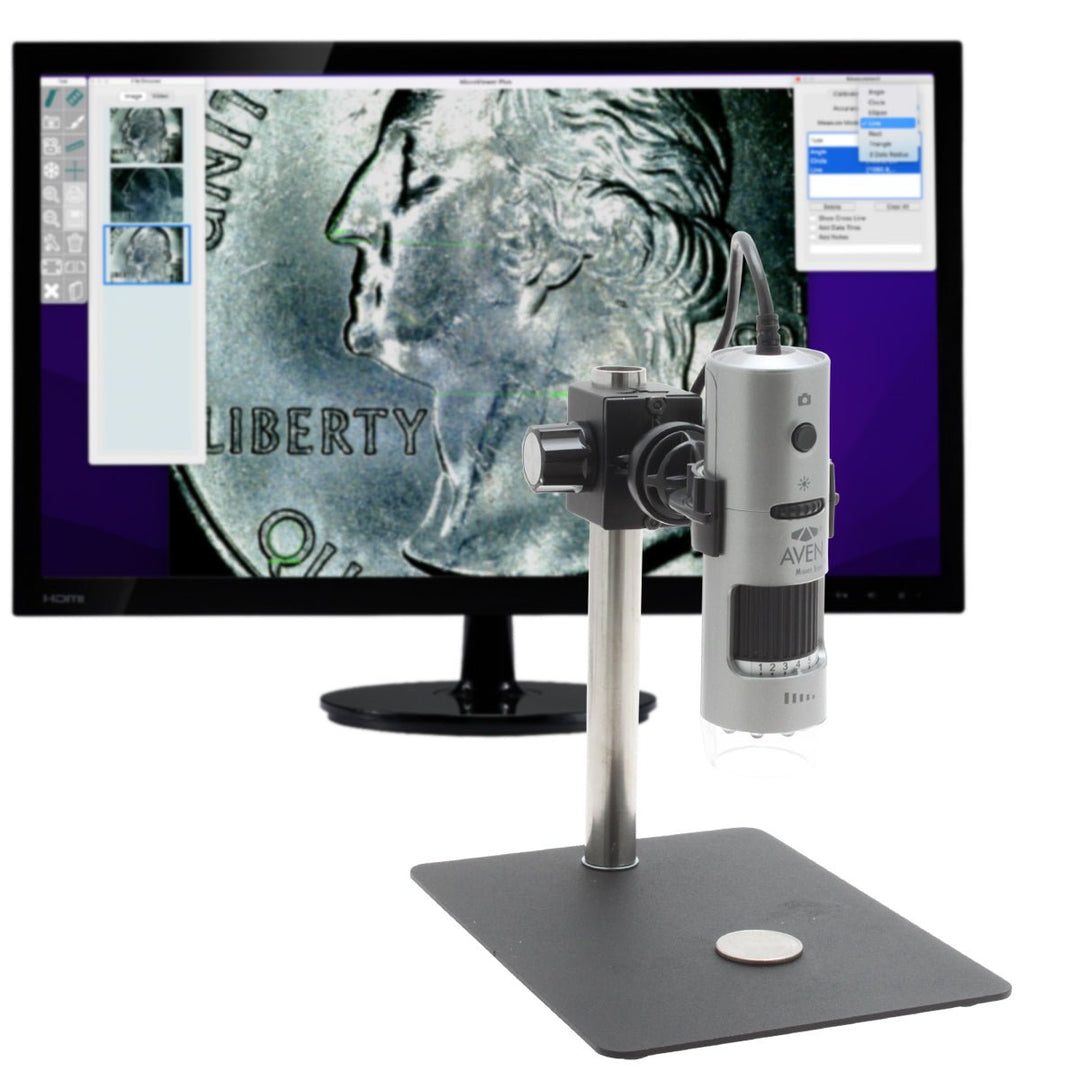

The Aven 26700-218 Mighty Scope V2 is a compact USB digital microscope with a 5 MP color CMOS sensor, eight adjustable white LEDs and an included fine-focus stand. Aven lists an approximately 10X–200X magnification range based on a 24-inch monitor, supporting close inspection and image capture on a compatible Mac or Windows computer.
Position a component beneath the scope, adjust the stand in small increments and use the focus wheel to sharpen the image. The built-in snapshot button and MicroViewer PLUS software support capturing and documenting inspection findings without an eyepiece-based viewing arrangement.
Best Uses / Applications
- Electronics assembly, repair and component inspection.
- Quality-control documentation using captured images and video.
- Laboratory and educational demonstrations on a computer screen.
- Research and engineering inspection of small parts.
- Comparing images and performing software-assisted measurements after appropriate setup and calibration.
Key Features
- USB plug-and-play interface for compatible computers.
- 5 MP imaging sensor, 2592 × 1933 effective pixels as listed by Aven.
- Fine-focus stand for small height and screen-focus adjustments.
- Built-in snapshot button with hardware and software snapshot control.
- Brightness wheel controls eight onboard white LEDs.
- Manual focus wheel with adjustment markers.
- Ergonomic design described for use in either hand.
- MicroViewer PLUS software download for capture, measurement, overlays and comparison modes.
Technical Specifications
| Manufacturer / MPN | Aven Tools / 26700-218 |
|---|---|
| UPC | 766955375883 |
| Image sensor | 1/4-inch color CMOS |
| Effective pixels | 2592 horizontal × 1933 vertical (5 MP), manufacturer-listed |
| Magnification | Approximately 10X–200X, based on a 24-inch monitor |
| Signal output | USB 2.0-compliant serial data |
| Gain control | Auto |
| White balance | Auto |
| Snapshot mode | Hardware and software controllable |
| Power source | 5 V DC through USB port |
| Power consumption | 260 mA average |
| Manufacturer-listed operating systems | Windows 10/11; Mac OS X 10.11 or above |
| Illumination | 8 adjustable white LEDs |
| Software | MicroViewer PLUS download; Mac and Windows versions listed |
| Package contents | Mighty Scope V2, fine-focus stand, microscope mount, user manual and software download |
Manufacturer Working-Distance Reference
| Magnification reference | Working distance |
|---|---|
| 10X | 190 mm |
| 20X | 82 mm |
| 30X | 43 mm |
| 40X | 26 mm |
These are the working-distance values provided in Aven's supplied specifications. Do not extrapolate them to unlisted magnifications. Displayed magnification depends on monitor size and imaging setup.
MicroViewer PLUS Software
Aven lists a free download optimized for the Mighty Scope V2, with image/video capture, measurement, line/angle/circle drawing and measurement, grid overlays and compare modes. Confirm compatibility with your exact operating-system release before deployment; a measurement feature does not establish a certified measurement accuracy.
Included Setup vs. Optional Diffuser
| Configuration | Purpose | Included? |
|---|---|---|
| Mighty Scope V2 with fine-focus stand and mount | Computer-based viewing, positioning and image capture | Yes |
| Eight dimmable onboard LEDs | Adjust illumination on the object | Yes |
| Optional diffuser attachment | Spread light for softer, more even illumination on shiny or reflective objects | No; identified by Aven as optional |
| Computer and monitor | Display images and run software | Not listed among package contents |
Frequently Asked Questions
What magnification does 26700-218 provide?
Aven lists approximately 10X–200X based on a 24-inch monitor. Screen size and setup affect displayed magnification.
Does it need a computer?
This is a USB digital microscope for viewing and capturing images with compatible computer software. It does not include a built-in display in the supplied configuration.
Which operating systems does Aven list?
The specifications list Windows 10/11 and Mac OS X 10.11 or above. Confirm compatibility with your specific current release before purchase or installation.
What software is supplied?
Aven lists a free MicroViewer PLUS download with capture, measurement, line/angle/circle tools, grid overlays and compare modes.
How is it powered?
The microscope receives 5 V DC through its USB connection. Aven lists average power consumption of 260 mA.
Can I adjust the lighting?
Yes. A brightness adjustment wheel controls eight built-in white LEDs.
Is the diffuser included?
No. Aven identifies the diffuser as an optional attachment for shiny or reflective objects.
Does it include the fine-focus stand?
Yes. The package list includes the Mighty Scope V2, fine-focus stand, microscope mount, user manual and software download.
Manufacturer Safety Notice
Aven supplies the following California warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
