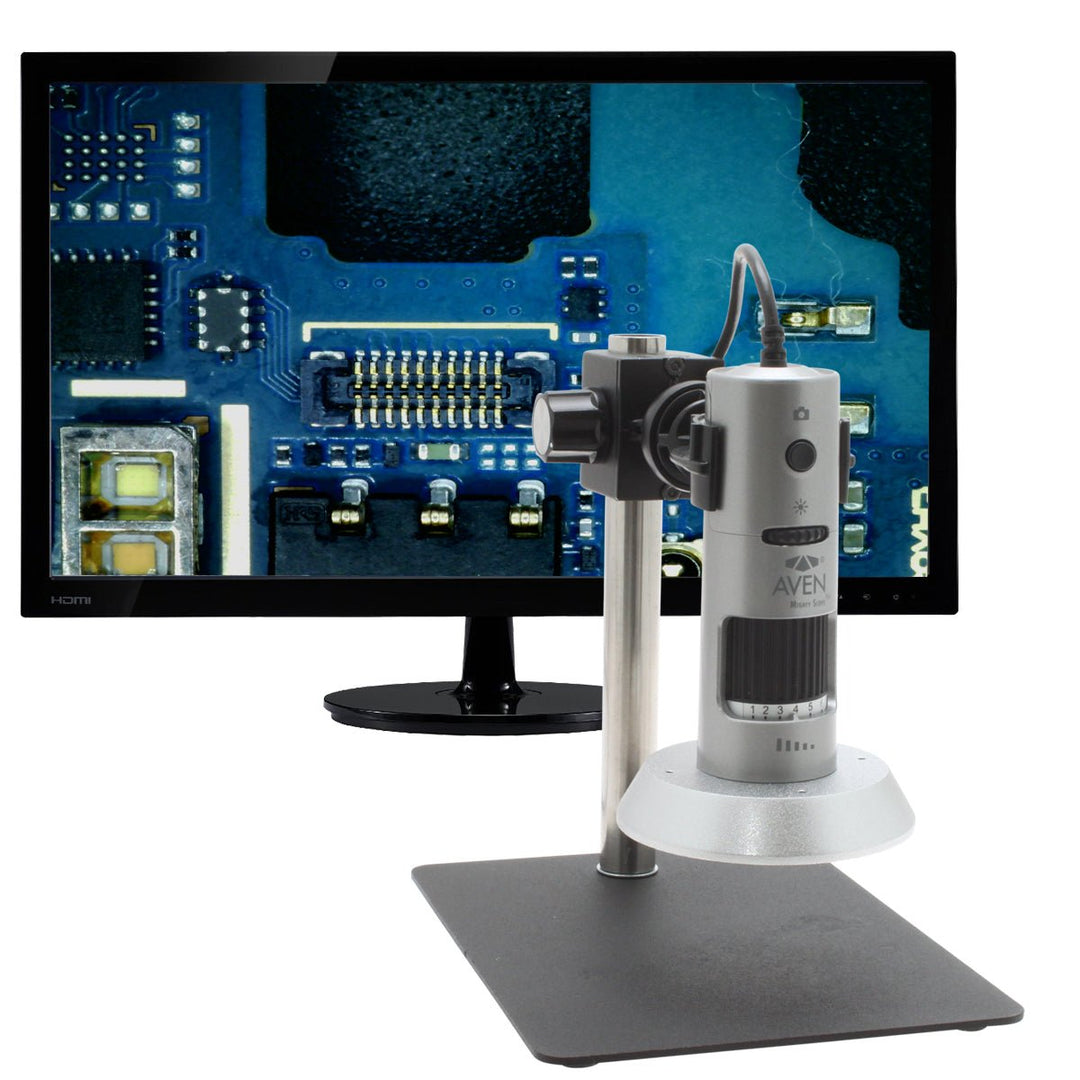

Aven Tools 26700-218-DFS Mighty Scope V2 USB Digital Microscope with Diffuser
Aven Tools 26700-218-DFS Mighty Scope V2 USB Digital Microscope with Diffuser
The Aven 26700-218-DFS Mighty Scope V2 combines a 5MP USB digital microscope, fine-focus metal stand and diffuser attachment for inspecting shiny and reflective parts. The diffuser softens and spreads illumination to help reduce glare and hot spots, while eight adjustable white LEDs let you control brightness at the microscope body.
Position a part beneath the microscope, adjust focus and lighting, and capture images or video on your computer with the included MicroViewer PLUS software download. Aven lists approximately 10X–200X displayed magnification based on a 24-inch monitor; displayed magnification varies with the viewing setup.
Best Uses / Applications
- Inspecting reflective electronics components and solder joints.
- Examining shiny metal parts and surface details under softer illumination.
- Documenting defects, repairs and quality-control observations.
- Training and shared inspection on a computer display.
- Software-assisted measurement and image comparison.
Key Features
- Included diffuser provides soft, even illumination and helps reduce glare.
- 5MP color CMOS sensor with USB 2.0 output.
- Eight white LEDs with brightness and on/off control.
- Built-in snapshot button and focus wheel with adjustment markers.
- Fine-focus stand for small height and focus adjustments.
- Adjustable metal stand with angle and tilt adjustment.
- MicroViewer PLUS download for Mac or Windows.
Technical Specifications
| Manufacturer / MPN | Aven Tools / 26700-218-DFS |
|---|---|
| UPC | 766955376019 |
| Configuration | Mighty Scope V2 with diffuser attachment and fine-focus stand |
| Image sensor | 1/4-inch color CMOS |
| Effective pixels | 2592 × 1933 pixels; manufacturer-listed 5MP |
| Displayed magnification | Approximately 10X–200X, based on a 24-inch monitor |
| Signal output | USB 2.0 standard-compliant serial data |
| Gain / white balance | Automatic / automatic |
| Snapshot mode | Hardware and software controllable |
| Power source | 5 V DC through USB port |
| Average current consumption | 260 mA |
| Illumination | Eight adjustable white LEDs |
| Listed operating systems | Windows 10/11; Mac OS X 10.11 or above |
| Working-distance reference | 10X: 190 mm; 20X: 82 mm; 30X: 43 mm; 40X: 26 mm |
The supplied manufacturer specification table uses the base number 26700-218 in its heading; the page SKU and diffuser package contents identify this configuration as 26700-218-DFS.
Software and Image Capture
MicroViewer PLUS supports image/video capture, measurement, line/angle/circle drawing and measurement, grid overlays and comparison modes. Mac and Windows versions are available. Confirm compatibility with your specific computer and calibrate measurements for your application; no measurement-accuracy rating is supplied here.
Package Contents
- Mighty Scope V2 microscope.
- Fine-focus stand.
- Microscope mount.
- User manual.
- Software download.
- Diffuser attachment.
Diffuser vs. Polarizer Configuration
| Configuration | Included lighting accessory | Selection consideration |
|---|---|---|
| 26700-218-DFS, this product | Diffuser | Softens and evens illumination to help reduce glare and hot spots on shiny parts |
| 26700-218-PLR | Polarizer | Alternative glare-reduction configuration with a polarizer attachment |
| 26700-218-STN | Replacement stand components | Stand-only accessory, not a complete microscope system |
Frequently Asked Questions
What does the diffuser do?
It provides softer, more even illumination and helps reduce glare and hot spots when observing shiny or reflective subjects.
Is this a complete microscope system?
Yes. Aven lists the microscope, fine-focus stand, mount, diffuser attachment, user manual and software download.
Does this version include a polarizer?
The listed attachment is a diffuser. The polarizer-equipped configuration is a separate model, 26700-218-PLR.
What magnification is available?
Aven lists approximately 10X–200X based on a 24-inch monitor. Display size and viewing setup affect displayed magnification.
Can I adjust the LED brightness?
Yes. The body-mounted control adjusts the eight white LEDs and lets you turn them on or off.
Which operating systems are listed?
The supplied table lists Windows 10/11 and Mac OS X 10.11 or above. Confirm software compatibility with your exact computer before purchase.
Can I capture images and make measurements?
MicroViewer PLUS supports image/video capture and measurement tools, including line, angle and circle functions. Calibrate and validate measurements for your application.
What are the working distances?
Aven's reference table lists 190 mm at 10X, 82 mm at 20X, 43 mm at 30X and 26 mm at 40X.
