Aven Tools 26700-181AP Adapter Plate for 26700-181 Macro Lens
Aven Tools 26700-181AP Adapter Plate for 26700-181 Macro Lens

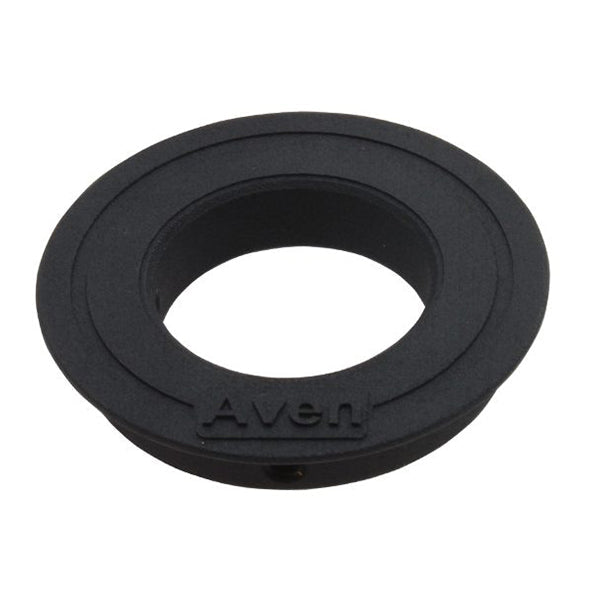

The Aven 26700-181AP adapter plate is a mounting accessory for the 26700-181 macro zoom lens. Aven identifies two mounting applications: securing that lens to a focus mount or to an E-arm. With an 84 mm outer diameter and 47 mm inner diameter, this plate provides a model-specific mounting interface rather than a universal lens adapter.
When assembling or servicing an inspection station using the 26700-181 lens, select the matching adapter plate and confirm the receiving mount or E-arm fits your configuration. This listing is for the plate, not the lens, focus mount, E-arm or complete microscope.
Best Uses / Applications
- Mounting the 26700-181 macro lens to a compatible focus mount.
- Mounting the same lens to a compatible E-arm.
- Replacing an adapter plate in an existing 26700-181 lens inspection setup.
- Building a supported mounting arrangement for electronics or small-part inspection.
Key Features
- Designed for Aven macro lens 26700-181.
- Supports focus-mount and E-arm mounting applications.
- 84 mm outer diameter.
- 47 mm inner diameter.
- Mechanical mounting accessory, not a magnifying lens.
Technical Specifications
| Manufacturer / MPN | Aven Tools / 26700-181AP |
|---|---|
| UPC | 766955375630 |
| Product type | Macro lens adapter plate |
| Compatible lens | 26700-181 |
| Mounting applications | Focus mount or E-arm |
| Outer diameter | 84 mm |
| Inner diameter | 47 mm |
Aven's supplied information does not identify specific compatible focus-mount or E-arm model numbers, plate material, thickness, weight or included mounting hardware. Verify the receiving mount before ordering; diameter alone does not establish compatibility with other lenses.
Adapter Plate vs. Lens and Mount
| Component | Role | Purchase distinction |
|---|---|---|
| 26700-181AP, this item | Mounting interface for the specified macro lens | Adapter plate only |
| 26700-181 macro lens | Optical component used in the inspection setup | Separate lens, not included with this plate |
| Focus mount or E-arm | Receiving support for the lens mounting arrangement | Separate component; verify model fit |
Frequently Asked Questions
Which lens does this plate fit?
Aven lists macro lens 26700-181 as the compatible lens.
What can it mount the lens to?
The manufacturer lists a focus mount or an E-arm. Specific receiving model numbers are not supplied in the screenshots.
What are the plate diameters?
The outer diameter is 84 mm and the inner diameter is 47 mm.
Does it include the macro lens?
No. This is the adapter-plate listing, not the 26700-181 lens.
Does it change magnification?
Aven describes it as a mounting plate, not an optical magnification accessory.
Can I use it with another lens?
Compatibility is established here only for 26700-181. Confirm other lens and mounting combinations with Aven before purchase.
