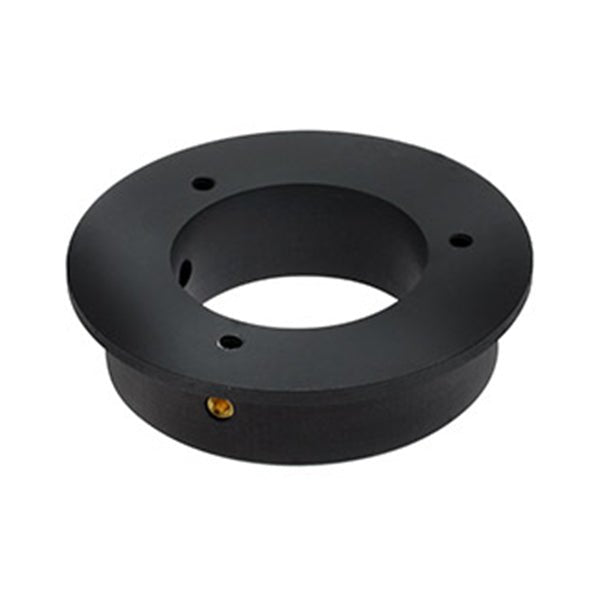

Aven Tools 26700-180AP Adapter Plate for Macro Lens Zoom 7000
Aven Tools 26700-180AP Adapter Plate for Macro Lens Zoom 7000
The Aven 26700-180AP adapter plate mounts the Macro Lens Zoom 7000 to a SCW-PA focus mount or E-ARM, as specified by Aven. It is a mechanical mounting accessory for configuring a compatible inspection setup, not an optical lens or complete microscope system.
When assembling or maintaining a Zoom 7000 station, use the specified adapter to connect the lens to the supported mount. Check the exact lens and mount configuration before ordering, especially when adapting equipment from another system.
Best Uses / Applications
- Mounting a Macro Lens Zoom 7000 to the specified SCW-PA focus mount.
- Connecting a Macro Lens Zoom 7000 to an E-ARM mounting arrangement.
- Replacing the model-matched adapter in an existing inspection station.
- Configuring compatible macro-inspection equipment for assembly or quality-control work.
Key Features
- Adapter plate specifically described for Macro Lens Zoom 7000.
- Manufacturer-listed mounting use with SCW-PA or E-ARM.
- 73 mm outside diameter and 46.75 mm inside diameter.
- 22.5 mm height.
- Supplied as an adapter in a polybag.
Technical Specifications
| Manufacturer | Aven Tools |
|---|---|
| Part number / MPN | 26700-180AP |
| UPC | 766955371632 |
| Product type | Mechanical mounting adapter plate |
| Lens use | Macro Lens Zoom 7000 |
| Manufacturer-listed mounting compatibility | SCW-PA focus mount or E-ARM |
| Height | 22.5 mm |
| Outside diameter | 73 mm |
| Inside diameter | 46.75 mm |
| Manufacturer-listed weight | 170 g (6.0 oz) |
| Package contents | Adapter in polybag |
The supplied information does not specify material, mounting-hole spacing, load capacity or compatibility with other lenses. Confirm critical mating dimensions for any custom installation.
Adapter Plate vs. Lens and Focus Mount
| Component | Role | Included in this listing? |
|---|---|---|
| 26700-180AP adapter plate | Connect the Macro Lens Zoom 7000 to a supported mount | Yes, adapter in polybag |
| Macro Lens Zoom 7000 | Optical component for the inspection setup | No |
| SCW-PA focus mount or E-ARM | Mounting arrangement identified by Aven | No |
Frequently Asked Questions
What does Aven 26700-180AP do?
It mounts the Macro Lens Zoom 7000 to a SCW-PA focus mount or E-ARM, as listed by Aven.
Is this an objective lens?
No. It is a mechanical adapter plate and does not provide optical magnification.
What are the adapter's diameters?
Aven lists a 73 mm outside diameter and 46.75 mm inside diameter.
How tall is the plate?
The manufacturer-listed height is 22.5 mm.
Does it include the lens or focus mount?
No. Aven lists the package contents as an adapter in a polybag. The lens and mounting equipment are separate components.
Will it fit other lenses or mounts?
The supplied information identifies Macro Lens Zoom 7000 and SCW-PA or E-ARM. Confirm compatibility before using any other equipment; diameter alone does not establish a complete mechanical fit.
What does the adapter weigh?
Aven lists 170 g, or 6.0 oz. This is the manufacturer-listed product weight, not a verified packed shipping weight.
Manufacturer Safety Notice
Aven supplies the following California warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
