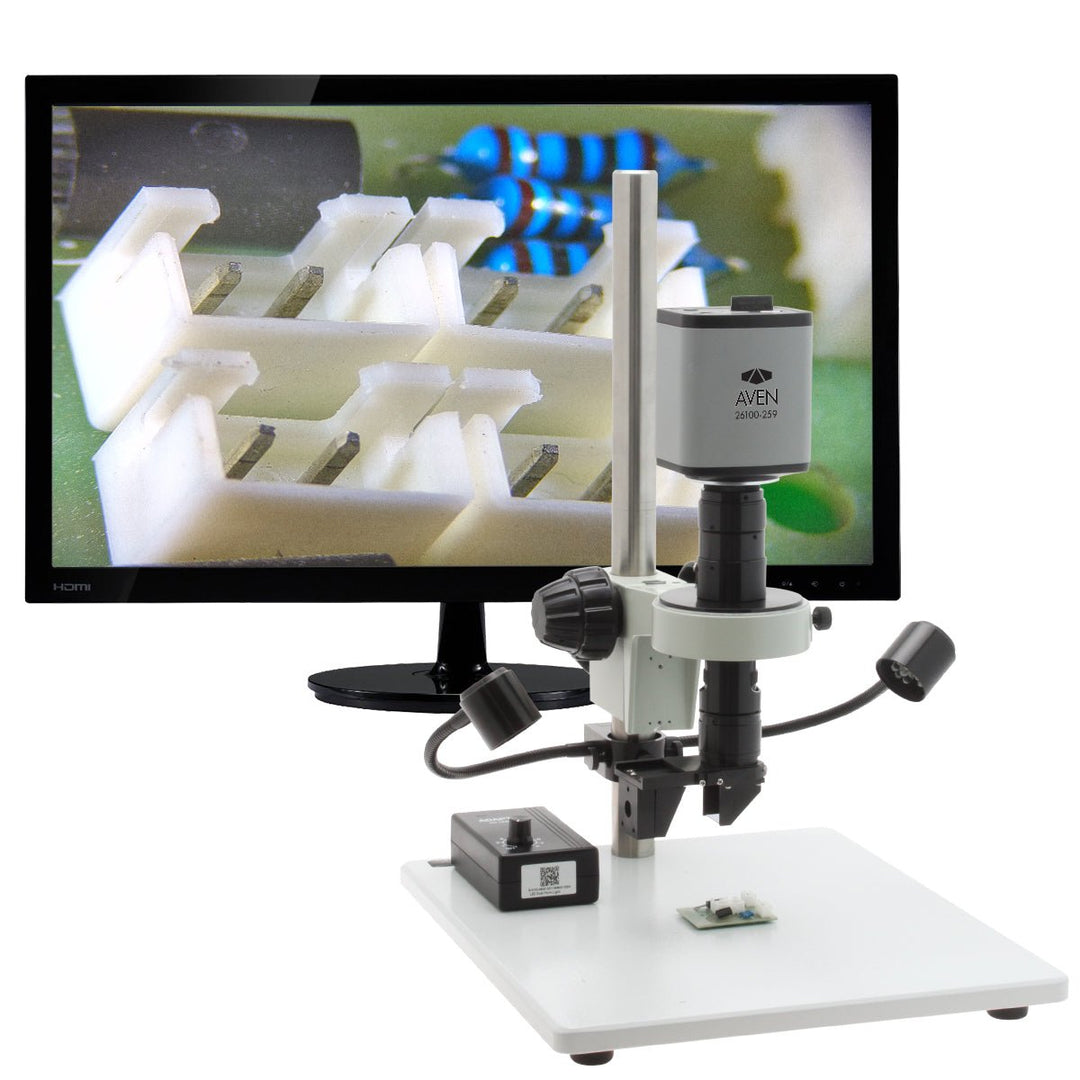

The Aven 26700-151-C05-259570 combines a micro zoom lens, engageable 360 viewer, Mighty Cam ES camera, heavy-duty post stand, adjustable dual gooseneck LEDs and a 22-inch HDMI monitor. Inspect parts from different angles by rotating the viewer rather than repositioning the part. Aven lists 22X–147X displayed magnification on the included 22-inch monitor.
Measurement requirement: The 360 viewer must be in the OFF position to perform measurements. Use the included software and calibrate the system for your application.
Best Uses / Applications
- Viewing electronic assemblies and component details from multiple angles.
- Inspecting machined parts and small features without rotating the workpiece.
- Capturing inspection images and video for quality-control documentation.
- Calibrated measurement with the viewer disengaged.
Key Features
- 360 viewer with a mirror inclined at 35 degrees; slides in or out to engage or disengage.
- 0.6X–4X optical zoom with repeatable detented settings.
- Mighty Cam ES camera with HDMI and USB outputs.
- HDMI operation without a PC, with on-screen controls and SD-card capture.
- USB operation with included image analysis and measurement software.
- Flexible gooseneck LEDs with brightness adjustment.
- Heavy-duty metal post stand and included 22-inch monitor.
System Specifications
| Manufacturer / MPN | Aven Tools / 26700-151-C05-259570 |
|---|---|
| Displayed magnification | 22X–147X, based on 22-inch HD monitor, viewer ON or OFF |
| Optical zoom | 0.6X–4X; 6.7:1 zoom ratio |
| Working distance, viewer ON | 0.91 inch / 23 mm |
| Working distance, viewer OFF | 3 inches / 76.2 mm |
| Camera | Mighty Cam ES, color CMOS, rolling shutter |
| Interfaces | HDMI, USB 2.0, SD card |
| HDMI preview | 1920 × 1080 |
| Still capture | 2592 × 1944 |
| Listed frame rates | 15 fps USB 2.0; 25 fps HDMI; video recording listed separately as 15 fps at 1920 × 1080 |
| Exposure time | 1 ms–2 seconds |
| SD format | FAT32 |
| Software listed | HDMI: Cloud 1.0; USB: Mosaic V2 |
| Camera optical interface | Standard C-mount |
| Camera power / weight | 2.4 W / 265 g |
| Camera dimensions | 90.7 × 74 × 67.2 mm |
| Listed operating systems | Windows 7/10, 32-bit/64-bit; Mac. Verify current software compatibility. |
| Listed PC recommendation | Intel Core i5 or better, four or more cores; 8 GB RAM or more |
| Stand base dimensions | 279 × 330 × 12.7 mm |
| Stand base weight | 3.6 kg / 8 lb |
| Post length / diameter | 406 mm / 25.5 mm |
| LED illuminance | Manufacturer-listed 8000 lux; measurement conditions not supplied |
| LED power | 2.5 W × 2 |
| Lighting input / output | AC 100–240 V, 50/60 Hz / DC 12 V |
| Lighting power cable | 1.5 m; USA two-pin connector |
Manufacturer data clarification: The narrative describes four detents at 0.6X, 1X, 2X and 4X, while the lens table lists seven detents. The camera table labels resolution “2MP” alongside 2592 × 1944 pixels. These conflicting entries are not treated as confirmed detent-count or sensor-megapixel specifications. The component lens table lists a 1X coupler, but Aven specifically states this system includes a 0.5X coupler and the 360 viewer has a built-in 0.75X coupler.
Included System Components
- 26100-259 Mighty Cam ES.
- 26700-170 360 viewer.
- 26700-151-C05 micro lens with 0.5X coupler.
- 26700-151AP lens adapter plate.
- 26800B-570 heavy-duty post stand.
- 26800B-517 focus mount.
- 26200B-224 flexible gooseneck LEDs for post stands.
- 26700-406 22-inch HDMI LCD monitor.
Choosing an Inspection Mode
| Mode | Best use | Important condition |
|---|---|---|
| Viewer ON | Angled inspection by rotating the viewer | 23 mm working distance; not for measurements |
| Viewer OFF | Overhead inspection and calibrated measurement | 76.2 mm working distance |
| HDMI camera mode | Monitor-based inspection without a PC | On-screen controls and SD capture |
| USB camera mode | PC-based image analysis and measurement | Verify computer compatibility and calibrate measurements |
Frequently Asked Questions
Does this system include a monitor?
Yes. Aven lists the 26700-406 22-inch HDMI LCD monitor among the system components.
Must I rotate the part to inspect different angles?
The 360 viewer lets you change the viewing angle by rotating the viewer rather than the part.
Can I measure with the viewer engaged?
No. Aven requires the viewer to be in the OFF position for measurements.
What is the working distance?
23 mm with the viewer ON and 76.2 mm with it OFF.
Can the camera work without a computer?
Yes, in HDMI mode with a compatible monitor. USB mode connects to a PC for software-based image analysis and measurement.
Is 22X–147X the optical zoom range?
No. That is displayed magnification based on the 22-inch monitor. The lens optical zoom is 0.6X–4X.
Can I position the illumination?
Yes. The flexible gooseneck LEDs can be positioned for the subject, with adjustable brightness.
