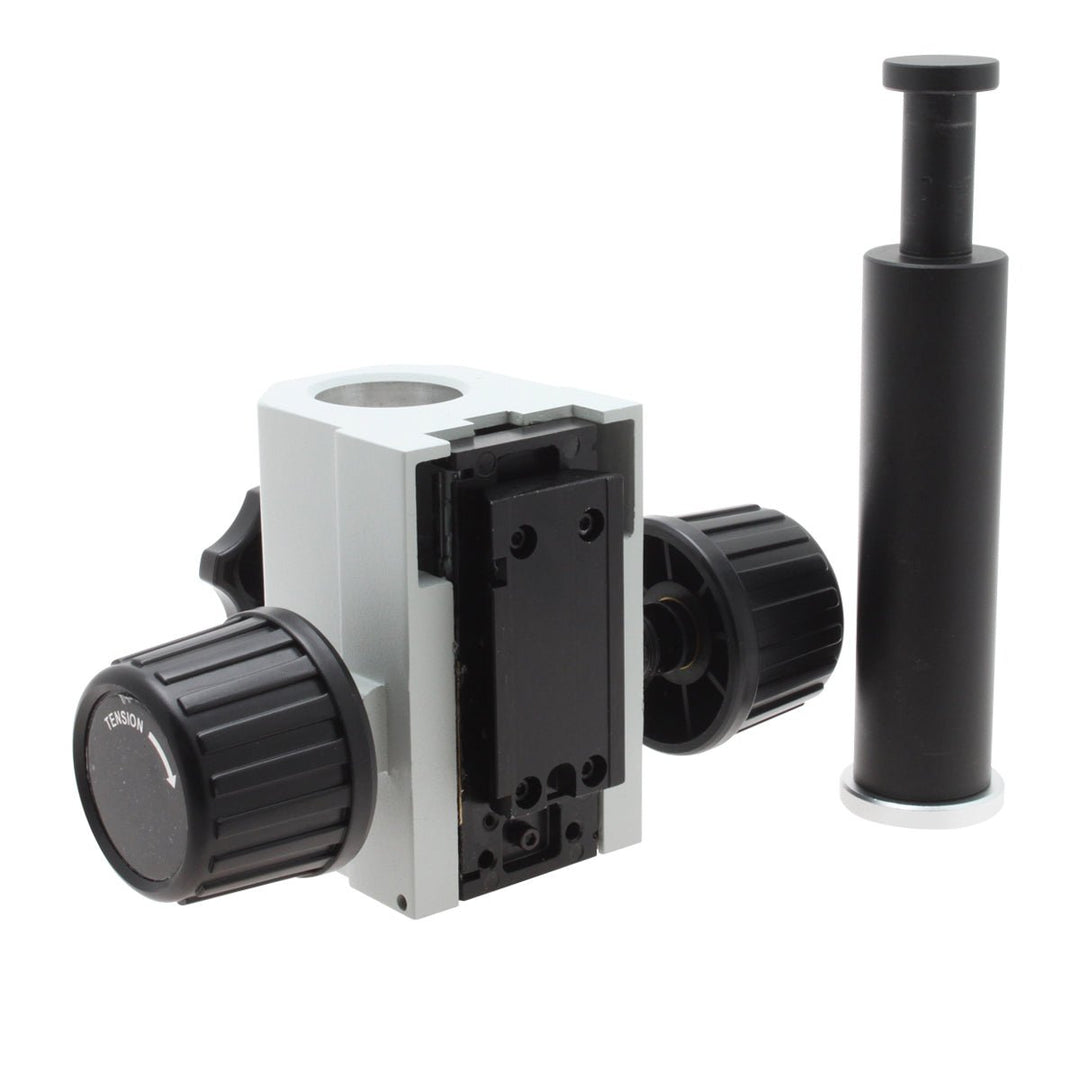

Aven Tools 26700-140-M32 MicroVue Focus Mount with Arbor for Boom Stands, 32mm Opening
Aven Tools 26700-140-M32 MicroVue Focus Mount with Arbor for Boom Stands, 32mm Opening
The Aven 26700-140-M32 MicroVue Focus Mount with Arbor connects a MicroVue digital microscope to compatible Aven boom and articulating-arm stands. Its 32 mm (1.25-inch) opening and supplied arbor support a more versatile mounting arrangement for inspecting larger objects.
When a part extends beyond a fixed post-stand viewing position, a compatible boom stand lets you position the microscope over different areas of the object. This accessory provides the MicroVue mounting connection; the microscope and stand are selected separately.
Best Uses / Applications
- Adapting a MicroVue digital microscope to a manufacturer-listed boom stand.
- Scanning larger assemblies during electronics inspection and quality control.
- Building an articulating-arm inspection station with a compatible Aven stand.
- Replacing the specified MicroVue focus-mount and arbor assembly.
Key Features
- Designed for Aven's MicroVue digital microscope.
- Connects the MicroVue to compatible boom and articulating-arm stands.
- 32 mm (1.25-inch) opening, as described in the product title and description.
- Focus mount with arbor, rather than a complete microscope stand.
- Manufacturer-listed compatible stand options shown below.
Technical Specifications
| Manufacturer | Aven Tools |
|---|---|
| Part number / MPN | 26700-140-M32 |
| UPC | 766955375517 |
| Product type | MicroVue focus mount with arbor |
| Microscope use | MicroVue digital microscope |
| Opening | 32 mm (1.25 inches), manufacturer-described opening |
| Focus mount dimensions | 7 × 3.25 × 4 inches |
| Arbor dimensions | 1.5 × 1.5 × 6.85 inches |
| Total manufacturer-listed weight | 2.4 lb |
Manufacturer wording clarification: Aven's specification table labels the 32 mm measurement as “mount opening radius,” while its title and description call it a 32 mm opening. This listing preserves the stated opening size without converting it to a larger diameter. Confirm the mating dimensions before purchasing for a custom installation.
Manufacturer-Listed Compatible Stands
| Stand part number | Configuration |
|---|---|
| 26800B-556 | Ultra-Glide arm stand with heavy base |
| 26800B-534 | Double-arm boom stand with heavy base |
| 26800B-519 | Single-arm boom stand with heavy base |
| 26800B-536 | Double-arm boom stand with table clamp |
| 26800B-525 | Single-arm boom stand with table clamp |
| 26800B-550-PCL | Articulating-arm stand with vertical post and table clamp |
| 26800B-560 | Standard articulating-arm stand with vertical post |
These part numbers reproduce Aven's supplied compatibility list. Confirm the exact stand configuration and microscope fit; do not assume compatibility with every third-party boom stand.
Focus Mount vs. Complete Stand
| Option | Role | Selection consideration |
|---|---|---|
| 26700-140-M32 focus mount and arbor | Connect the MicroVue to a compatible stand | Requires a separately selected microscope and stand |
| Compatible boom or articulating-arm stand | Position the microscope over an object | Select the required reach, base or table-clamp configuration separately |
| Standard post-stand arrangement | Support inspection at a fixed bench position | Does not provide the same boom-arm scanning arrangement described by Aven |
Frequently Asked Questions
What is Aven 26700-140-M32?
It is a focus mount with arbor for connecting a MicroVue digital microscope to compatible Aven boom or articulating-arm stands.
What opening size does Aven list?
The product title and description specify a 32 mm, or 1.25-inch, opening. The specs table uses conflicting “radius” wording, so confirm critical fit dimensions rather than interpreting that as a 64 mm opening.
Does it include a microscope or boom stand?
This listing is for the focus mount with arbor, not a complete microscope or stand.
Which stands are listed as compatible?
Aven lists 26800B-556, 26800B-534, 26800B-519, 26800B-536, 26800B-525, 26800B-550-PCL and 26800B-560.
Why use a boom-stand mounting arrangement?
Aven describes boom stands as useful for scanning a microscope over larger objects. This mount enables that arrangement with the specified compatible equipment.
Will it work with any brand of stand?
The supplied information lists specific Aven stands. Confirm mechanical compatibility before using a different stand or custom setup.
Is this a lens accessory?
No. It is a mounting accessory with an arbor; it does not provide objective magnification.
