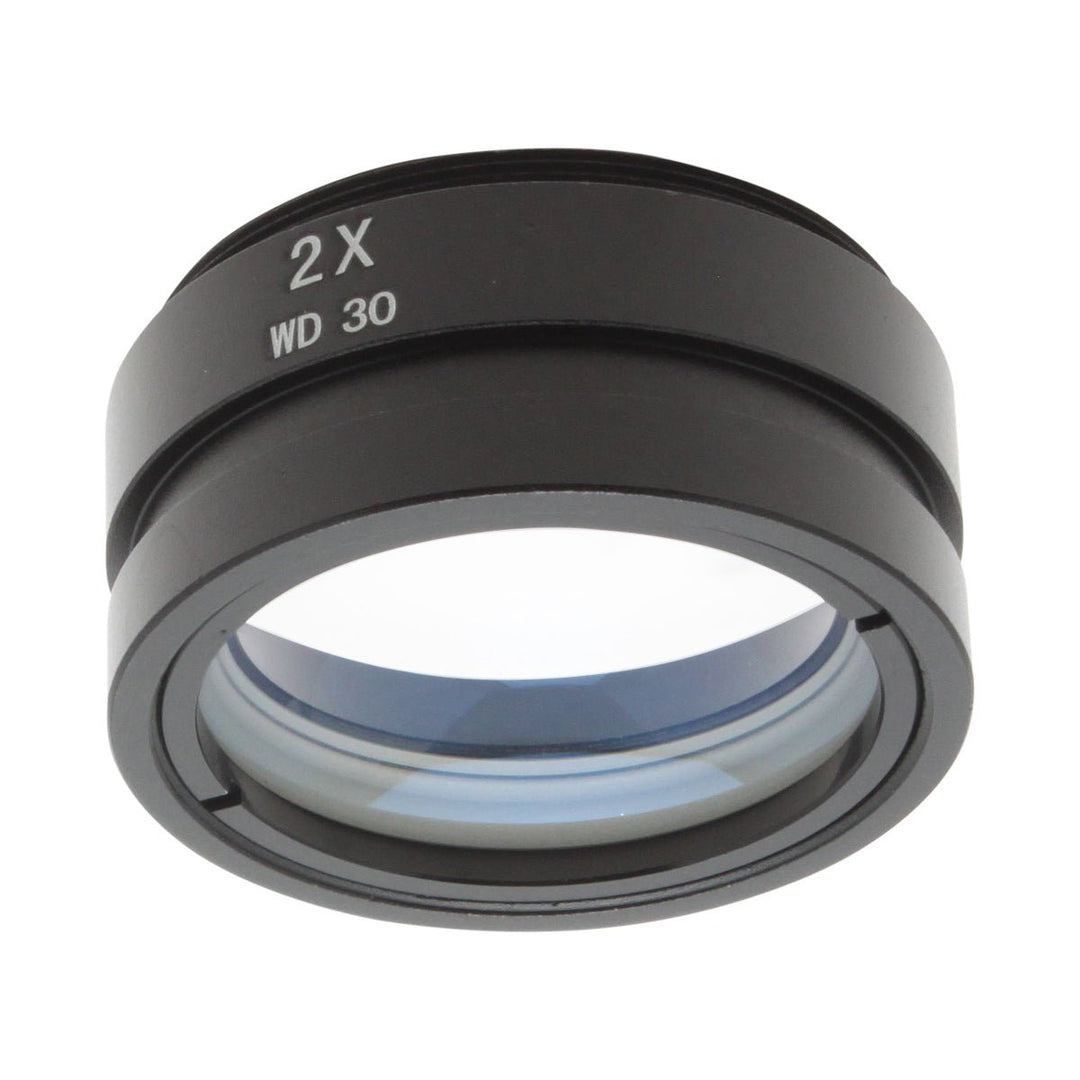

Aven Tools 26700-140-L20X MicroVue Auxiliary Objective Lens 2.0X
Aven Tools 26700-140-L20X MicroVue Auxiliary Objective Lens 2.0X
The Aven 26700-140-L20X MicroVue 2.0X auxiliary objective lens doubles the magnification range of compatible MicroVue and MicroVue 2.0 digital microscopes. It screws onto the bottom of the microscope and provides a manufacturer-listed 34.4X–221X range on an 11.6-inch monitor, compared with 17.2X–110.5X using the standard lens.
Use this accessory when small features need a closer view. The trade-off is reduced clearance: Aven's comparison lists a 30 mm working distance with the 2X lens, versus 100 mm with the standard lens. Check sample height and tool clearance before selecting the higher-magnification setup.
Best Uses / Applications
- Closer examination of small components on compatible MicroVue inspection systems.
- Electronics quality control and repair requiring additional magnification.
- Detailed visual inspection where a 30 mm working distance is suitable.
- Adding magnification versatility to an existing MicroVue or MicroVue 2.0 station.
Key Features
- 2.0X auxiliary objective doubles the standard magnification range.
- Manufacturer-listed use with MicroVue and MicroVue 2.0 digital microscopes.
- Screw-on attachment to the bottom of the microscope.
- Metal ring with glass lens.
- Monitor-specific magnification reference for 11.6-inch and 21.5-inch screens.
Technical Specifications
| Manufacturer | Aven Tools |
|---|---|
| Part number / MPN | 26700-140-L20X |
| UPC | 766955375531 |
| Lens type | 2.0X auxiliary objective |
| Manufacturer-listed compatibility | MicroVue and MicroVue 2.0 digital microscopes |
| Attachment | Screws onto the bottom of the microscope |
| Working distance with 2X lens | 30 mm |
| Magnification on 11.6-inch monitor | 34.4X–221X |
| Magnification on 21.5-inch monitor | 63.7X–409.6X |
| Manufacturer-listed field of view, mm | 9.5 × 5.5 to 1.5 × 0.7, on both listed monitor sizes |
| Material | Metal ring with glass lens |
| Dimensions | 1.75 × 1.75 × 0.75 inches |
| Weight | 0.2 lb |
Manufacturer source clarification: The supplied specs table heading shows 26700-140-L05X while labeling the lens 2.0X. The product header identifies 26700-140-L20X, and its description, features and magnification comparison consistently describe the 2X lens. This listing retains the matching product-header part number; confirm the manufacturer table discrepancy if part-number validation is critical.
Standard Lens vs. MicroVue 2X Lens
| Monitor | Standard lens magnification | 2X lens magnification |
|---|---|---|
| 11.6 inches | 17.2X–110.5X | 34.4X–221X |
| 21.5 inches | 31.9X–204.8X | 63.7X–409.6X |
| Working distance | 100 mm | 30 mm |
| Field of view, mm | 18.5 × 10.5 to 2.8 × 1.5 | 9.5 × 5.5 to 1.5 × 0.7 |
Values reproduce Aven's supplied comparison. Higher magnification comes with a smaller field of view and shorter working distance. Displayed magnification depends on the listed monitor size; 2.0X describes the accessory's magnification multiplier.
Frequently Asked Questions
What does 26700-140-L20X do?
It is a 2.0X auxiliary objective that doubles the standard magnification range on compatible MicroVue and MicroVue 2.0 digital microscopes.
What magnification will I get on the 11.6-inch screen?
Aven lists 34.4X–221X with this lens, compared with 17.2X–110.5X using the standard lens.
What range is listed for a 21.5-inch monitor?
Aven's comparison gives 63.7X–409.6X with the 2X lens. This is a monitor-specific reference, not the objective's standalone magnification.
Does the lens change working distance?
Yes. Aven lists 30 mm with the 2X lens versus 100 mm with the standard lens. Check clearance for the sample and any inspection tools.
How does it attach?
Aven states that the lens screws onto the bottom of the MicroVue digital microscope.
Is the field of view wider with this accessory?
No. Aven's comparison lists a smaller field of view with the 2X lens, trading viewing area for increased magnification.
Does this include a microscope or monitor?
This listing is for the auxiliary objective lens, not a complete microscope or monitor.
Manufacturer Safety Notice
Aven supplies the following California warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
