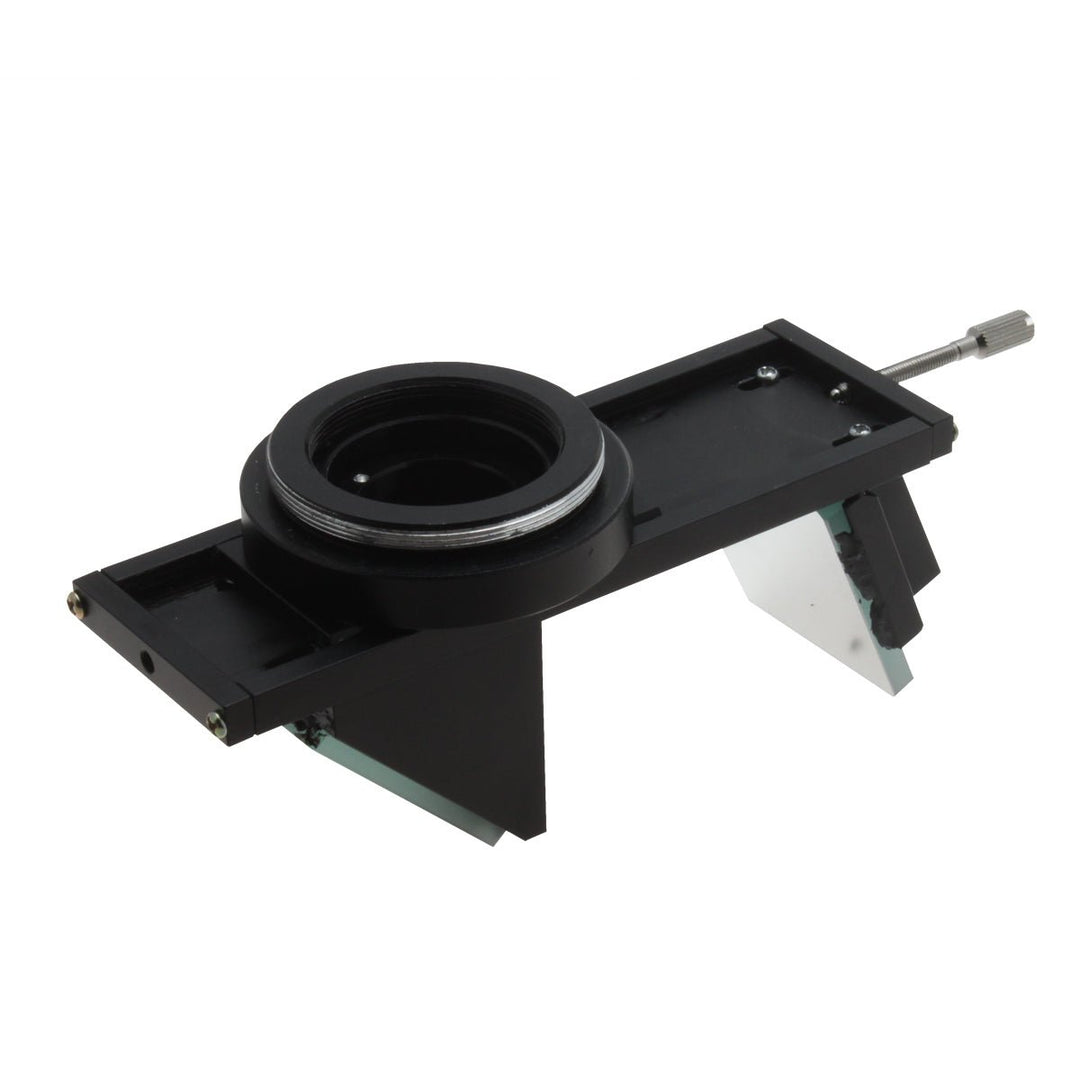

Aven Tools 26700-140-3DA MicroVue 360 Viewer Attachment
Aven Tools 26700-140-3DA MicroVue 360 Viewer Attachment
The Aven 26700-140-3DA MicroVue 360 Viewer Attachment adds a 35° angled on-screen view to the MicroVue digital microscope, model 26700-140. Its angled mirror helps you look around multi-layered parts such as circuit boards, medical tools and industrial components. Rotate the attachment 360° to inspect the part from different viewing directions.
At the inspection station, engage the angled view to examine details that an overhead view may hide, then switch the attachment to its Off position for normal overhead viewing. Aven states that the On position applies a 0.5X magnification factor and increases field of view; Off removes the added angle and magnification reduction.
Best Uses / Applications
- Examining multi-layer circuit boards and component features from an angled perspective.
- Inspecting industrial parts and medical tools with a compatible MicroVue microscope.
- Comparing overhead and angled views during quality-control inspection.
- Viewing a part from multiple directions by rotating the attachment.
Key Features
- 35° angled mirror for an alternative on-screen perspective.
- 360° rotation for viewing objects from additional angles.
- On/Off positions to engage or disengage the angled view.
- Manufacturer-described easy installation.
- Model-specific accessory for MicroVue digital microscope 26700-140.
Technical Specifications
| Manufacturer | Aven Tools |
|---|---|
| Part number / MPN | 26700-140-3DA |
| UPC | 766955375937 |
| Product type | Rotating angled-view microscope attachment |
| Manufacturer-listed compatibility | MicroVue digital microscope 26700-140 |
| On-position viewing angle | 35° |
| Rotation | 360° |
| On-position magnification | Reduced, with 0.5X factor as described by Aven |
| On-position field of view | Increased |
| Off position | No added angle, magnification change or field-of-view change |
| Length × width × height | 5.5 × 2 × 1.5 inches |
| Manufacturer-listed weight | 0.55 lb |
| Box dimensions | 6.5 × 5.5 × 2.75 inches |
Compatibility with other MicroVue models is not established by the supplied specifications. This is a viewer accessory, not a complete microscope, objective-lens kit or a device specified to generate 3D measurements.
Compare On and Off Viewing Positions
| Position | Viewing perspective | Magnification | Field of view |
|---|---|---|---|
| On | 35° angled view; rotate attachment for additional directions | Reduced with 0.5X factor | Increased |
| Off | Overhead view with no added angle | No change from the underlying microscope setup | No change from the underlying microscope setup |
Frequently Asked Questions
What does the MicroVue 360 Viewer do?
It provides a 35° angled view of a part on screen and rotates 360° so you can inspect it from different directions.
Which microscope is listed as compatible?
Aven's specification table identifies MicroVue digital microscope model 26700-140. Confirm compatibility before using it with any other model.
Can I return to normal overhead viewing?
Yes. Move the attachment to its Off position to disengage the added viewing angle.
Does the attachment affect magnification?
Yes, when engaged. Aven describes a 0.5X magnification factor in the On position. Off provides no magnification change from the microscope's underlying setup.
What happens to field of view?
Aven lists increased field of view in the On position and no field-of-view change in the Off position.
Is it an objective lens or a complete microscope?
No. It is an angled-view attachment for a compatible existing MicroVue microscope.
Does 360 Viewer mean automatic rotation or 3D measurement?
Aven describes a rotatable viewing attachment. The supplied information does not specify motorized rotation or 3D measurement capability.
