Aven Tools 26700-117, Macro Vue Eidos Video Inspection System with Stand

Aven Tools 26700-117, Macro Vue Eidos Video Inspection System with Standard Stand

⚠️ Call for availability before ordering.

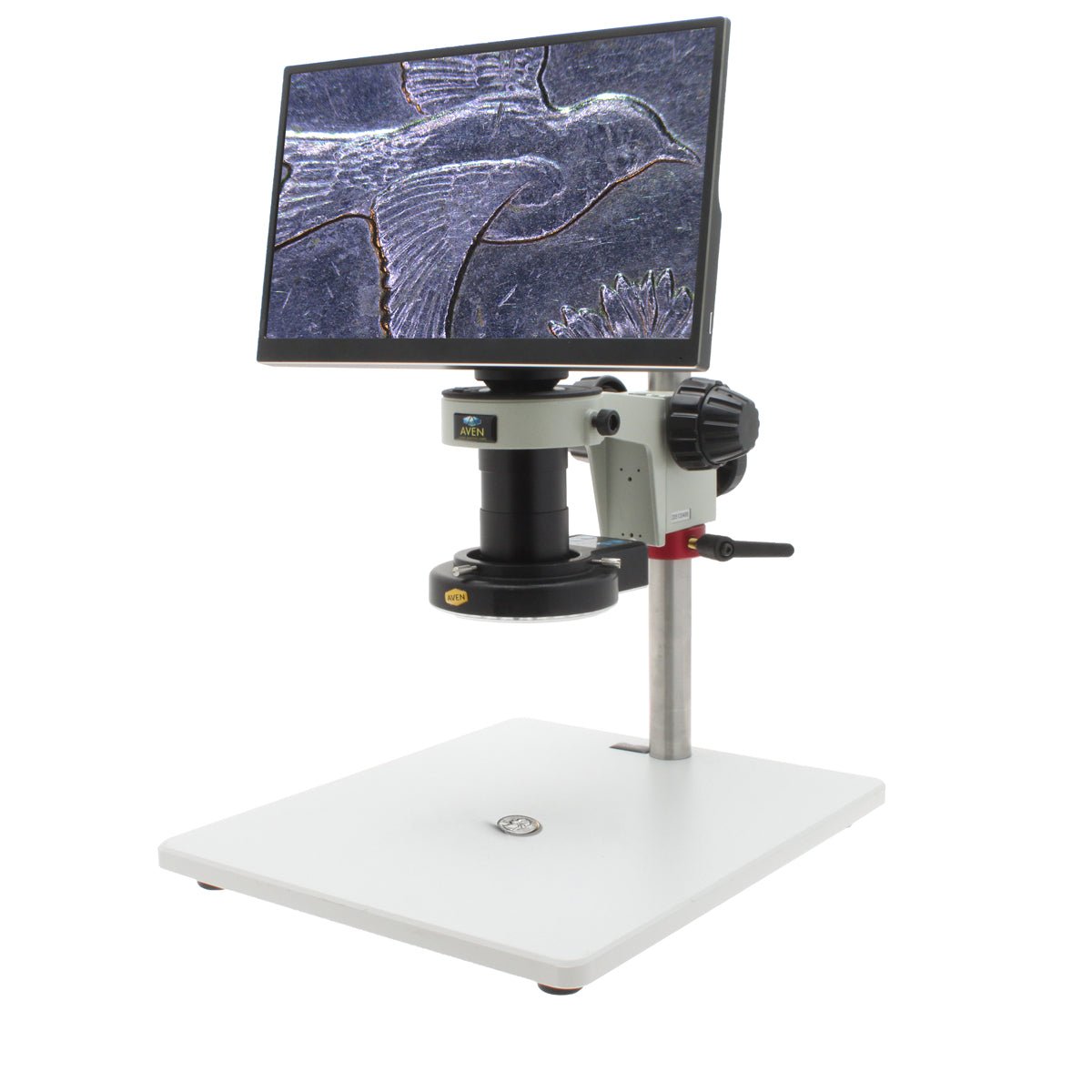

The Aven Macro Vue Eidos is a stand-alone high-magnification video inspection system combining a 5MP 1080p camera with an integrated 11.6" HD monitor, 60-LED ring light, and built-in measurement software — no computer required. Magnification range of 7x to 70x (7x to 40x at 6" working distance). Designed to reduce neck fatigue and eye strain while increasing inspection productivity on the bench.

Product Specifications

Kit Contents

Key Features & Benefits

• Reduces Eye Strain & Fatigue — Large 11.6" integrated monitor eliminates the need to peer through eyepieces during extended inspection sessions
• 1080p / 60 FPS Live Image — High-resolution, smooth live video for detailed inspection of fine components and assemblies
• 7x to 70x Magnification — Wide zoom range covers everything from board-level overview to fine-pitch component inspection
• Built-In Measurement Software — On-screen measurement without a PC — measure dimensions directly on the live image
• Shadow-Free LED Ring Light — 60-LED ring light with brightness control provides even, shadow-free illumination
• Space-Saving Design — Compact footprint maximizes bench space; heavy-duty post stand with fine & coarse focus

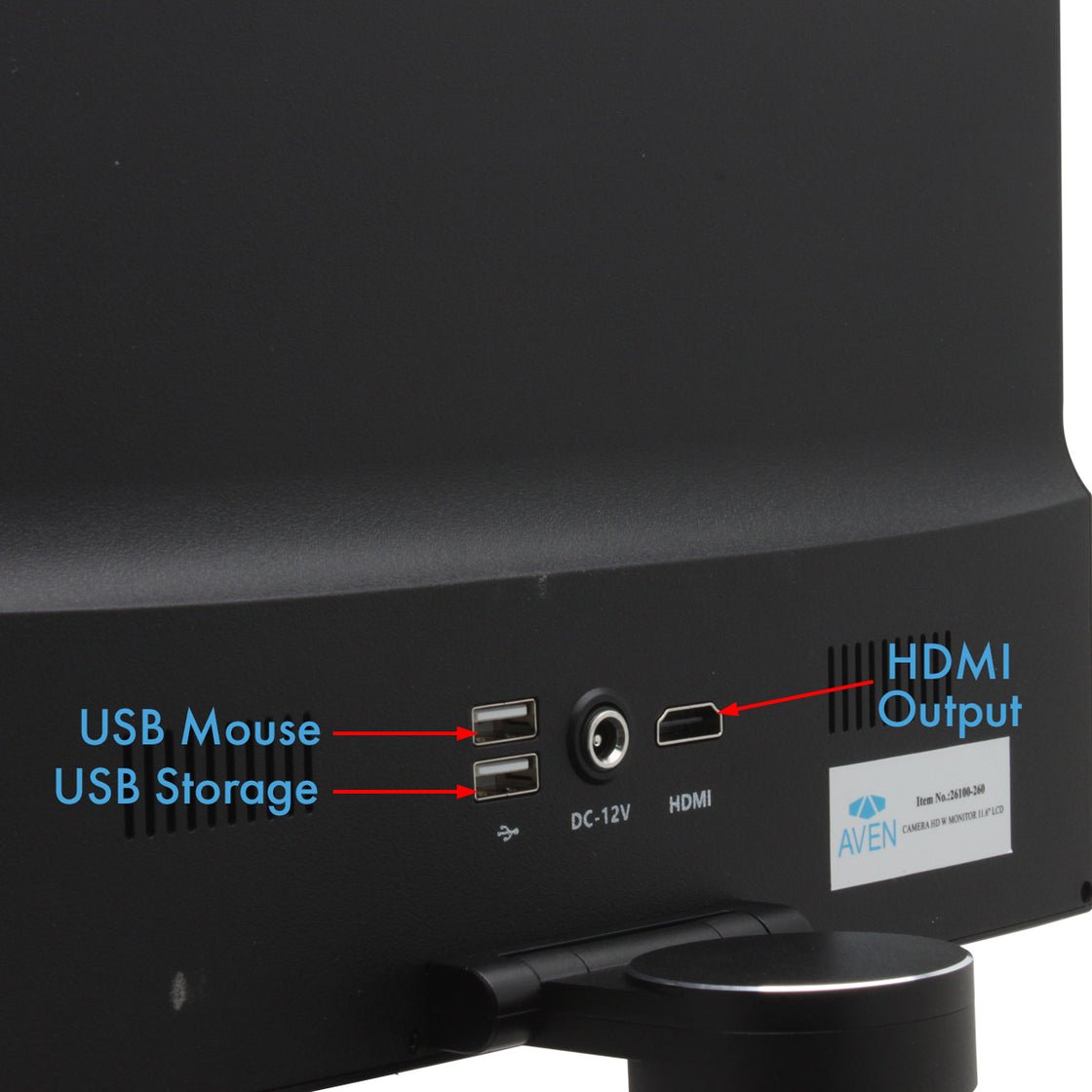

• USB Image Capture — Save inspection images directly via USB output

Typical Applications

• PCB and SMT assembly inspection
• Solder joint and component quality control
• Electronics rework and repair verification
• Fine-pitch component placement inspection
• Incoming inspection of electronic components
• Failure analysis and documentation

Frequently Asked Questions

Is the Aven 26700-117 in stock?
This item requires a call for availability and lead time confirmation before ordering. Contact MTE Solutions for current stock status and pricing.

Does this system require a computer?

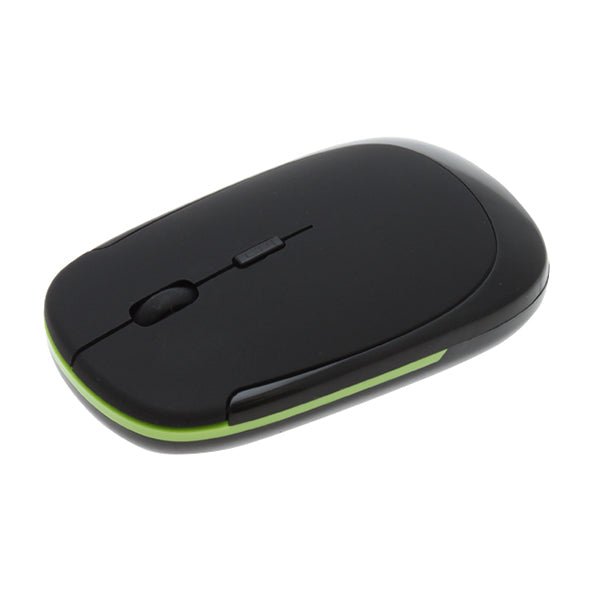

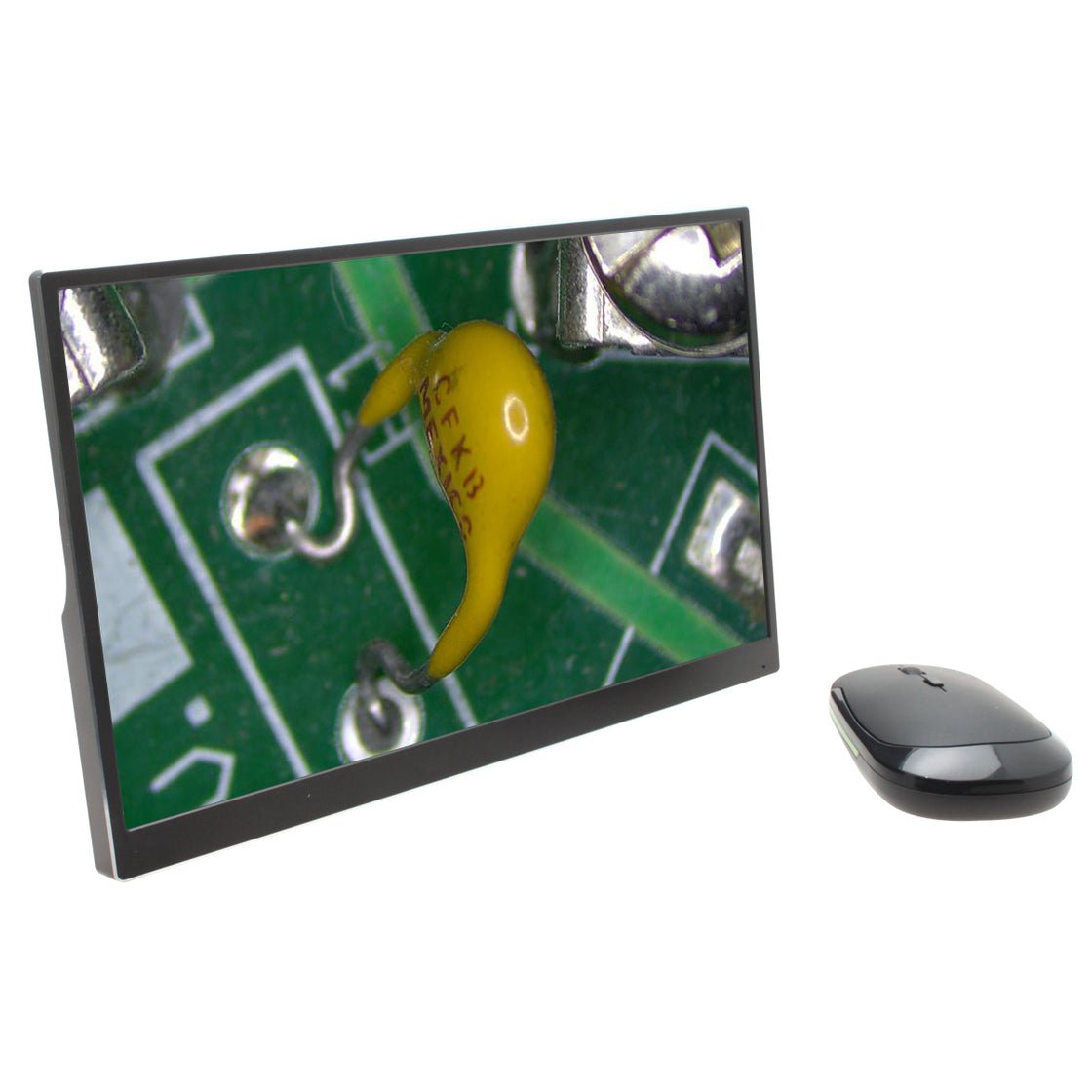

No — the Macro Vue Eidos is a stand-alone system with a built-in 11.6" HD monitor and on-board measurement software. A wireless mouse is included for menu navigation. USB output allows image saving to a flash drive.

What is the magnification range?
The system provides 7x to 70x magnification. At a 6" working distance, the practical range is 7x to 40x. The wide-range zoom lens includes adjustable iris, zoom, and focus controls.

Can I add accessories or upgrade the lens?
Yes — Aven offers a range of compatible lenses, stands, and accessories for the Eidos platform. Contact MTE Solutions for compatible accessories including the Cyclops stand, objective lenses, and adapter plates.

What is the camera resolution?
The integrated Mighty Cam Eidos camera is 5MP, capturing 1080p full HD video at 60 FPS for smooth, detailed live inspection images.
