Aven Tools 26501-RL3D ProVue Replacement Glass Lens, 5-Inch, 3 Diopter (1.75X)
Aven Tools 26501-RL3D ProVue Replacement Glass Lens, 5-Inch, 3 Diopter (1.75X)

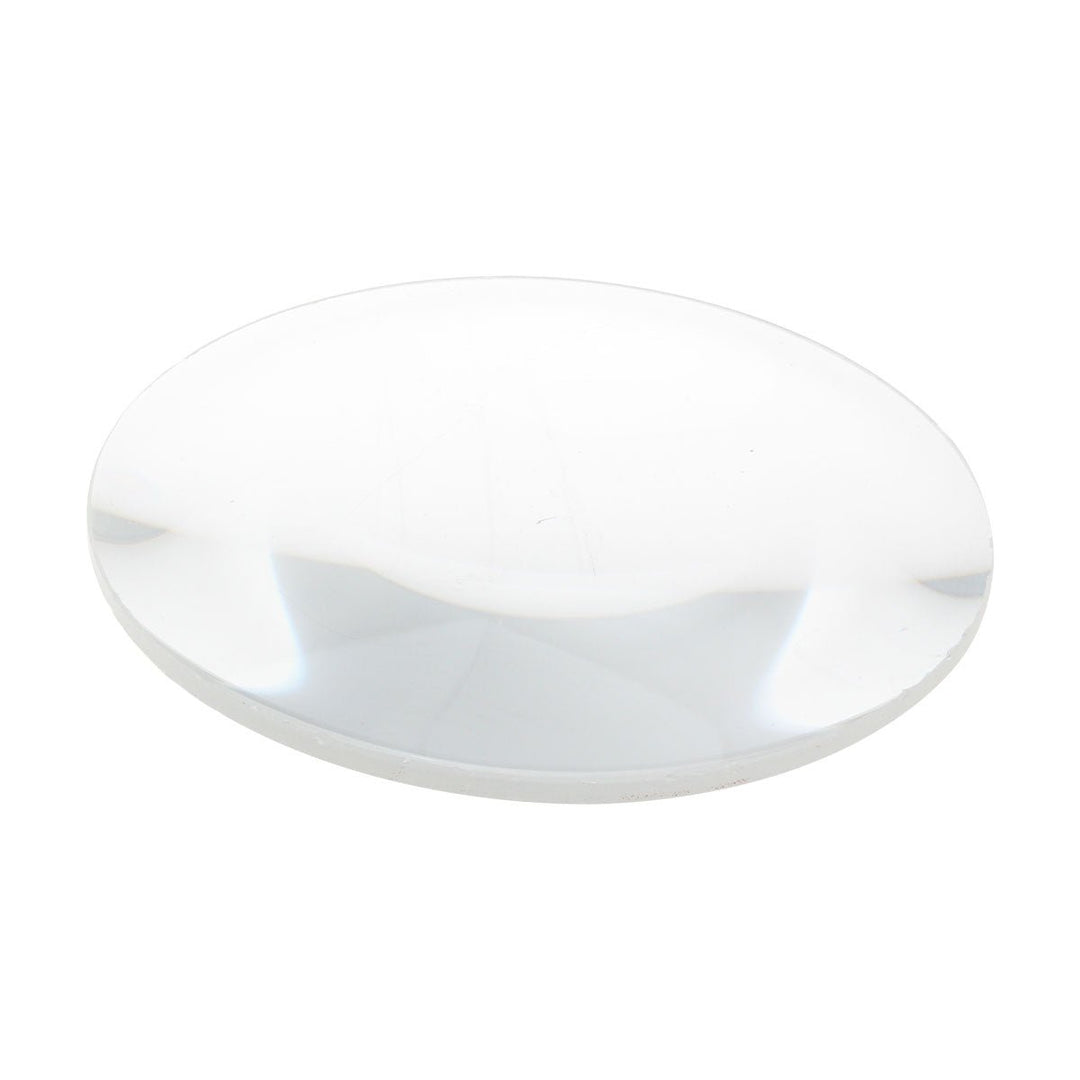

The Aven 26501-RL3D is a 5-inch-diameter replacement glass lens for specified Aven ProVue magnifying lamps. Its 3-diopter optical power provides 1.75X magnification, restoring the intended viewing configuration when a compatible lamp needs a replacement lens.
Compatible models: 26501-LED, 26501-DSG-LED, 26501-SIV and 26501-XL35. Not compatible with ProVue Touch series lamps. Check the model number on your lamp before ordering; a 5-inch lens size alone does not establish fit.
Best Uses / Applications
- Replacing the lens in a manufacturer-listed ProVue magnifying lamp.
- Maintaining a spare lens for electronics assembly and visual inspection stations.
- Restoring a compatible lamp's 3-diopter, 1.75X viewing configuration.
- Routine maintenance of supported ProVue lamp models.
Key Features
- 5-inch-diameter glass lens.
- 3-diopter optical power with 1.75X magnification.
- Manufacturer-described clear, distortion-free viewing.
- Simple installation, as described by Aven.
- Exact-model compatibility list and explicit ProVue Touch exclusion.
Technical Specifications
| Manufacturer | Aven Tools |
|---|---|
| Part number / MPN | 26501-RL3D |
| Manufacturer-listed UPC | 766955374640 |
| Product type | Replacement magnifying-lamp lens |
| Lens diameter | 5 inches |
| Optical power | 3 diopter |
| Magnification | 1.75X |
| Material | Glass |
| Compatible lamp models | 26501-LED; 26501-DSG-LED; 26501-SIV; 26501-XL35 |
| Excluded family | ProVue Touch series |
Replacement Lens vs. Complete Magnifying Lamp
| Option | Purpose | Selection consideration |
|---|---|---|
| 26501-RL3D replacement lens | Replace the glass lens in a compatible existing lamp | Match the exact lamp model; 3 diopter / 1.75X |
| Complete magnifying lamp | Equip a new workstation or replace the full lamp assembly | Select lighting, arm and mounting configuration separately |
| ProVue Touch replacement component | Service a ProVue Touch lamp | This 26501-RL3D lens is explicitly not compatible |
Frequently Asked Questions
What is Aven 26501-RL3D?
It is a 5-inch replacement glass lens with 3-diopter optical power for specified Aven ProVue magnifying lamps.
Which lamps does it fit?
Aven lists 26501-LED, 26501-DSG-LED, 26501-SIV and 26501-XL35. Verify your lamp's model number before ordering.
Will it fit a ProVue Touch lamp?
No. Aven explicitly states that this lens is not compatible with the ProVue Touch series.
What does 3D mean in this lens designation?
It means 3 diopter optical power, corresponding to the manufacturer-listed 1.75X magnification. It does not describe three-dimensional imaging.
Is this a microscope objective lens?
No. It is a replacement viewing lens for a compatible magnifying lamp, not an objective for a microscope.
Does this listing include a lamp?
No. This listing is for the replacement glass lens, not the lamp body, illumination or mounting arm.
Can I choose it just because my lamp has a 5-inch lens?
Use the exact compatibility list rather than diameter alone. The ProVue Touch exclusion demonstrates that similarly sized lenses are not necessarily interchangeable.
Manufacturer Safety Notice
Aven supplies the following California warning: This product can expose you to chemicals including Diisononyl Phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
