Aven Tools 26501-LED-INX-15D, In-X Magnifying Lamp 15 Diopter 4.75x, 5 Diopter Lens 2.25x

Aven Tools SKU: 26501-LED-INX-15D
Price
Regular price $309.96
Regular price Sale price $309.96
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Shipping calculated at checkout.

Aven Tools 26501-LED-INX-15D, In-X Magnifying Lamp 15 Diopter 4.75x, 5 Diopter Lens 2.25x

Aven’s In-X redefines what is possible with a magnifying lamp. This patent-pending, cutting edge lamp is designed to greatly expand the magnification range beyond what a standard magnifying lamp can offer by accommodating multiple lenses. The exclusive lenses are designed for easy lens exchange with no tools required. The crystal-clear In-X lenses ensure you see intricate details clearly and without distortion. Now it is easy to choose the correct magnification for your applications.

NO TOOLS REQUIRED

The exclusive In-X lens design makes replacing the lenses easy.

XPLORE THE POSSIBILITIES

  • Includes one interchangeable 15 diopter glass lens (4.75x Magnification) and one 5 diopter lens (2.25x magnification)

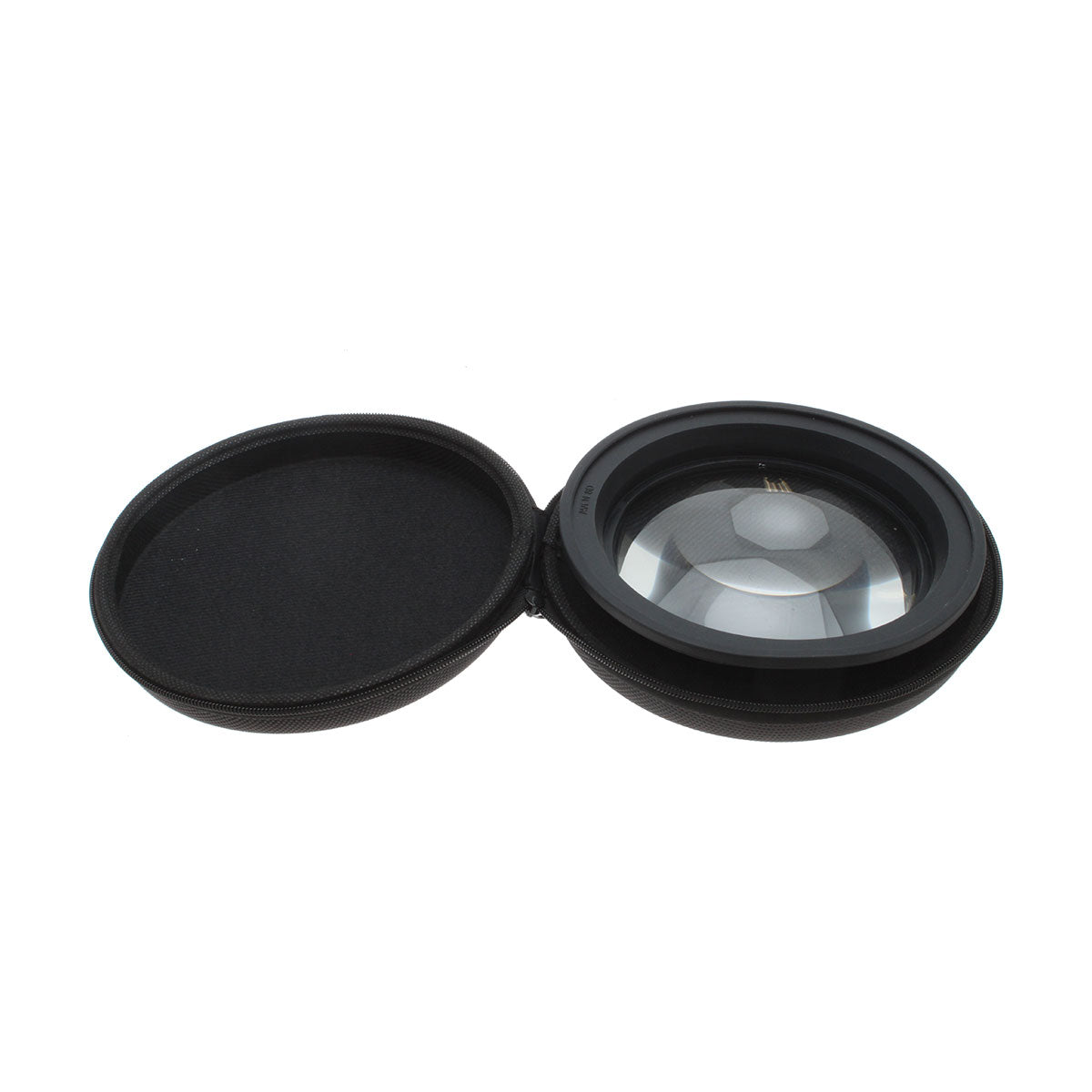

  • Additional 8 diopter and 12 diopter lenses available separately
  • Swivel-motion allows the lamp to be angled to the ideal position
  • Covered spring-balanced arm prevents pinching hazards
  • Touch-sensitive brightness controls
  • No exposed springs

XCHANGE LENSES

INTERCHANGEABLE LENSES

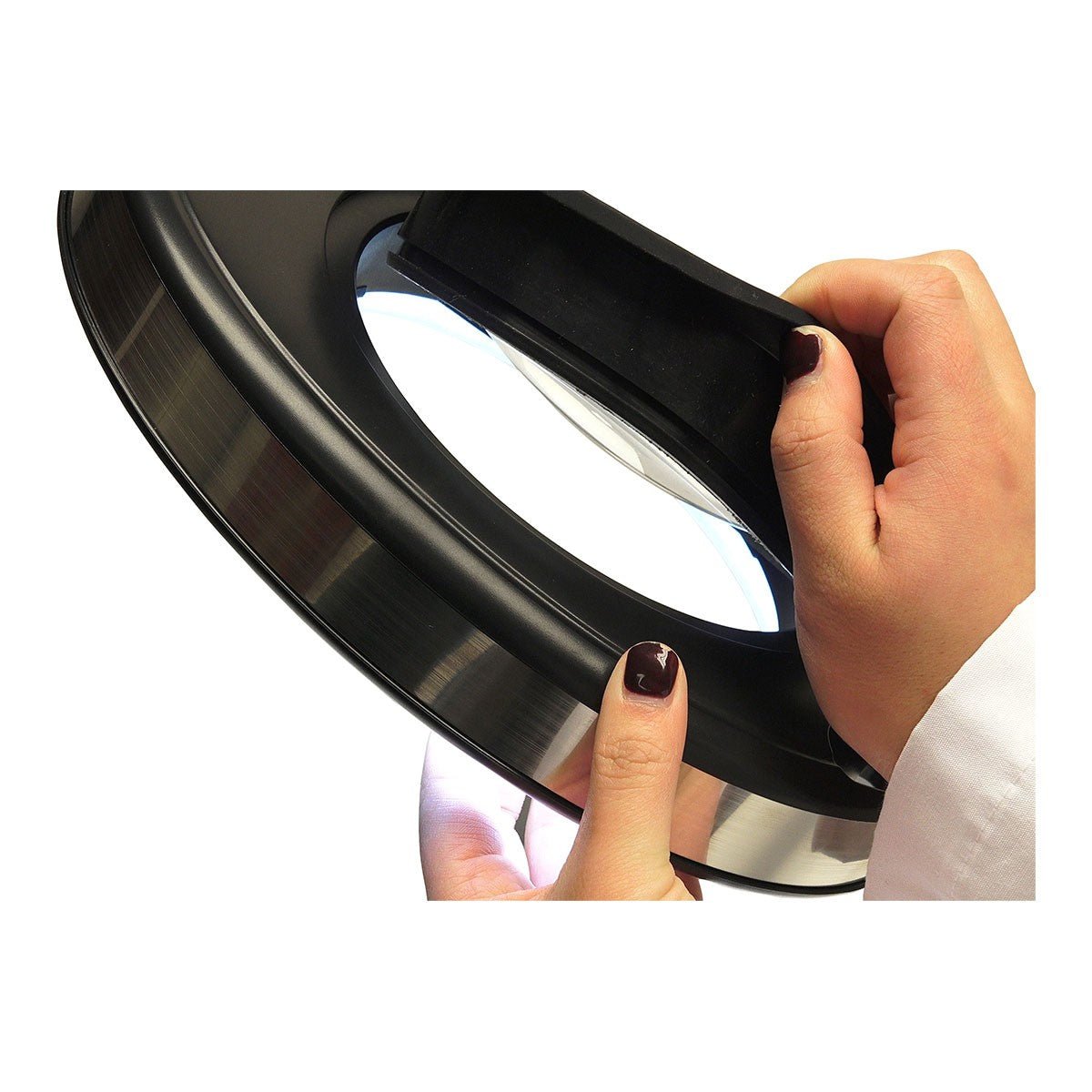

Instantly expand your magnification range with the optional In-X glass lenses.  No additional tools are required for changing out lenses.  Simply remove the lens by pushing from underneath, and replace with the required lens.  The rubberized ring safely secures into the lamp head.

ADJUSTABLE LEDS

In-X Magnifying Lamps offer adjustable brightness controls, giving operators flexible lighting options for their applications.
  • Touch buttons control the intensity of 64 ultra-bright SMD LEDs
  • Max illumination: 950lm
  • Color: white light

HEAVY DUTY TABLE CLAMP

  • Securely mounts to the side of your  work bench.

Specs

In-X Magnifying Lamp with 15 Diopter In-X  Lens & 5 Diopter In-X Lens
Lens size
  • 15 Diopter Lens: 3.75 inch round
  • 5 Diopter Lens: 4.75 inch round
Lens Material Glass lens, rubber ring
Lens Diopter 15 Diopter | 5 Diopter
Magnification

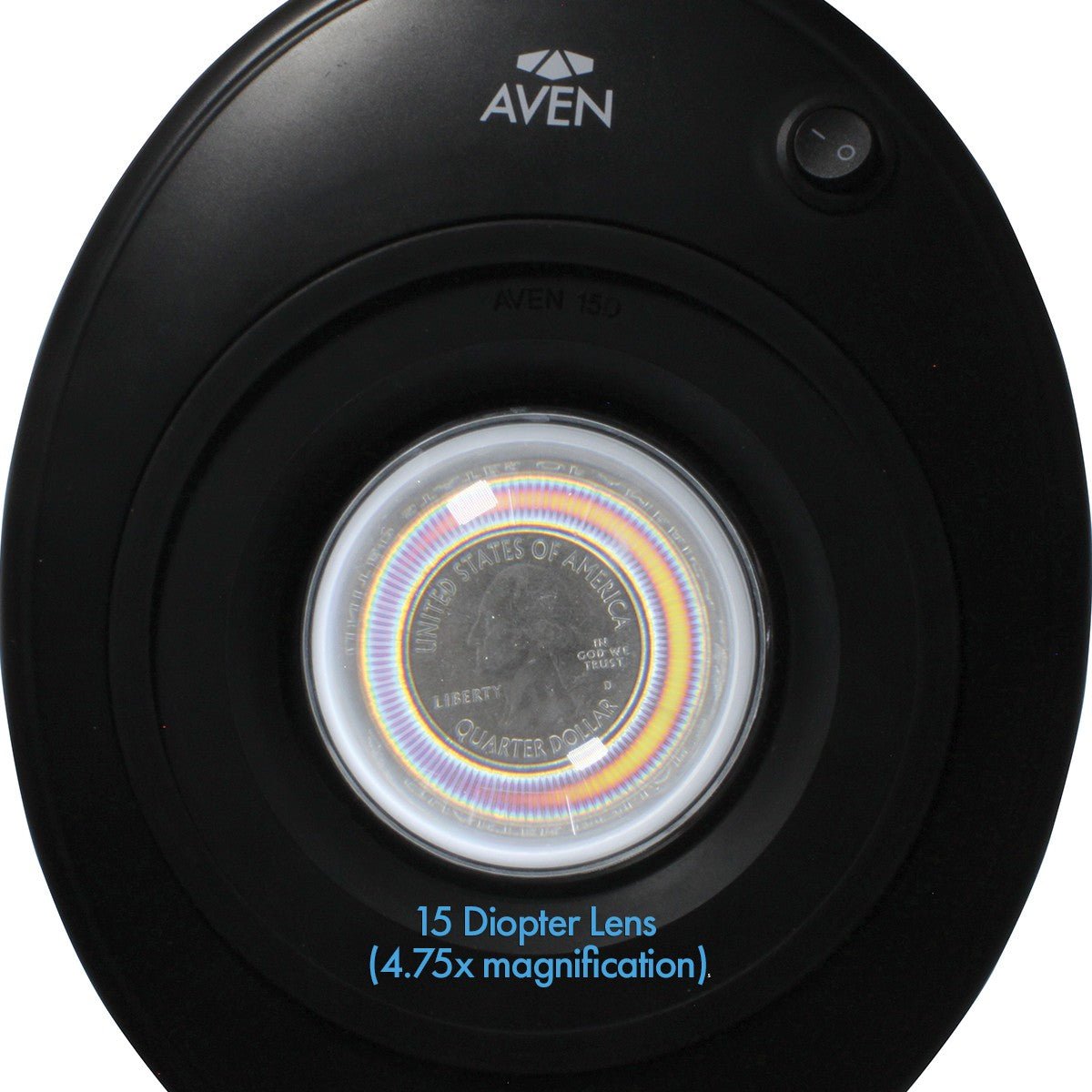

  • 15 Diopter Lens: 4.75x magnification

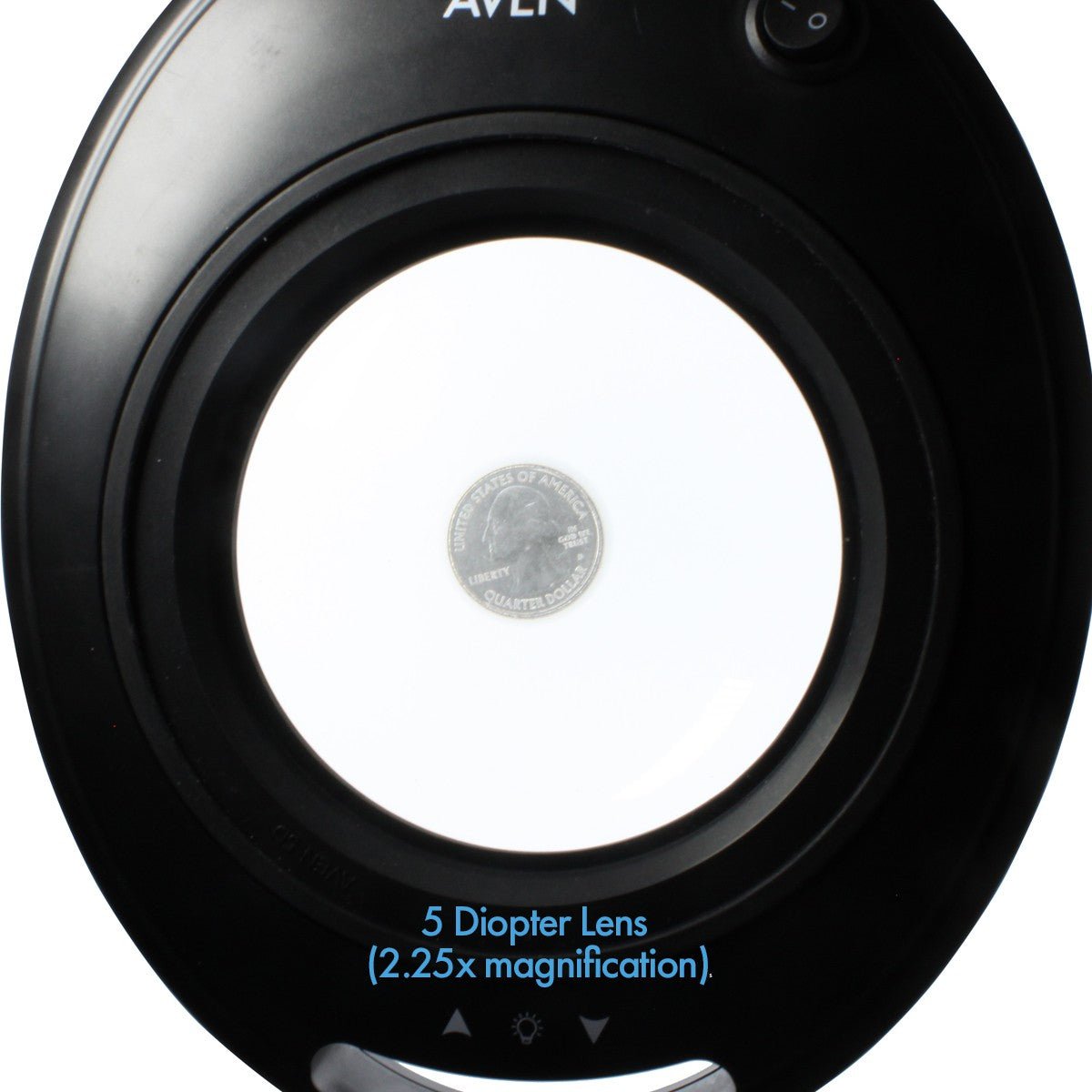

  • 5 Diopter Lens: 2.25x Magnification
Working Distance 15 Diopter Lens: >1 Inch
5 Diopter Lens: Approx. 8 Inch
Arm Length (Reach) 36 inch reach (max)
Arm and Lamp Adjustment via tension knob
Color Black
# of LEDs 64
LED Color Temperature 6500K
Dimmable YES
Expected LED life Minimum 20,000 Hours
Lumen Max 950 lm
Clamp Opening 2.5" max
Power ( Voltage)
  • Input: 100-240V~ 0.4A Max
  • Output: 26.0V --- 0.46A
LED Wattage 1-10W
ESD Safe NO
Power Cord Length 5 Foot
Shipping Dimensions ie (box dimensions) 30 x 10.75 x 3 inch
Weight 8.7 lb
Country of Origin China
Package Contents
  • 1 In-X Magnifying Lamp
  • 1 In-X 15 Diopter Lens

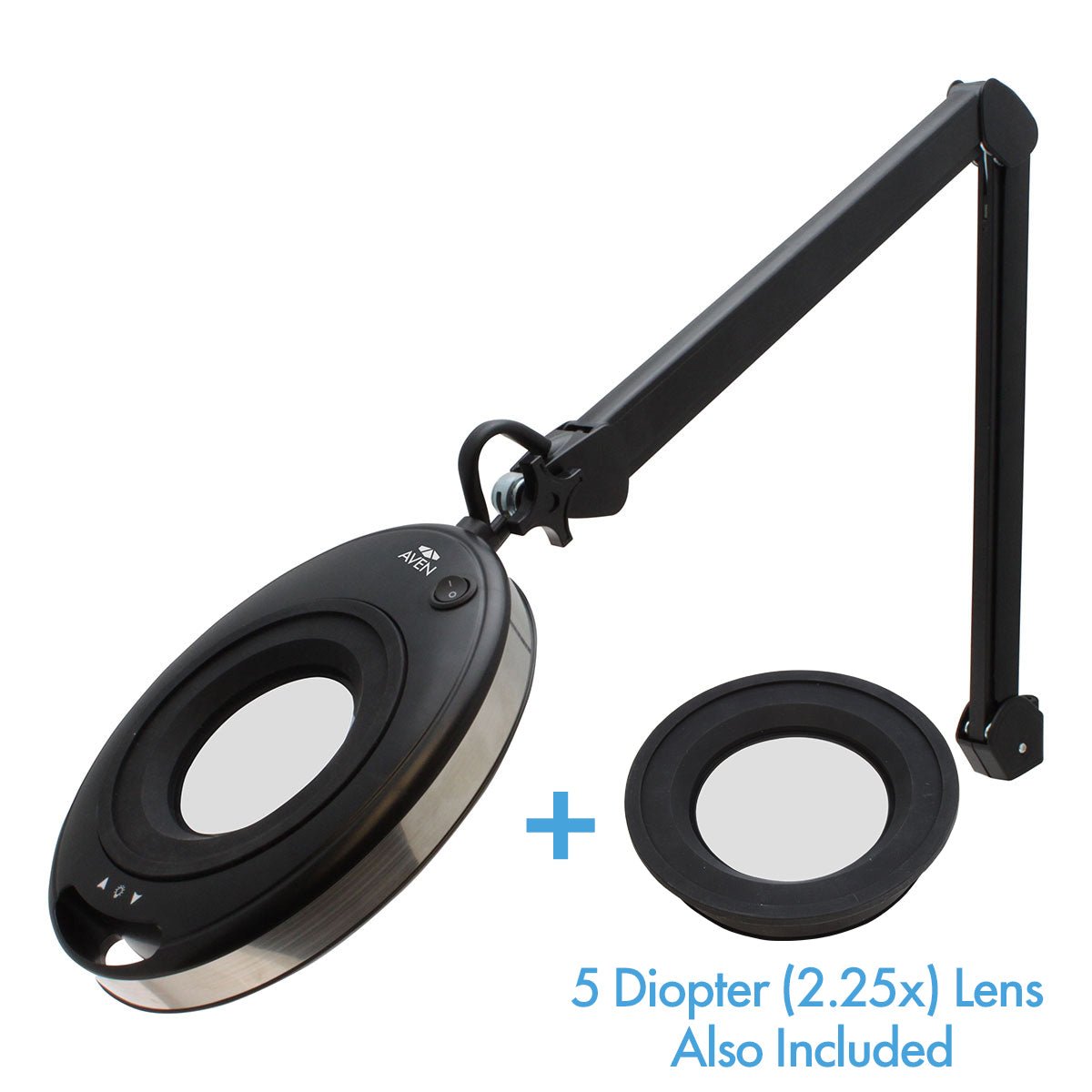

  • 1 In-X 5 Diopter Lens (pre-installed)
  • 1 Mounting Clamp
  • 1 power adapter
  • 1 User Guide
