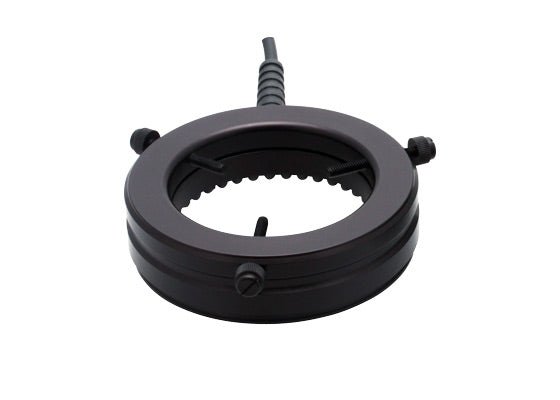

Aven Tools 26200B-217, Pro Series 40 LED Ring Light
Aven Tools
SKU: 26200B-217
Aven Tools 26200B-217, Pro Series 40 LED Ring Light
Aven Tools
SKU: 26200B-217
Regular price
$557.81
$557.81
/
Minimum quantity allowed is .
Maximum quantity allowed is .
The product can be bought in quantity increments of .
Aven Tools 26200B-217, Pro Series 40 LED Ring Light
Call for availability
Aven’s powerful Diffuse Axial White LED Illuminator is designed for our DSZ and SPZ Series microscopes. Ideal for looking at highly specular and shiny surfaces. It offers flat, even, shadow free illumination across the entire surface, without hot spots and glare. The illuminator mounts to the objective of the microscope and is powered by an LED light controller with adjustable dimmer. Aperture size is 50 x 50mm.
Features
- 40 powerful high precision aligned LEDs (white daylight)
- 4 quadrant controller and auto voltage sensing power supply
- Machined aluminum alloy housing for durability
- Fully adjustable dimming control
- 360° shadow free illumination
Specs
| Pro Series 40 LED Ring Light | |
|---|---|
| LEDs | 40 White Daylight LEDs |
| Lighting Control | Light control box with 4 quadrant switches and dimmer |
| LED Color Temperature | Daylight (5500 to 6500 degrees Kelvin) |
| Inside Ring Diameter | 66.8mm (2.63";) |
| Outside Ring Diameter | 97mm (3.81";) |
| Height | 26mm (1.02";) |
| Cable Length | 182.88cm (6ft) |
| Min Working Distance | 63mm (2.5";) |
| Ideal working distance | 88mm (3.5";) |
| Maximum working distance | 127mm (5";) |
| Power Supply | 100-240V |
| Control Box Dimensions | 100 x 70 x 35mm |
| Ring Light Dimensions | 97 x 26mm |
| Weight | Ring Light: 0.5lb | Control Box: 0.2lb |
| Package Contents | Ring Light, Control Box and Power Supply |
