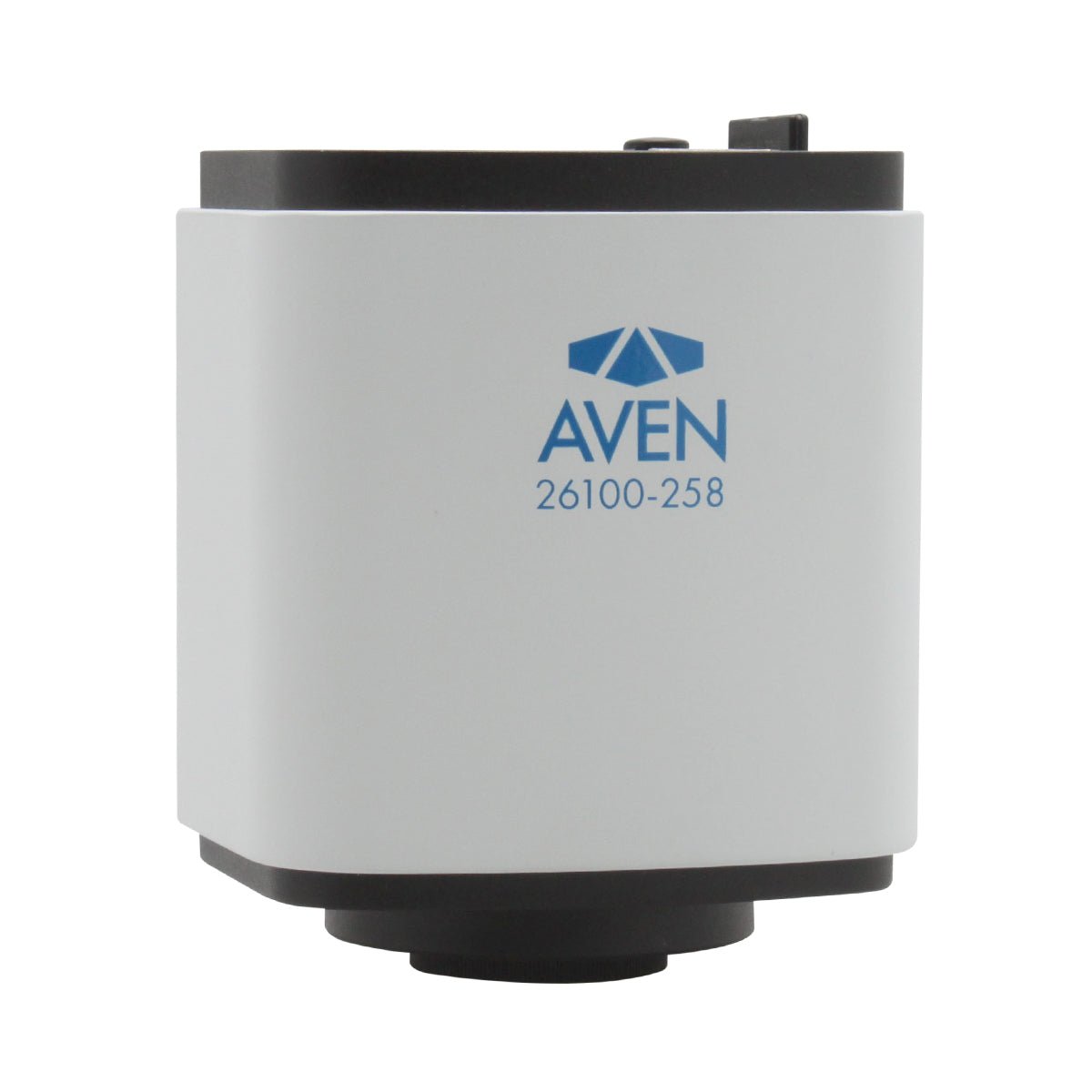

Aven Tools 26100-258 Mighty Cam Pro Auto Focus Camera
The Aven Mighty Cam Pro (26100-258) is a professional all-in-one auto focus inspection camera delivering 1080p Full HD imaging at 60 FPS. With both USB and HDMI outputs, built-in measurement software, and an integrated SD card port, the Mighty Cam Pro eliminates eye strain and enhances productivity across quality control, electronics inspection, medical device inspection, and R&D applications — no PC required.
Key Specifications
| Specification |
Detail |
| Part Number |
26100-258 |
| Brand |
Aven Tools |
| Resolution |
1080p Full HD |
| Frame Rate |
60 FPS |
| Focus Type |
Auto Focus |
| Outputs |
USB, HDMI |
| Storage |
Built-in SD card port |
| Software Included |
Capture 2 Computational Imaging Software |
| Measurement Units |
mm, cm, micrometer |
| PC Required |
No (standalone operation supported) |
Features & Benefits
-
Instant Auto Focus — Achieves a clear image immediately with no manual optical adjustment needed
-
1080p Full HD at 60 FPS — Crisp, smooth imaging for detailed inspection work
-

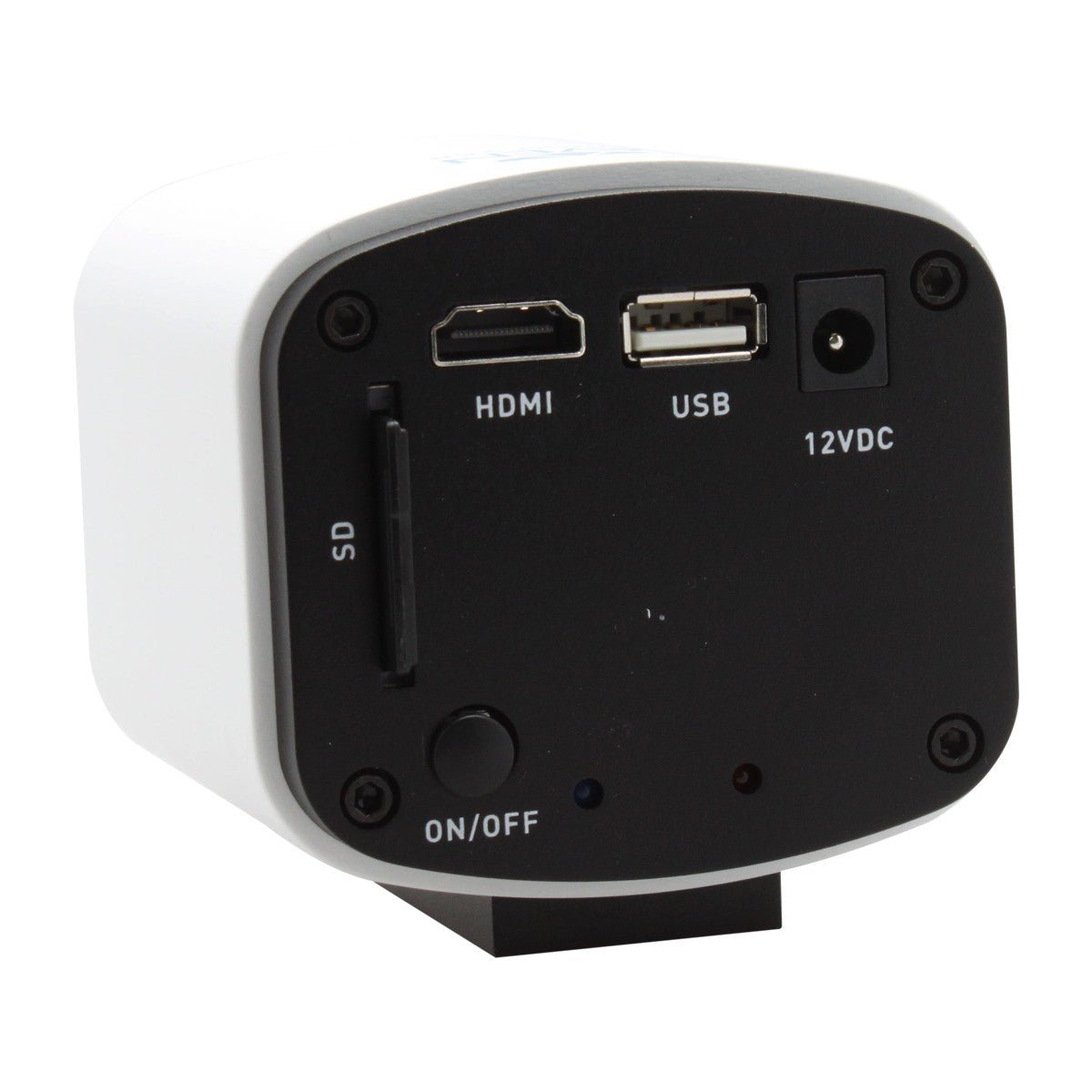

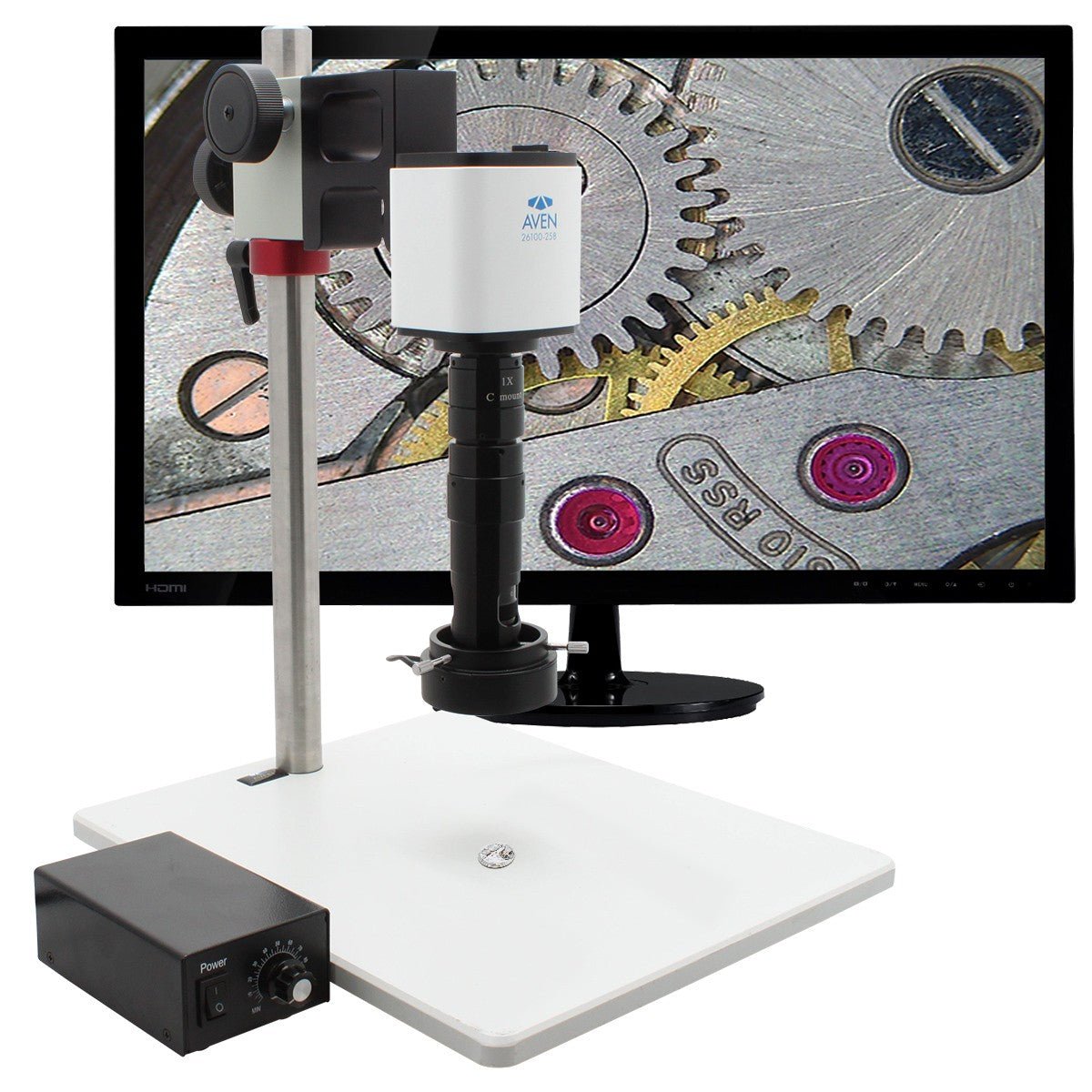

USB & HDMI Outputs — Connect to a PC via USB or display directly on an HD monitor via HDMI
-
Built-in Measurement Software — Freehand line, rectangle, polygon, circle, bicircle, angle, and point-line distance tools — no PC required
-
SD Card Port — Capture high-resolution images and video directly to SD card without a computer
-

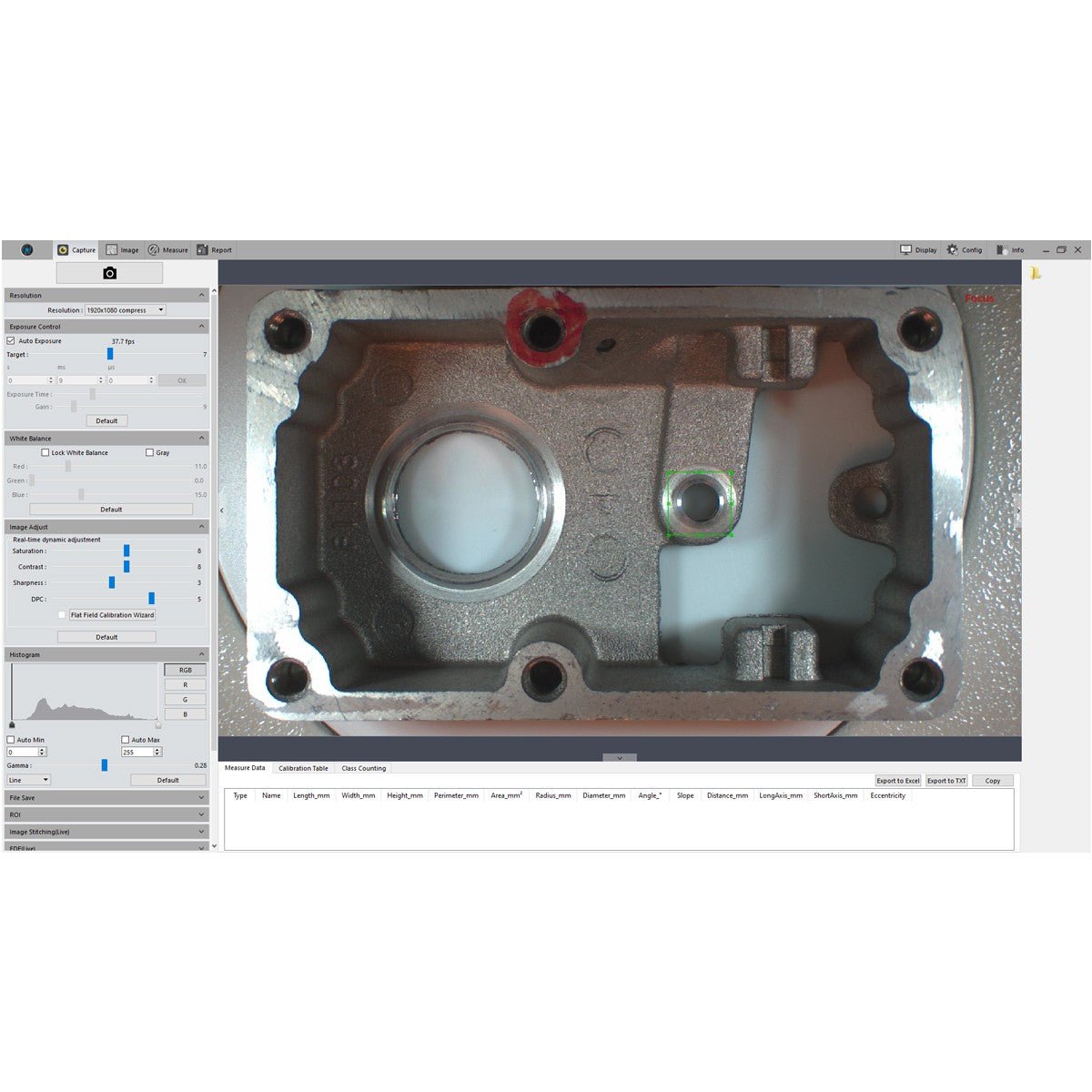

Capture 2 Software Included — Advanced image shooting, processing, measurement, and reporting in a modular design
-
Real-Time Image Stitching — Generates large composite images as an object moves beneath the lens
-
Depth of Field Extension — Capture multiple focal points for complete depth-of-field clarity
-
Perfect Color Reproduction — Precision color processing matches monitor image to eyepiece view
Professional Digital Measurement Capabilities
The Mighty Cam Pro delivers a fully integrated on-screen measurement system with no PC required. Measurement tools include freehand line, rectangle, polygon, circle, bicircle, angle, and point-line distance. Three length units — millimeter, centimeter, and micrometer — support a wide range of precision inspection applications. A simple calibration tool is also included.
Applications
- Electronics and PCB inspection
- Quality control and production inspection
- Medical device inspection
- Aerospace component inspection
- Precision assembly
- Educational and R&D applications
Frequently Asked Questions
Does the Aven Mighty Cam Pro 26100-258 require a PC to operate?
No. The Mighty Cam Pro features built-in on-screen measurement tools and an SD card port, allowing fully standalone operation without a PC. For advanced imaging workflows, the included Capture 2 software connects via USB to a Windows PC.
What outputs does the Aven 26100-258 have?
The camera includes both a USB output (for PC connection and Capture 2 software) and an HDMI output (for direct connection to an HD monitor). This dual-output design makes it flexible for bench inspection, presentations, and production floor use.
What resolution and frame rate does the Mighty Cam Pro support?
The Aven Mighty Cam Pro delivers 1080p Full HD video at 60 frames per second, providing smooth, detailed imaging for precise inspection and measurement tasks.
Can the Aven Mighty Cam Pro save images without a computer?
Yes. The built-in SD card port allows users to capture and store high-resolution still images and video directly to an SD card without any PC connection required.
What measurement tools are built into the Aven 26100-258?
Built-in measurement tools include freehand line, rectangle, polygon, circle, bicircle, angle, and point-line distance. Measurements can be made in millimeters, centimeters, or micrometers. A simple calibration tool is also included for accuracy.
What software is included with the Aven Mighty Cam Pro?
The Capture 2 Computational Imaging Software is included. Capture 2 provides image shooting, processing, measurement, reporting, real-time image stitching, and depth of field extension functionality for advanced inspection workflows.
What industries use the Aven Mighty Cam Pro inspection camera?
The 26100-258 is used in electronics manufacturing, PCB inspection, quality control, medical device inspection, aerospace, precision assembly, educational labs, and R&D environments.
