Aven Tools 26100-244, Mighty Cam USB 3.0 6MP CMOS Camera, Imaging Software

Aven Tools 26100-244, Mighty Cam USB 3.0 6MP CMOS Camera, Imaging Software

INSPECT FROM YOUR PC IN REAL TIME

Aven’s Mighty Cam is equipped with a 6 megapixel sensor and a USB 3.0 output, providing stunning, true-to-life images with minimal lag time.

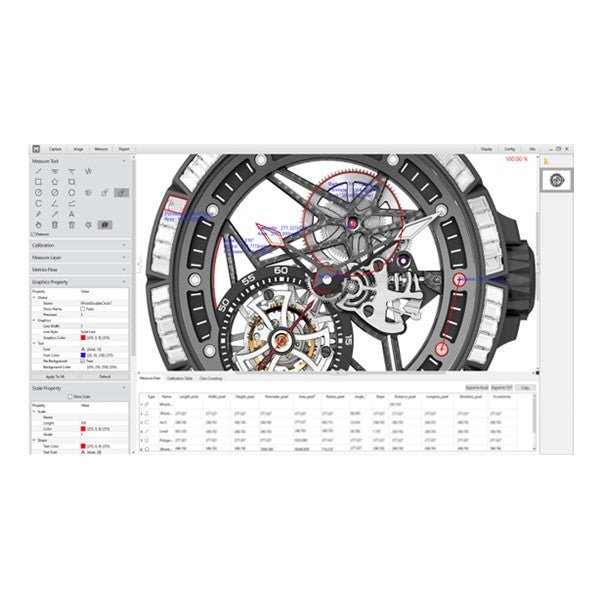

Save Images, Make Measurements, Create Reports

The included software provides an easy-to-use, yet sophisticated interface for saving high resolution images, writing annotations, generating reports and accurate measurements.  This user-friendly interface is ideal for saving critical data and sharing information.

Real-Time Depth of Field Adjustment

When inspecting at high magnification, certain areas of specimen may not be in focus depending on the depth of the object.  With the Real-Time Depth of Field feature, operators can adjust the focus parameters, with no need  to adjust the physical optics.

Create Panoramic Images

The software provides a "real-time image stitching" function. It can generate large-sized panoramic images in a few seconds. Requires a gliding stage for optimal performance.

Excellent Image Performance

The use of a state-of-the-art ISP color-interpolation algorithm effectively corrects the color deviation of the sensor's spectral response, to simulate the human eye's sensitivity to color. The true color in the eyepiece, whether it is a biological bright field, stereo or fluorescence image.

Professional Grade Image Sensor

Mighty Cam utilizes a Sony 6 megapixel CMOS 1/1.8" sensor-IMX178, with 2.4 x 2.4 ?m pixels. The resolution of the captured image can reach 3072 x 2048.

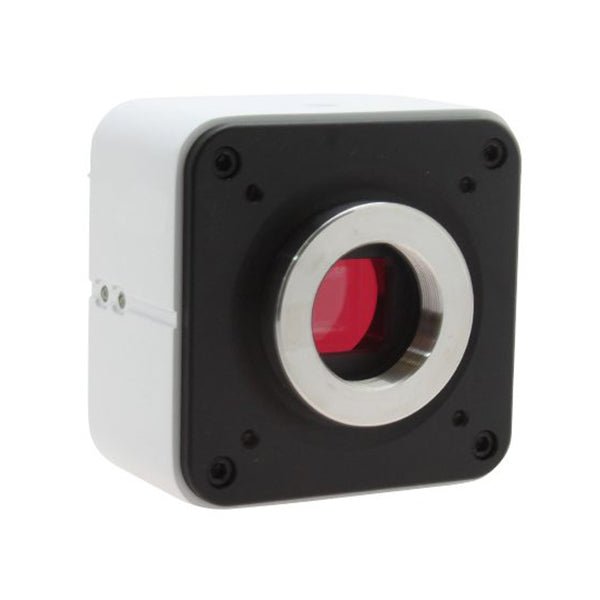

C/CS Mount

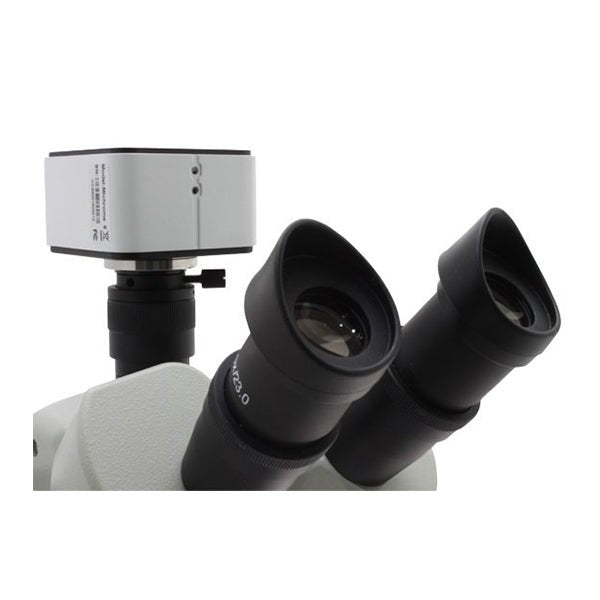

Mighty Cam features a universal C/CS Mount, the Mighty Cam is compatible with industry standard trinocular microscopes and video lenses.

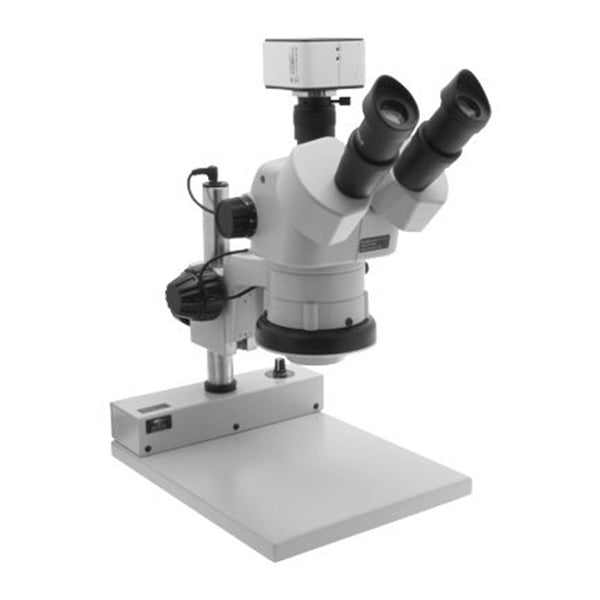

Mighty Cam Inspection Systems

Mighty Cam is a great addition to an existing inspection system, and is also available as part of these pre-designed systems

Feature

• USB 6M CMOS Camera with Imaging Software
• Professional Sony 6M CMOS Sensor (3072(H) x 2048(V))

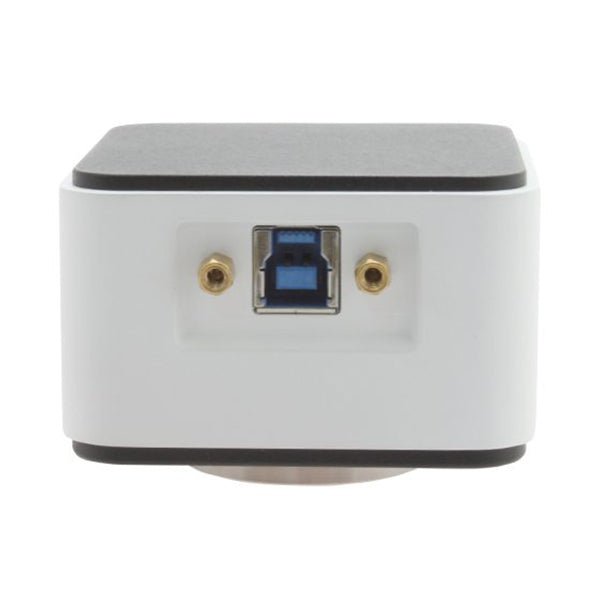

• Easy Plug and Play USB 3.0 Interface
• Compact and Light Weight
• Versatile C/CS lenses mount
• Save high resolution image files
• Create large panoramic images with real-time stitching feature
• Calibrate accurate measurements
• Adjust the depth of field in real time
