Aven Tools 10171-KIT, Deluxe Crimping Tool Kit

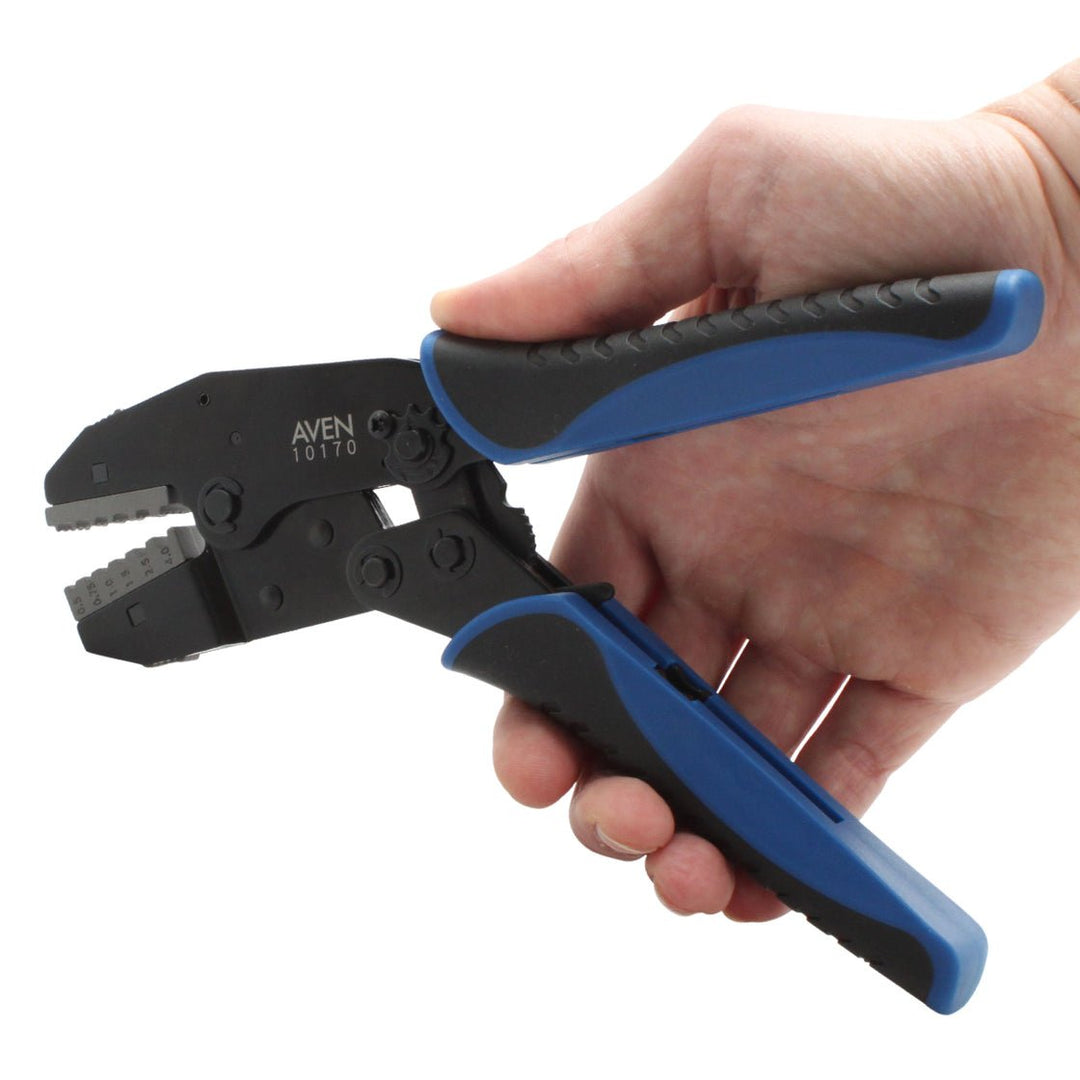

This high-precision wire ferrule crimper features a built-in ratchet that applies correct pressure to ensure a complete crimp every time and the safety release function allows you to stop a faulty crimp before the crimping cycle is complete. The precisely milled, hardened steel dies have individual crimping slots. The dies can easily be changed by sliding them out of the frame – no tools required. Aven offers a variety of replacement dies to accommodate a wide range of wire gauges. The durable rubberized grips make this tool comfortable and easy to use.

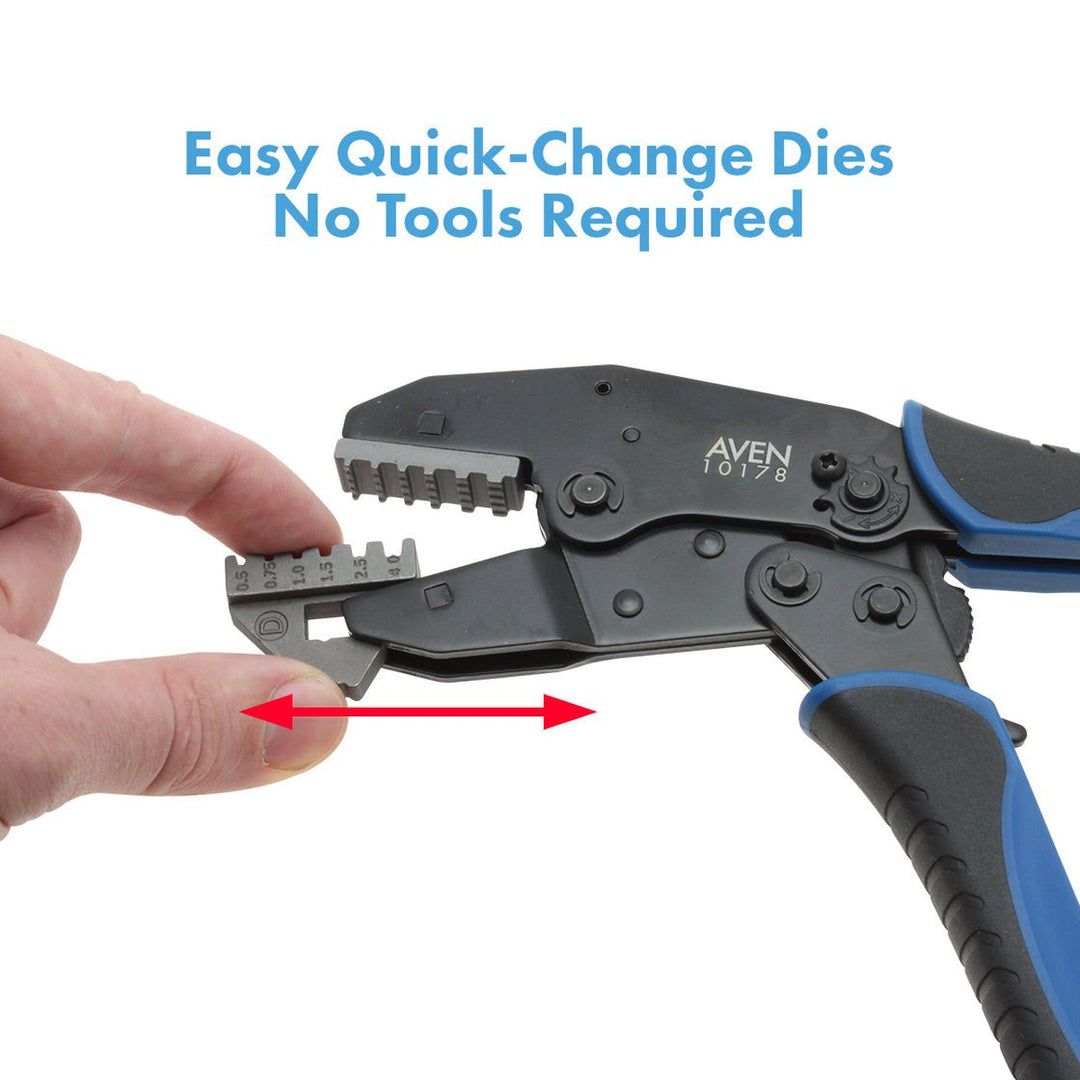

The crimping dies are easy to replace. Simply slide the die in or out of the frame by hand. The dies snap into place with no tools required.
This high-precision wire ferrule crimper features a built-in ratchet that applies correct pressure to ensure a complete crimp every time and the safety release function allows you to stop a faulty crimp before the crimping cycle is complete.

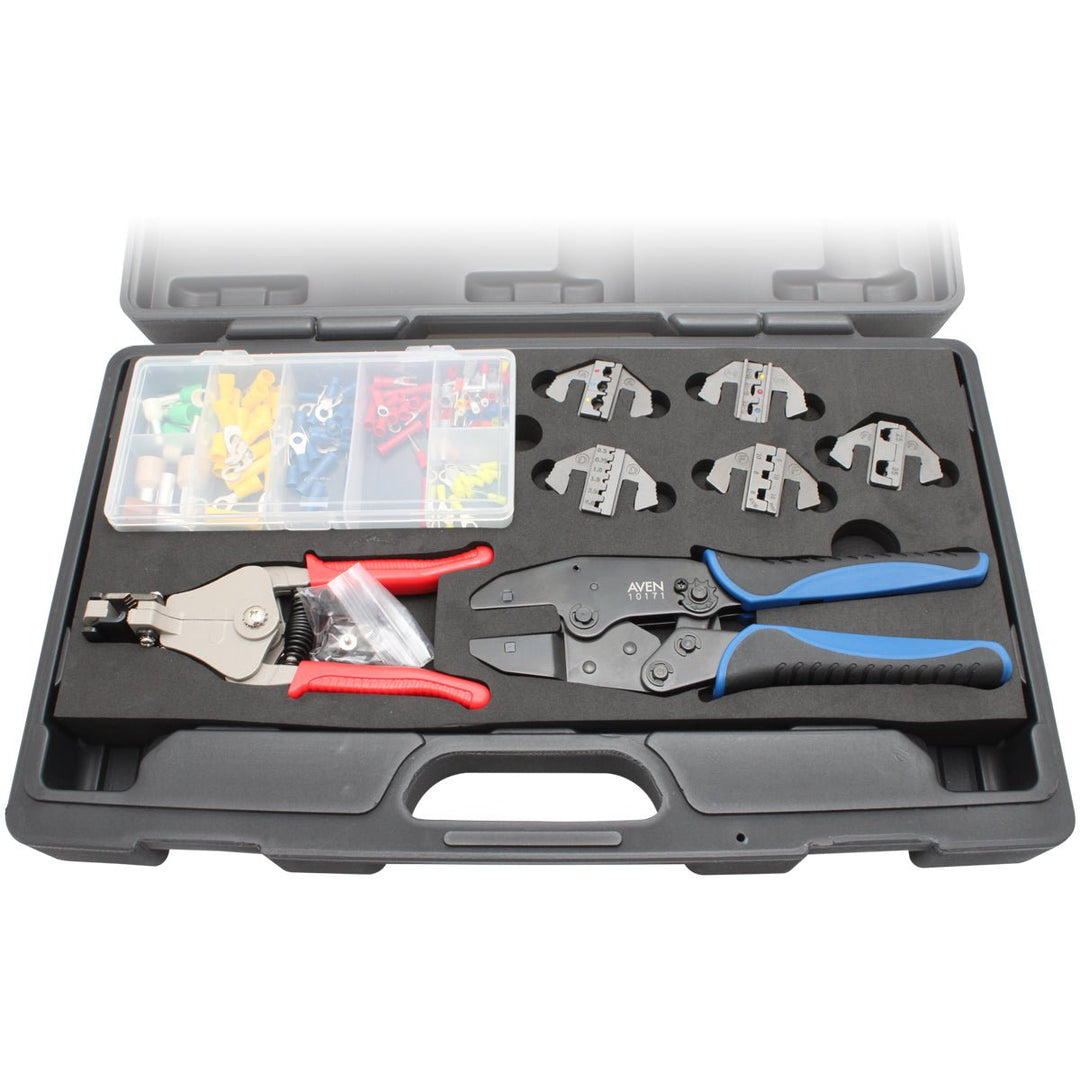

| 10171-KIT Deluxe Wire Crimper Kit | |
|---|---|
| Kit Contents | 1 wire crimper frame |
| 5 wire crimper dies | |
| 1 Wire Stripper | |
| 1 set of assorted terminals in a clear plastic storage box | |

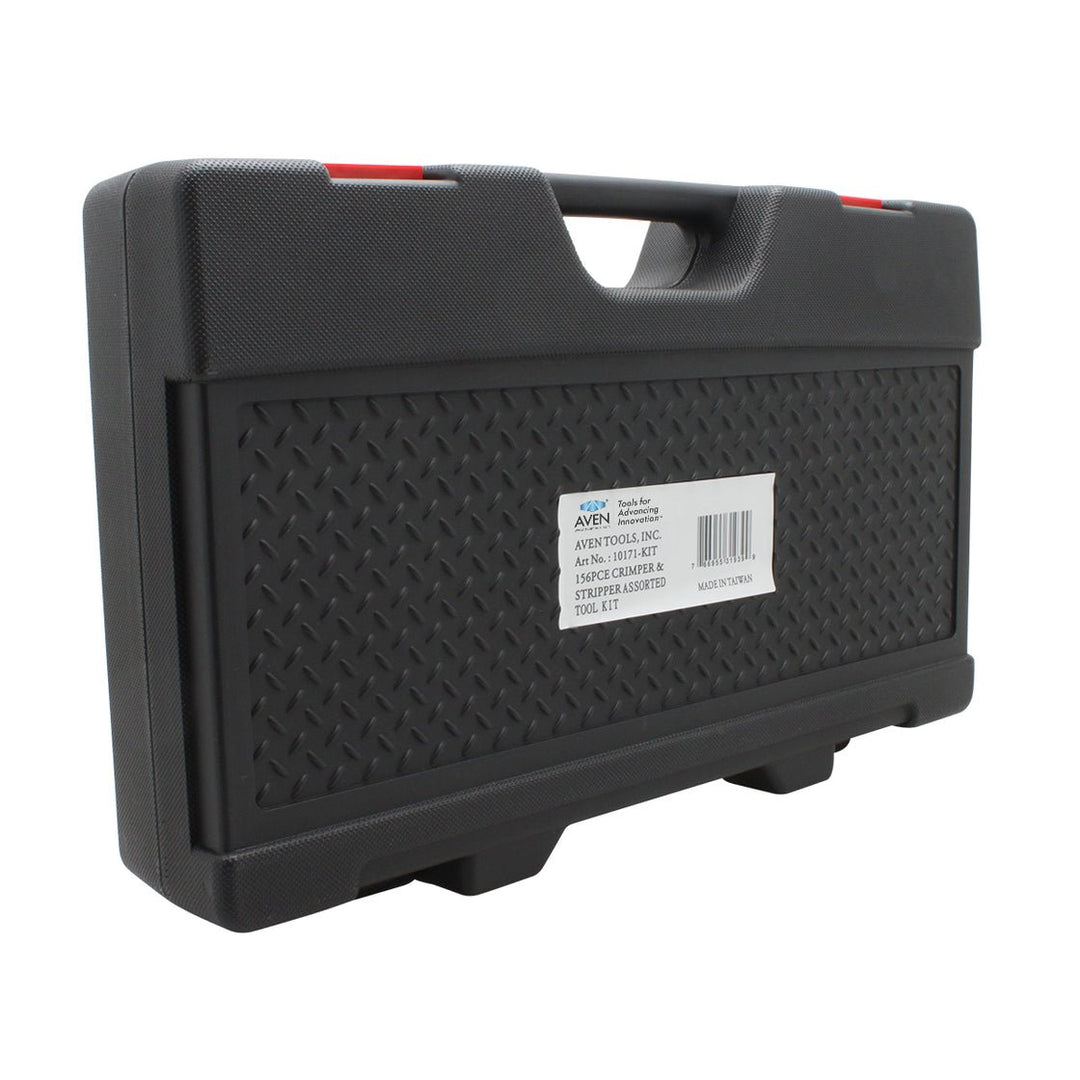

| 1 storage case | |

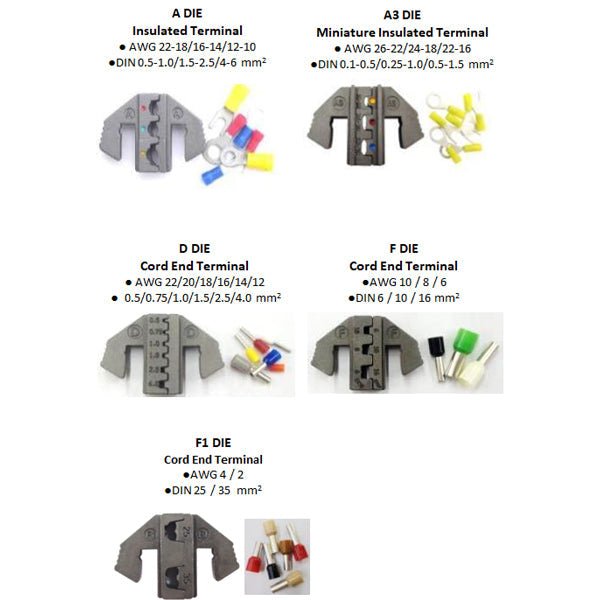

| Included Dies | Crimping Die F1 | For Insulated Cord Terminals 4 /2 |
| Crimping Die F | AWG: 10/8/6 | DIN: 6/10/16 MM2 | |
| Crimping Die D | For Cord End Terminals | 22/20/18/16/14/12 AWG | |
| Crimping Die A3 | For Miniature Insulated Terminals 26-22/24-18/22-16 AWG | |
| Crimping Die A | For Insulated End Terminals 22-18/16-14/12-10 AWG | |

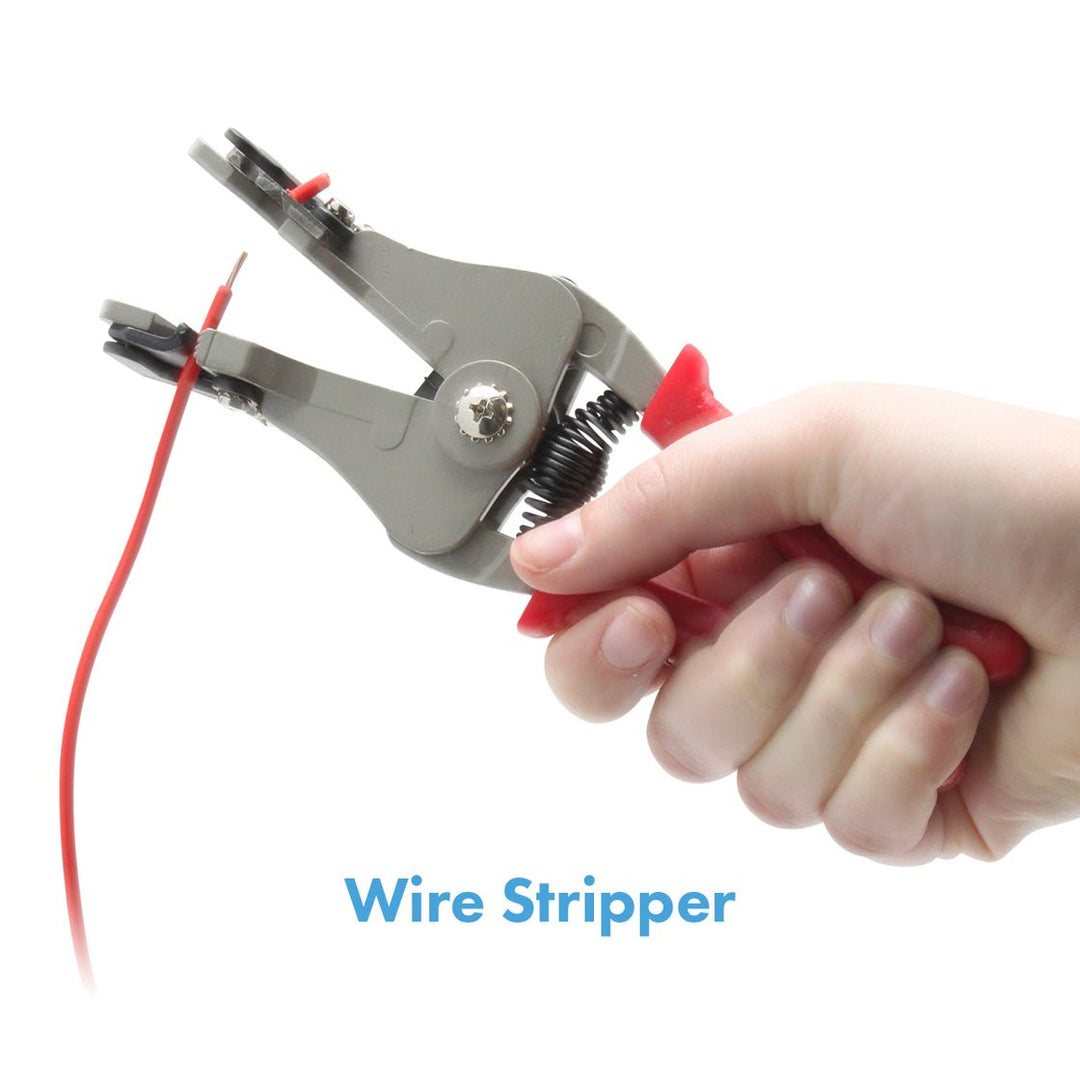

| Wire Stripper Gauges | [18/14/12/10/8 AWG ] | [1.0/1.6/2.0/2.6/3.2mm ] |
| Crimping Frame Material | Body: Carbon Steel | Handle: PP+TPR(PAHs Approved) |
| Ins-Ring Terminal/Ins-Spade Terminal material | Terminal Material: Copper | Insulation Material: PVC |
| Ins-Butt Connectors material | Terminal Material: Brass Strip | Insulation Material: PVC |
| Cord End Terminal material | Terminal Material: Copper Tube | Plating: Electro Tin Plated | Insulated Material: Nylon |
| Dimensions | 16.5 x 9.5 x 3 inch |
| Weight | 5.25 lb |
| Included Ferrules/Terminals | Pieces |
|---|---|
| Ins-Ring Terminal#6[AWG22-16][0.5~1.5mm2] | 8 |
| Ins-Spade Terminal#6[AWG22-16][0.5~1.5mm2] | 8 |
| Ins-Butt Connector[AWG22-16][0.5~1.5mm2] | 4 |
| Ins-Ring Terminal#8[AWG16-14][1.5~2.5mm2] | 8 |
| Ins-Spade Terminal#8[AWG16-14][1.5~2.5mm2] | 8 |
| Ins-Butt Connector[AWG16-14][1.5~2.5mm2] | 4 |
| Ins-Ring Terminal#10[AWG12-10][4~6mm2] | 8 |
| Ins-Spade Terminal#10[AWG12-10][4~6mm2] | 8 |
| Ins-Butt Connector[AWG12-10][4~6mm2] | 4 |
| Cord End Terminal 0.5mm2/L:8mm [Orange] | 10 |
| Cord End Terminal 0.75mm2/L:8mm [White] | 10 |
| Cord End Terminal 1.0mm2/L:8mm[Yellow] | 10 |
| Cord End Terminal 1.5mm2/L:8mm [Red] | 10 |
| Cord End Terminal 2.5mm2/L:8mm [Blue] | 10 |
| Cord End Terminal 4.0mm2/L:10mm[Grey] | 10 |
| Cord End Terminal 6.0mm2/L:12mm[Black] | 4 |
| Cord End Terminal 10mm2/L:12mm [Ivory] | 4 |
| Cord End Terminal 16mm2/L:12mm [Green] | 4 |
| Cord End Terminal 25mm2/L:16mm [Brown] | 2 |
| Cord End Terminal 35mm2/L:16mm [Beige] | 2 |
| DIN Nylon Miniature Ins-Ring Terminal#6[AWG26-22][0.1~0.5mm2] | 6 |
| DIN Nylon Miniature Ins-Spade Terminal#6[AWG26-22][0.1~0.5mm2] | 6 |
