Aven 26800B-719 Mighty Cam Eidos 1080p Full HD Microscope, HDMI, Ultra-Glide Stand
Aven 26800B-719 Mighty Cam Eidos Full HD Digital Inspection System

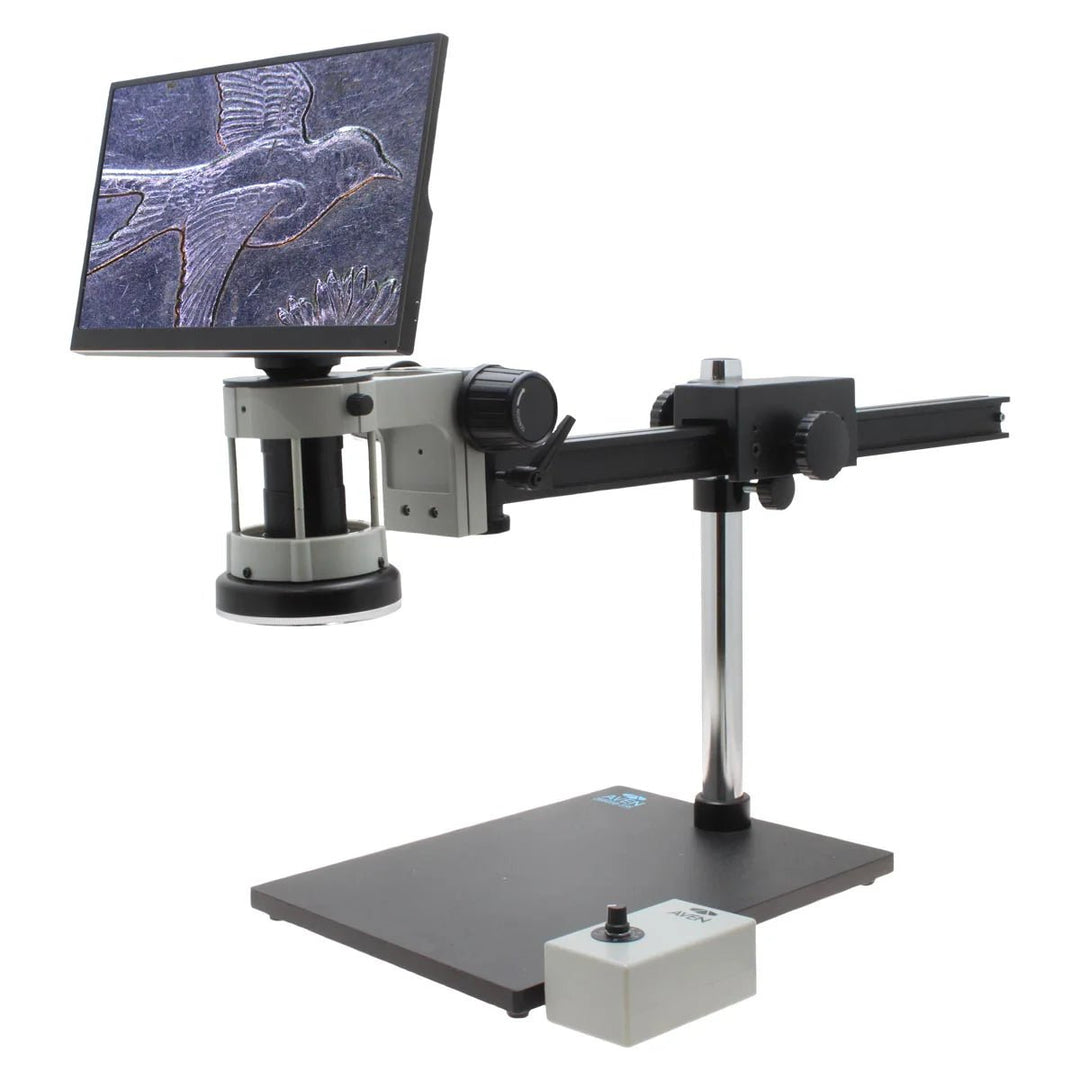

The Aven 26800B-719 Mighty Cam Eidos is an all-in-one digital inspection system with 1080p Full HD imaging at 60 FPS, a tiltable 11.6-inch built-in monitor, HDMI output for additional monitor viewing, and built-in measurement capabilities that do not require a PC. This configuration includes an Ultra-Glide boom stand with smooth horizontal adjustment over a 23-inch (584 mm) reach and a focus mount with a built-in LED ring light.
Mighty Cam Eidos Imaging Features
- 1080p Full HD imaging at 60 FPS
- Tiltable 11.6-inch built-in monitor
- HDMI output for additional monitor viewing
- Built-in measurement capabilities, no PC required
- 7x–70x macro-lens magnification range
- Macro lens with adjustable focal length, iris, and focus
- LED illumination
26800B-719 Stand Configuration
- Mighty Cam Eidos on Ultra-Glide Boom Stand
- Smooth horizontal adjustment over a 23 in (584 mm) reach
- Focus mount with built-in LED ring light
- Aven item number 26800B-719
Why Choose This Configuration?
The Eidos system combines Full HD inspection imaging, an integrated monitor, HDMI connectivity, and PC-free measurement in one workstation setup. The Ultra-Glide boom stand adds smooth horizontal movement across the work area, while the built-in LED ring light supports illumination at the focus mount.
Specifications
| Specification | Detail |
|---|---|
| Brand | Aven Tools |
| Item number | 26800B-719 |
| Product family | Mighty Cam Eidos |
| Imaging | 1080p Full HD at 60 FPS |
| Built-in display | Tiltable 11.6 in monitor |
| External display output | HDMI |
| Measurement | Built-in measurement capabilities, no PC required |
| Macro magnification | 7x–70x |
| Macro lens controls | Adjustable focal length, iris, and focus |
| Stand | Ultra-Glide boom stand |
| Stand reach | 23 in (584 mm) horizontal adjustment |
| Lighting | LED illumination and built-in LED ring light at the focus mount |
Frequently Asked Questions
Is the Mighty Cam Eidos 4K?
No. The Eidos information shown for this system specifies 1080p Full HD imaging at 60 FPS, not 4K.
Does it have a built-in monitor?
Yes. The Eidos system includes a tiltable 11.6-inch built-in monitor.
Does it support HDMI?
Yes. The system has HDMI output for additional monitor viewing.
Does it require a computer for measurement?
No. The Eidos feature sheet identifies built-in measurement capabilities with no PC required.
What is the magnification range?
The Eidos macro-lens system is listed with a 7x–70x magnification range.
What type of stand is included with 26800B-719?
This configuration includes an Ultra-Glide boom stand with smooth horizontal adjustment over a 23-inch (584 mm) reach.
What is the Aven item number?
The manufacturer item number is 26800B-719.
