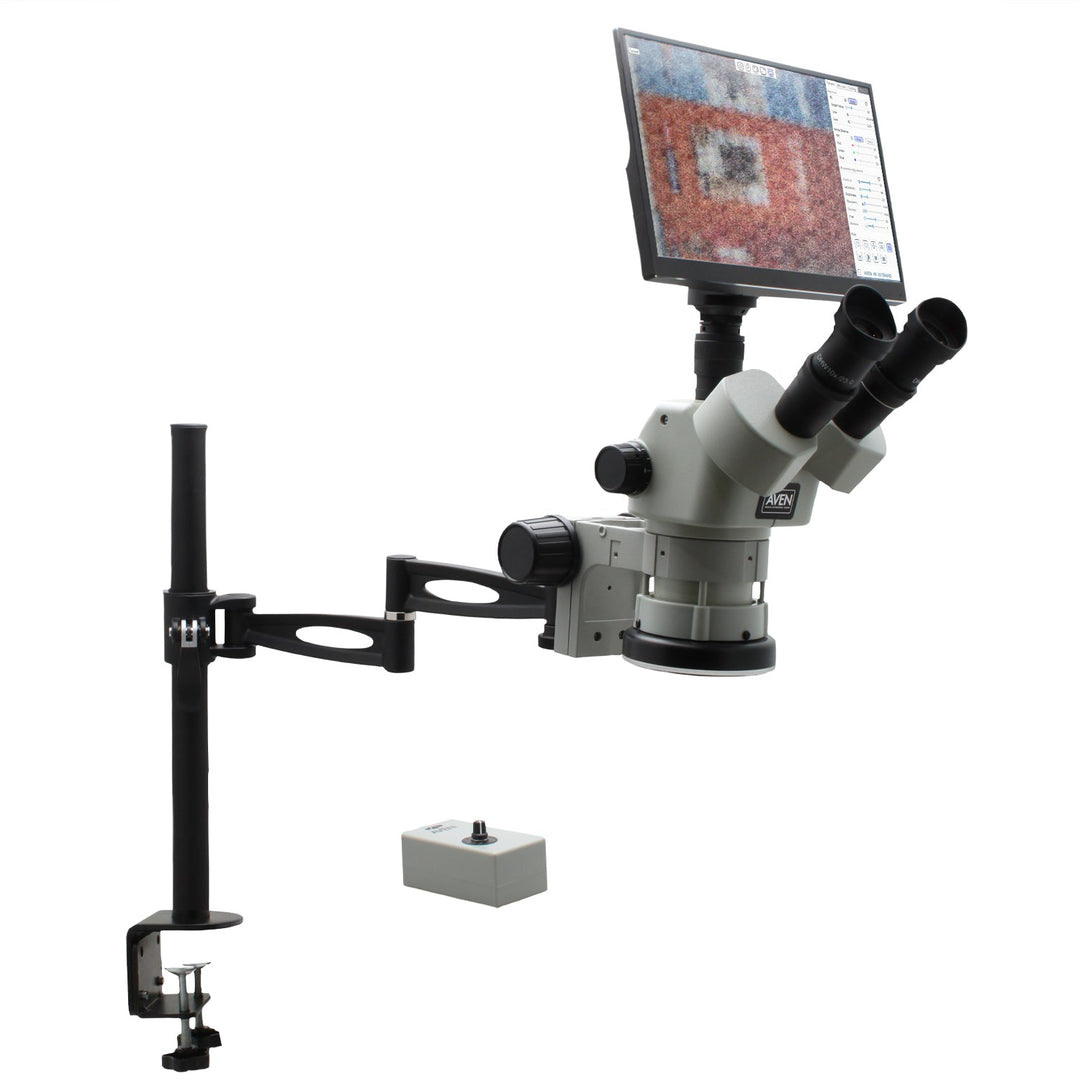

Aven 26800B-710 SPZV-50 Stereo Zoom Microscope, 6.7x–50x with Eidos Camera Monitor and Articulating Arm Stand
Aven 26800B-710 SPZV-50 Stereo Zoom Microscope, 6.7x–50x with Eidos Camera Monitor and Articulating Arm Stand
The Aven 26800B-710 combines SPZV-50 stereo optics with the Mighty Cam Eidos 4K camera and integrated 11.6-inch monitor on a compact articulating arm stand. Inspect through the eyepieces or view the image on screen, make calibrated on-screen measurements, and capture images and video without a PC. The 6.7x–50x optical zoom provides a range of inspection views, while the integrated display provides a separately specified 19x–143x on-screen range.
Best Uses / Applications
- Electronics and PCB inspection: Examine component placement, solder joints, traces and visible assembly defects using optical or digital viewing.
- Precision assembly and repair: Position the microscope over detailed bench work using the dual-joint articulating arm.
- Quality control and production documentation: Capture images and video of inspected features for review and traceability.
- Medical device, aerospace and automotive inspection: Inspect small manufactured parts and assemblies during visual quality checks.
- Research, training and education: Share a live inspection view on the integrated monitor or an external HDMI display.
Key Features
- True trinocular head supports simultaneous eyepiece and digital viewing.
- Continuous 6.7x–50x optical zoom with click-stop adjustment for repeatable settings.
- 8.29MP CMOS camera delivers 3840 × 2160 live imaging at 30 FPS.
- Tilting 11.6-inch IPS display supports eyepiece-free inspection.
- Built-in measurement, calibration and annotation tools operate without a PC.
- MicroSD and USB storage support image and video capture.
- HDMI output supports an external display; USB-C connectivity supports data transfer and third-party imaging integration. Third-party software is not included.
- Integrated 60-LED ring light with dimmer control.
- Table-clamped articulating arm provides adjustable positioning without a conventional tabletop base.
Specifications
| Specification | Details |
|---|---|
| Brand / Part number | Aven Tools / 26800B-710 |
| Microscope | SPZV-50 stereo zoom; Greenough optical system |
| Optical magnification | 6.7x–50x with supplied 10x eyepieces |
| On-screen magnification | 19x–143x on the integrated Eidos 4K screen, as specified for this system |
| Zoom ratio | 7.46:1 |
| Viewing head | True trinocular; 360° rotatable; 45° inclined eyepiece tubes; C-mount camera port |
| Eyepieces | Two 10x eyepieces, field number 23; diopter adjustment on both tubes |
| Camera | Mighty Cam Eidos 4K, model 26100-261; 8.29MP, 1/1.8-inch CMOS sensor |
| Display | 11.6-inch tilting IPS screen |
| Live image | 3840 × 2160 at 30 FPS |
| Video recording resolutions | 1920 × 1080 or 3840 × 2160 |
| Connectivity | HDMI output and USB-C connections |
| Storage | USB storage and MicroSD card |
| Measurement tools | Line, angle, diameter, radius, circle, polygon and arc tools; calibration, annotation, screenshots and table-data export |
| Illumination | Integrated 60-LED ring light with dimmer control |
| Stand | 26800B-553 compact articulating arm post stand with microscope mount and table clamp |
| Total arm length | 16.33 inches |
| Table clamp opening | Up to 3.93 inches |
| Stand material | Steel and aluminum |
Optical Viewing vs. Digital Inspection
| Inspection mode | Best fit | Available capabilities |
|---|---|---|
| Eyepiece viewing | Direct stereo viewing during detailed inspection and assembly | 6.7x–50x optical magnification through supplied 10x eyepieces |
| Integrated Eidos display | Screen-based inspection, measurement and documentation | 4K live imaging, calibrated measurement tools, image/video capture and 19x–143x specified screen magnification |
| External HDMI display | Sharing the inspection image for review or training | Live output to an external monitor or projector |
Included Components
The system includes the SPZV-50 microscope, compact articulating arm stand and Mighty Cam Eidos 4K camera/monitor. Aven lists the Eidos camera package with a power supply, HDMI-to-mini-HDMI cable, wireless mouse and transmitter, 16GB MicroSD card, USB-C-to-USB-A MicroSD card reader and USB-C-to-USB-A mouse-transmitter adapter. The microscope package lists two 10x eyepieces, rubber eyeguards, a dust cover and instruction manual.
Frequently Asked Questions
Does the Aven 26800B-710 require a computer?
No. Live viewing, built-in measurement and image/video capture can be handled within the Eidos camera/monitor system. A PC is optional for compatible third-party imaging workflows.
Can I use the eyepieces and camera simultaneously?
Yes. The SPZV-50 has a true trinocular head for simultaneous optical and digital viewing.
Is 143x the microscope's optical magnification?
No. Optical magnification is 6.7x–50x with the supplied eyepieces. The 19x–143x figure describes the displayed image on the integrated Eidos screen, not additional optical zoom.
Can I measure features without external software?
Yes. Built-in tools include calibration, line, angle, diameter, radius and circle measurements, plus annotations and screenshots. Calibrate the system appropriately for the magnification and measurement task.
Can I save inspection images and videos?
Yes. The Eidos system supports image and video capture using MicroSD and USB storage. Aven lists a 16GB MicroSD card in the camera package.
Can the image be displayed on another monitor?
Yes. HDMI output supports live viewing on an external monitor or projector.
How is the microscope positioned at the bench?
The compact articulating arm uses dual joints and a table clamp. The listed arm length is 16.33 inches and the clamp opens up to 3.93 inches.
