Aven 26700-424-553 Cyclops 4K Digital Microscope with Articulating Arm Stand and 22-Inch Monitor
Aven 26700-424-553 Cyclops 4K Digital Microscope with Articulating Arm Stand and 22-Inch Monitor

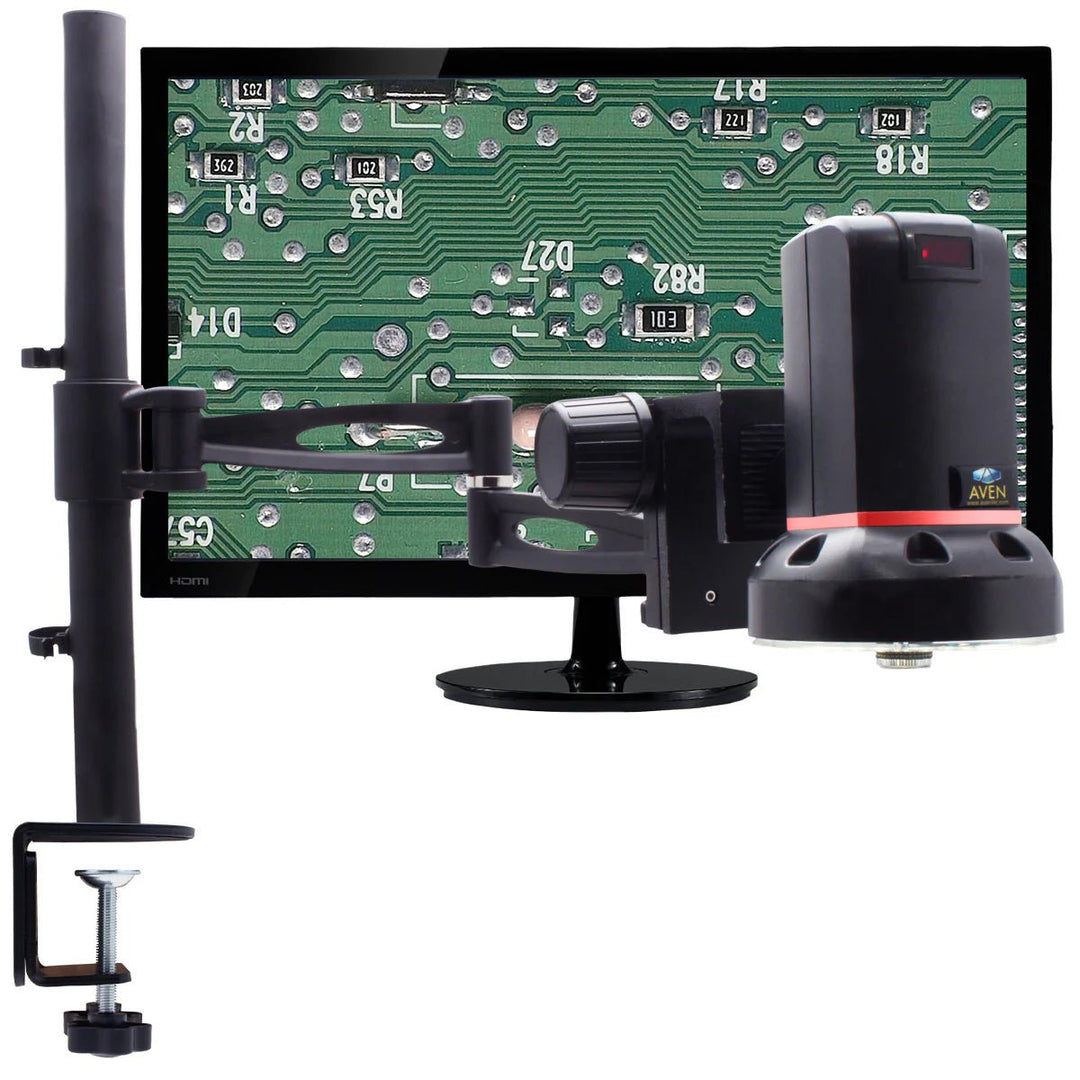

The Aven 26700-424-553 Cyclops 4K digital microscope bundle combines an 8-million-pixel CMOS camera, included 4x objective, articulating arm stand and 22-inch LCD HD monitor. The table-clamp mount keeps the microscope support at the bench edge, while two articulating joints and a 360-degree ball joint help position the optics over the inspection area. View through HDMI without a computer or connect to a PC through USB for software-based capture, measurement and annotation.
Bring the microscope over a connector or assembly, adjust its angle, then use the remote to refine focus while watching the screen. When the inspection is finished, move the arm out of the way to reclaim the work area.
Best Uses / Applications
- PCB and electronics inspection: Examine visible solder joints, component placement and connector features.
- Bench-edge inspection stations: Support the microscope from a table clamp rather than a freestanding base in the work area.
- Angled surface examination: Position the ball joint and articulating arm to view accessible features from different directions.
- Assembly and repair documentation: Save still images to MicroSD or use PC software for image and video records.
- Quality-control measurement: Use calibrated software tools to measure and annotate suitable visible features.
- Training and collaborative review: Share the live image on the included 22-inch monitor.
Key Features
- Cyclops 4K microscope platform with 8-million-pixel CMOS sensor and included 4x objective.
- 22-inch LCD monitor with 1920 x 1080 resolution.
- HDMI monitor viewing and USB 2.0 PC connectivity.
- Built-in illumination with 30 white LEDs.
- Articulating arm with two joints, vertical post and dual-lock table clamp.
- 360-degree ball joint and N-type focus mount with E-arm.
- IR remote for microscope illumination, focusing, capture and HDMI/USB mode selection.
- MicroSD still-image capture in HDMI mode without a PC.
- PC software supports live viewing, image/video capture, measurement, annotation and time-lapse photography.
Microscope and Monitor Specifications
| Manufacturer / Bundle SKU | Aven Tools / 26700-424-553 |
|---|---|
| Microscope | 26700-424 Cyclops 4K digital microscope |
| Sensor | 8-million-pixel CMOS |
| Included objective | 4x |
| Manufacturer-listed magnification | 13x–140x with 4x objective, based on a 24-inch monitor |
| Included monitor | 26700-406; 22-inch LCD HD monitor |
| Monitor resolution / Input | 1920 x 1080 pixels / 12 V DC |
| HDMI output | 1080p (1920 x 1080), per supplied table |
| USB interface | USB 2.0 |
| Illumination | 30 white LEDs |
| Still-image capture | Via software or MicroSD card |
| Video capture | Via software |
| MicroSD support | 2–128 GB; FAT32 format |
| Microscope focus control | IR remote control |
| Microscope adapter | AC 100–240 V, 50/60 Hz input; DC 5 V / 2 A output |
| Microscope dimensions | 106 x 106 x 152 mm |
“Cyclops 4K” is the manufacturer's model designation. The supplied table lists 1080p HDMI output, and the included monitor is Full HD, not a 4K display. The 13x–140x displayed magnification reference is based on a 24-inch monitor; this bundle includes a 22-inch monitor, so displayed magnification differs. Calibrate measurements for the configuration in use.
Stand and Mount Specifications
| Articulating stand | 26800B-553 |
|---|---|
| Post height | 17.7 inches |
| Total arm length | 16.33 inches |
| Table-clamp opening | Up to 3.93 inches |
| Stand material / Weight | Steel and aluminum / 6.5 lb |
| Ball joint | 26700-412; 360-degree positioning |
| Focus mount | 26800B-577 N-type focus mount with E-arm |
| Holder adapter | N adapter |
| Listed focus distance | 50 mm |
| Coarse focus distance per rotation | 20 mm |
| E-arm horizontal / Z rotation | 360 degrees / 180 degrees |
| E-arm mounting adapter | 5/8-inch end adapter |
| Mount construction | Metal; black spray-painted finish |
Confirm that the bench edge and mounting surface are suitable for the clamp and intended setup. Post height and focus-mount dimensions are mechanical specifications, not optical working-distance claims.
Included Configuration
- 26700-424 Cyclops 4K digital microscope with 4x objective.
- 26800B-553 articulating arm stand with microscope mount and table clamp.
- 26700-406 22-inch LCD HD monitor.
- 26700-412 360-degree ball joint.
- 26800B-577 N-type focus mount with E-arm.
- IR remote control and MicroSD card for HDMI-mode still capture.
- HDMI cable, USB cable, microscope power adapter and user guide, as listed for the microscope platform.
Configuration and Accessory Comparison
| Option | Selection Guidance |
|---|---|
| This 26700-424-553 bundle | Articulating arm, table clamp, ball joint and 22-inch monitor for flexible bench-edge positioning. |
| 26700-424-505 bundle | Post stand with dual gooseneck LEDs and LED backlighting instead of this articulating-arm configuration. |
| HDMI mode | Monitor viewing and still-image capture to MicroSD without a PC. |
| USB PC mode | Software-based measurement, annotation, image/video capture and time-lapse. |
| Optional 10x objective | Manufacturer lists 231x–506x based on a 24-inch display; sold separately. |
| Optional polarized 4x lens | Helps reduce glare from reflective parts; sold separately. |
| Optional 4x long-focus lens | Manufacturer lists a 95–218 mm working distance for this accessory; sold separately. |
Frequently Asked Questions
Does this configuration include a monitor?
Yes. The supplied bundle list includes a 22-inch LCD monitor, part 26700-406, with 1920 x 1080 resolution.
What stand comes with this bundle?
It includes the 26800B-553 articulating arm post stand with table clamp, plus the listed ball joint and N-type focus mount with E-arm.
How large is the table-clamp opening?
The manufacturer lists an opening up to 3.93 inches. Confirm bench-edge suitability and installation requirements before mounting.
What lighting is included?
The microscope has 30 white LEDs. The supplied bundle list does not identify the separate dual-gooseneck and backlit stand found in the 26700-424-505 bundle.
What is the magnification range?
The manufacturer lists 13x–140x with the included 4x objective, based on a 24-inch monitor. Displayed magnification changes with screen size; this bundle includes a 22-inch screen.
Does it provide 4K HDMI viewing?
The supplied specification table lists 1080p HDMI output. The Cyclops 4K model name does not establish 4K output on the included HD monitor.
Can I use it without a computer?
Yes, for HDMI viewing and MicroSD still-image capture. PC software is used for the listed measurement, annotation and video functions.
Can the microscope move out of the way?
The articulating arm can rotate at its two joints and be positioned along the post, allowing it to be moved away from the immediate work area when not in use.
Are the 10x, polarized and long-focus lenses included?
No. They are optional accessories; the standard included objective is 4x.
Related Resources
Explore the Aven Tools collection and PCB Rework & Precision Tools resource hub for related inspection equipment and bench applications.
