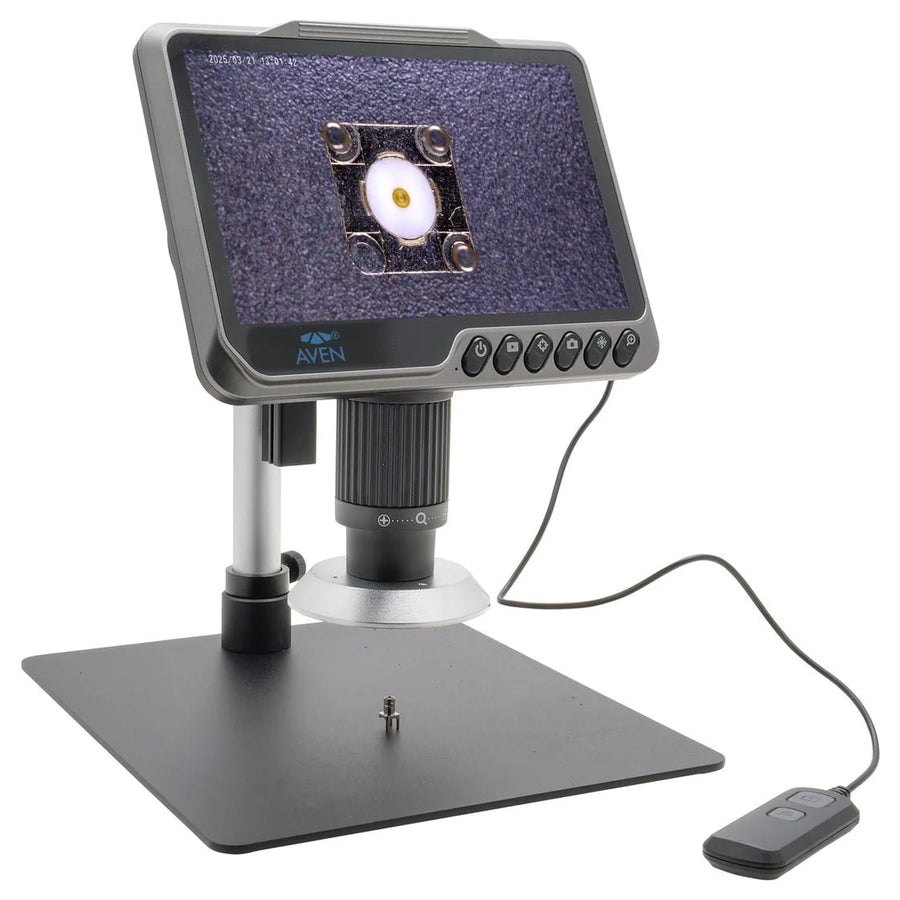

Aven Tools 26700-221 ClearVue 2.0 Digital Microscope with 8-inch IPS Display
Aven Tools 26700-221 ClearVue 2.0 Digital Microscope with 8-inch IPS Display
The Aven 26700-221 ClearVue 2.0 is a complete digital inspection kit combining Full HD imaging with a built-in 8-inch IPS TFT LCD, adjustable metal ring-rack stand and diffuser. Its 2 MP Sony CMOS sensor delivers 1920 × 1080 images at up to 30 frames per second, letting you inspect components and surface details without looking through microscope eyepieces.
Position your subject beneath the microscope, adjust the stand for the selected magnification and capture an observation using the included shutter-release cable. A 32 GB MicroSD card stores captured images, while HDMI connectivity supports viewing on a compatible larger display. The included rechargeable battery makes it easier to move the kit between inspection benches and classrooms.
Best Uses / Applications
- Electronics inspection: circuit boards, solder joints, connectors and wiring.
- Examining small mechanical parts and reflective metal surfaces.
- Quality-control image documentation and component comparison.
- Classroom demonstrations and material observation.
- Collectibles, jewelry, model-making, textiles and detailed craft work.
Key Features
- 2 MP CMOS sensor with Full HD 1920 × 1080 imaging at 30 FPS.
- Built-in 8-inch IPS display for shared, eyepiece-free viewing.
- Manufacturer-listed 2.5X–15X and 60X magnification settings.
- Adjustable metal ring-rack stand for positioning.
- Included diffuser helps soften reflected light and reduce glare.
- USB-C and HDMI connectivity.
- 2550 mAh 18650 rechargeable lithium-ion battery included.
- 32 GB MicroSD card and snapshot/shutter-release cable included.
Technical Specifications
| Manufacturer / MPN | Aven Tools / 26700-221 |
|---|---|
| UPC | 766955377764 |
| Model | ClearVue 2.0 |
| Sensor | 2 MP, 1/2.8-inch Sony CMOS |
| Effective pixels | 1920 × 1080 |
| Display | 8-inch IPS TFT LCD |
| Frame rate | 30 FPS |
| Magnification listed by Aven | 2.5X–15X and 60X; refer to manufacturer optical data for setup conditions |
| Smallest observable object size | Manufacturer-listed 0.01 mm; not a measurement-accuracy rating |
| Battery | 2550 mAh 18650 lithium-ion rechargeable battery, included |
| Power supply input | 100–240 V, 50/60 Hz, 0.4 A |
| Power supply output | 5 V, 2.0 A; 10 W maximum |
| Microscope dimensions | 199 × 213 × 104 mm / 7.83 × 8.39 × 4.09 inches |
| Stand base dimensions | 250 × 210 mm / 9.84 × 8.27 inches |
| Stand post height | 257 mm / 10.12 inches |
| Manufacturer-listed weight | Approximately 480 g / 1.06 lb; not identified as complete-kit shipping weight |
| Connections | USB-C and HDMI |
| Included storage | 32 GB MicroSD card |
| Stand | Adjustable metal ring-rack stand |
| Country of origin listed by Aven | Taiwan |
Aven directs readers to its optical data for working distance and field of view. Those numeric tables were not included in the supplied information, so no working-distance or field-of-view values are inferred here. Battery runtime and computer operating-system compatibility are also not specified.
Included Kit Contents
- ClearVue 2.0 digital microscope with 8-inch IPS TFT LCD.
- Type-C USB cable and HDMI cable.
- Power adapter.
- 2550 mAh 18650 lithium-ion rechargeable battery.
- 32 GB MicroSD card.
- Snapshot/shutter-release cable.
- Adjustable metal ring-rack stand.
- Diffuser.
- User guide and manual.
Choosing a Viewing Setup
| Setup | Best use | Consideration |
|---|---|---|
| Built-in 8-inch display | Bench inspection and portable observation | View the subject without microscope eyepieces |
| HDMI external display | Demonstrations and shared viewing | Requires a compatible external display, not listed among kit contents |
| Lower magnification | Positioning and examining larger subjects | Aven describes greater working space; check optical data for exact distances |
| Higher magnification | Observing smaller details | Aven describes closer positioning; use a stable setup |
Frequently Asked Questions
Is a separate monitor required?
No. ClearVue 2.0 has a built-in 8-inch IPS display. HDMI allows connection to a compatible larger display when needed.
What magnification settings are listed?
Aven lists 2.5X–15X and 60X. Refer to its optical data for the setup conditions, working distances and field of view.
Does 0.01 mm mean measurement accuracy?
No. Aven labels 0.01 mm as the smallest observable object size, not a calibrated measurement-accuracy specification.
Does it include a rechargeable battery?
Yes. A 2550 mAh 18650 lithium-ion battery is included. Runtime is not specified in the supplied information.
Can I save inspection images?
Yes. Aven includes a 32 GB MicroSD card and a snapshot/shutter-release cable for image capture.
What does the diffuser do?
It helps soften and control reflected light, making shiny or reflective subjects easier to observe.
Is the stand included?
Yes. The kit includes an adjustable metal ring-rack stand with a 250 × 210 mm base and 257 mm post.
Is computer measurement software included?
The supplied package list does not identify measurement software. Do not assume software or operating-system support from USB-C connectivity alone.
